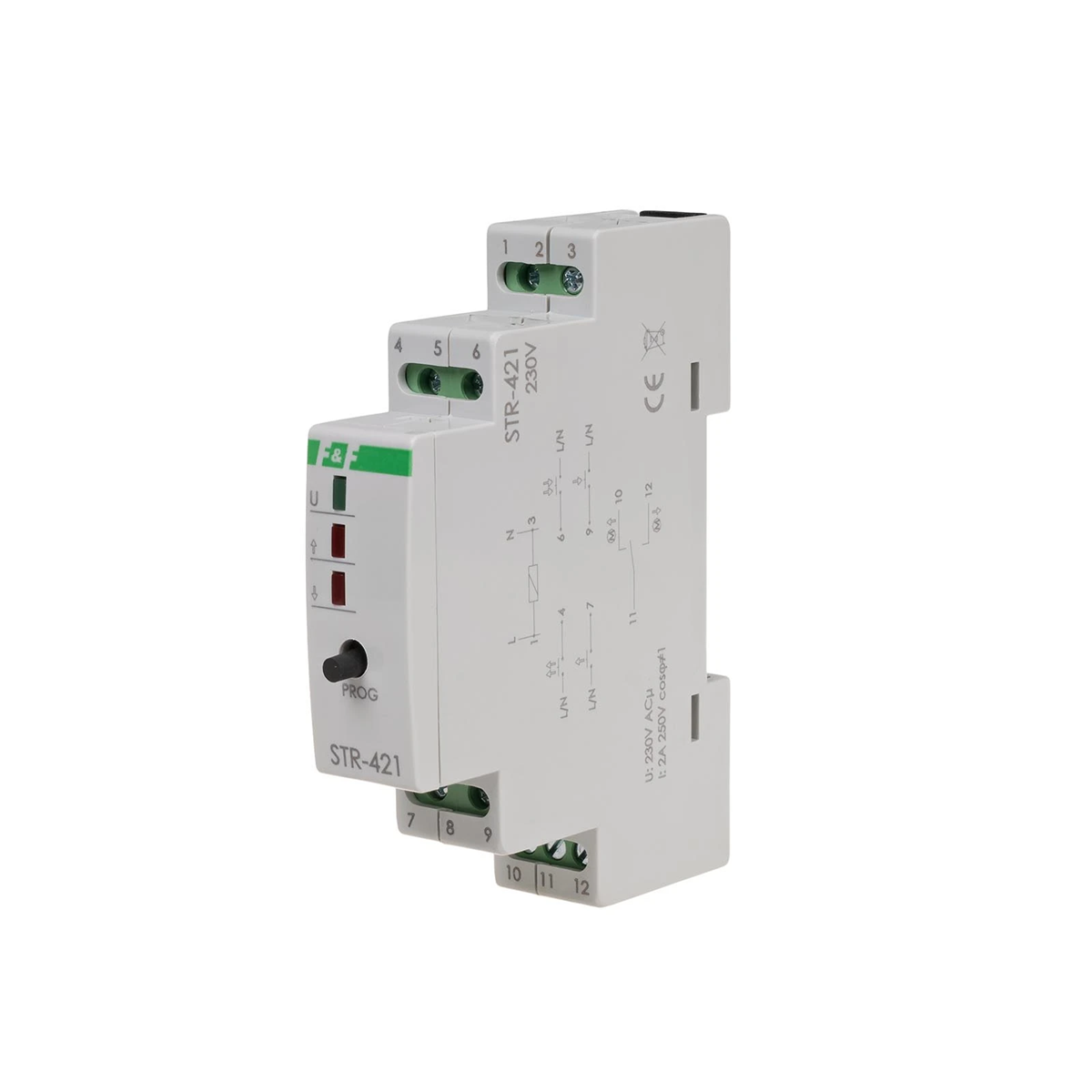

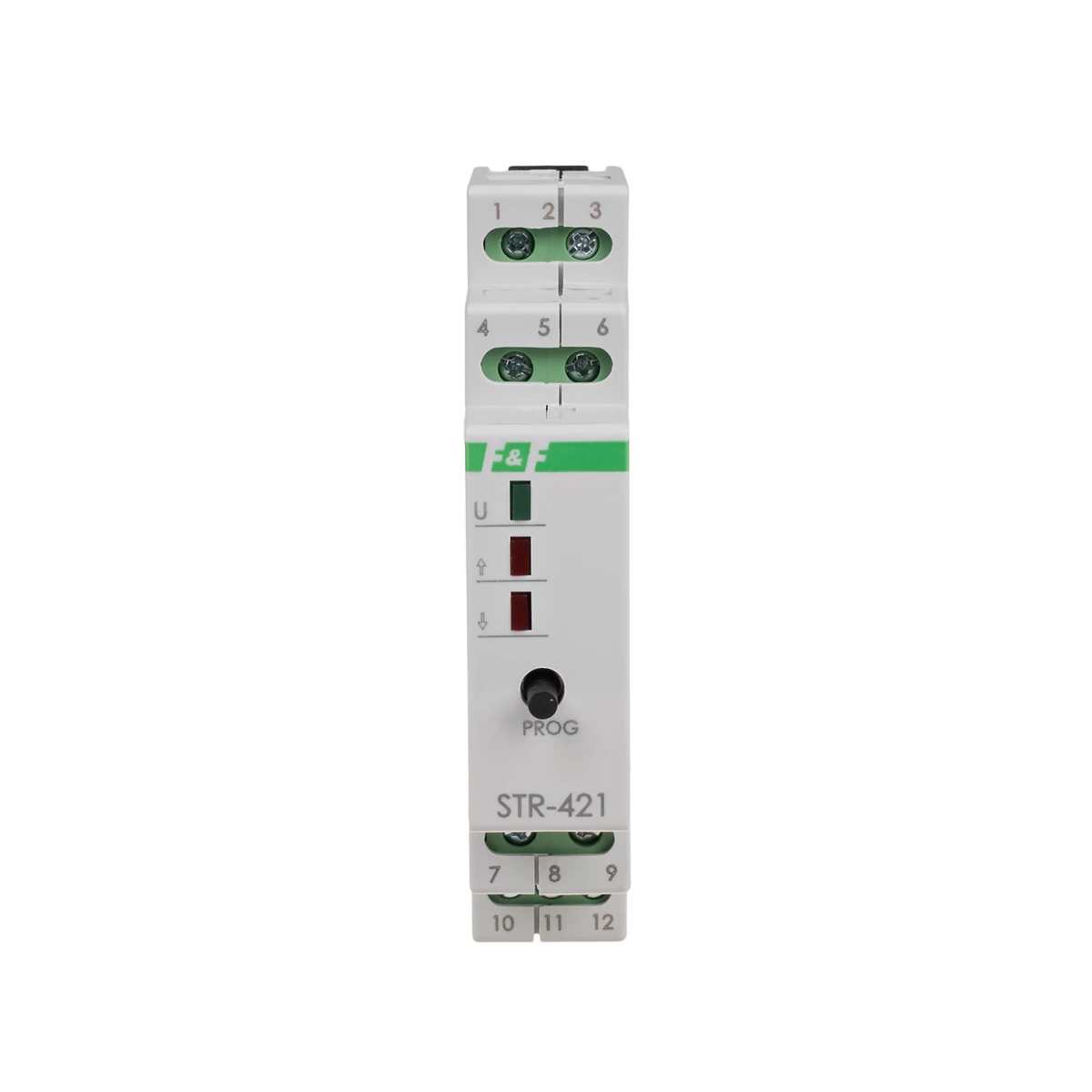

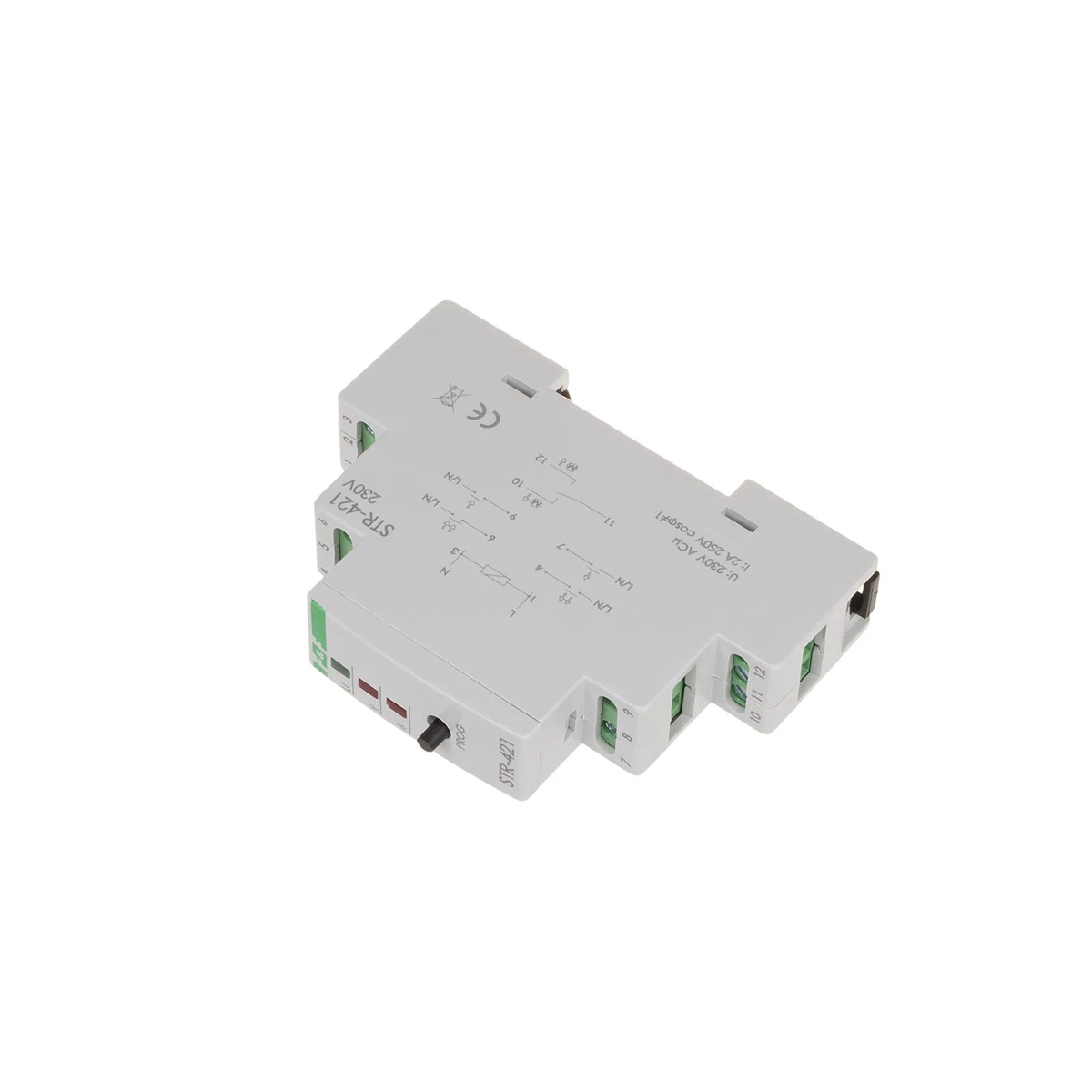

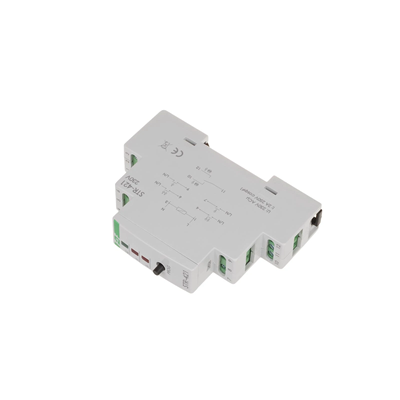

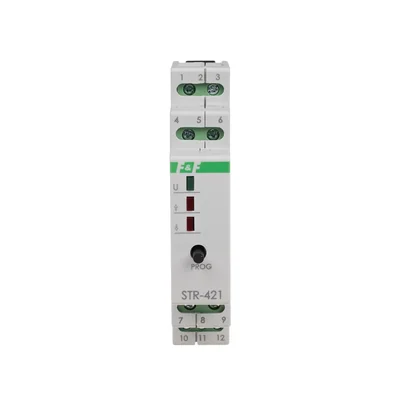

STR-421 two-button roller shutter controller STR-421
local index:
APT023FIFQ
Catalog No:
STR-421
EAN code:
5908312591443
Price:
29,98 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
The STR controller is designed to control roller shutters (up-down) or other objects (e.g. gates) driven by a single-phase AC electric motor by means of momentary switches (e.g. bell switches). The controller can work as a stand-alone device (intended for opening/closing one roller shutter), and it is also possible to combine controllers into groups enabling central control of many roller shutters.
Technical data
-
Power [W]1
-
Rated voltage [V]230
-
AC-3 load current [A]<2
-
Working temperature [°C]-25-50
-
Package height [mm]150
-
Package weight [kg]0.1
-
Switching time - programmable0-10
-
InstallationOn the TH-35 rail
-
Control pulse current for L/N [mA]<1
-
connection2.5mm screw terminals
-
Dimensions1 module (18mm)
-
Package width [mm]20
-
Control pulse current [A] for L/N [mA]<1
-
PKWIU27.12.24.0
Other technical data
-
Assembly arrangementBasic element
-
With brightness sensor connectionNo
-
Suitable for rain sensorNo
-
With Astro programNo
-
With memory functionYes
-
Switch-off protectionNo
-
MaterialPlastic
-
Halogen freeYes
-
TransparentNo
-
Max. switching power300 W
-
Type of fasteningOther
-
Integrated timerNo
-
Suitable for wind sensorNo
-
With glass breaking detector connectionNo
-
Substation inputNo
-
Random generatorNo
-
Mounting methodOther
-
Material qualityThermoplastic
-
Surface finishingMatt
-
Suitable for degree of protection (IP)IP20
-
Nominal voltage230 V
