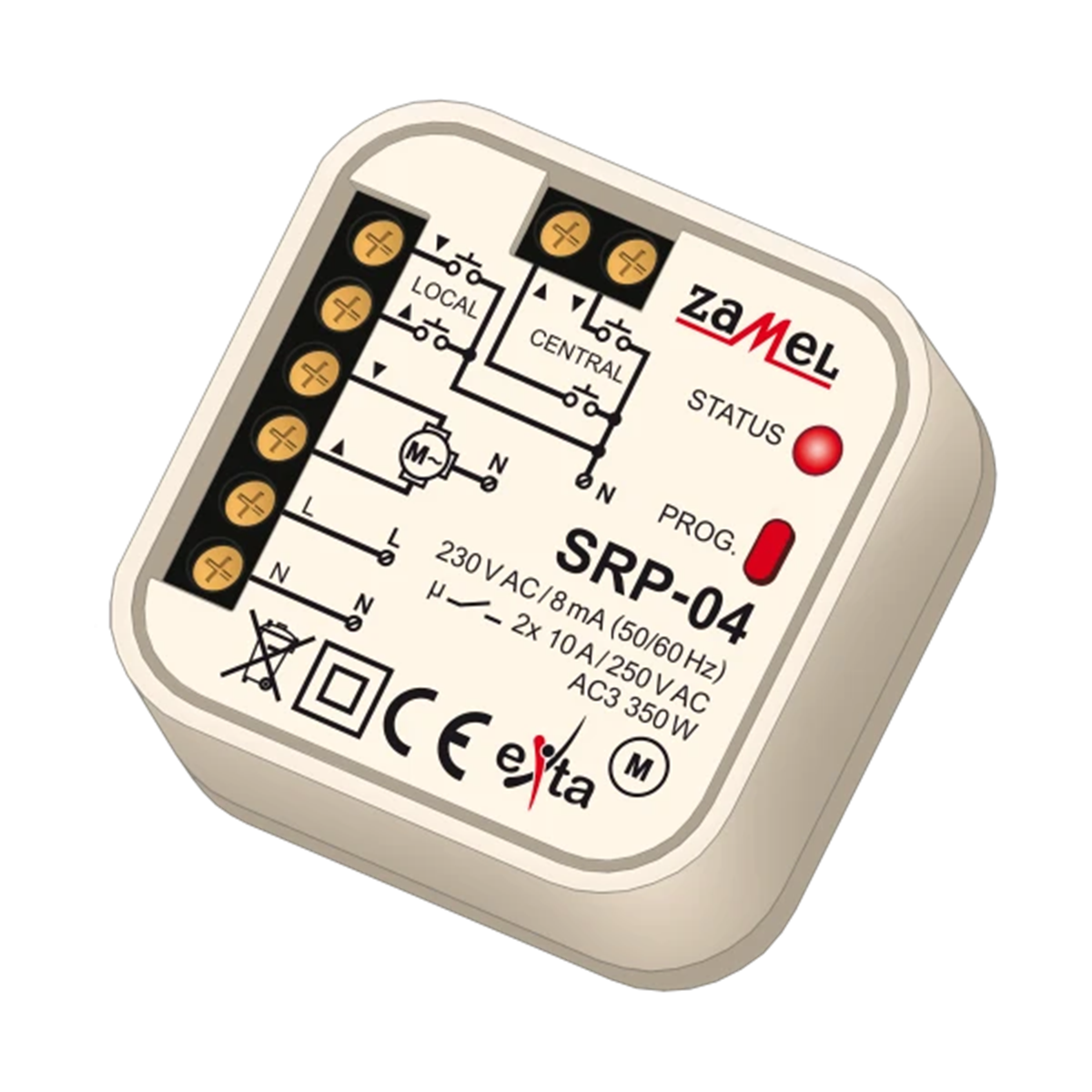

SRP-04 universal flush-mounted wired roller shutter controller EXT10000225

local index:
APT002ZAME
Catalog No:
EXT10000225
EAN code:
5903669089711
Manufacturer: ZAMEL
Overvoltage category: II
Protection class: II
Rated voltage [V]: 230
Price:
29,72 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 18 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Radio roller shutter controller universal flush mounted wired SRP-04. For controlling window blinds or other devices driven by 230 V AC single-phase motors.

  • maximum load: 350W (2A) - class AC-3
  • control signal: short impulse from the N line
  • optical indication of roller shutter movement: red LED
  • default roller shutter movement time: 120 seconds
  • programmable roller shutter movement time: from 1 second to 10 minutes
  • relay contact parameters: 2NO 8A/250V AC AC-3 2000VA (voltage contacts)
  • number of connection terminals: 8
  • cross-section j connecting wires: 0.2-2.5mm²
  • operating temperature range: from -10°C to 55°C
  • mounting: installation box with a diameter of 60mm

Technical data

  • Overvoltage category
    II
  • Rated voltage [V]
    230
  • Level of security
    IP20
  • Dimensions (length x width x height) [mm]
    47.5x47.5x20
  • Operating temperature range [°C]
    -10...55
  • PKWIU
    27.12.40.0
  • Protection class
    II
  • Power consumption in standby mode [W]
    0.22
  • Degree of contamination
    2
  • Power terminals
    L,N
  • Power consumption in operating mode [W]
    0.55
