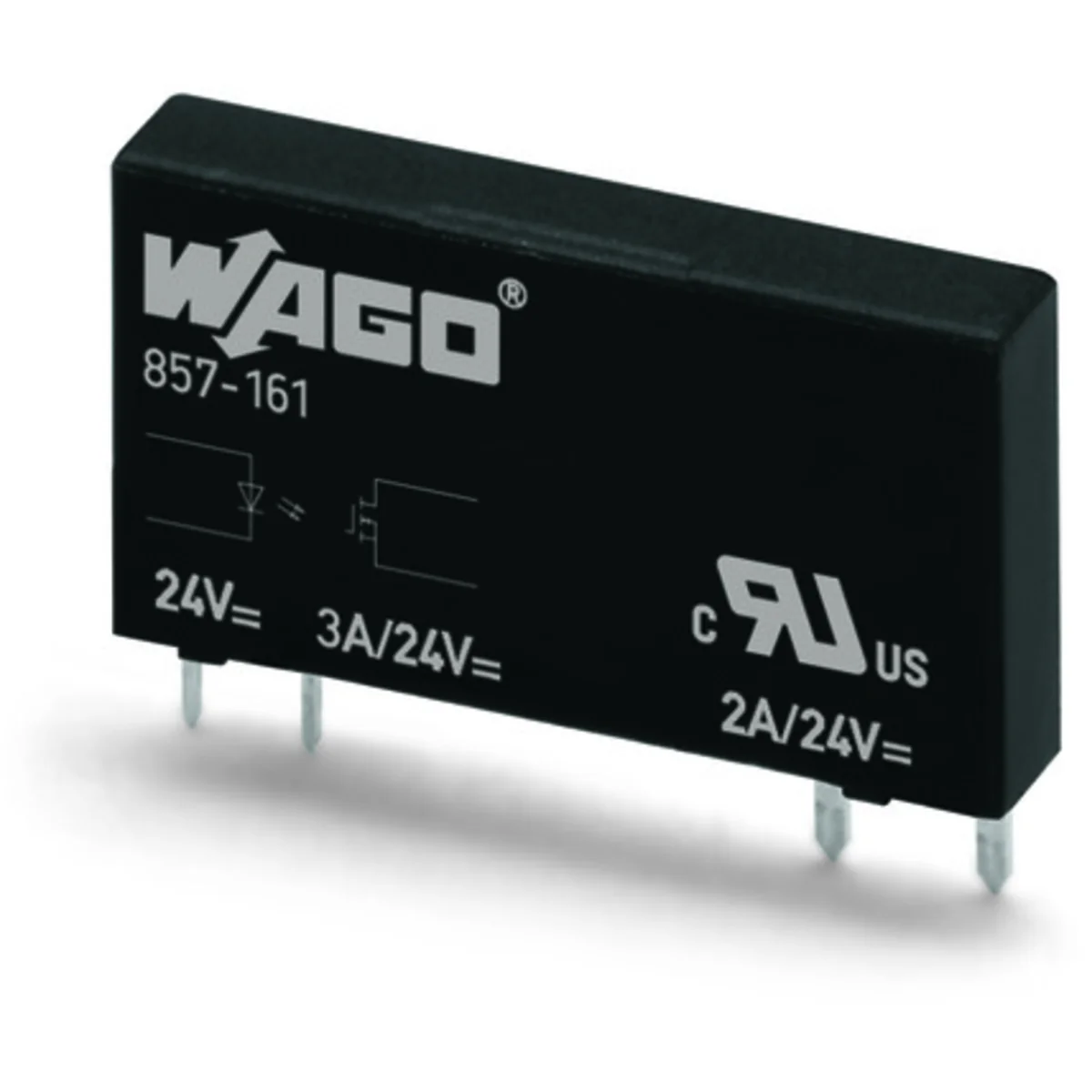

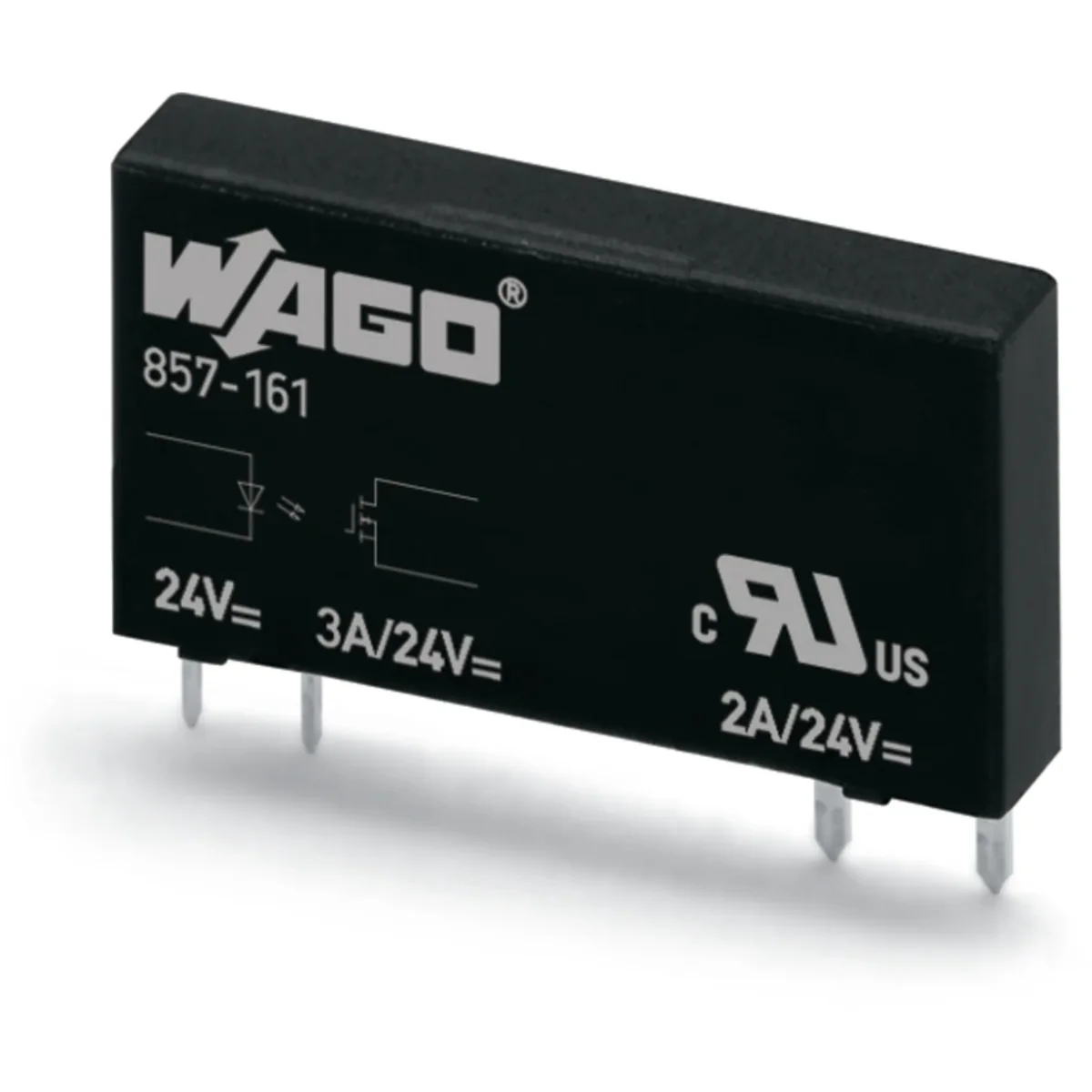

Solid state relay 24V DC 2A 857-161

local index:
APE001WAGO
Catalog No:
857-161
EAN code:
4045454997632
Manufacturer: WAGO ELWAG
Switching voltage [V]: 0-24
Forward voltage at maximum switching current [mV]: < 120
Input rated current [mA]: 7
Price:
406,07 €
gross / pkg.
(including VAT 23%)
20,30 € gross/pcs.
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Solid-state relay Spare plug-in optocoupler 24 V DC

Technical data

  • Switching voltage [V]
    0-24
  • Input rated current [mA]
    7
  • Peak blocking voltage [V]
    33
  • Rated input voltage [V]
    DC 24
  • Forward voltage at maximum switching current [mV]
    < 120
  • Series
    857
  • Pieces in the package
    20

Other technical data

  • Input voltage
    18 ... 30 V
  • Output voltage
    0 ... 24 V
  • Rated operation current Ie
    0.007 A
  • With LED indication
    No
  • Type of voltage (input voltage)
    DC
  • Type of output voltage
    DC
  • Type of digital output
    Other

Bulk packaging

A kind of package Karton
Quantity 1 pkg.
Weight (kg) 0,098
Volume (m3) 0,000
Width (m) 0,075
Length (m) 0,105
Depth (m) 0,020
