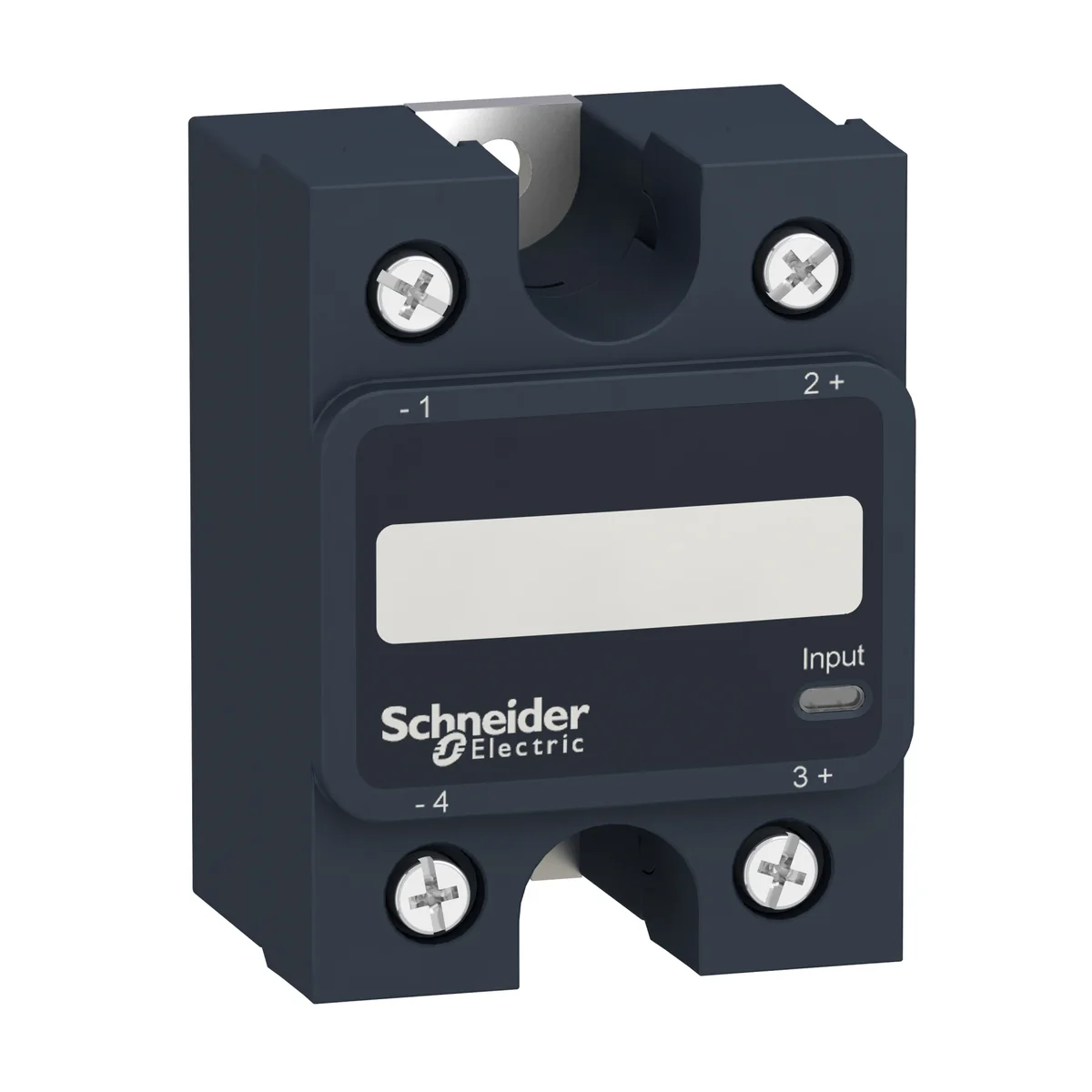

Solid state relay 1SSR-4-32V DC output 48-660V AC 90A SSP1A490BDT

local index:
APE012SCHN
Catalog No:
SSP1A490BDT
EAN code:
3606485442099
Manufacturer: SCHNEIDER ELECTRIC
ambient temperature [°C]: From -40 to 125
Price:
125,20 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Solid state relay 1SSR-4-32V DC output 48-660V AC 90A

Technical data

  • ambient temperature [°C]
    From -40 to 125
  • PKWIU
    27.11.61.0

Other technical data

  • Rated control supply voltage AC 50 Hz
    48 ... 660 V
  • Rated control supply voltage DC
    4 ... 32 V
  • Operating voltage
    48 ... 660 V
  • Rated operation current Ie at AC-3
    90 A
  • Rated operation current Ie at AC-53a
    90 A
  • Number of phases
    1
  • Switching at zero-crossing
    No
  • Rated control supply voltage AC 60 Hz
    48 ... 660 V
  • Voltage type for actuating
    AC/DC
  • Rated operation current Ie at AC-1
    90 A
  • Rated operation current Ie at AC-51
    90 A
  • Rated operation current Ie at AC-53b
    90 A
  • Modular version
    No
