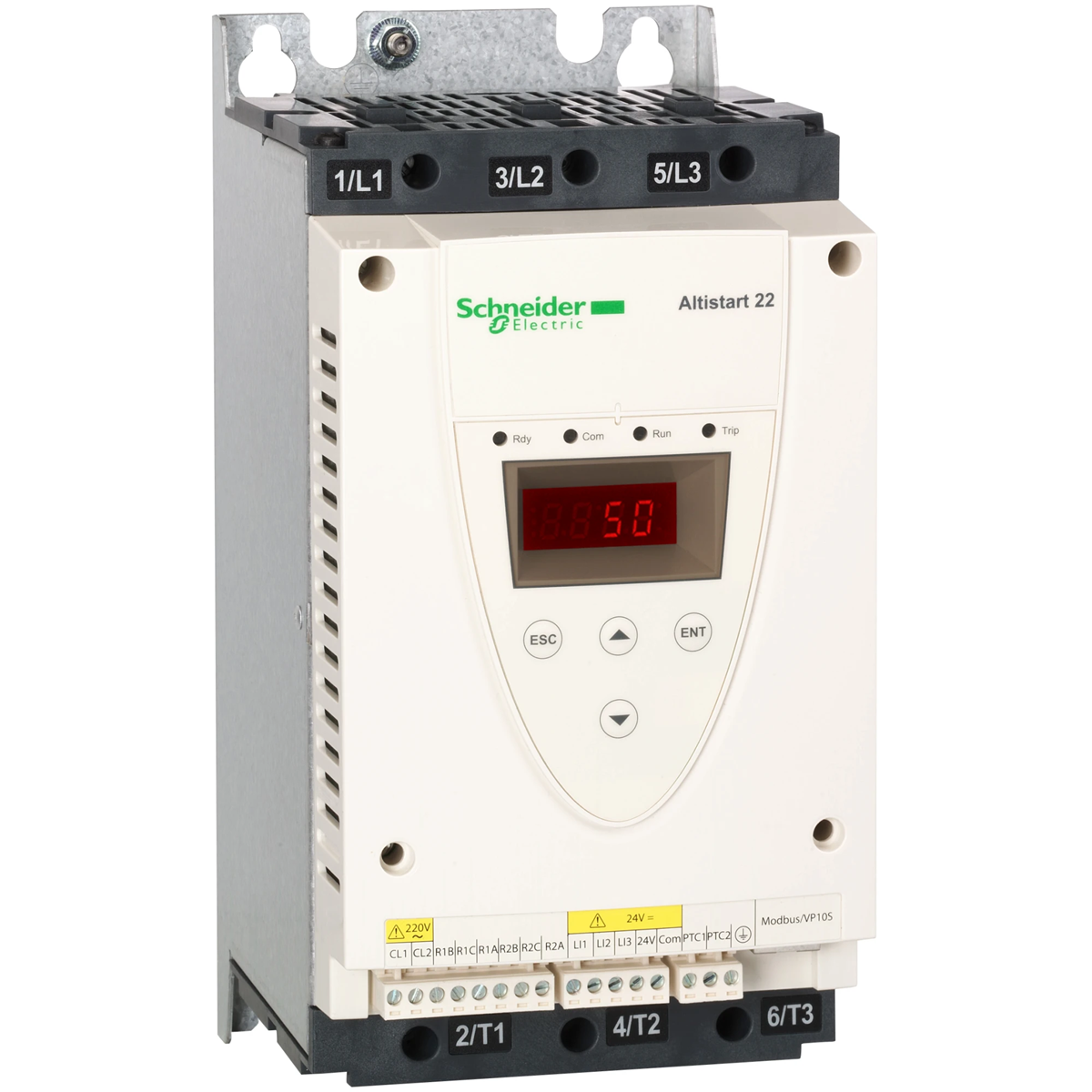

Soft starter ATS22 3 phase 230/440VAC 50/60Hz 22kW 47A IP20 ATS22D47Q
local index:
API127SCHN
Catalog No:
ATS22D47Q
EAN code:
3606480167201
Manufacturer:
SCHNEIDER ELECTRIC
Level of security: IP20
Price:
903,90 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Soft starter ATS22 3 phase 230/440VAC 50/60Hz 22kW 47A IP20
Technical data
-
Level of securityIP20
-
PKWIU27.90.41.0
Other technical data
-
Rated operation current Ie at 40 °C Tu47 A
-
Rated power three-phase motor, inline, at 230 V11 kW
-
Rated power three-phase motor, inside delta, at 230 V18.5 kW
-
FunctionSingle direction
-
With displayNo
-
Rated surrounding temperature without derating40 °C
-
Rated control supply voltage AC 60 Hz220 ... 230 V
-
Voltage type for actuatingAC
-
Release classOther
-
Rated operating voltage Ue230 ... 440 V
-
Rated power three-phase motor, inline, at 400 V22 kW
-
Rated power three-phase motor, inside delta, at 400 V45 kW
-
Internal bypassYes
-
Torque controlYes
-
Rated control supply voltage AC 50 Hz230 ... 230 V
-
Rated control supply voltage DC24 ... 24 V
-
Integrated motor overload protectionYes
-
Degree of protection (IP)IP20
