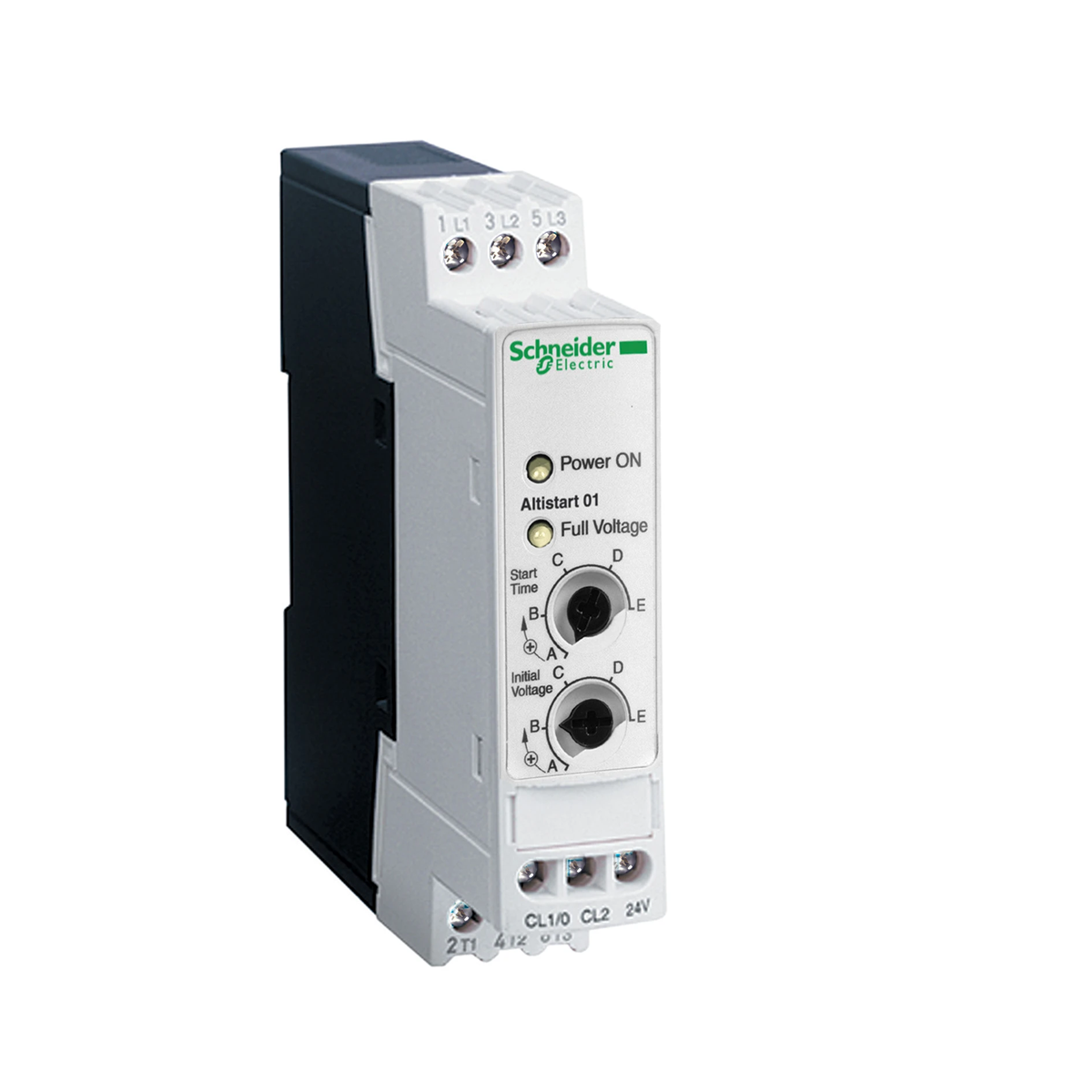

Soft starter ATS01 3 phase 110/480VAC 50/60Hz 3kW 6A IP20 ATS01N106FT

local index:
API141SCHN
Catalog No:
ATS01N106FT
EAN code:
3389110667141
Manufacturer: SCHNEIDER ELECTRIC
Level of security: IP20
Price:
154,50 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Soft starter ATS01 3 phase 110/480VAC 50/60Hz 3kW 6A IP20

Technical data

  • Level of security
    IP20
  • PKWIU
    27.90.41.0

Other technical data

  • Rated operation current Ie at 40 °C Tu
    6 A
  • Rated power three-phase motor, inline, at 230 V
    0.75 kW
  • Function
    Single direction
  • With display
    No
  • Rated surrounding temperature without derating
    40 °C
  • Rated control supply voltage AC 60 Hz
    110 ... 240 V
  • Voltage type for actuating
    AC/DC
  • Release class
    Other
  • Rated operating voltage Ue
    110 ... 480 V
  • Rated power three-phase motor, inline, at 400 V
    2.2 kW
  • Internal bypass
    Yes
  • Torque control
    No
  • Rated control supply voltage AC 50 Hz
    110 ... 240 V
  • Rated control supply voltage DC
    24 ... 24 V
  • Integrated motor overload protection
    No
  • Degree of protection (IP)
    IP20
