F&F

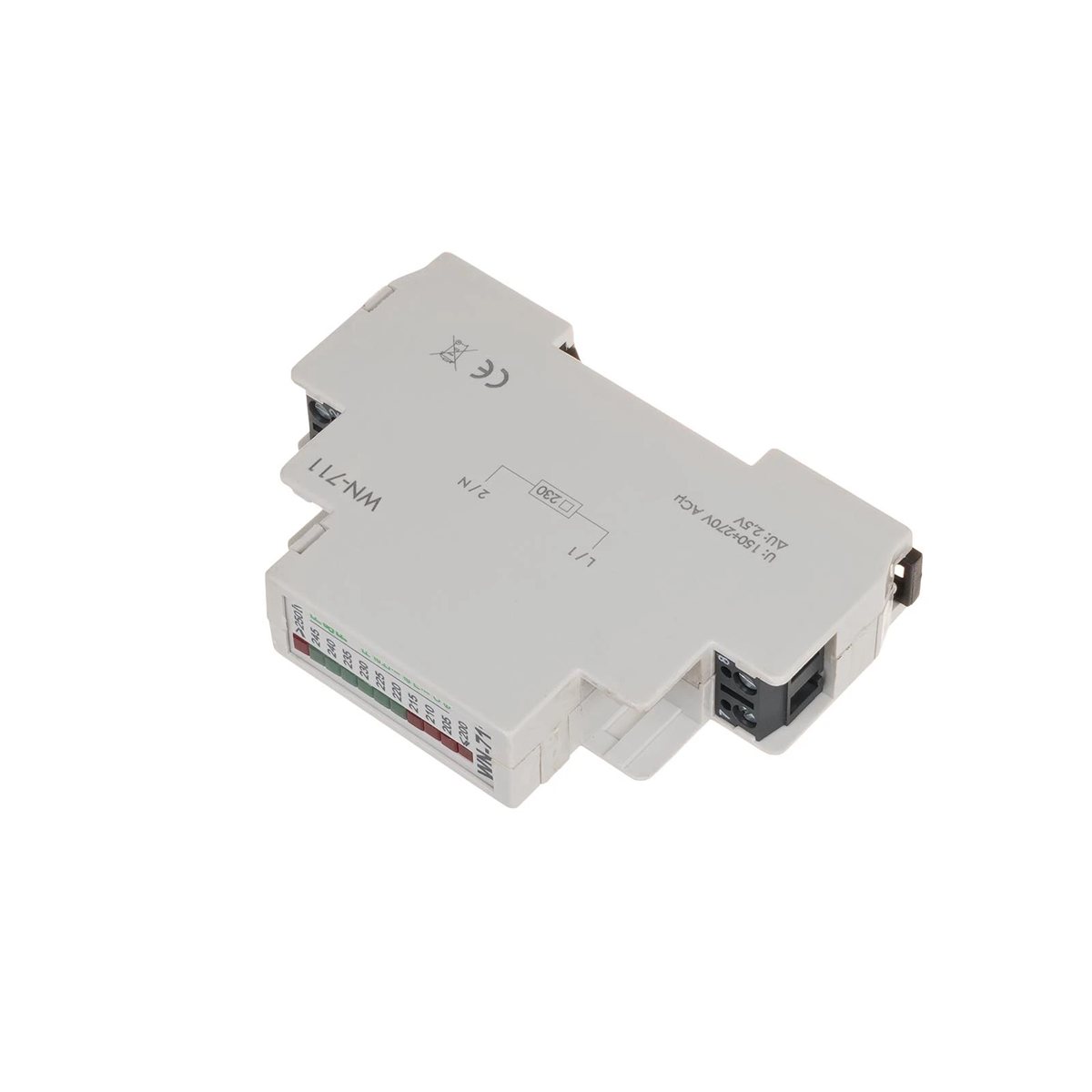

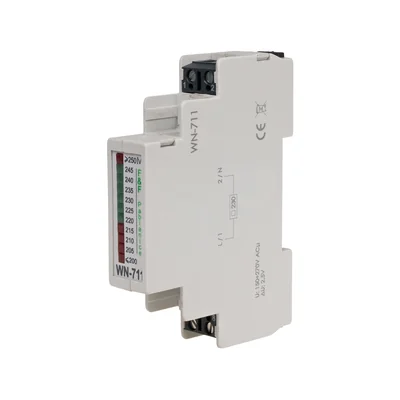

Single-phase voltage indicator WN-711 WN-711

local index:
API013FIFQ
Catalog No:
WN-711
EAN code:
5908312596059
Price:
19,86 €
gross / pcs.
including VAT 23%
Availability:
up to 2 weeks (business days)
Delivery:
From 3,71 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details

Product description

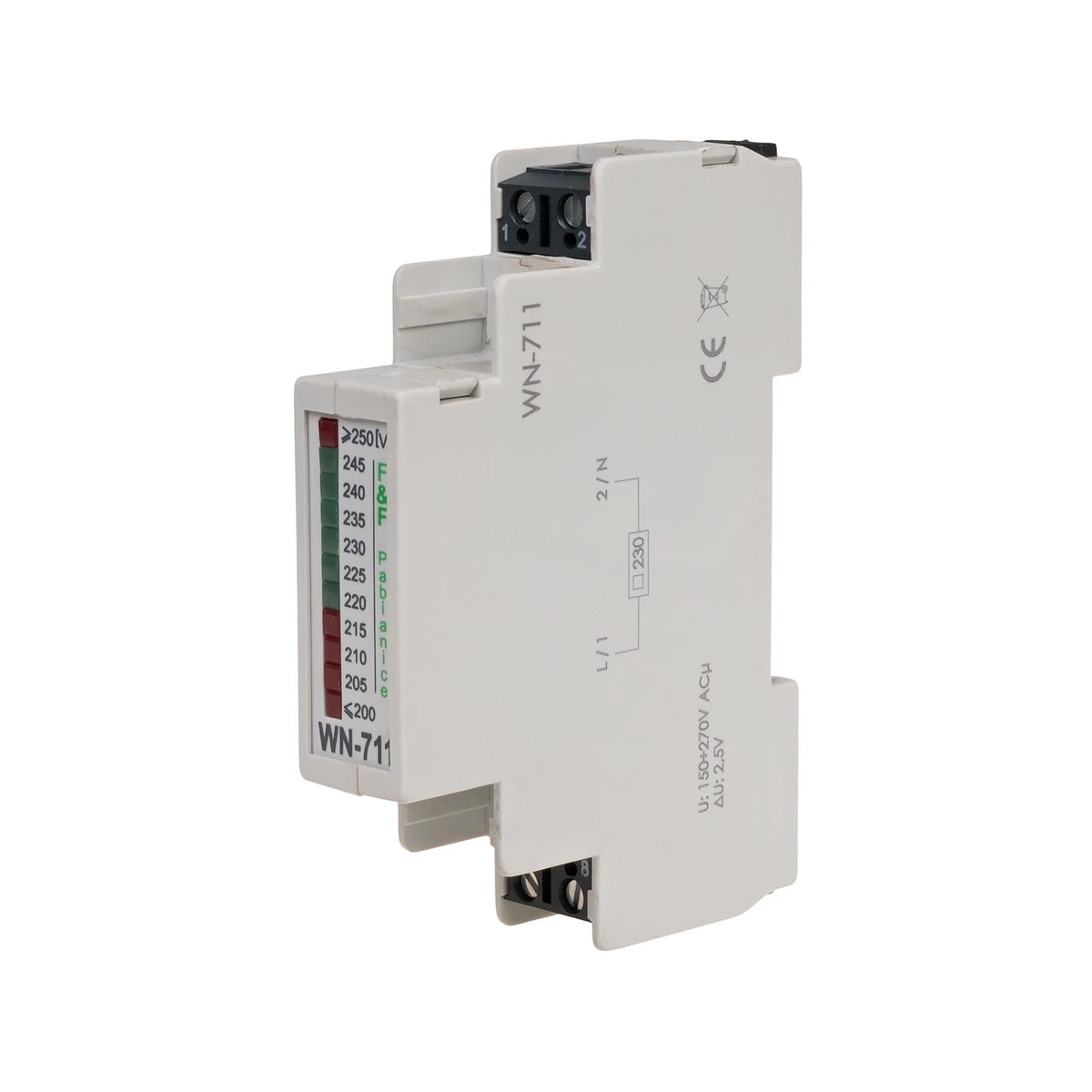

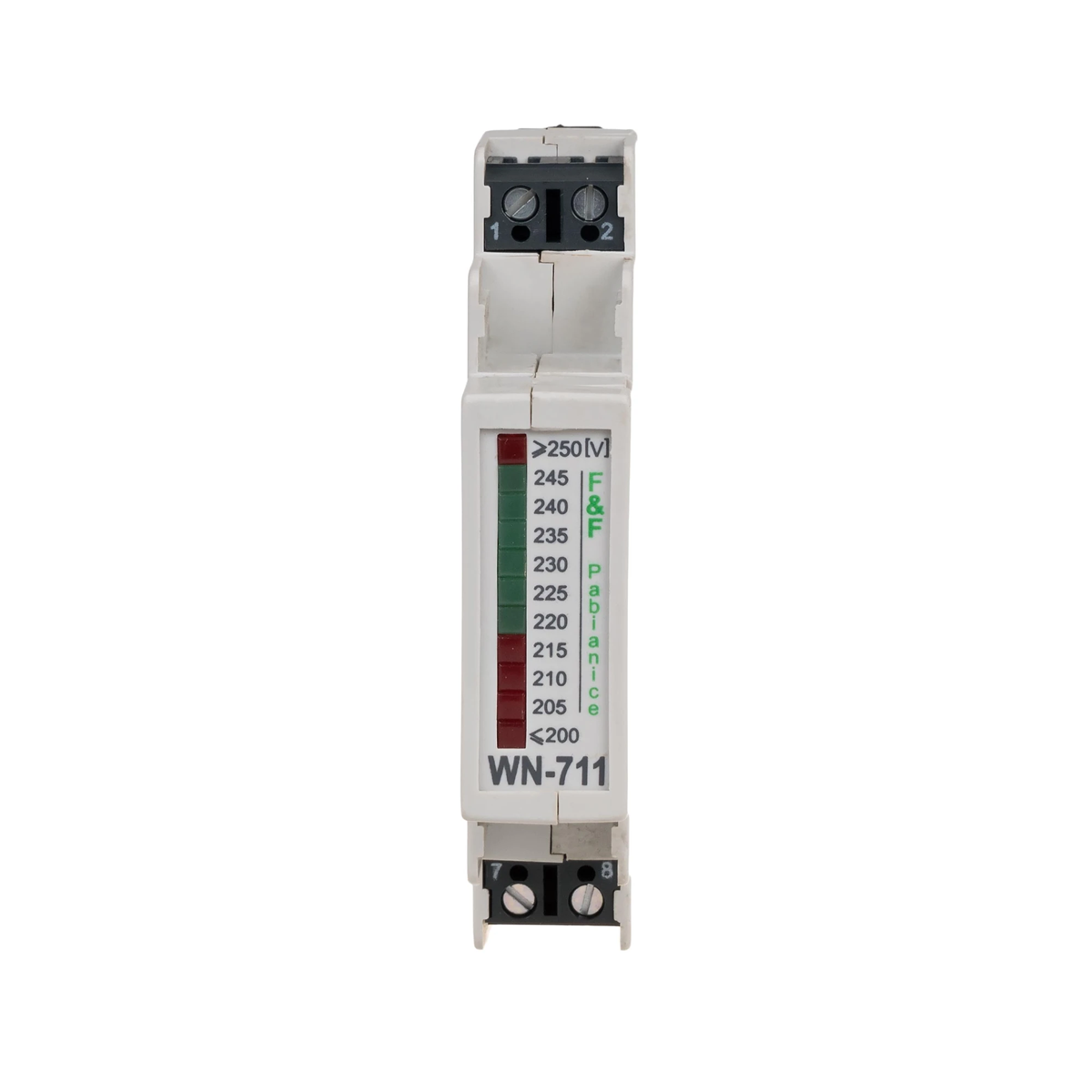

The voltage indicator WN-711 is used for continuous measurement of voltage in a single-phase network. The range of indicated voltage is from 205 to 245V with a reading accuracy of 2.5V. LED lighting indicates the voltage value described at its height. If two LEDs are lit, the voltage value is the average of the values described at their heights. The voltage value within the tolerance range (215 to 245V) is indicated by the green LEDs, other values are indicated by the red LEDs. Voltage equal to or higher than 250V is indicated by the highest red LED lighting up. Voltage equal to or lower than 200V is indicated by lighting of the lowest red LED.

Technical data

  • Reading accuracy [V]
    2, 5
  • Installation
    On the TH-35 rail
  • Pitch [V]
    5
  • Working temperature [°C]
    -25-50
  • Dimensions
    1 module (18mm)
  • Package width [mm]
    20
  • Power [W]
    0.8
  • Rated voltage [V]
    230
  • connection
    2.5mm screw terminals
  • Voltage indicator
    11xLED
  • Package height [mm]
    150
  • Package weight [kg]
    0, 1

Other technical data

  • Voltage indication
    LED
  • Background lighting LC-indication
    yes
  • Length
    18 mm
