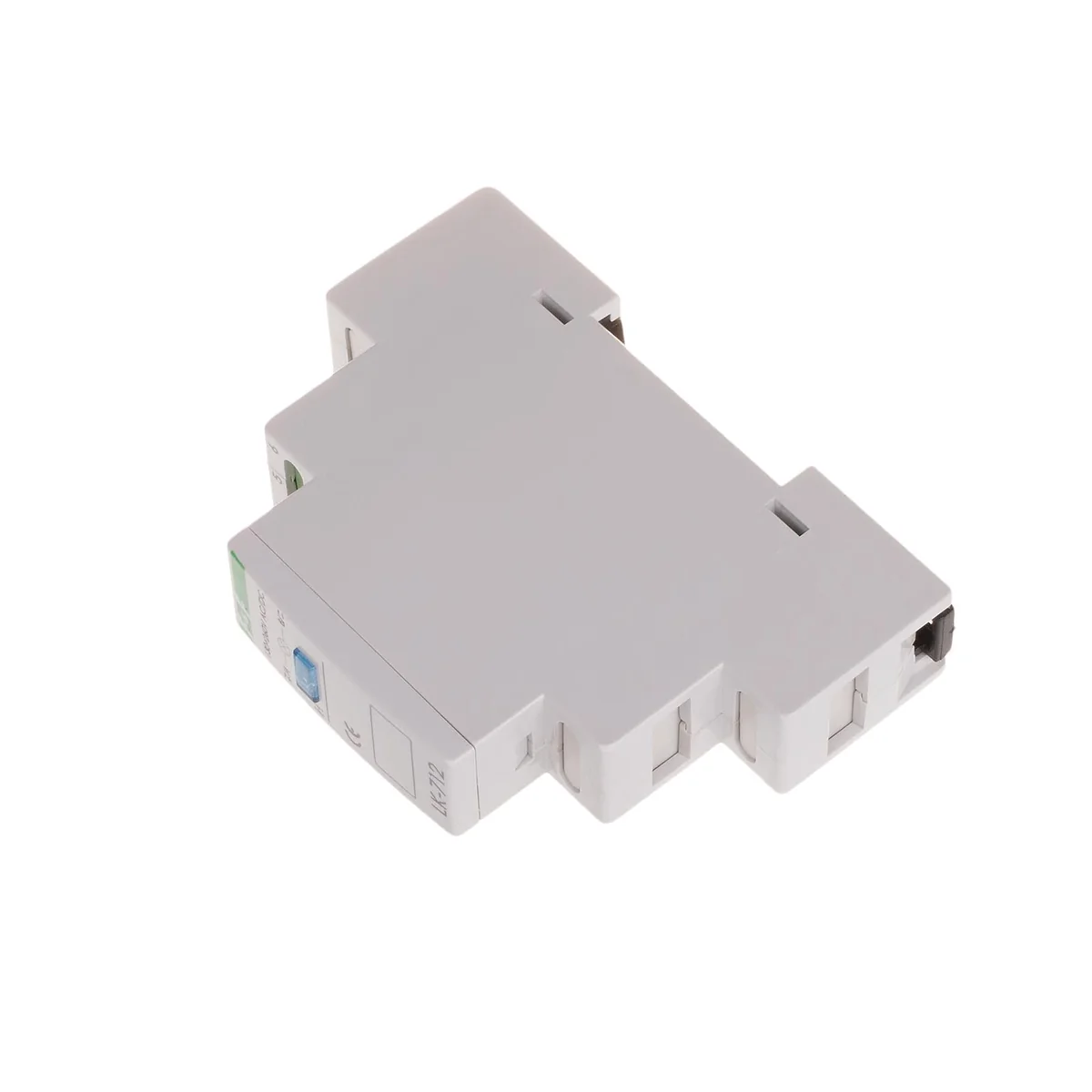

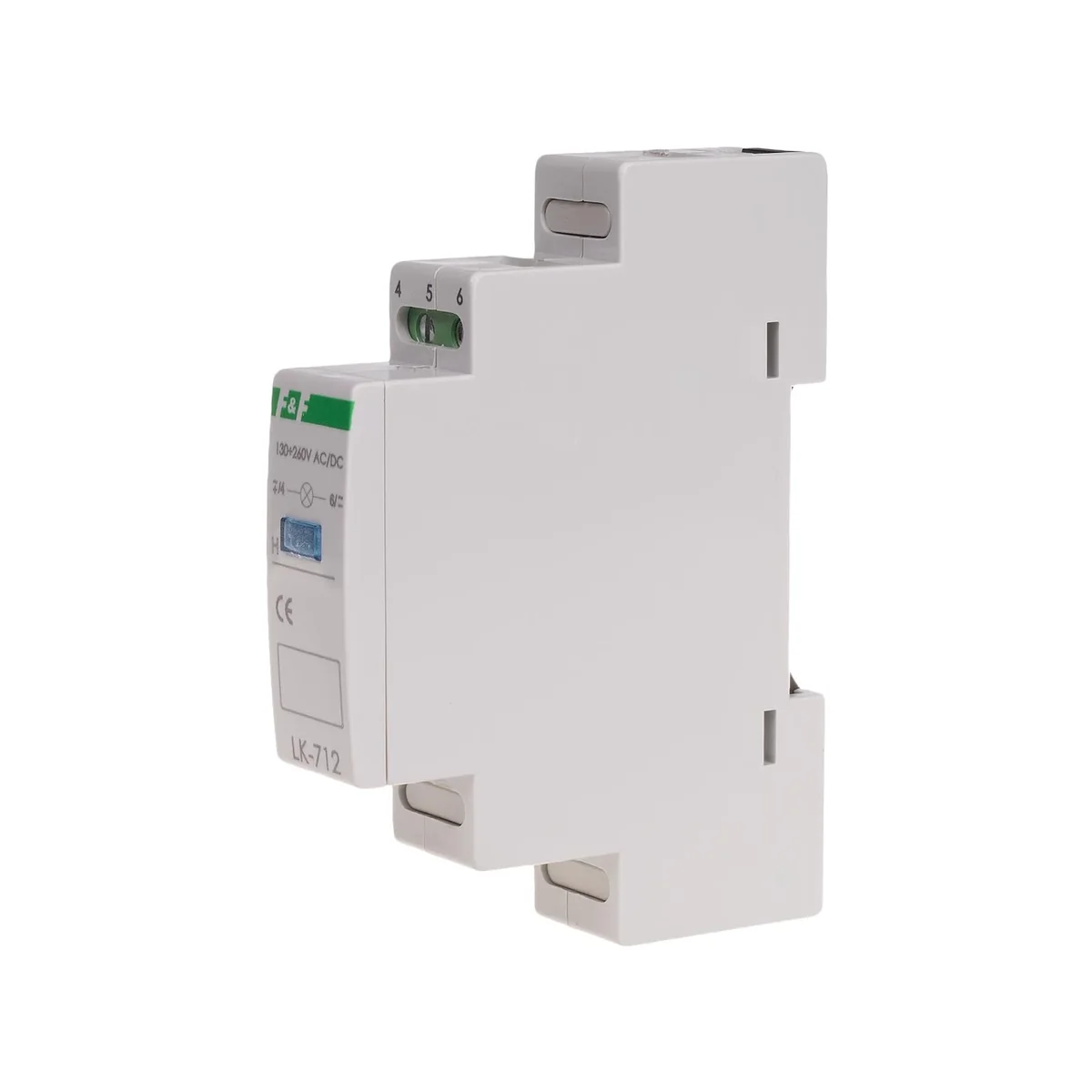

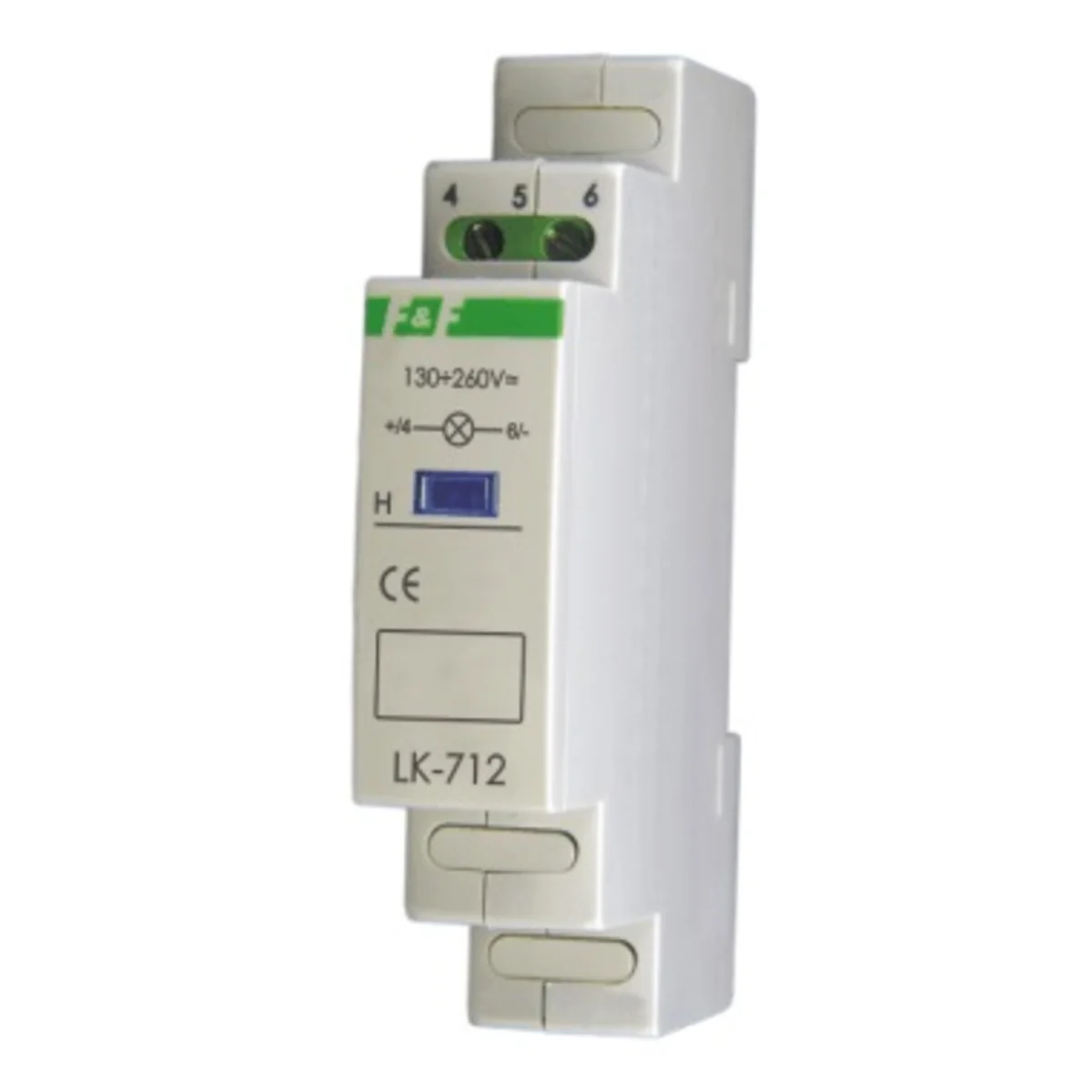

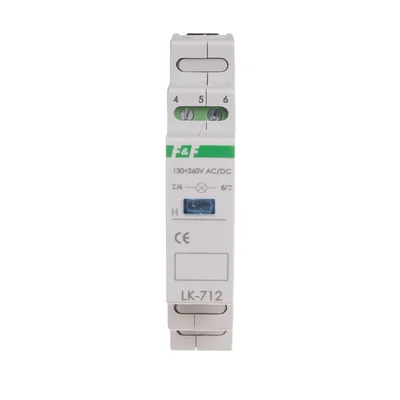

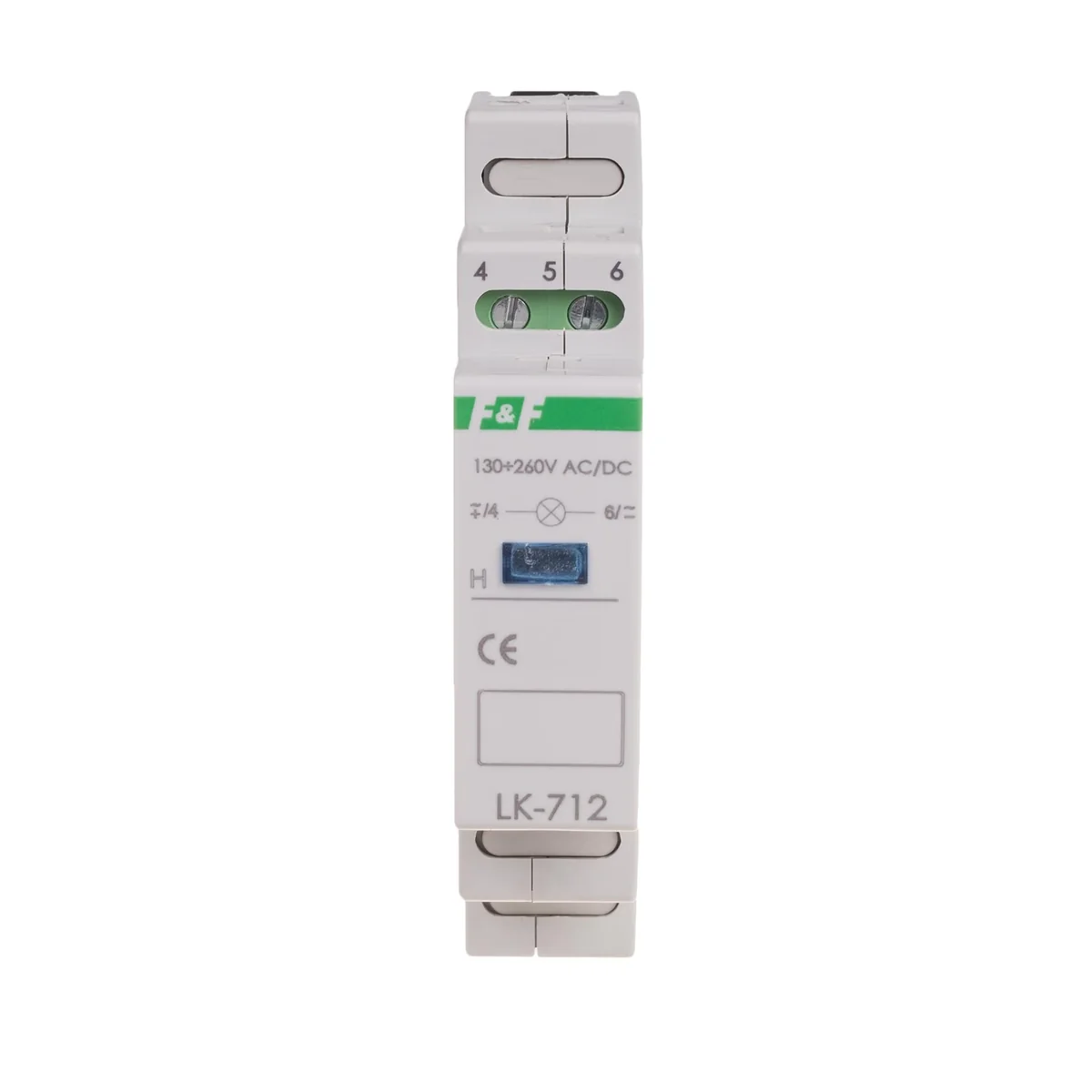

Single-phase signal lamp 5-10V blue LK-712B-5-10V

local index:
API049FIFQ
Catalog No:
LK-712B-5-10V
EAN code:
5908312591283
Manufacturer: F&F
Color: Blue
Power [W]: 0.8
Installation: On the TH-35 rail
Price:
8,19 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print

Product description

The LK-712 control lamp is used for optical signaling of the presence of voltage in the electric circuit.

Technical data

  • Color
    Blue
  • Installation
    On the TH-35 rail
  • Power [V]
    5-10
  • Package width [mm]
    20
  • Accurate color
    Blue
  • Power [W]
    0.8
  • Dimensions
    1 module (18mm)
  • Package height [mm]
    150
  • Package weight [kg]
    0.1
  • PKWIU
    27.40.24.0

Other technical data

  • Colour calotte
    Blue
  • Lamp socket
    Other
  • Rated voltage
    10 V
  • Built-in depth
    65 mm
  • Lamp type
    LED
  • Max. lamp power
    0.8 W
  • Voltage type
    AC/DC
  • Degree of protection (IP)
    IP20

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs.
Weight (kg) 0,043
Width (m) 0,019
Length (m) 0,095
Depth (m) 0,070
