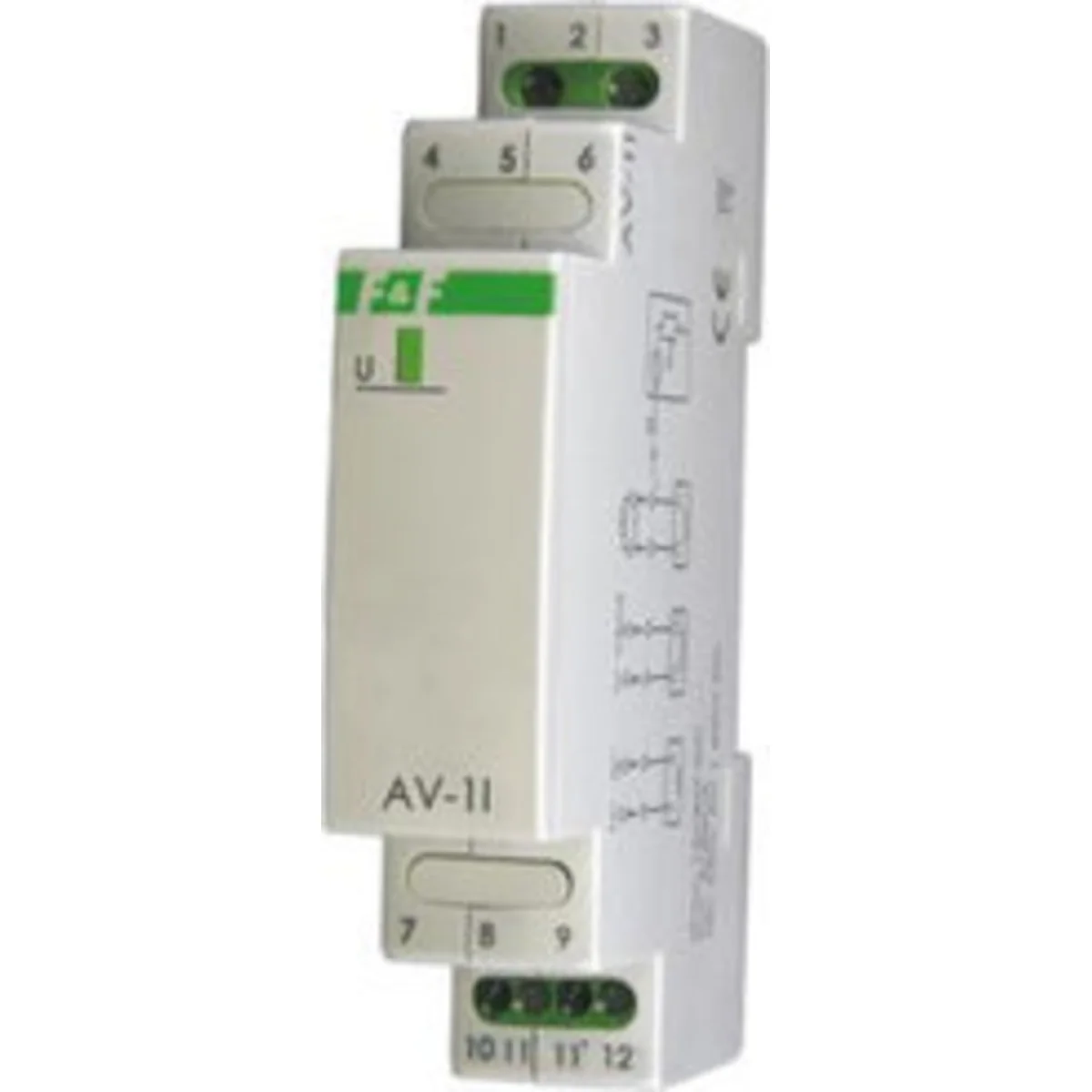

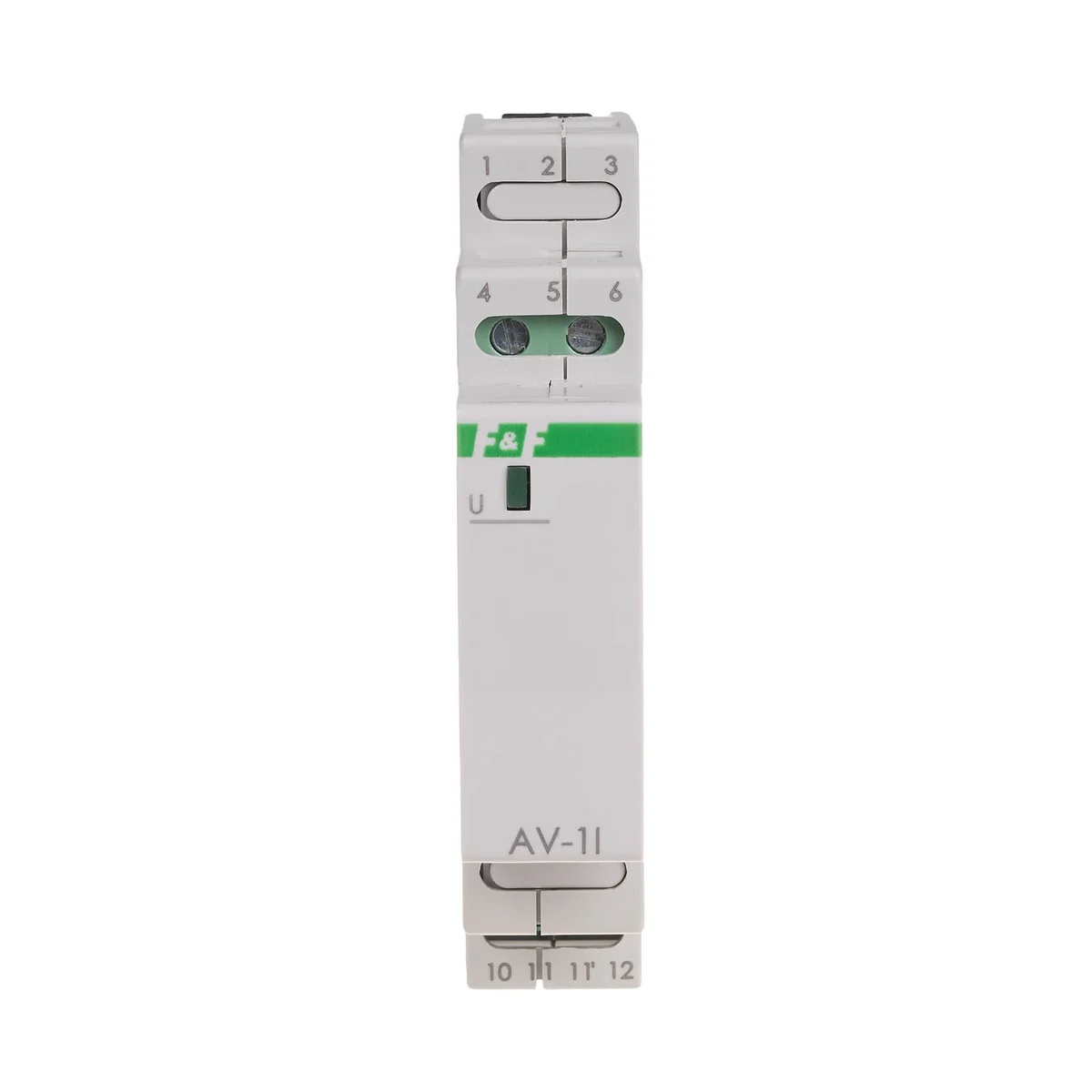

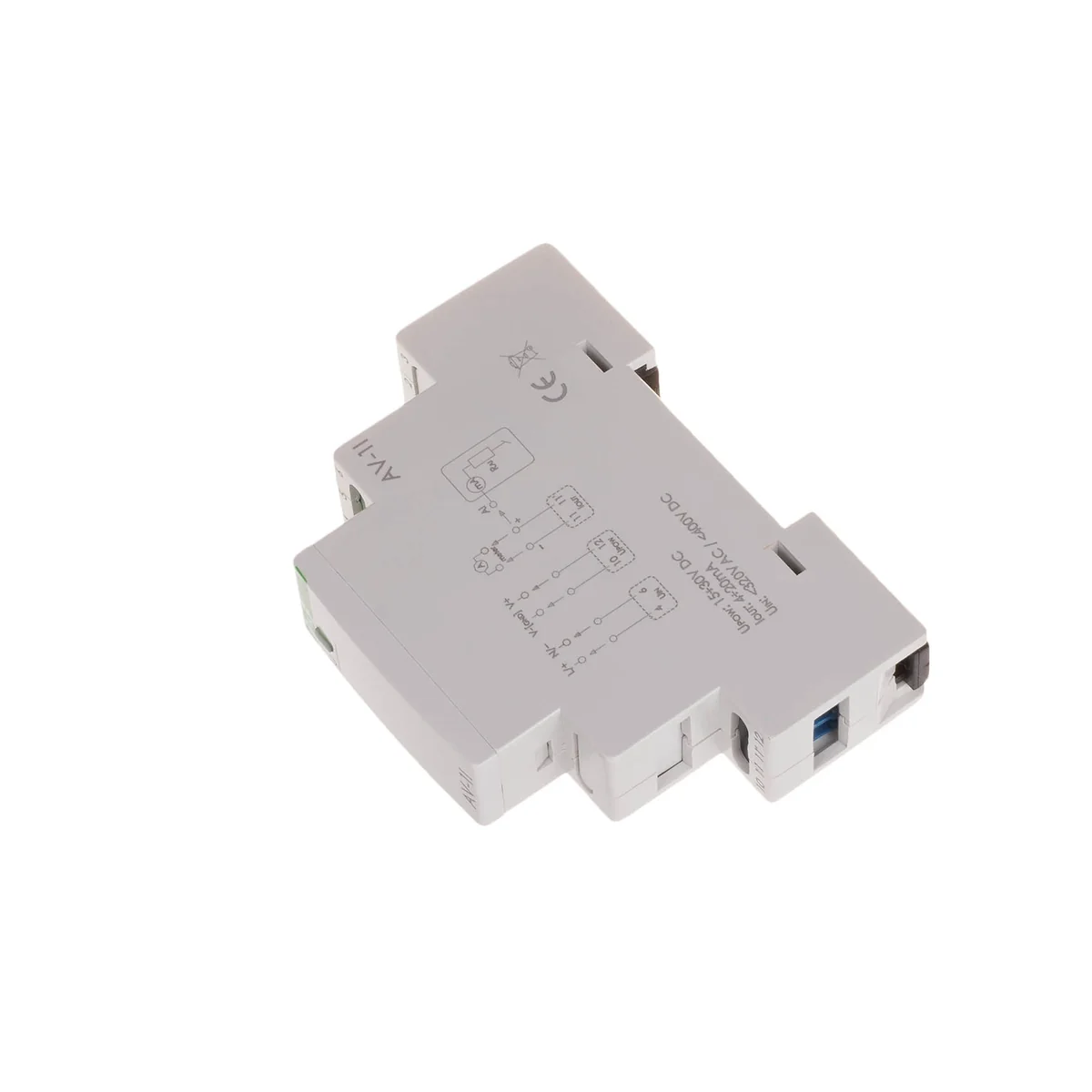

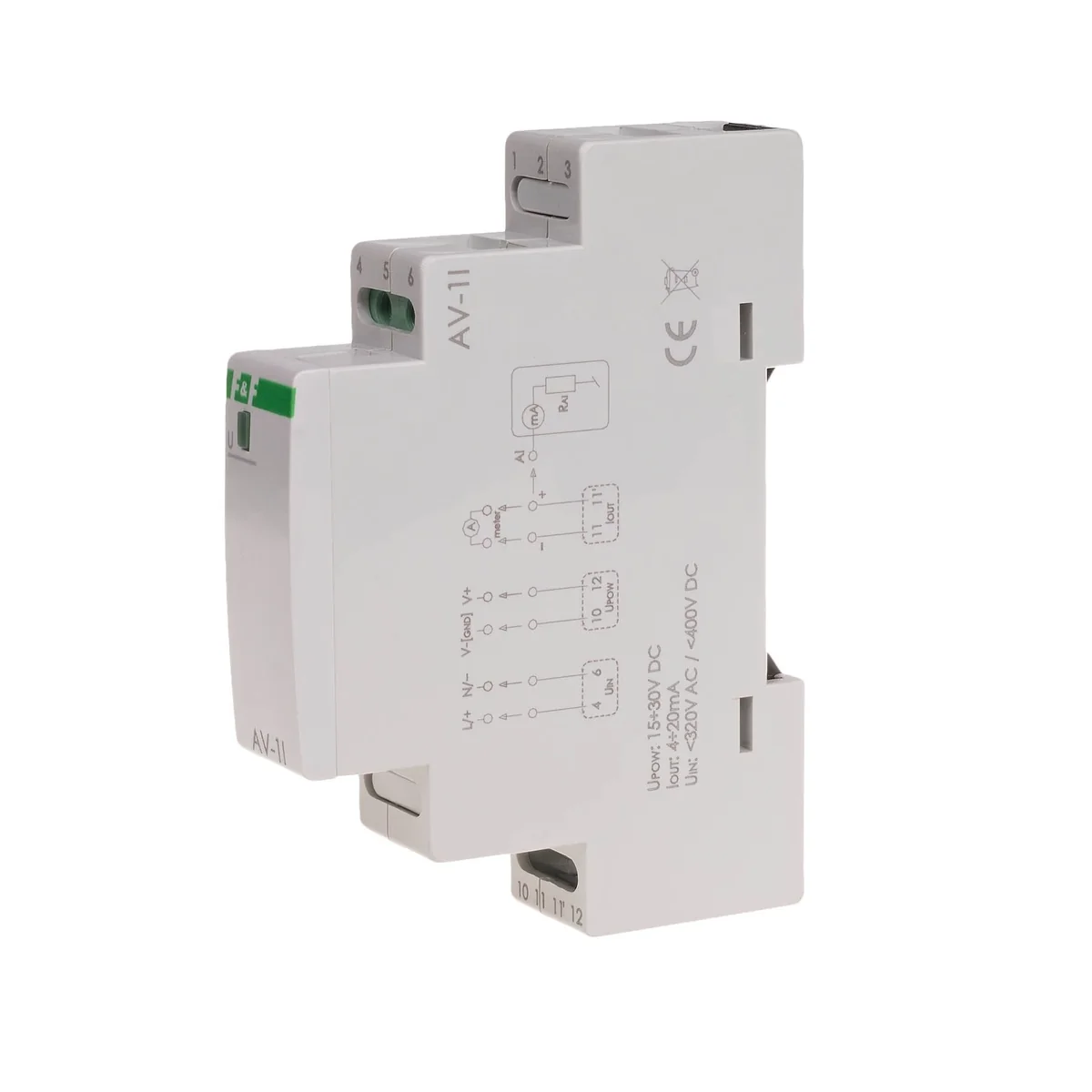

Single-phase analog voltage converter MAX-AV-1I

local index:
API081FIFQ
Catalog No:
MAX-AV-1I
EAN code:
5908312595335
Manufacturer: F&F
Length [m]: 300
Maximum measurement error: ±0.5
Power [W]: 0.8
Price:
93,98 €
gross / pcs.
(including VAT 23%)
0,31 € gross/m.
Delivery in 3h
up to a week (working days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

The AV-1I module is designed to measure voltage and convert the measured quantity to a unified analog output current signal in the range of 4-20 mA. Transducer The transducer continuously measures the value of the input voltage (AC or DC voltage circuit). The measured voltage value is proportionally converted to the output DC signal Iout in the range of 4-20 mA, which is equivalent to the measuring range of 0-400V. The transducer allows you to measure the true RMS value of DC and AC voltage with an amplitude not exceeding 400V (which corresponds to approx. 285V RMS value of undisturbed sinusoidal voltage). The transducer measures the rms value of the True RMS voltage, which guarantees high measurement accuracy also with distorted waveforms. The signal output of the module is protected by an anti-interference filter that eliminates network interference affecting the accuracy of the transmitted signal. This allows the use of signal cables up to 300m long.

Technical data

  • Length [m]
    300
  • Power [W]
    0.8
  • Rated voltage [V]
    12
  • Output current [mA]
    4-20
  • Level of security
    IP20
  • Dimensions
    1 module (18mm)
  • Package width [mm]
    20
  • PKWIU
    26.30.23.0
  • Maximum measurement error
    ±0.5
  • Installation
    On the TH-35 rail
  • DC rated voltage [V]
    450
  • connection
    2.5mm screw terminals
  • Working temperature [°C]
    -20-50
  • Package height [mm]
    150
  • Package weight [kg]
    0.15

Other technical data

  • Initial value measuring range voltage
    0 V
  • Frequency rated current
    50 Hz
  • Integrated configuration function
    No
  • End value measuring range voltage
    285 V
  • Type of analogy output
    4 - 20 mA
  • With switching output
    No

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs.
Weight (kg) 0,062
Width (m) 0,019
Length (m) 0,095
Depth (m) 0,070
