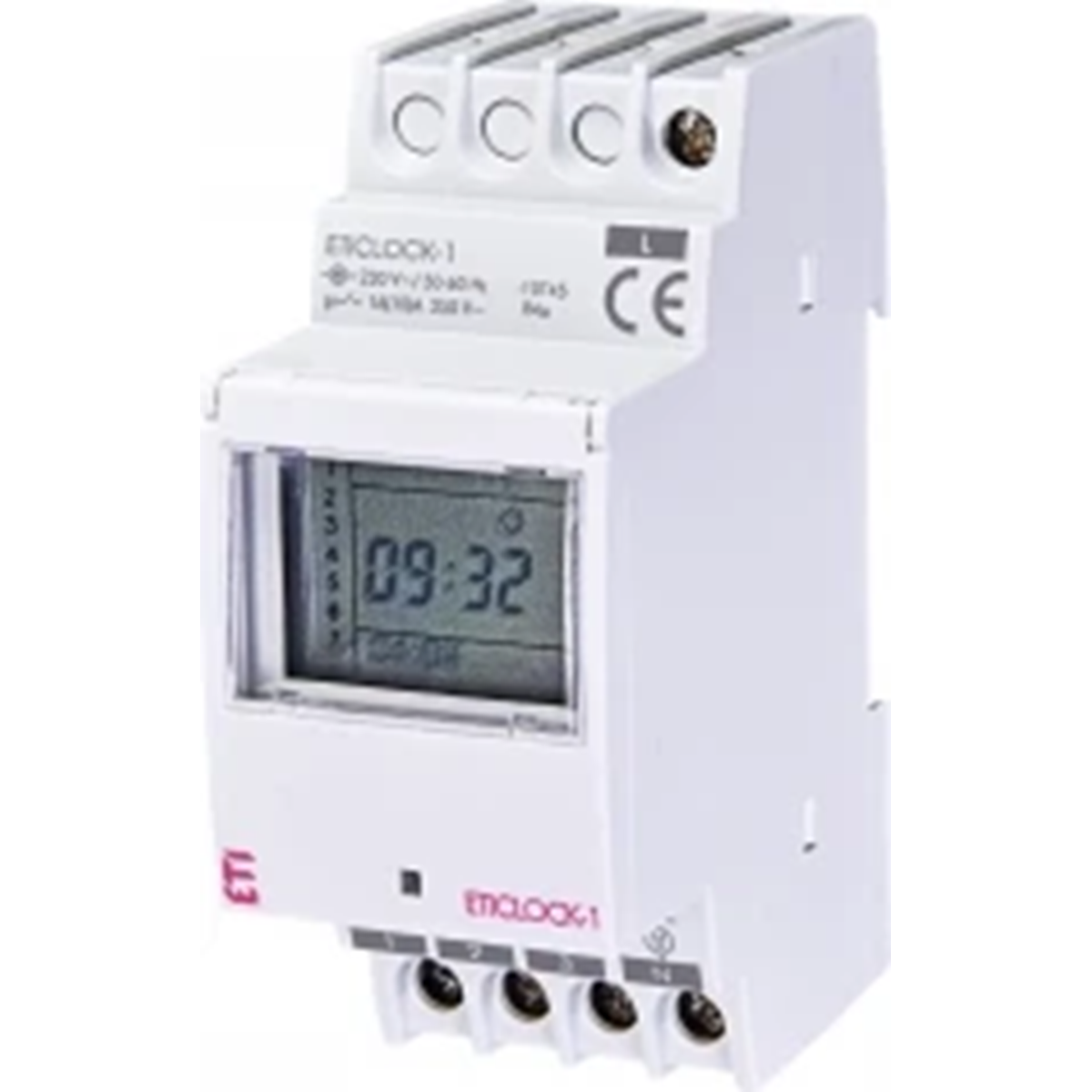

Single-channel digital timer Eticlock-1 002472011

local index:
APR010ETIP
Catalog No:
002472011
EAN code:
5904722951525
Manufacturer: ETI POLAM
Number of channels: 1
Number of memory locations: 32
Minimum setting: 1 sec
Price:
79,75 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Application - Remote control of electricity receivers, lighting, ventilation, heating, etc. Programmers can be sealed.
Functions - Daily and weekly programmer.

Technical data

  • Number of channels
    1
  • Minimum setting
    1 sec
  • Rated voltage [V]
    230
  • Working temperature [°C]
    from -25 to +50
  • PKWIU
    27.12.24.0
  • Number of memory locations
    32
  • Power [W]
    1
  • Level of security
    IP20
  • Output contact
    1P 16A/AC 1

Other technical data

  • Mounting method
    DIN rail
  • Supply voltage
    230 ... 230 V
  • Frequency supply voltage
    50 ... 50 Hz
  • 24 h program
    Yes
  • Cycle program
    Yes
  • Number of memory locations
    32
  • Nominal switching current at 250 V AC
    16 A
  • Width in number of modular spacings
    2
  • Height
    90 mm
  • Number of channels
    1
  • Voltage type (supply voltage)
    AC
  • Autonomy in years
    4
  • Weekly program
    Yes
  • Shortest switching time channel 1
    0.02 min
  • Suitable for manual operation
    Yes
  • Degree of protection (IP)
    IP20
  • Width
    35.8 mm
  • Depth
    65 mm
