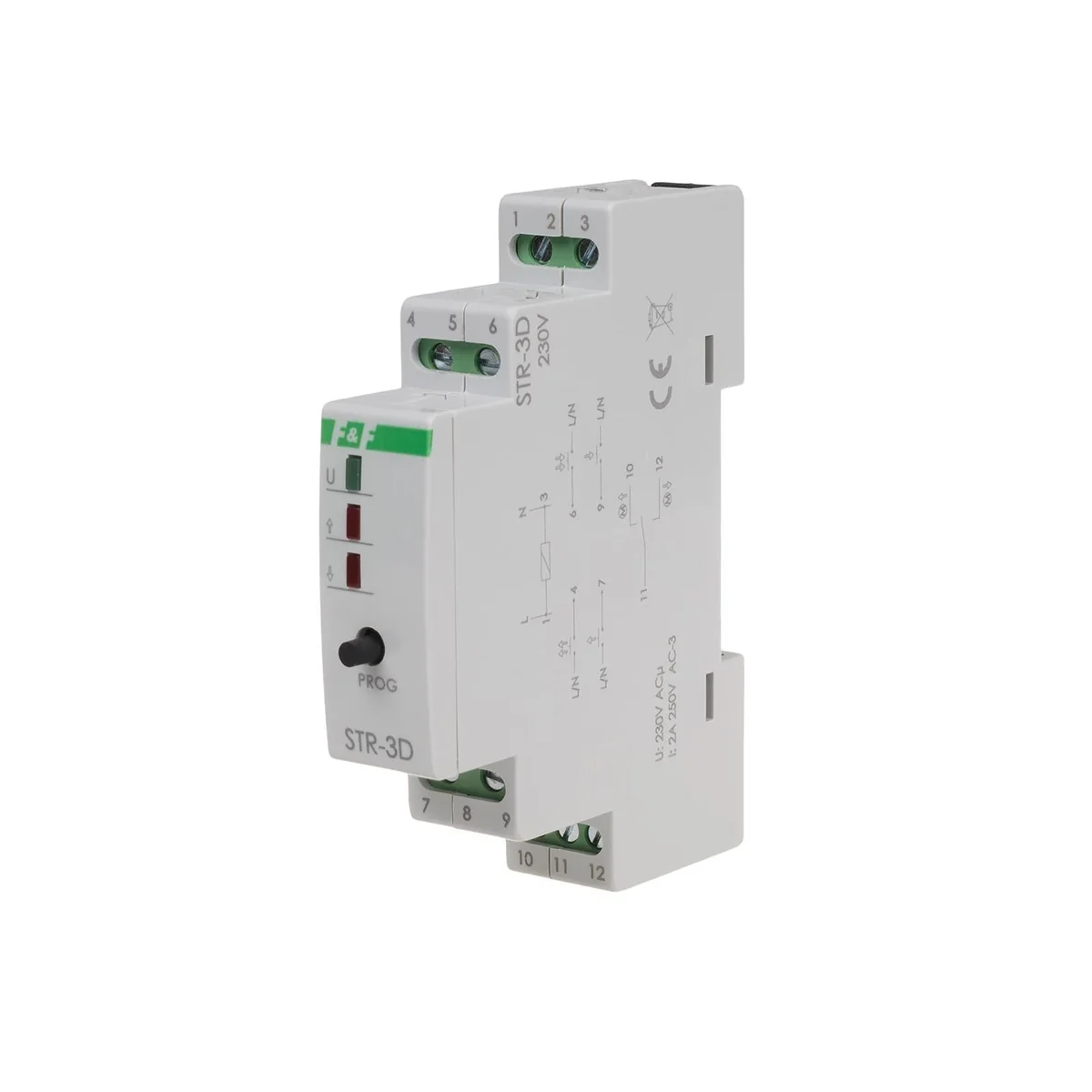

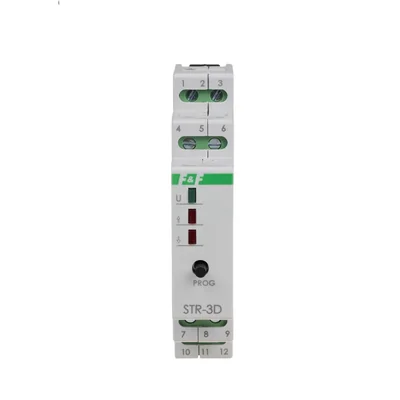

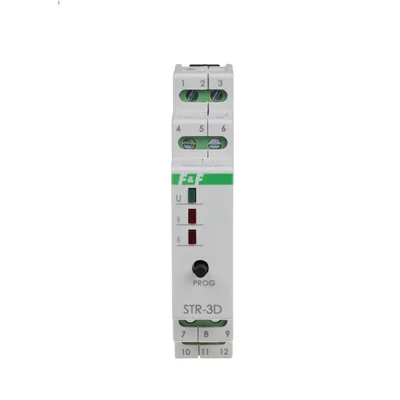

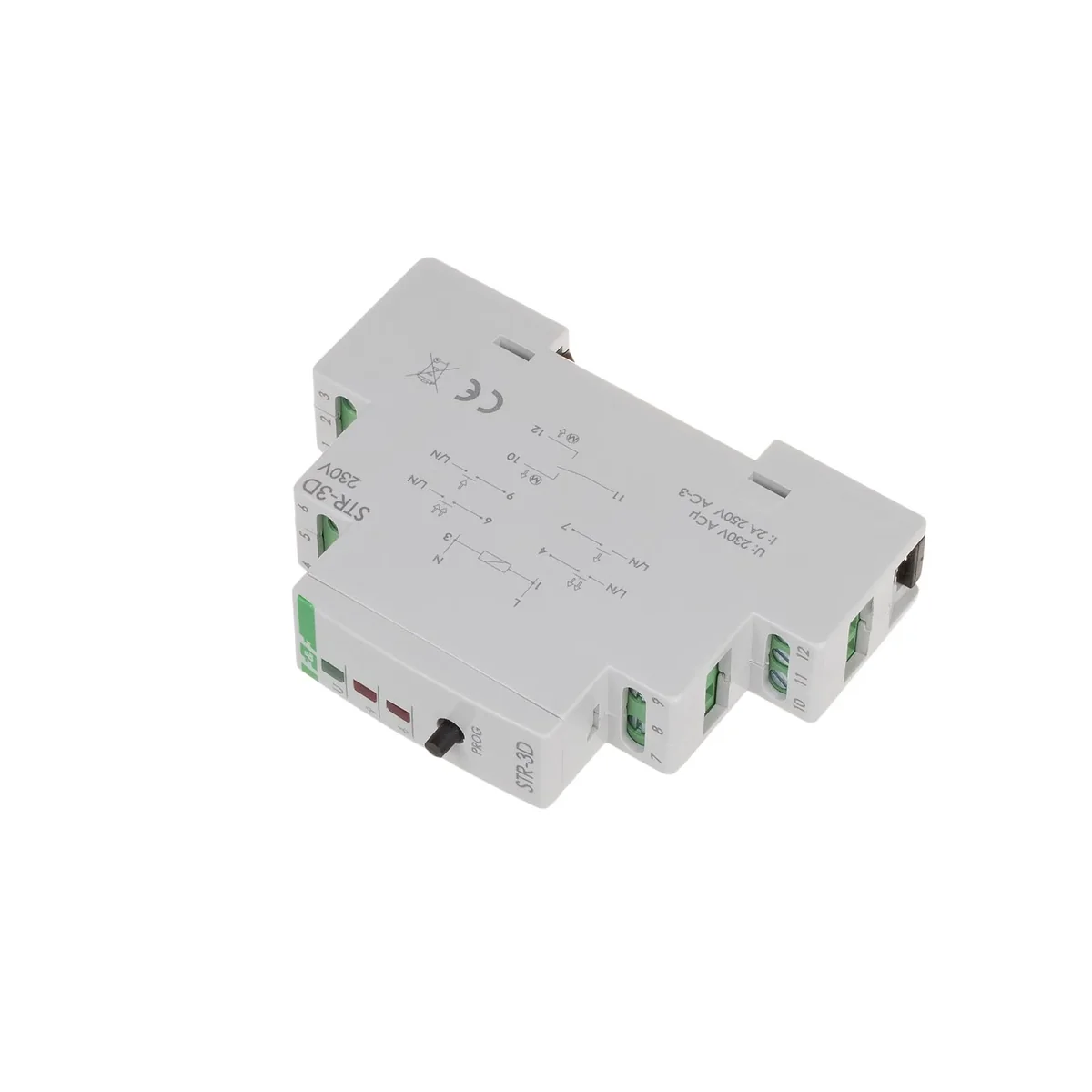

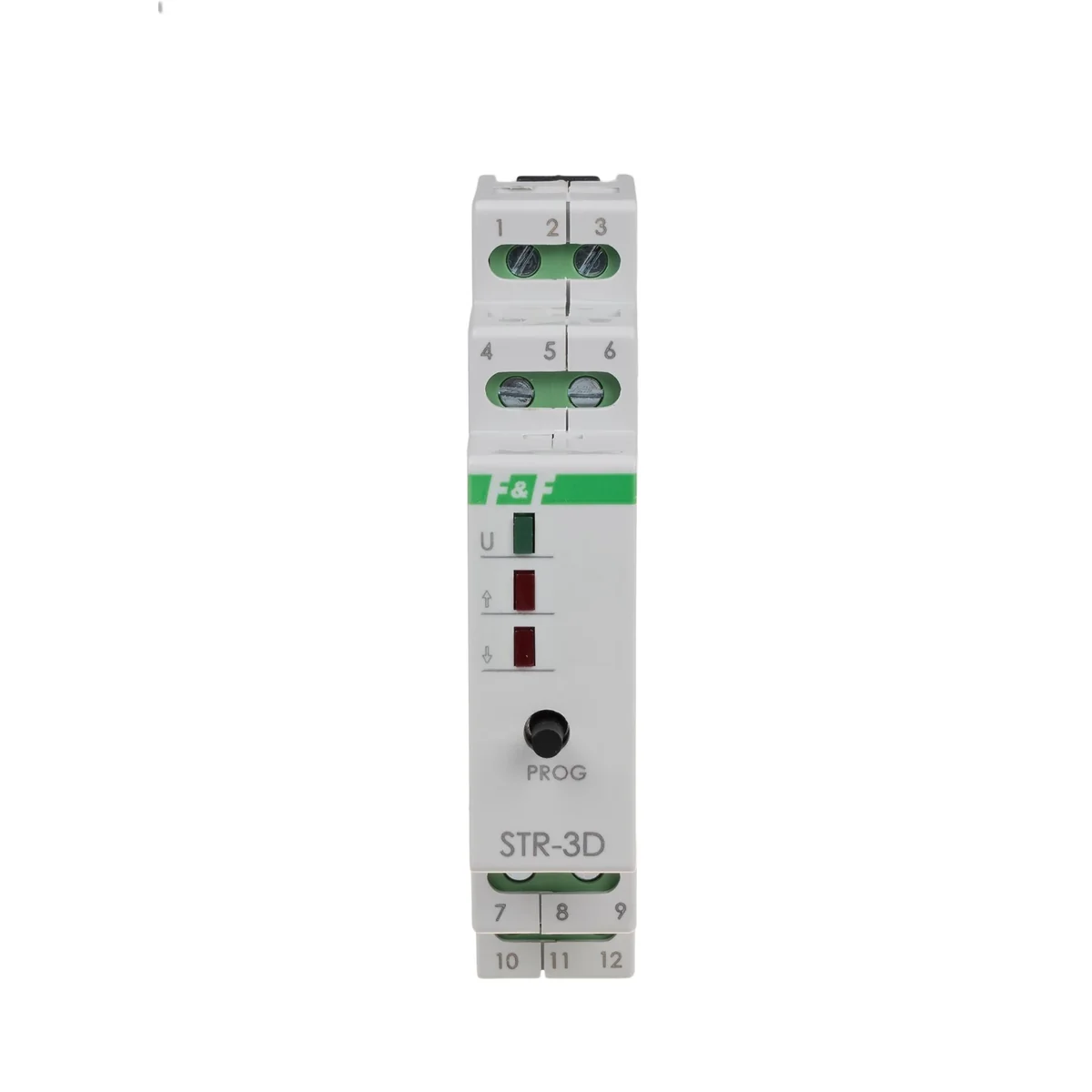

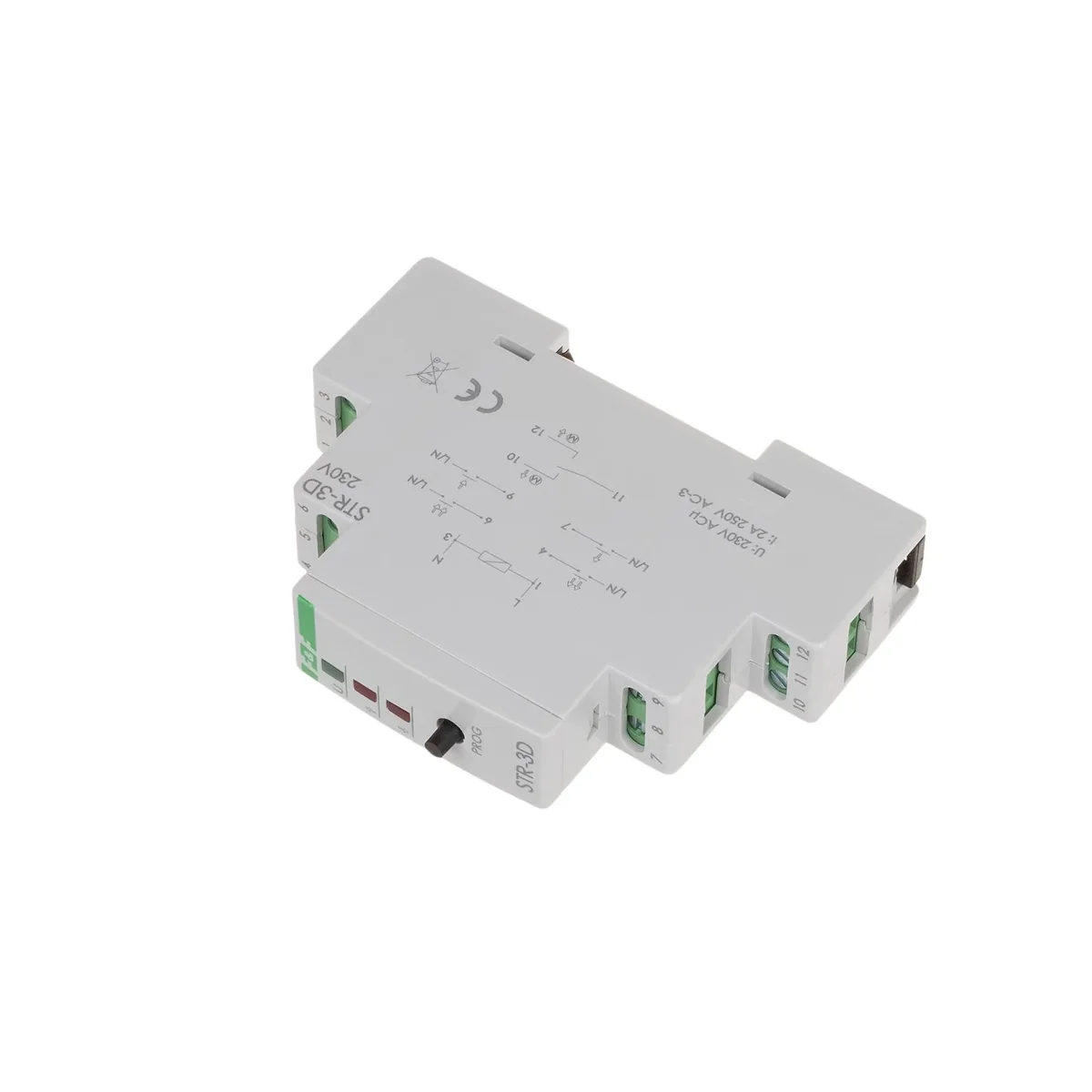

Shutter controller for AC motors STR-3D
local index:
APT006FIFQ
Catalog No:
STR-3D
EAN code:
5908312597780
Price:
29,86 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
The STR-3D controller is designed to control roller shutters (up-down) or other objects (e.g. gates) driven by a single-phase AC electric motor by means of momentary switches (e.g. bell switches).
Technical data
-
Maximum power [W]320
-
Power [V]230
-
Package width [mm]25
-
Input of additional modulesYes
-
Adapted to the wind sensorYes
-
Integrated timerNO
-
PKWIU27.12.24.0
-
Level of securityIP20
-
Package height [mm]150
-
Package weight [kg]0.2
-
Ready for rain sensorYes
-
With connection to brightness sensorNO
-
With memory functionYes
Other technical data
-
Assembly arrangementBasic element
-
With brightness sensor connectionNo
-
Suitable for rain sensorYes
-
With Astro programNo
-
With memory functionYes
-
Switch-off protectionNo
-
MaterialPlastic
-
Halogen freeYes
-
TransparentNo
-
Max. switching power320 W
-
Frequency50 ... 50 Hz
-
Integrated timerNo
-
Suitable for wind sensorYes
-
With glass breaking detector connectionNo
-
Substation inputYes
-
Random generatorYes
-
Mounting methodOther
-
Material qualityThermoplastic
-
Surface finishingMatt
-
Suitable for degree of protection (IP)IP20
-
Nominal voltage230 V
-
Type of fasteningScrew mounting
Manufacturer details
-
ManufacturerF&F Filipowski S.K.
-
Address95-200 Pabianice Konstantynowska 79/81 Polska
-
E-mail
Bulk packaging
| A kind of package | Sztuka |
| Quantity | 1 pcs. |
| Weight (kg) | 0,060 |
| Width (m) | 0,019 |
| Length (m) | 0,095 |
| Depth (m) | 0,070 |
