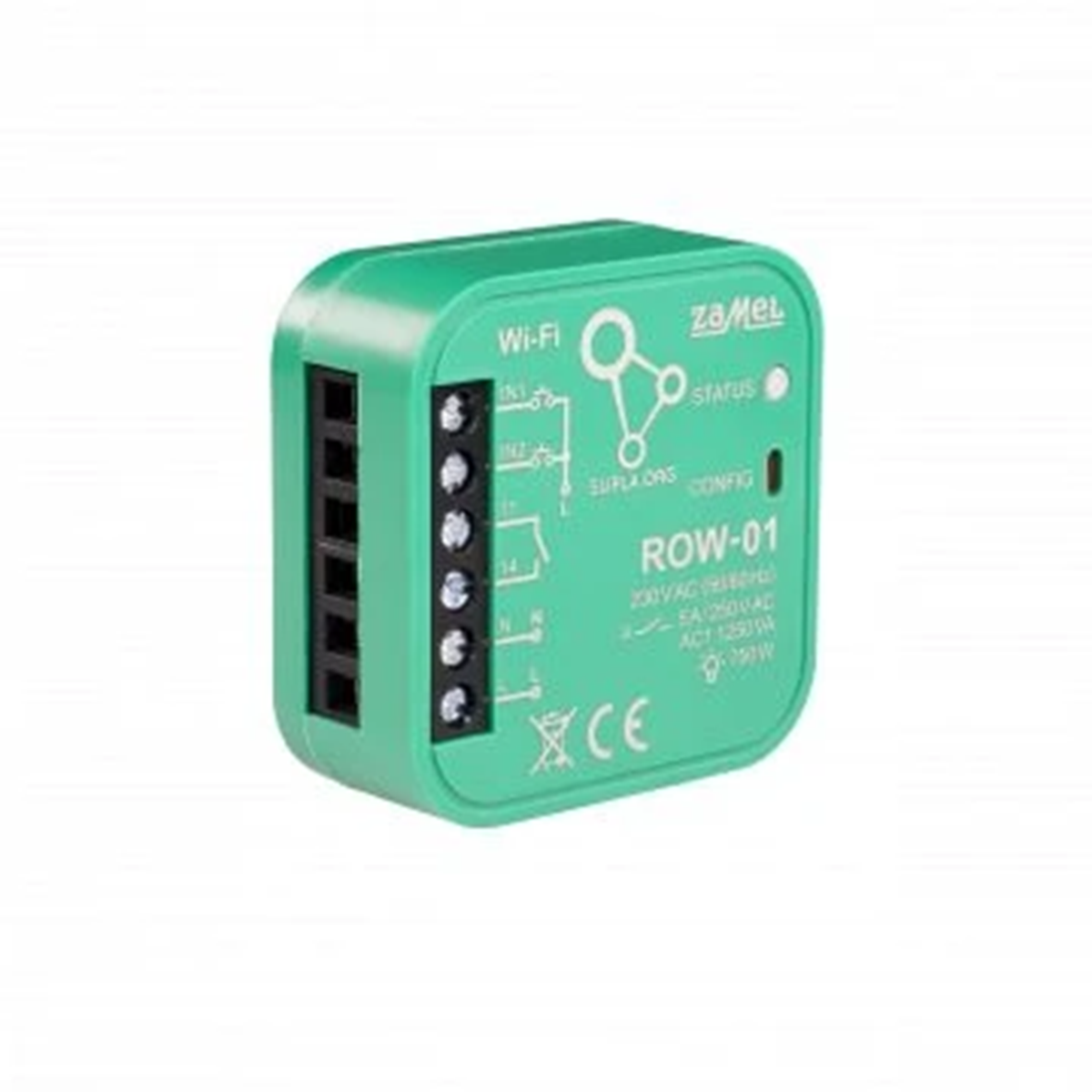

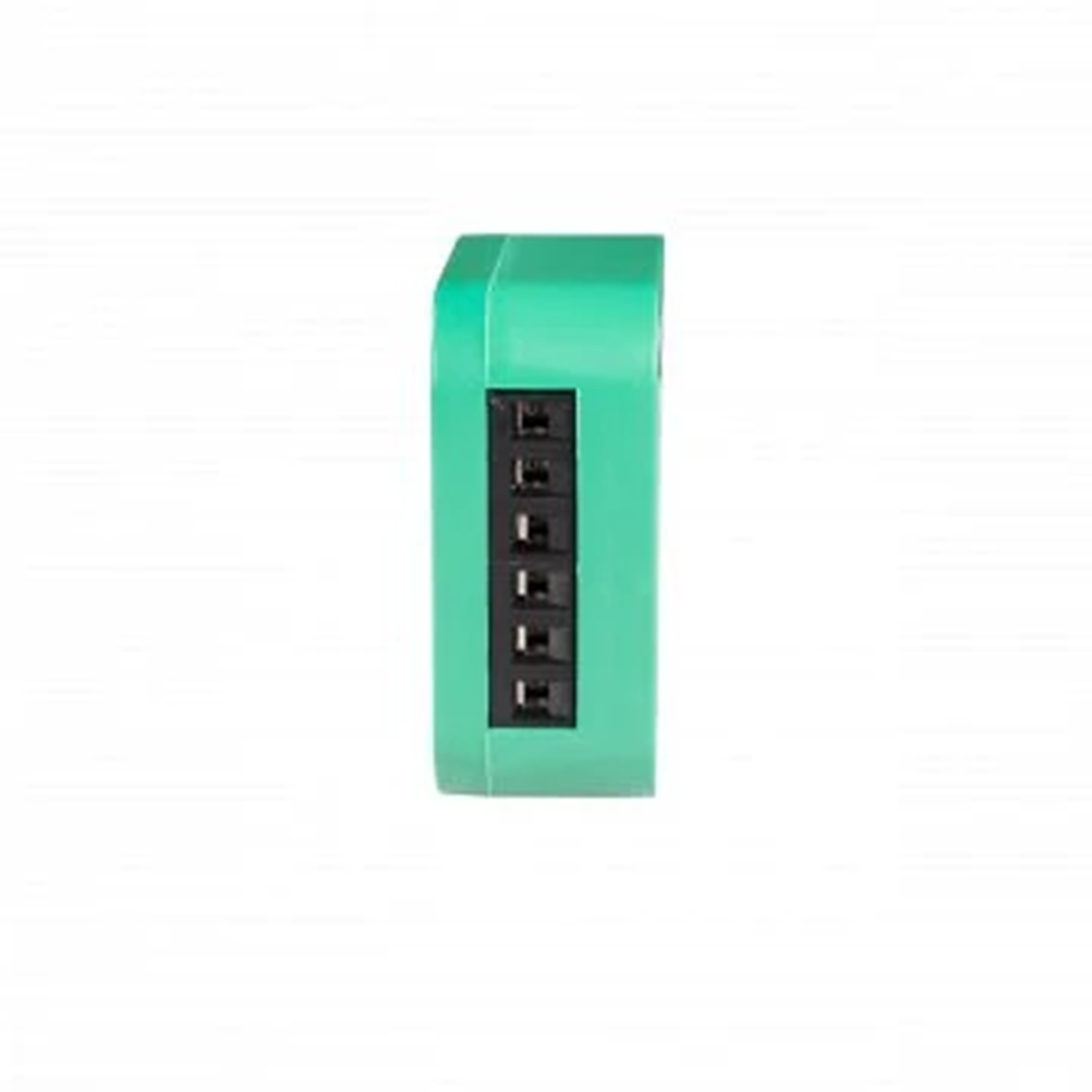

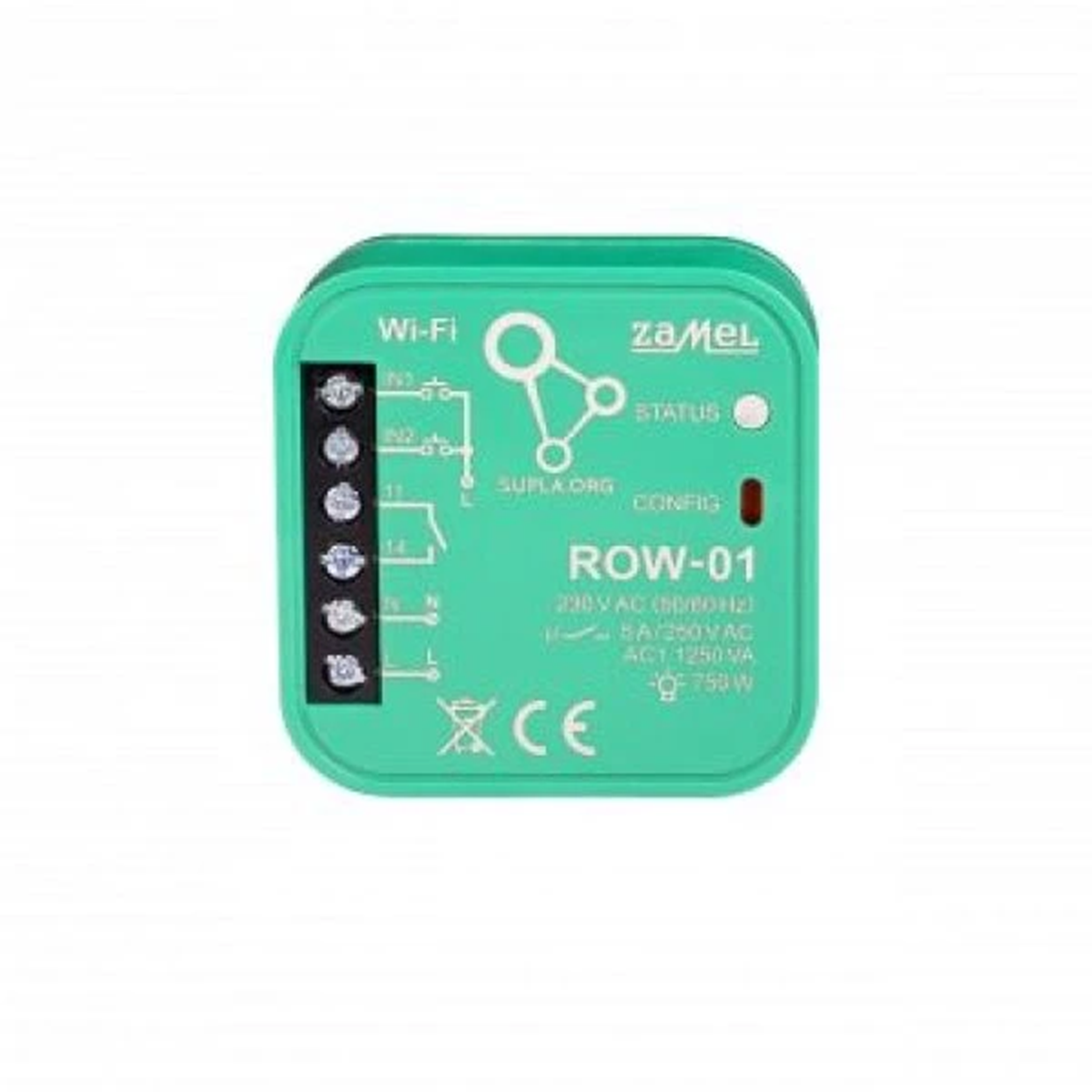

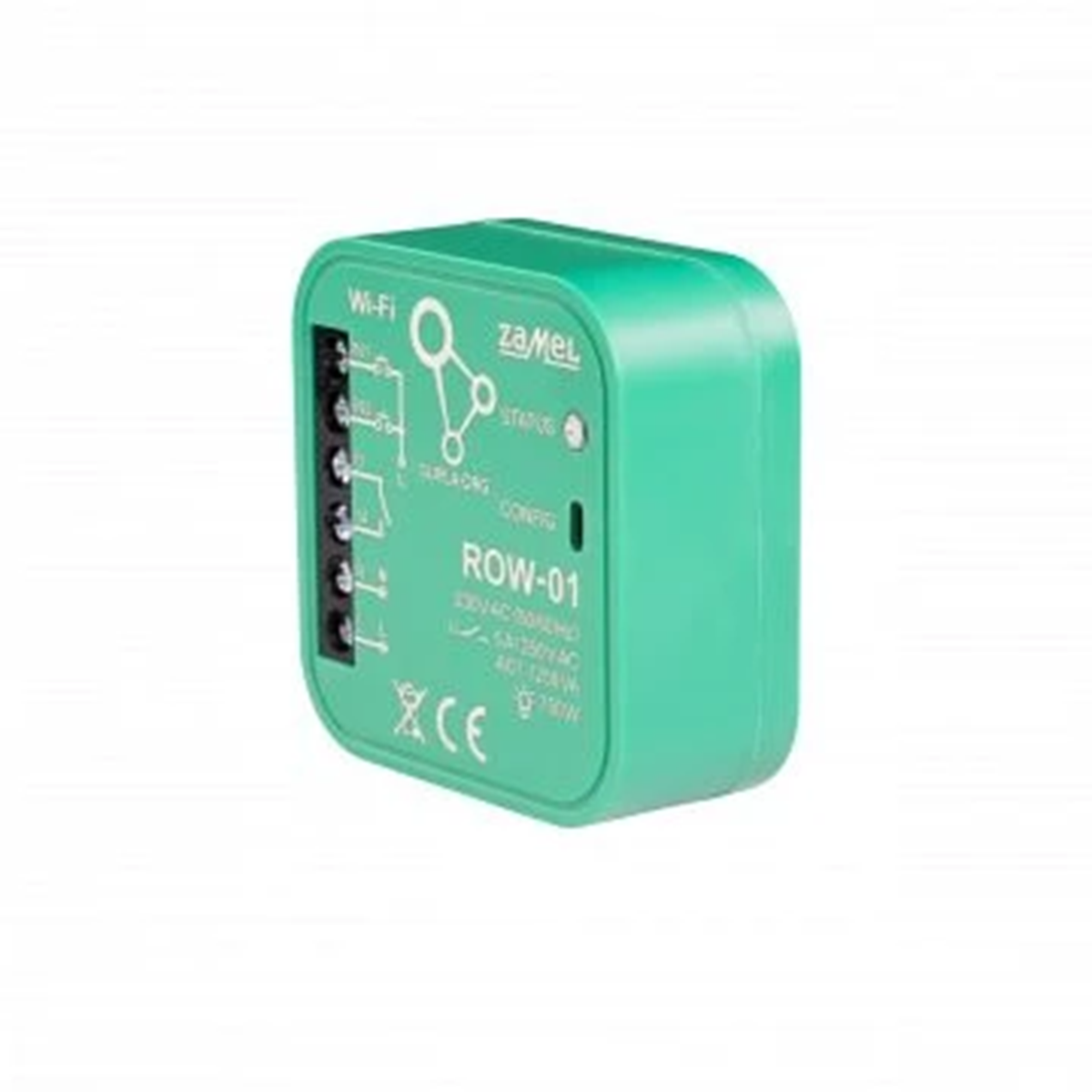

ROW-01 WiFi module 1xNO 230V 0.45W IP20 SPL10000001

local index:
API004ZAME
Catalog No:
SPL10000001
EAN code:
5903669209867
Manufacturer: ZAMEL
Length [mm]: 47.5
Depth [mm]: 20
Number of outputs: 1
Price:
46,80 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 1 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

The ROW-01 module allows you to control the lighting, turn on and off sockets and electrical devices using a smartphoneor a tablet.
recessedROW-01 modules are used both as elements for mounting in flush-mounted and surface-mounted installation boxes, and as actuators built directly into lighting fixture housings.

  • Easy installation

Building automation systems available on the market are usually very complex, closed and expensive. In many cases, they require installation already at the construction stage. SUPLA devices are easy to install and configure and do not need additional wiring.

  • Wi-Fi
  • < /ul>

    All SUPLA products communicate via a wireless network. Thanks to this, you do not have to invest in expensive building automation controllers. Via Wi-Fi, you can connect to devices from anywhere in the world. You don't have to worry about running additional communication cables to the devices.

    • Compliance with standards

    PN-EN 60669, EN 60950, EN 61000, ETSI EN 300 220-1

Technical data

  • Length [mm]
    47.5
  • Number of outputs
    1
  • Power [W]
    0.45
  • Rated voltage [V]
    230
  • Level of security
    IP20
  • Width [mm]
    47.5
  • Connection terminals
    6
  • Rated output voltage [V]
    250
  • Cooperates with
    Switches: monostable (bell buttons), bistable (standard light switches without backlight)
  • PKWIU
    26.30.11.0
  • Depth [mm]
    20
  • Protection class
    II
  • Rated voltage [V]
    230
  • Family
    SUPLA
  • Contact
    1 x NO 5A / 250VAC
  • Working temperature [°C]
    -10 - +55
  • Range [m]
    200 - open area
  • Rated output current [A]
    5
  • Terminals [mm²]
    2.5
