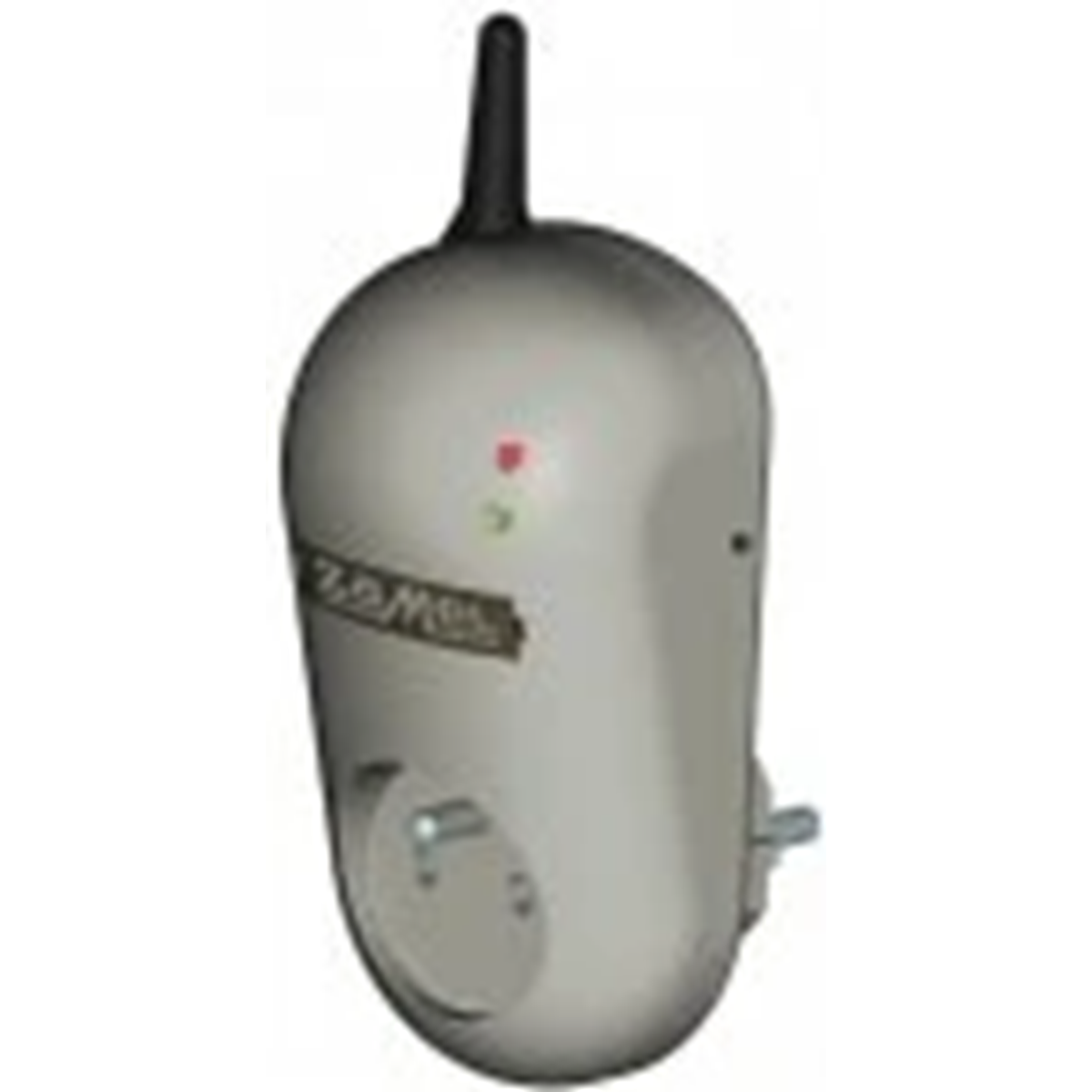

Repeater TYPE: RTN-01 EXF10000055

local index:
API057ZAME
Catalog No:
EXF10000055
EAN code:
5903669041504
Manufacturer: ZAMEL
Depth [mm]: 90
maximum range [m]: 250
Rated voltage [V]: 230
Price:
54,83 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

The RTN-01 repeater is a device that increases the signal range of the radio transmitters of the EXTA FREE wireless control system. Up to four repeaters can work in the system, which gives the possibility of increasing the distance between the transmitter and the receiver up to 1000 m. The device has a 230 V AC socket to which we can connect any receiver - thanks to this solution, the repeater does not block the power socket.

Technical data

  • Depth [mm]
    90
  • Rated voltage [V]
    230
  • Width [mm]
    66
  • Height [mm]
    160
  • Frequency [MHz]
    868
  • maximum range [m]
    250
  • Level of security
    IP20
  • Type
    Retransmitters
  • Frequency [MHz]
    868
  • PKWIU
    26.30.12.0
