Relay;miniature;PCB;for;sockets;and;printed;circuits 406182304000

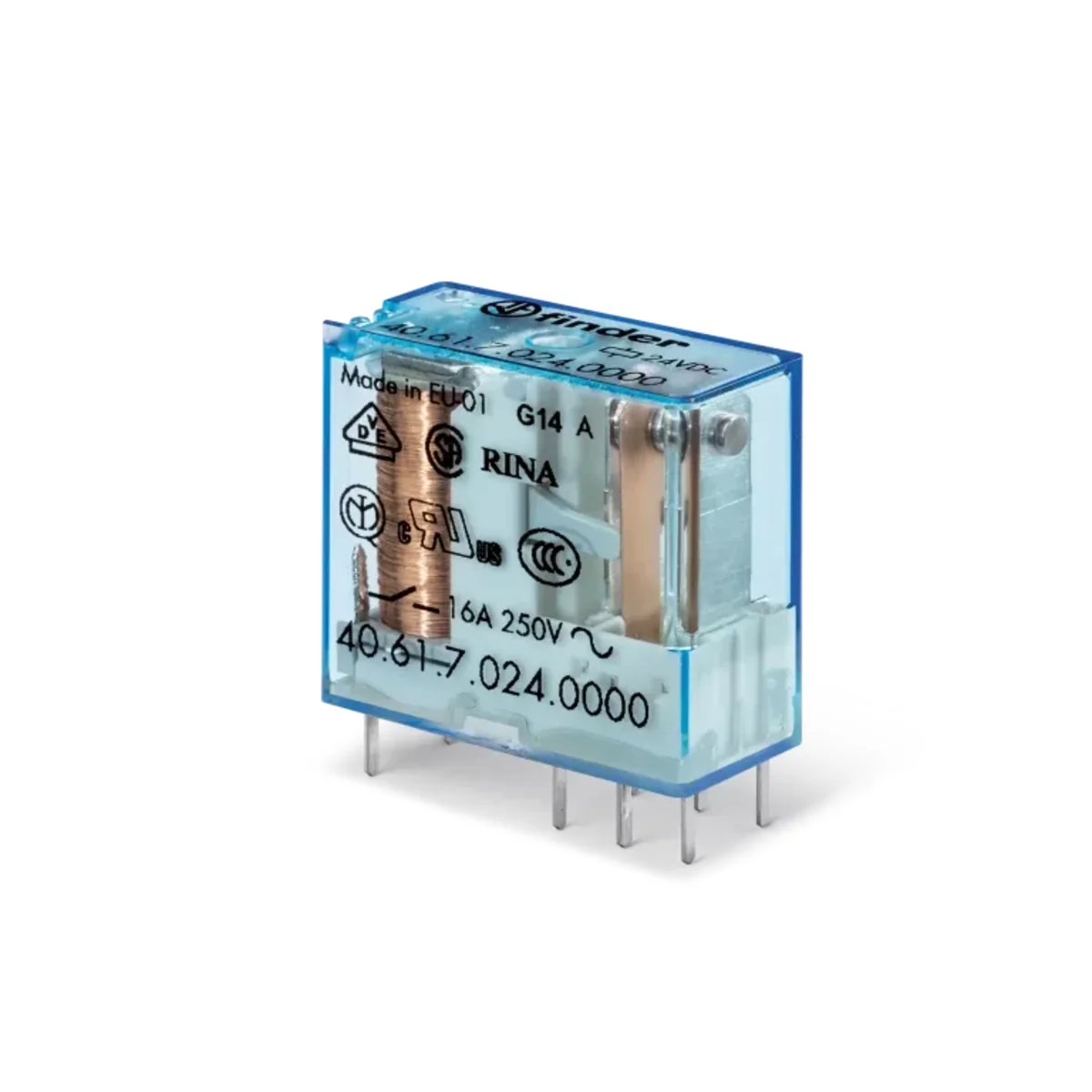

Relay for sockets and printed circuits

• Pin length 3.5 mm for printed circuit boards
• Pin length 5.3 mm socket mounting
• DC coil (650 mW or 500 mW)
• Cadmium-free contact material
• Distance between coil and contacts in air and along insulation 8 mm, insulation strength coil-contacts 6kV (1.2/50μs)< /li>
• Meets the requirements of EN 60335
• 95 series sockets - PCB or 35 mm rail (EN 60715) mounting via screw, spring or self-locking socket
• Signaling and EMC modules -overvoltage series 99 and timer module 86.30
• Protection level: RT II - tight (standard) RT III - resistant to washing (option)
