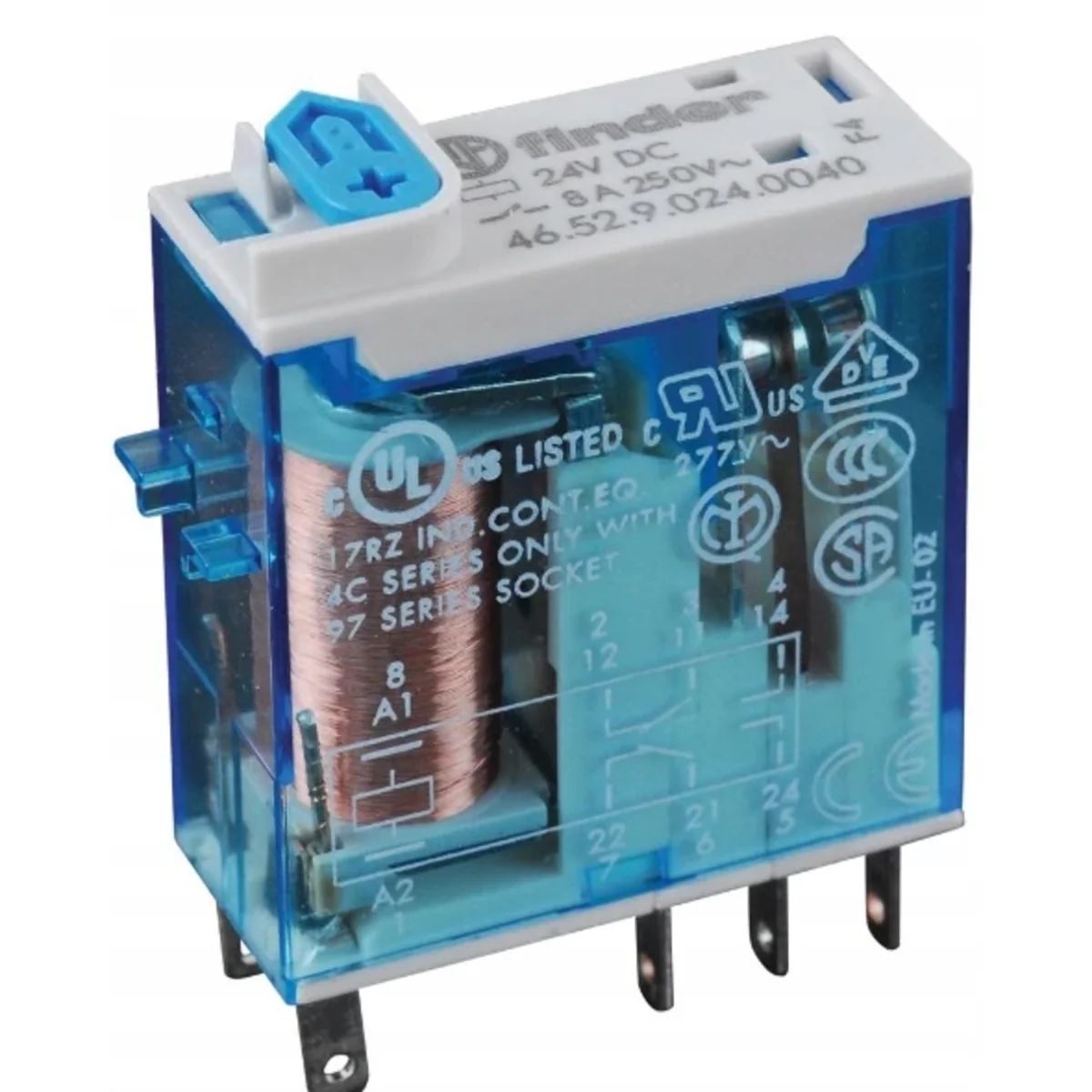

Relay;industrial;miniature;2P;8A;24V;DC 465290240040

local index:
APE033FIND
Catalog No:
465290240040
EAN code:
8012823303444
Manufacturer: FINDER
Maximum switching voltage [V]: 440
Contact material: AgNi
Coil voltage [V]: 24
Price:
5,95 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 92 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

  • Available with: lockable test button, mechanical indicator and LED indicator
  • Insulation between coil and contacts 8 mm, 6 kV (1.2/50 μs)
  • Cadmium-free contacts• 97 series, 35 mm DIN rail (EN 60715), screw terminals, spring and self-locking terminals, and PCB sockets
  • Indication and EMC surge protection modules 99 series and timer module 86.30
  • Optional other mounting adapters
  • Rating protection RT II
  • European patent

Technical data

  • Maximum switching voltage [V]
    440
  • Coil voltage [V]
    24
  • Power consumption [W]
    0.5
  • Dimensions [mm]
    29 x 12.4 x 32.8
  • Contact material
    AgNi
  • Rated voltage [V]
    24
  • Rated current [A]
    8
  • Number of contacts
    2P

Other technical data

  • Type of electric connection
    Plug-in connection
  • Rated control supply voltage DC
    24 ... 24 V
  • Drive, polarization
    Polarity free
  • Number of contacts as normally closed contact
    0
  • Number of contacts as change-over contact
    2
  • Type of switch contact
    Single contact
  • Degree of protection (IP)
    IP40
  • Height
    30.1 mm
  • With detachable clamps
    Yes
  • Voltage type for actuating
    DC
  • Drive, switching attitude
    Mono stable
  • Number of contacts as normally open contact
    0
  • With forced-guided contacts
    Yes
  • Complete with socket
    Yes
  • Width
    12.4 mm
  • Depth
    29 mm

Bulk packaging

A kind of package Sztuka
Quantity 10 pcs.
Weight (kg) 0,214
Width (m) 0,065
Length (m) 0,065
Depth (m) 0,045
