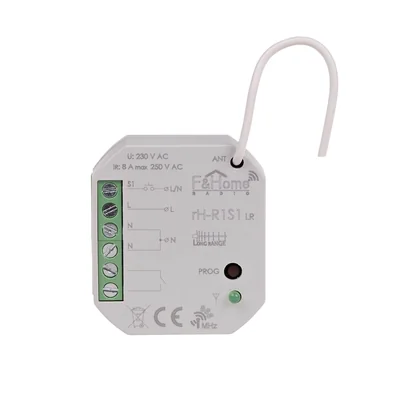

Relay radio module; concealed - Long Range RH-R1S1-LR

local index:
APS019FIFQ
Catalog No:
RH-R1S1-LR
EAN code:
5908312597605
Manufacturer: F&F
Number of inputs: 1
Number of outputs: 1
Maximum voltage [V]: 250
Price:
71,06 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to a week (working days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

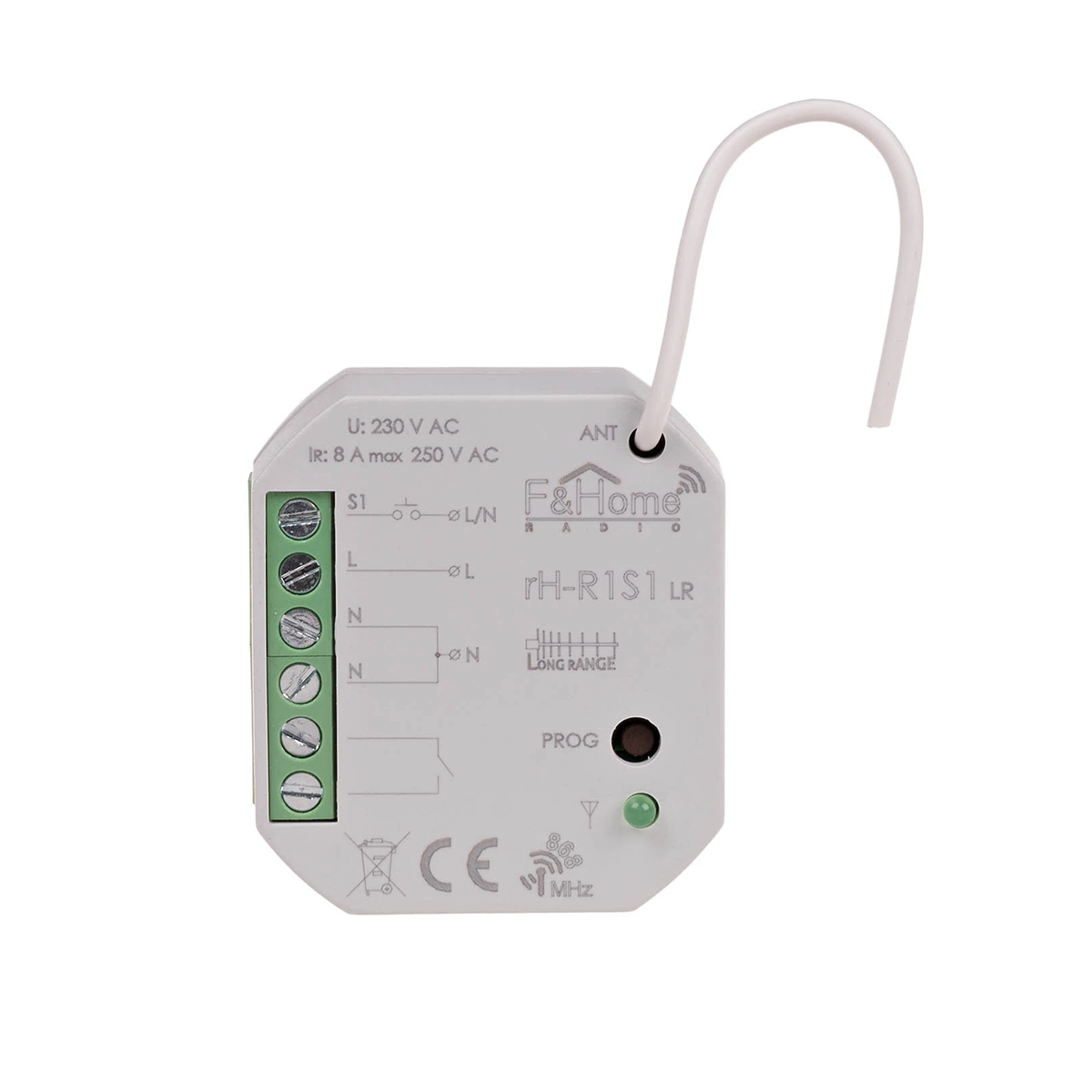

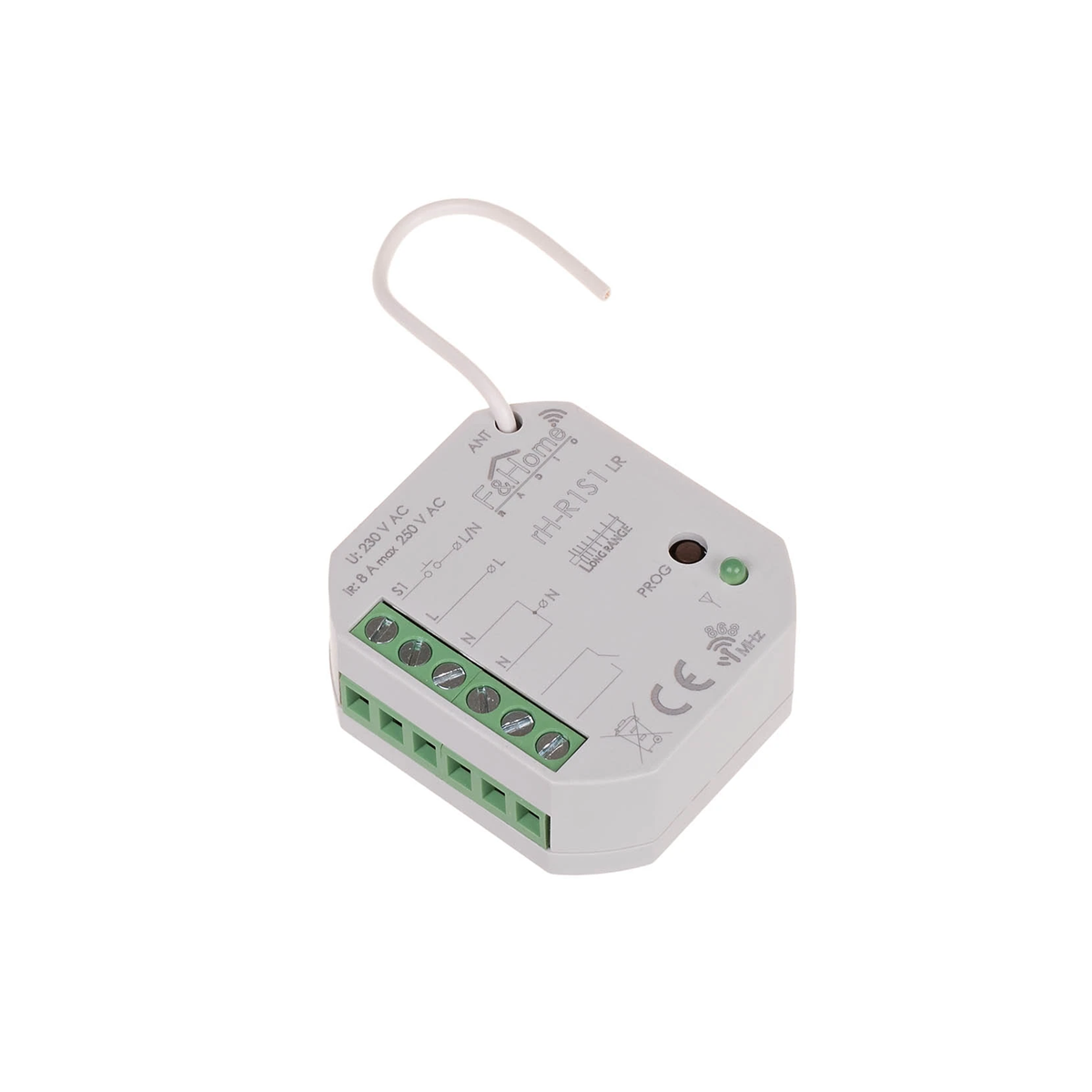

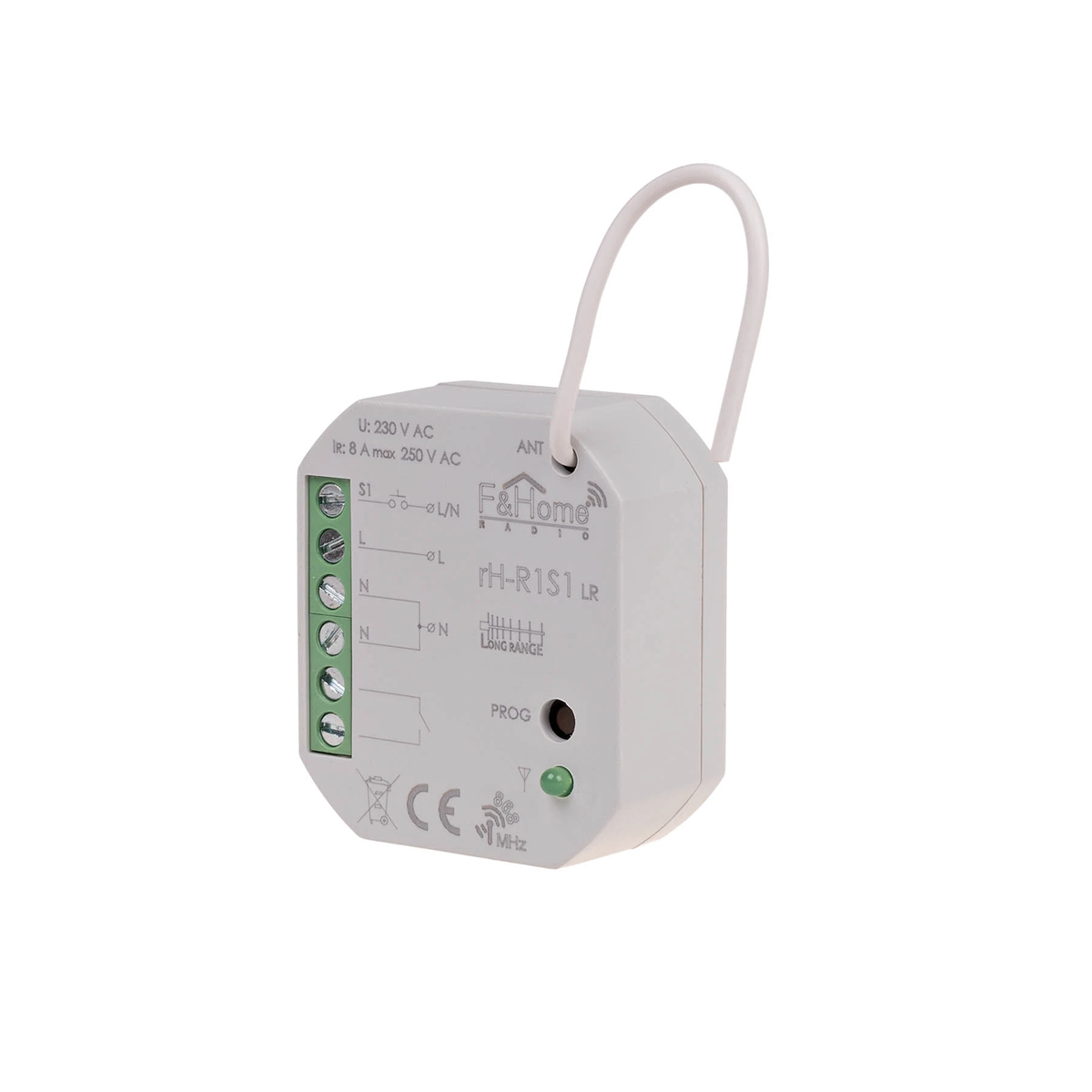

The rH-R1S1 LR module is a combination of a relay and a contact input. The module sends information about the opening and closing of contacts to the system and controls the relay, which can switch on any electrical circuits. Communication with the server takes place via radio. The module has a physical input for connecting one monostable potential-free contact and one relay input. The load of the relay contacts can be resistive, inductive or capacitive, both in DC and AC circuits. The rH-R1S1 module is particularly suitable for controlling the fan, lighting or for switching off the electrical socket. The module has a much greater transmission range (up to 300 m) compared to the rH-R1S1 equivalent

Technical data

  • Number of inputs
    1
  • Maximum voltage [V]
    250
  • Level of security
    IP20
  • Package width [mm]
    60
  • Indicator
    LED
  • Number of outputs
    1
  • Family
    F&HOME RADIO
  • Package height [mm]
    60
  • Package weight [kg]
    0.2
  • PKWIU
    27.12.24.0

Other technical data

  • Bus system KNX-RF (Radio Frequent)
    No
  • Bus system LON
    No
  • Mounting method
    Flush-mounted
  • Number of inputs
    1
  • Bus system radio frequent
    No
  • Bus system Powernet
    No
  • With LED indication
    Yes
  • Degree of protection (IP)
    IP20

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs.
Weight (kg) 0,070
Width (m) 0,117
Length (m) 0,100
Depth (m) 0,038
