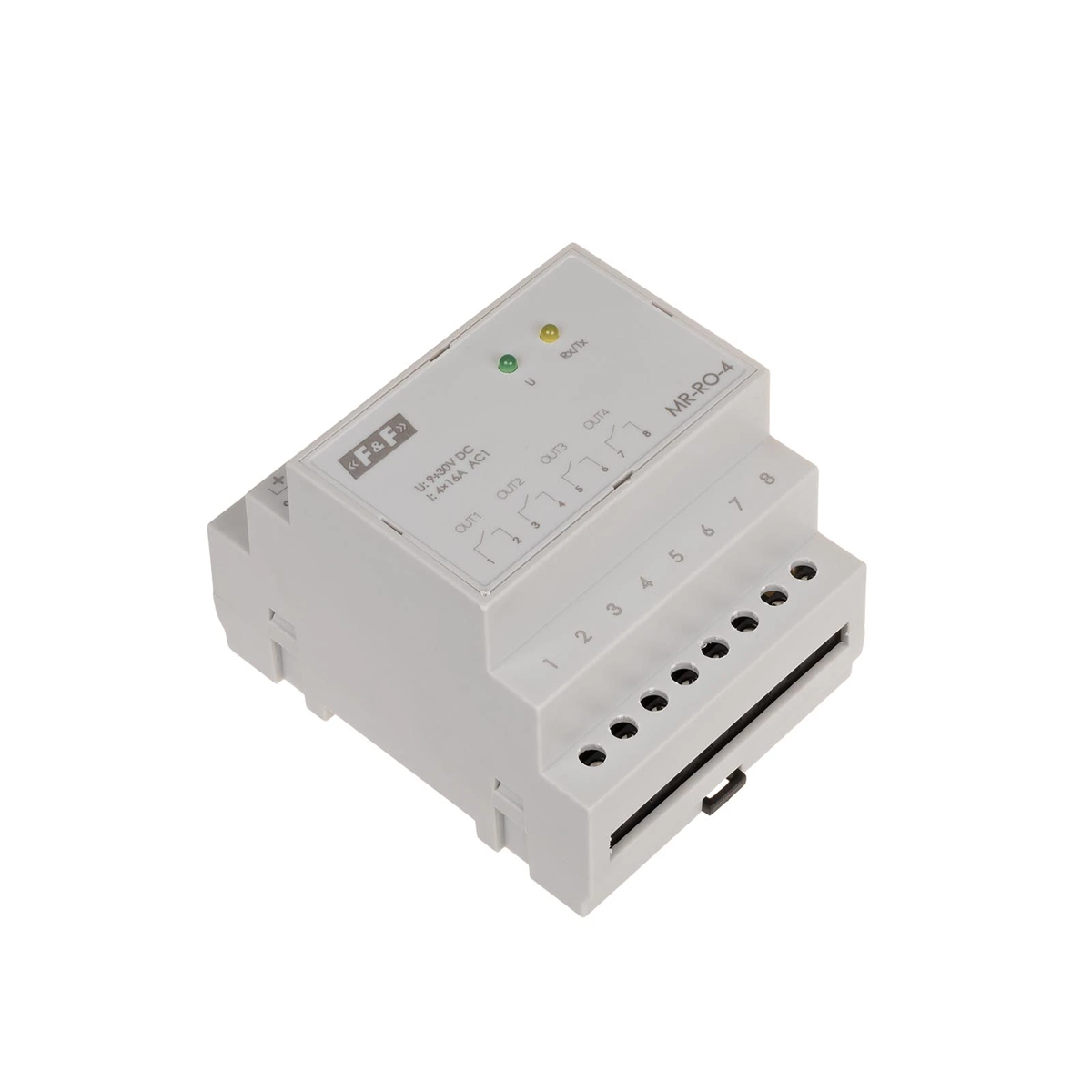

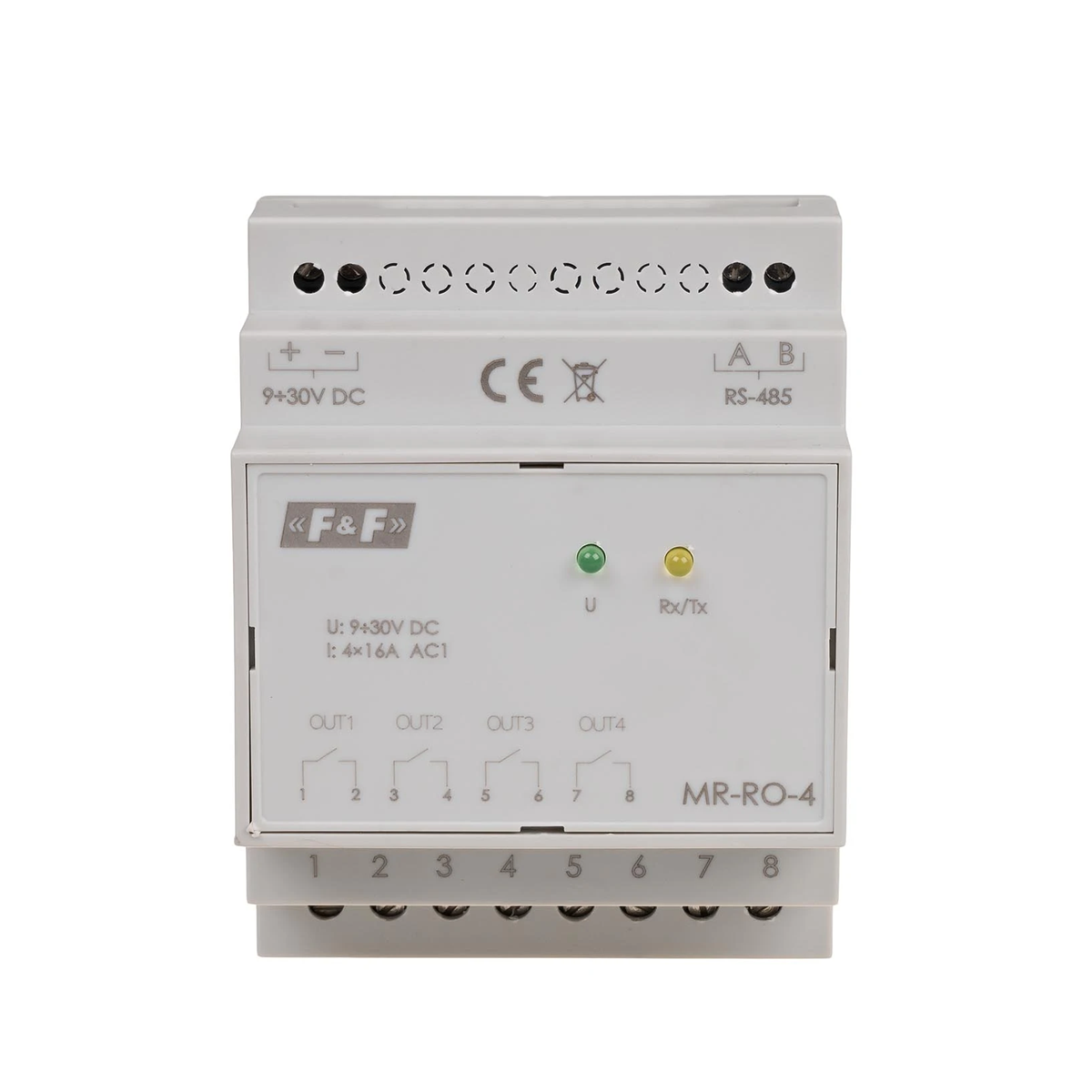

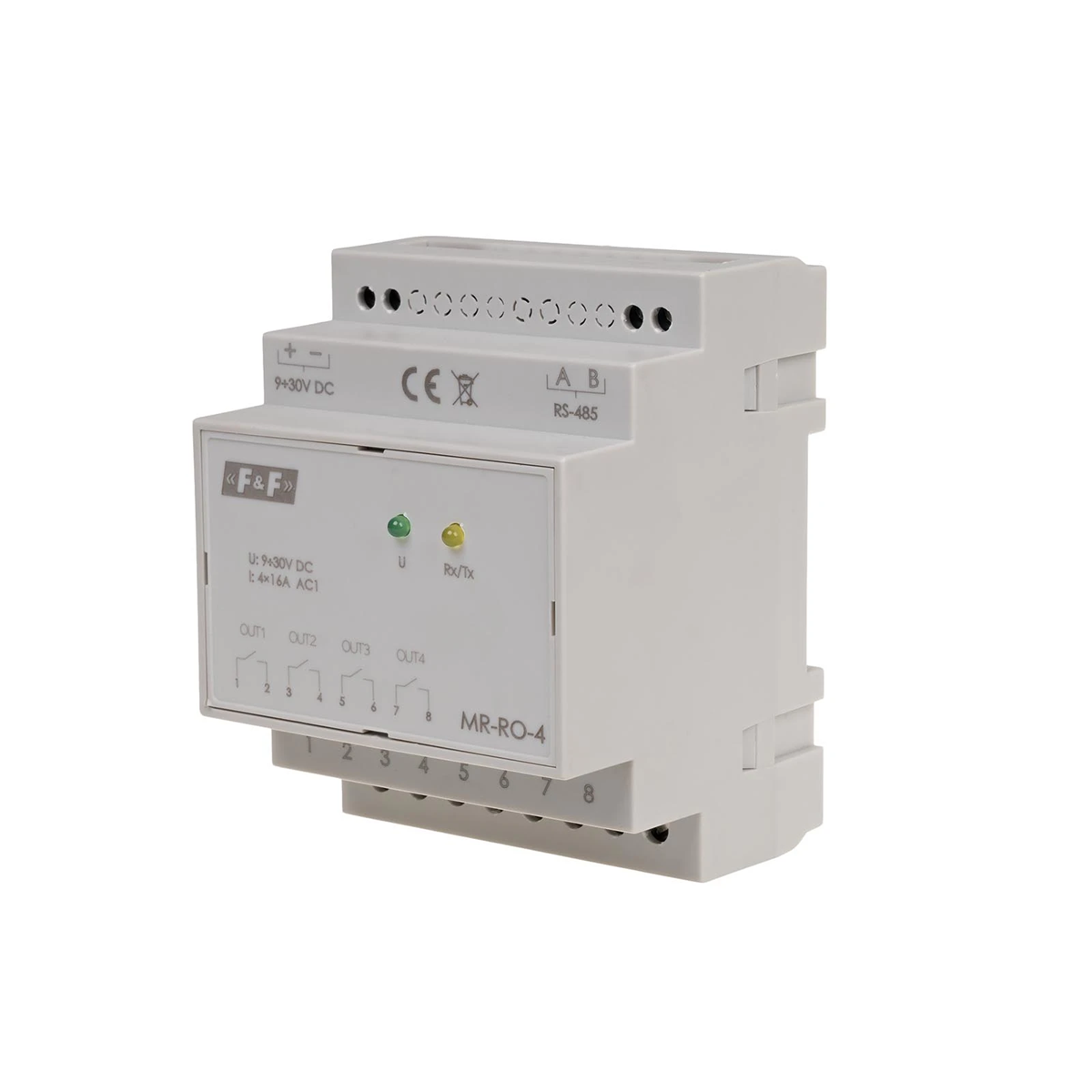

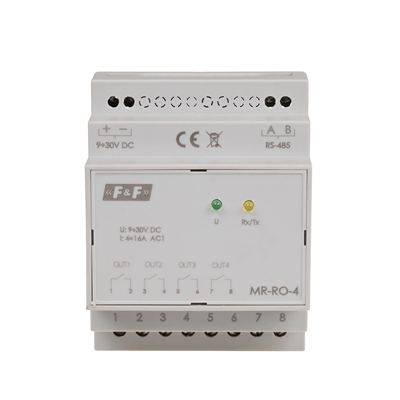

Relay output expansion module with MODBUS RTU output MAX-MR-RO-4

local index:
API121FIFQ
Catalog No:
MAX-MR-RO-4
EAN code:
5908312598671
Manufacturer: F&F
Number of contacts: 1NO 0NC
Power [W]: 2
Rated voltage [V]: 12
Price:
105,13 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to a week (working days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

The MR-RO-4 module is used as an external device extending the relay outputs of PLC programmable controllers or other devices in which data exchange takes place via the RS-485 port in accordance with the MODBUS RTU protocol.
AC1 load [A]<16< /td>



Technical data

  • Number of contacts
    1NO 0NC
  • Rated voltage [V]
    12
  • Level of security
    IP20
  • Working temperature [°C]
    -20-50
  • Package height [mm]
    150
  • Package weight [kg]
    0.4
  • PKWIU
    26.30.23.0
  • Power [W]
    2
  • Harbor
    RS-485
  • Signaling
    LED green/yellow
  • Dimensions
    4 modules (90mm)
  • Package width [mm]
    90
  • communication protocol
    MODBUS RTU

Other technical data

  • Supply voltage DC
    9 ... 30 V
  • Number of digital inputs
    0
  • Permitted voltage at input
    0 ... 0 V
  • Type of digital output
    Relay
  • Type of output voltage
    AC/DC
  • Width
    70 mm
  • Depth
    65 mm
  • Voltage type (supply voltage)
    DC
  • Number of digital outputs
    4
  • Type of voltage (input voltage)
    AC/DC
  • Output current
    16 A
  • Type of electric connection
    Screw connection
  • Height
    90 mm

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs.
Weight (kg) 0,156
Width (m) 0,071
Length (m) 0,095
Depth (m) 0,070
