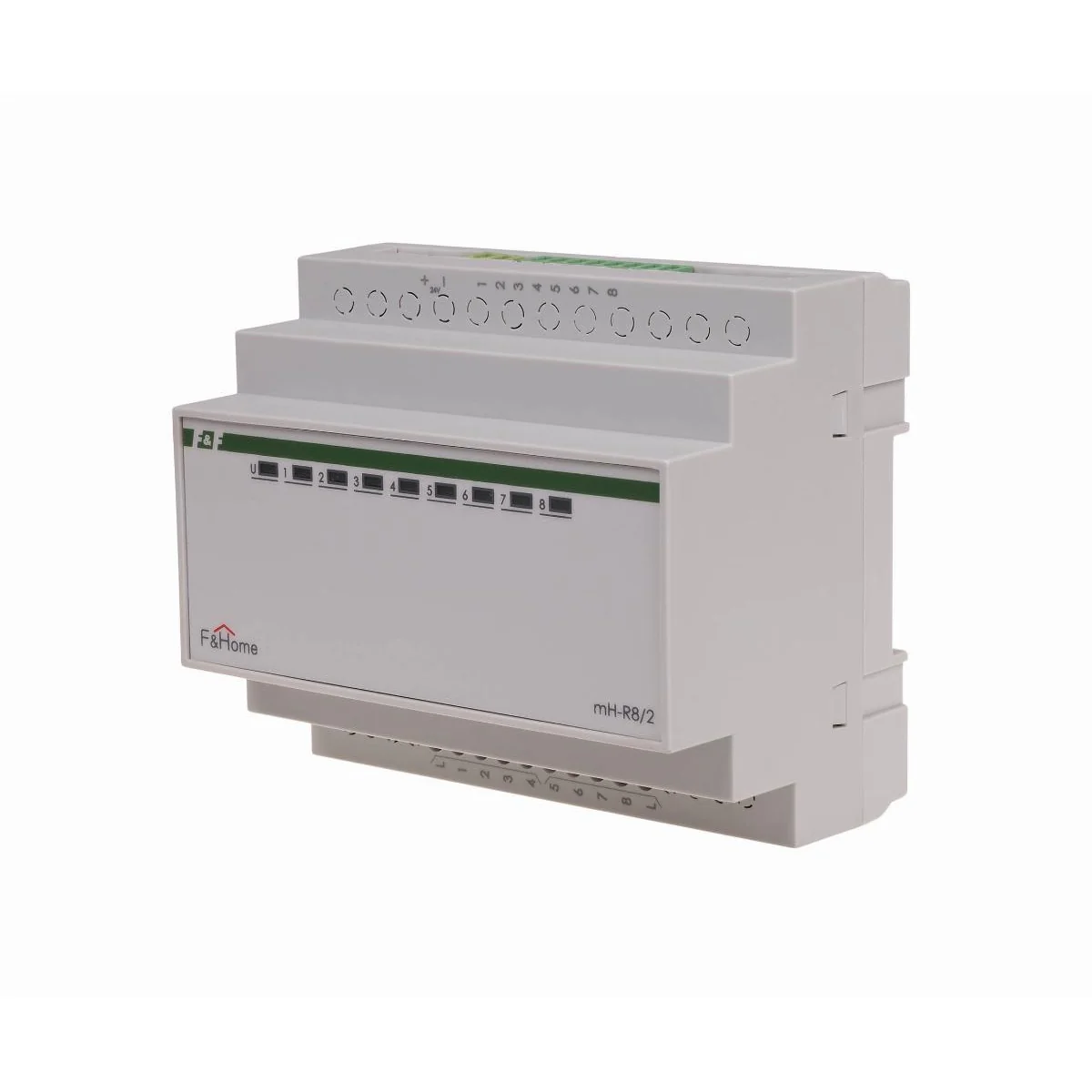

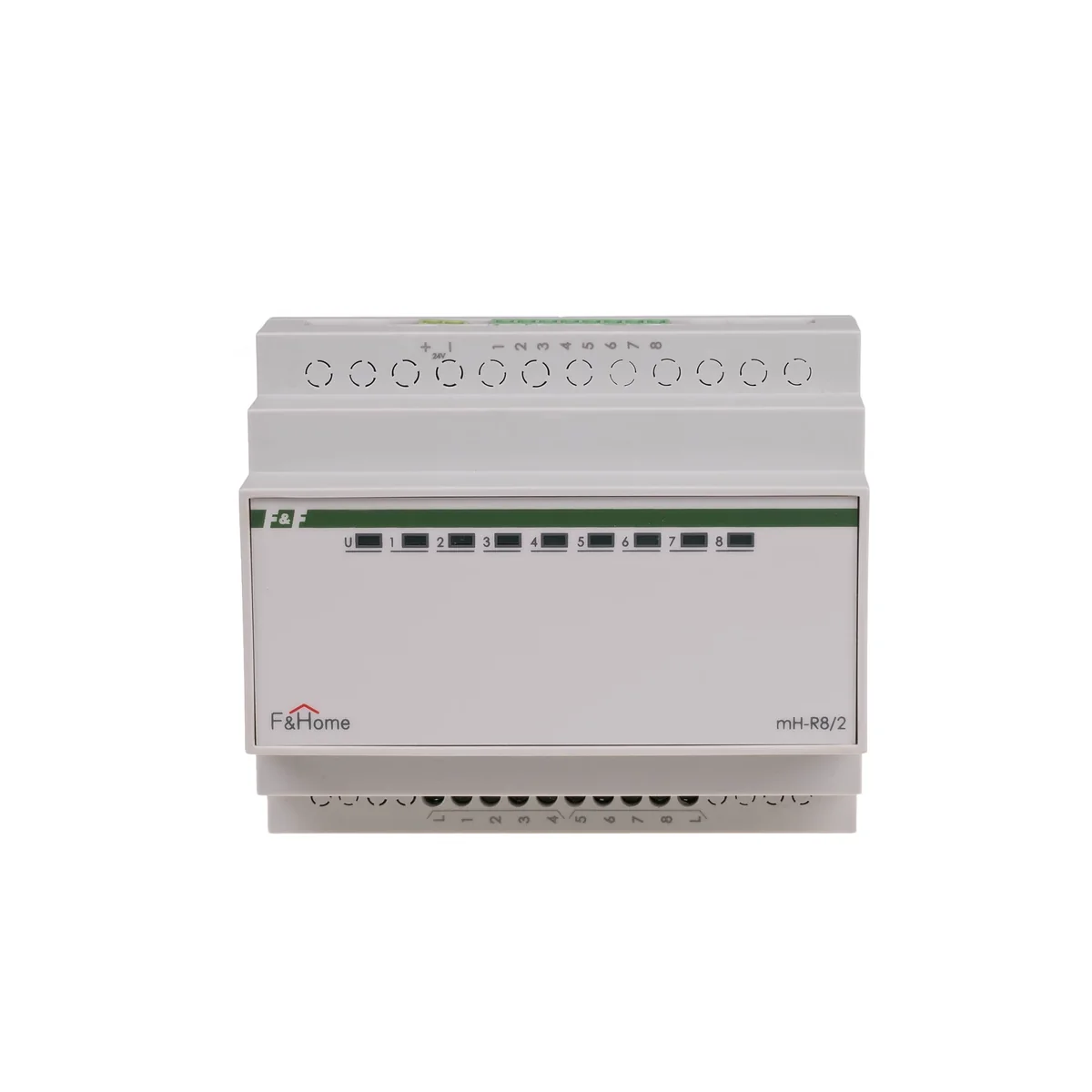

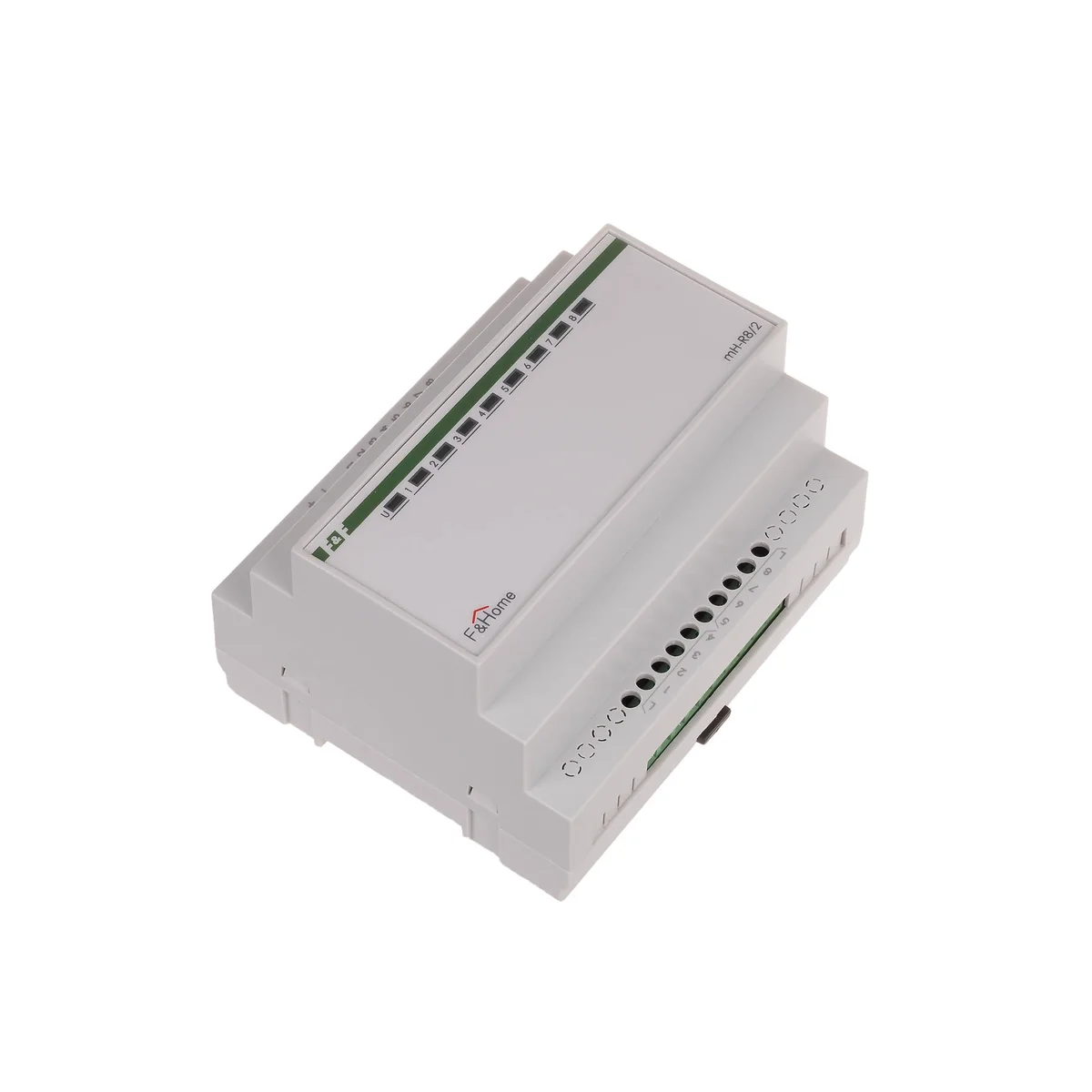

Relay module (8pcs 8A) MH-R8/2

local index:
API084FIFQ
Catalog No:
MH-R8/2
EAN code:
5908312595281
Manufacturer: F&F
Number of channels: 8
Number of contacts: 0NO 0NC
Family: F&HOME
Price:
83,95 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to a week (working days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

The mH-R8/2 executive relays are the successors of the old generation mH-R8x8 relays. Relays are executive elements of the system that switch on light circuits, sockets and any receivers in the building operating on the on-off basis. The load capacity of the actuators is 8A. The mH-R8/2 module contains eight executive relays dedicated to control lighting and low-power receivers. Relay modules are mounted in the switchgear and occupy a field of 6 modules. Module power supply: 24V.

Technical data

  • Number of channels
    8
  • Family
    F&HOME
  • PKWIU
    27.12.24.0
  • Number of contacts
    0NO 0NC
  • Package height [mm]
    89

Other technical data

  • Bus system KNX
    No
  • Bus system radio frequent
    No
  • Bus system Powernet
    No
  • Mounting method
    DRA (DIN-rail adapter)
  • Model
    Base module
  • With bus connection
    No
  • Output voltage
    12 ... 250 V
  • Bus system KNX-RF (Radio Frequent)
    No
  • Bus system LON
    No
  • Other bus systems
    Other
  • Width in number of modular spacings
    6
  • With LED indication
    Yes
  • Number of outputs
    8
  • Degree of protection (IP)
    IP20

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs.
Width (m) 0,104
Depth (m) 0,075
