Relay module 20mm 230V AC 2p 286-516
local index:
APP150WAGO
Catalog No:
286-516
EAN code:
4017332291507
Manufacturer:
WAGO ELWAG
Color: Gray
Maximum switching power (with resistive load) [VA]: 1750
Maximum switching power (with resistive load) [W]: 240
Price:
96,32 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

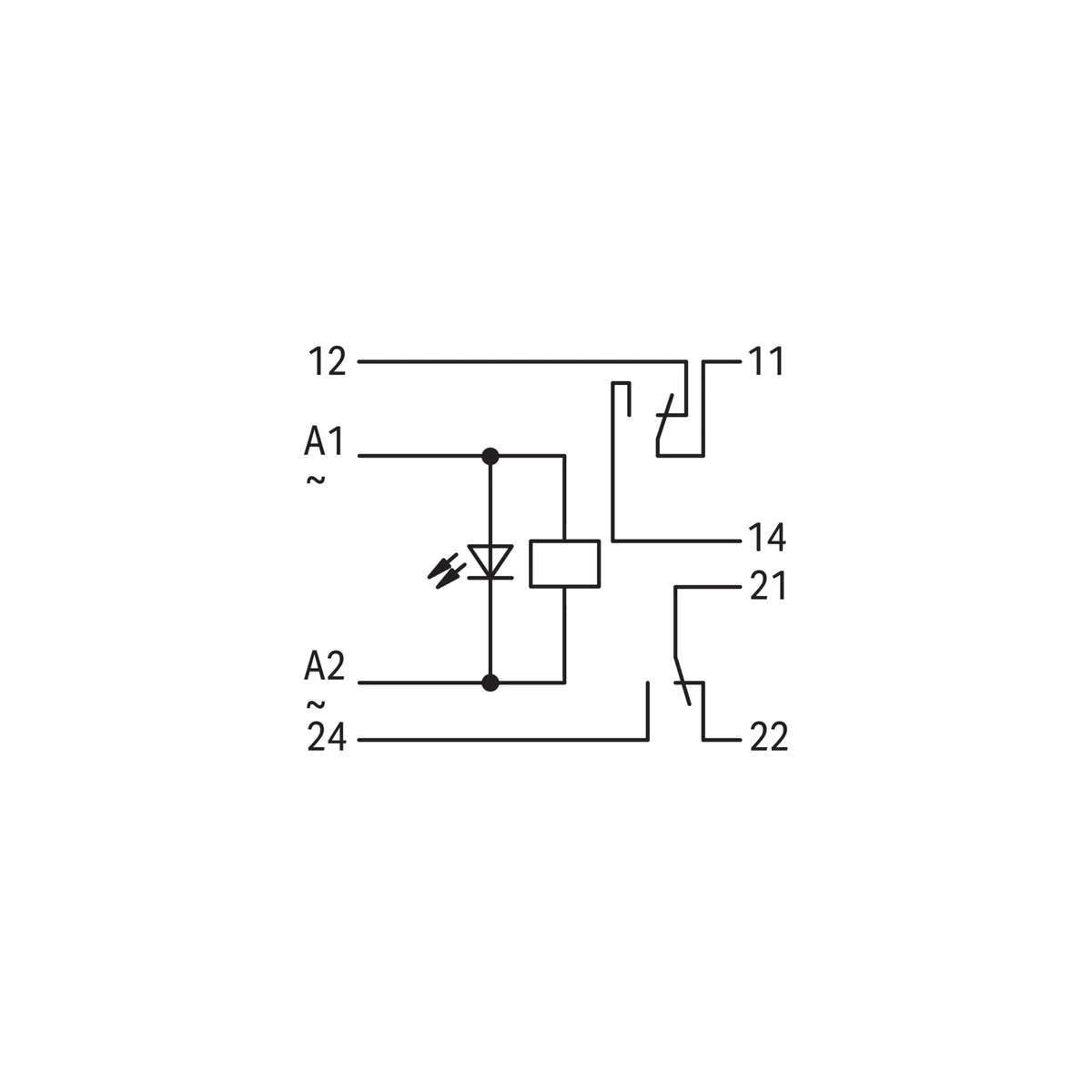

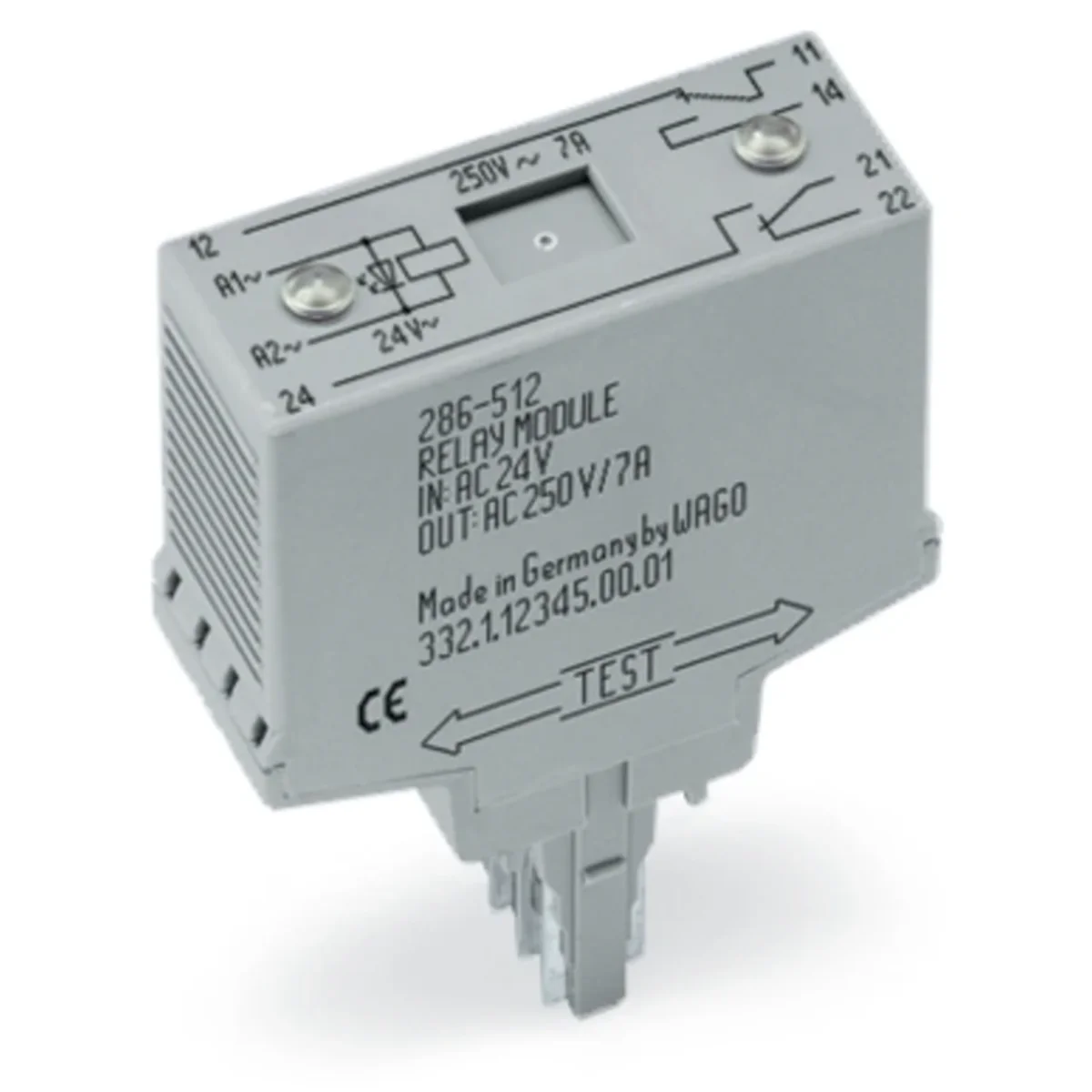

Relay module with 2 changeover contacts (2p)
Technical data
-
ColorGray
-
Maximum switching power (with resistive load) [W]240
-
Series286
-
Maximum switching power (with resistive load) [VA]1750
-
AC coil voltage [V]230
-
Accurate colorGray
Other technical data
-
Type of electric connectionPlug-in connection
-
Nominal current7 A
-
Rated control supply voltage AC 60 Hz230 ... 230 V
-
Drive, polarizationPolarity free
-
Number of contacts as normally closed contact0
-
Number of contacts as change-over contact2
-
Type of switch contactSingle contact
-
With LED indicationYes
-

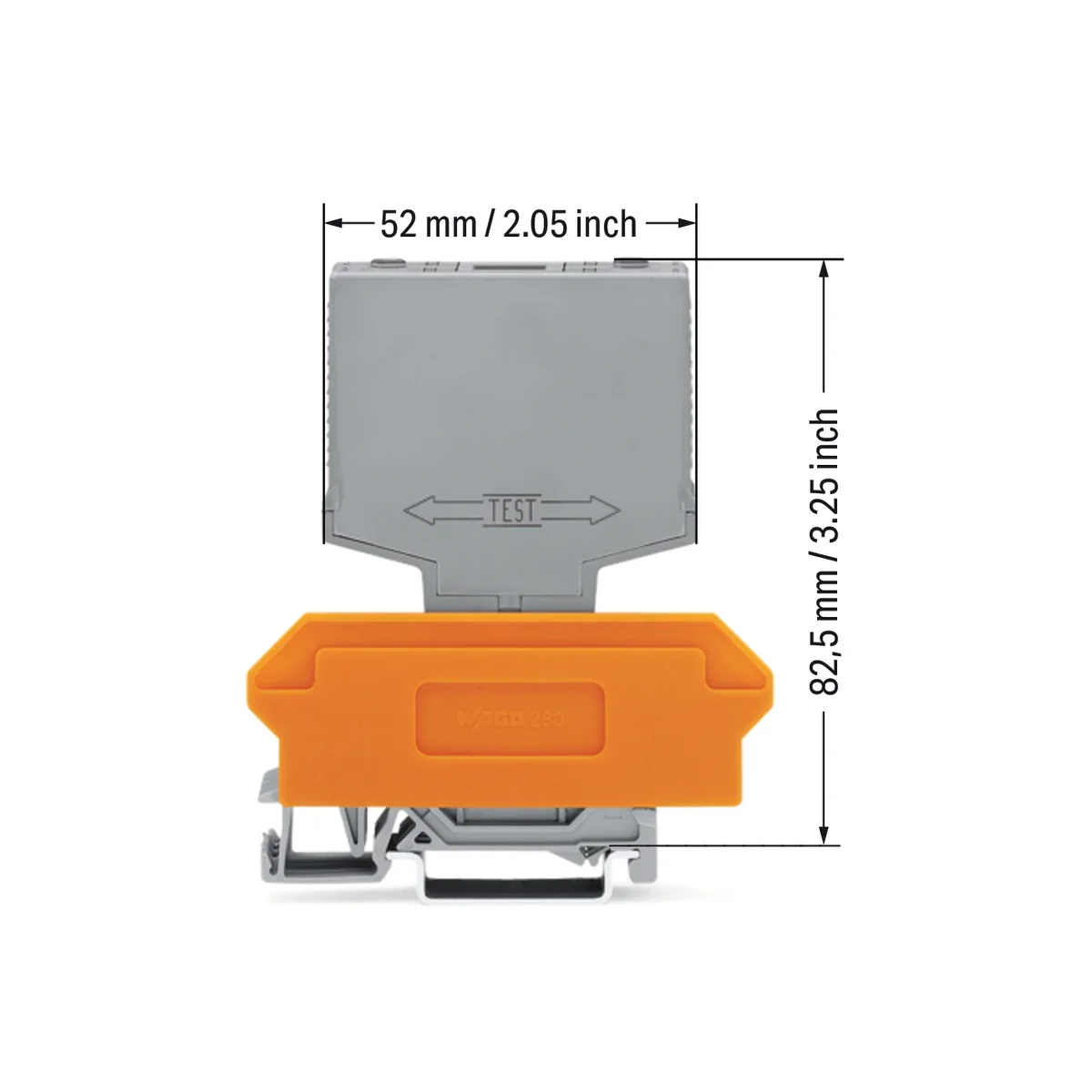

Width20 mm
-
Depth50 mm
-
With detachable clampsNo
-
Rated control supply voltage AC 50 Hz230 ... 230 V
-
Voltage type for actuatingAC
-
Drive, switching attitudeMono stable
-
Number of contacts as normally open contact0
-
With forced-guided contactsNo
-
Complete with socketNo
-
Degree of protection (IP)IP20
-
Height70.2 mm
Manufacturer details
-
ManufacturerWAGO ELWAG Sp. z o.o.
-
Address50-506 Wrocław Piękna 58A
-
E-mail
-
Tax identification number8961025689
-
GLN4017332000000
Bulk packaging
| A kind of package | Karton |
| Quantity | 15 pcs. |
| Weight (kg) | 0,600 |
| Volume (m3) | 0,003 |
| Width (m) | 0,103 |
| Length (m) | 0,353 |
| Depth (m) | 0,072 |
