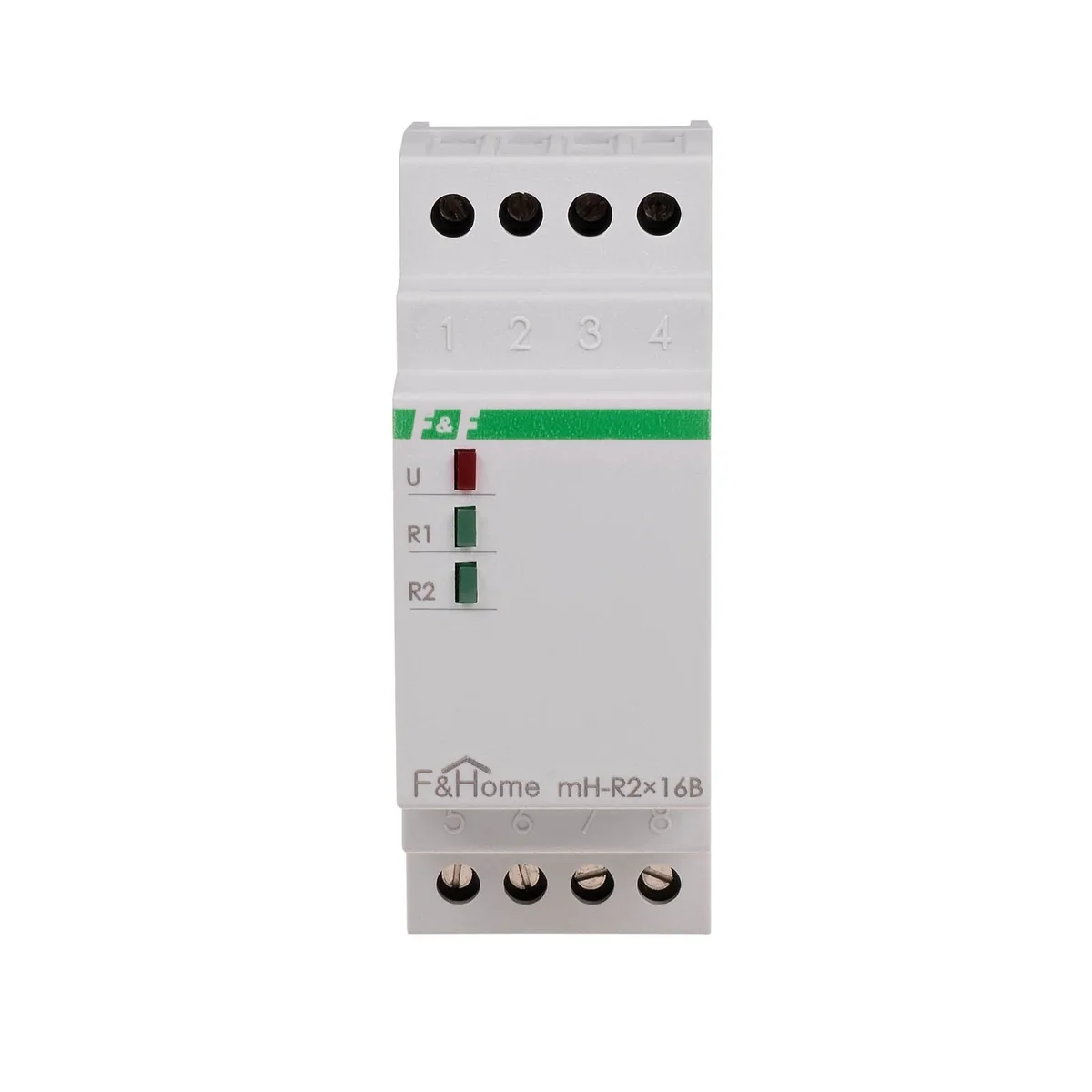

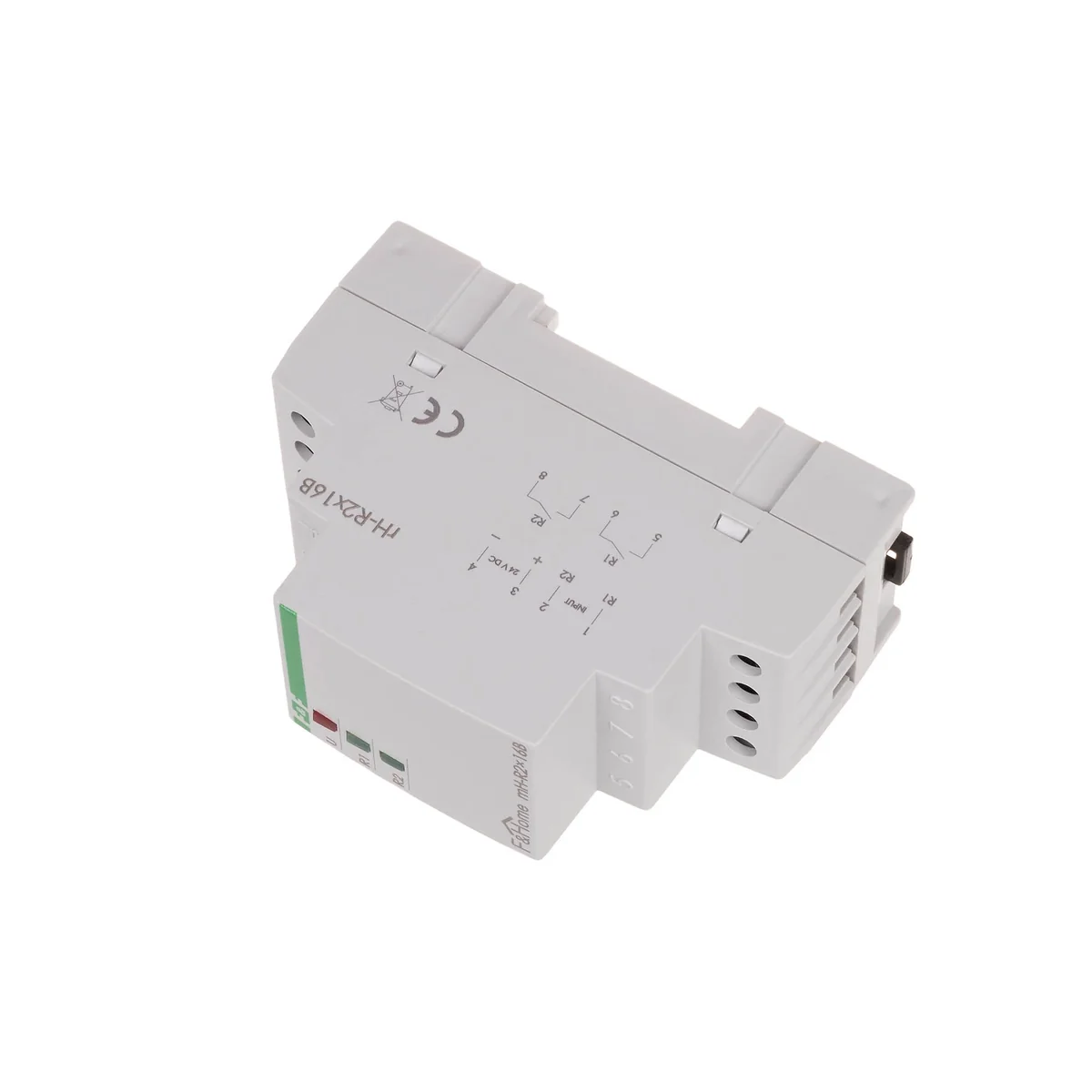

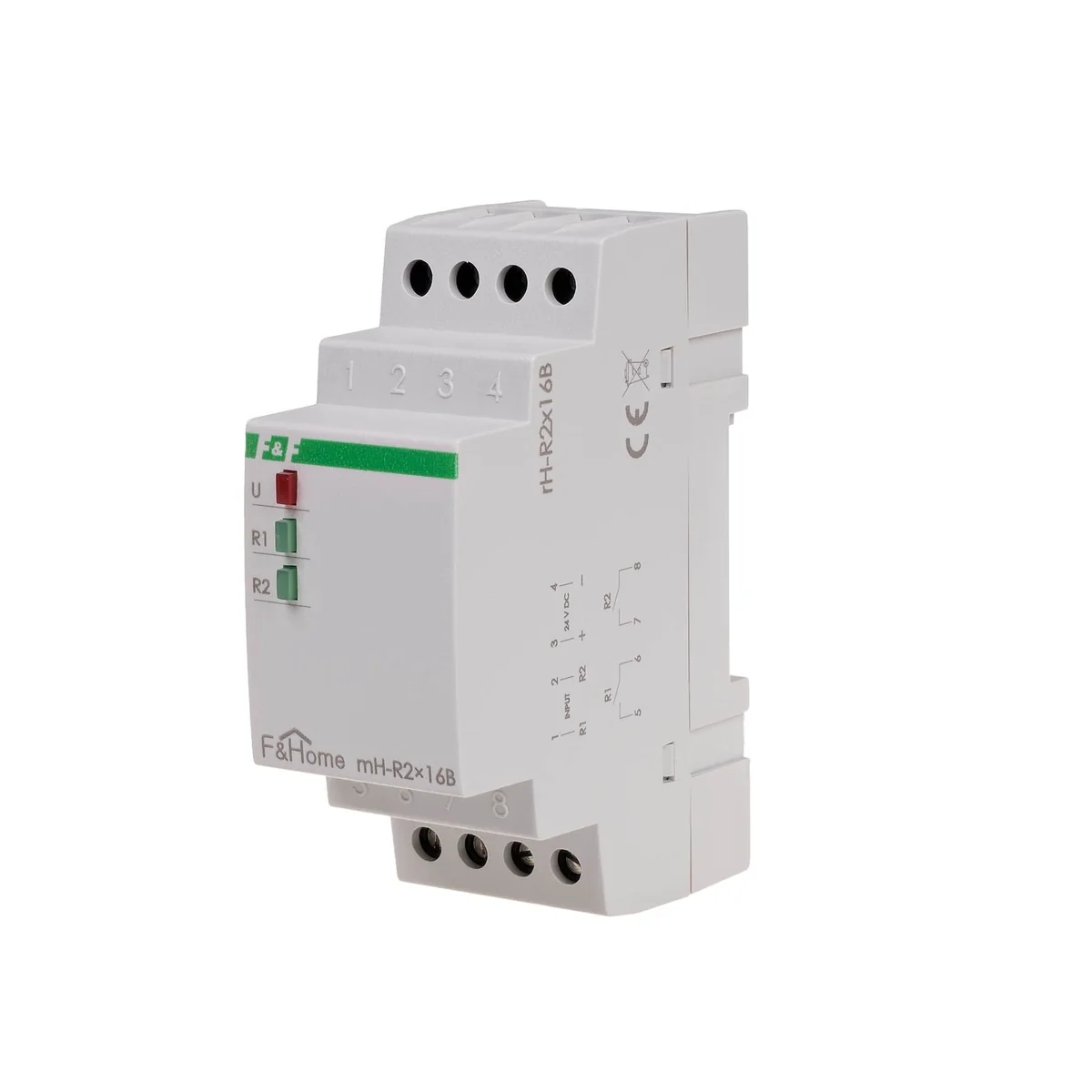

Relay module (2 pcs 16A) MH-R2X16

local index:
API066FIFQ
Catalog No:
MH-R2X16
EAN code:
5908312593768
Manufacturer: F&F
Central shutdown: NO
Panic function: NO
Depth [mm]: 65
Price:
54,74 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

The mH-R8x8 or mH-R2x16 executive relays are the executive elements of the system that switch on the light circuits, any receivers in the building or control roller shutters or blinds. The load capacity of the elements is 8A in the case of the mH-R8x8 module or 16A in the case of the mH-R2x16 module. The mH-R8x8 module contains eight executive relays dedicated to controlling lighting and roller blinds, while the mH-R2x16 module contains two 16A relays dedicated to switching on power receivers (230V sockets). Relay modules are mounted in the switchgear and occupy a field of 2 modules (mH-R2x16) and 6 modules (mH-R8x8).

Technical data

  • Central shutdown
    NO
  • Depth [mm]
    65
  • Number of modules
    2
  • Installation
    On the TH-35 rail
  • Rated current [A]
    16
  • Family
    F&HOME
  • Width [mm]
    35
  • Package height [mm]
    90
  • Package weight [kg]
    0.12
  • PKWIU
    27.12.24.0
  • Panic function
    NO
  • Number of channels
    2
  • Number of contacts
    1NO 0NC
  • Rated voltage [V]
    24
  • Group switch
    NO
  • Level of security
    IP20
  • Height [mm]
    90
  • Package width [mm]
    35
  • Number of modules
    2

Other technical data

  • Bus system KNX
    No
  • Bus system radio frequent
    No
  • Bus system Powernet
    No
  • Mounting method
    DRA (DIN-rail adapter)
  • Model
    Base module
  • With bus connection
    No
  • Output voltage
    12 ... 250 V
  • Bus system KNX-RF (Radio Frequent)
    No
  • Bus system LON
    No
  • Other bus systems
    Other
  • Width in number of modular spacings
    2
  • With LED indication
    Yes
  • Number of outputs
    2
  • Degree of protection (IP)
    IP20

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs.
Width (m) 0,019
Length (m) 0,095
Depth (m) 0,070
