Automation
Relays and drivers
Electromagnetic relays
Relay module 15mm 24V DC 1p 286-304
local index:
APE006WAGO
Catalog No:
286-304
EAN code:
4045454319465
Click on the photo to enlarge
Manufacturer:
WAGO ELWAG
Contact dropout time [ms]:
6
Color:
Gray
Power [W]:
192
See full description
Price:
58,89 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Bulk packaging
Product description

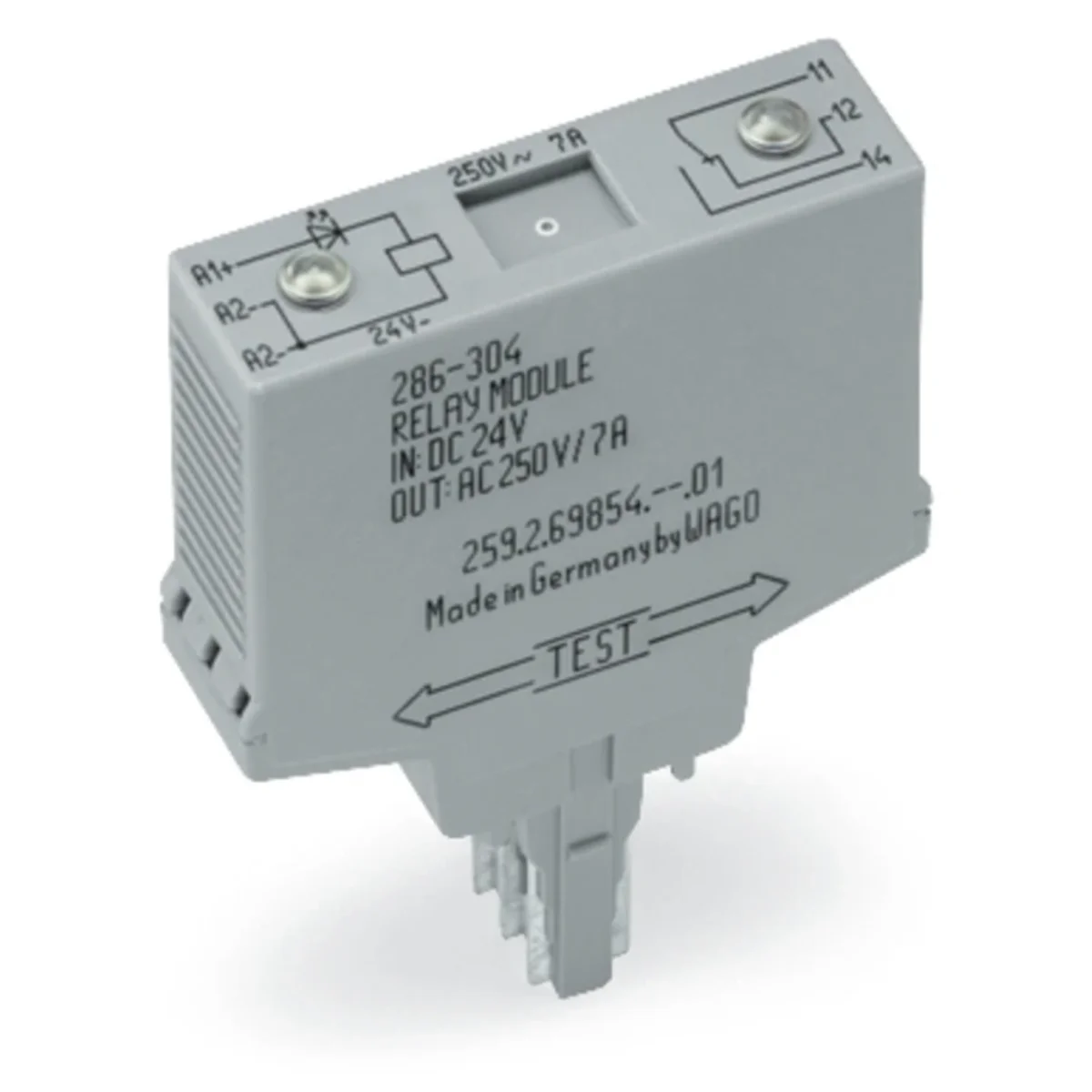

Relay module 15mm 24V DC 1p
Technical data
Contact dropout time [ms]
6
Power [W]
192
Operating power[mW]
533
Rated voltage [V]
230
Series
286
Rated impulse voltage [kV]
4
Accurate color
Gray
Color
Gray
Excitation power [mW]
261
Input voltage [V]
24
Rated current [A]
8
Width [mm]
15
Tripping time [ms]
8
Other technical data
Type of electric connection
Plug-in connection
Nominal current
7 A
Voltage type for actuating
DC
Drive, switching attitude
Mono stable
Number of contacts as normally open contact
0
With forced-guided contacts
No
Complete with socket
No
Degree of protection (IP)
IP20
Height
70.2 mm
With detachable clamps
No
Rated control supply voltage DC
24 ... 24 V
Drive, polarization
Polarized
Number of contacts as normally closed contact
0
Number of contacts as change-over contact
1
Type of switch contact
Single contact
With LED indication
Yes
Width
15 mm
Depth
50 mm
Bulk packaging
A kind of package
Karton
Quantity
15 pcs.
Weight (kg)
0,566
Volume (m3)
0,001
Width (m)
0,085
Length (m)
0,276
Depth (m)
0,060
