Relay 2CO 8A 12V DC 405290120000
local index:
APE054FIND
Catalog No:
405290120000
EAN code:
8012823240367
Price:
4,24 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

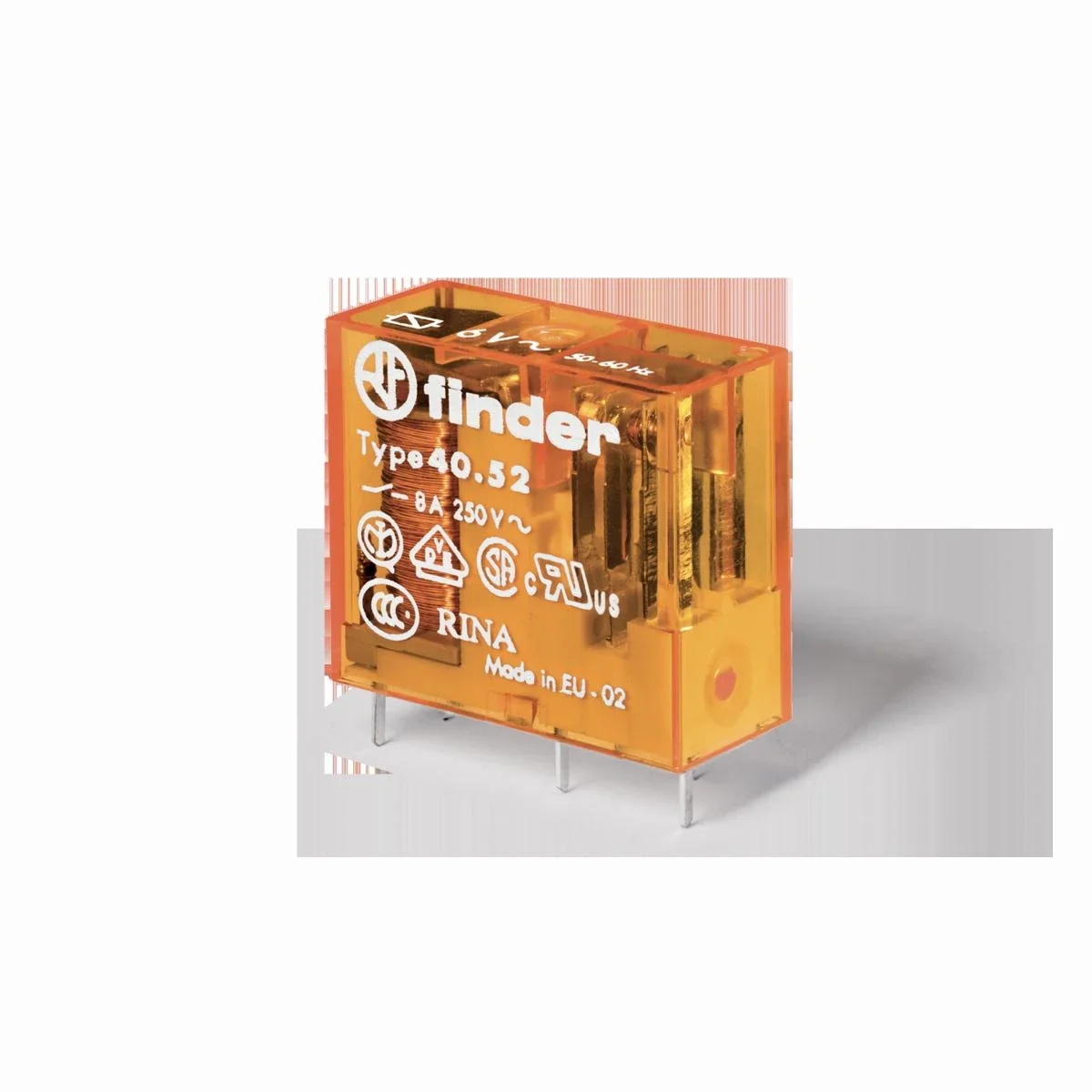

Relay 2CO 8A 12V DC
Technical data
-
Rated voltage [V]12
-
Rated current [A]8
Other technical data
-
Type of electric connectionOther
-
Rated control supply voltage DC12 ... 12 V
-
Drive, polarizationPolarity free
-
Number of contacts as normally closed contact0
-
Number of contacts as change-over contact2
-
Type of switch contactSingle contact
-
Degree of protection (IP)IP20
-
Height25 mm
-
With detachable clampsYes
-
Voltage type for actuatingDC
-
Drive, switching attitudeMono stable
-
Number of contacts as normally open contact0
-
With forced-guided contactsYes
-
Complete with socketYes
-
Width12.4 mm
-
Depth29 mm
Bulk packaging
| A kind of package | Sztuka | Sztuka |
| Quantity | 10 pcs. | 50 pcs. |
| Weight (kg) | 0,199 | 0,925 |
| Width (m) | 0,092 | 0,157 |
| Length (m) | 0,066 | 0,130 |
| Depth (m) | 0,047 | 0,040 |
