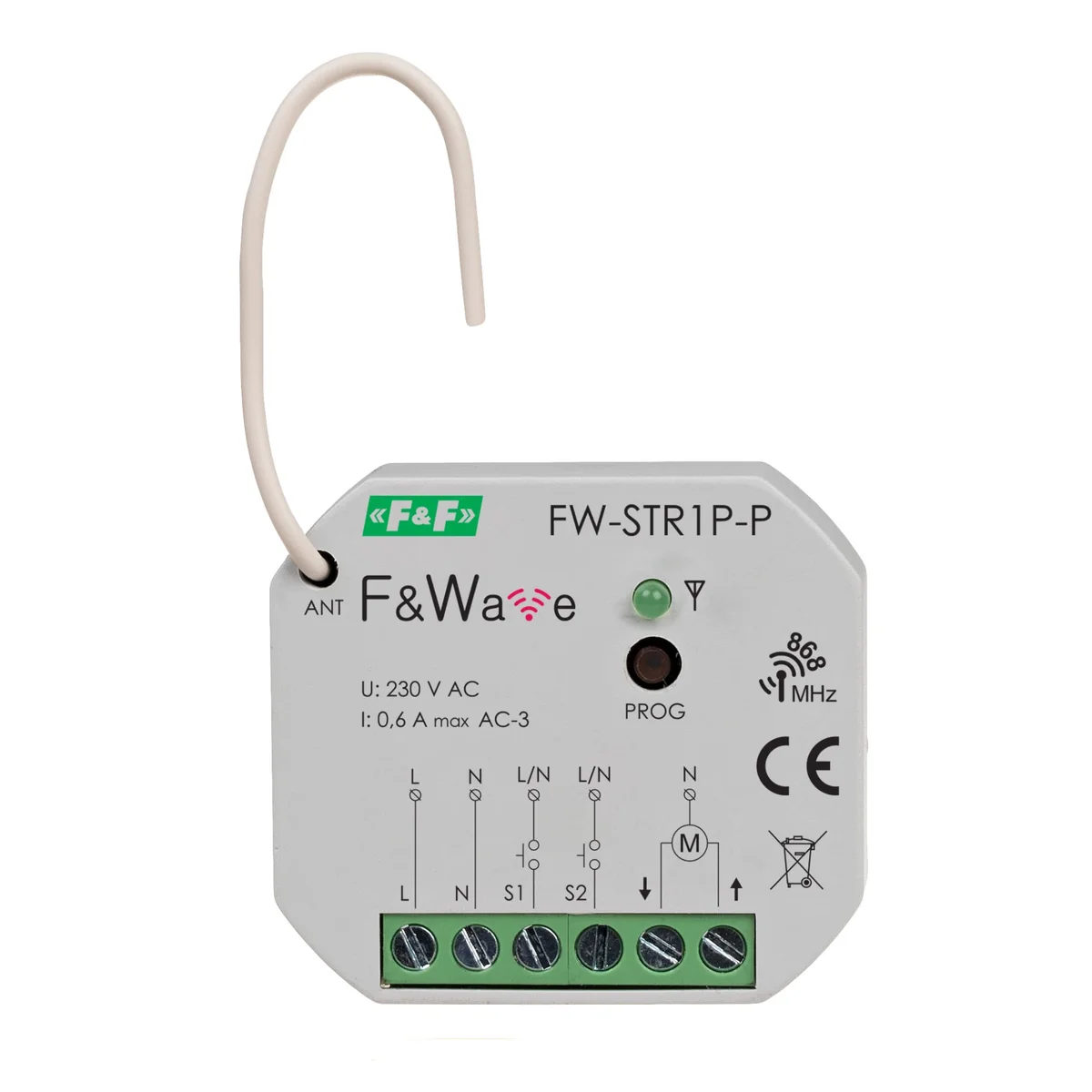

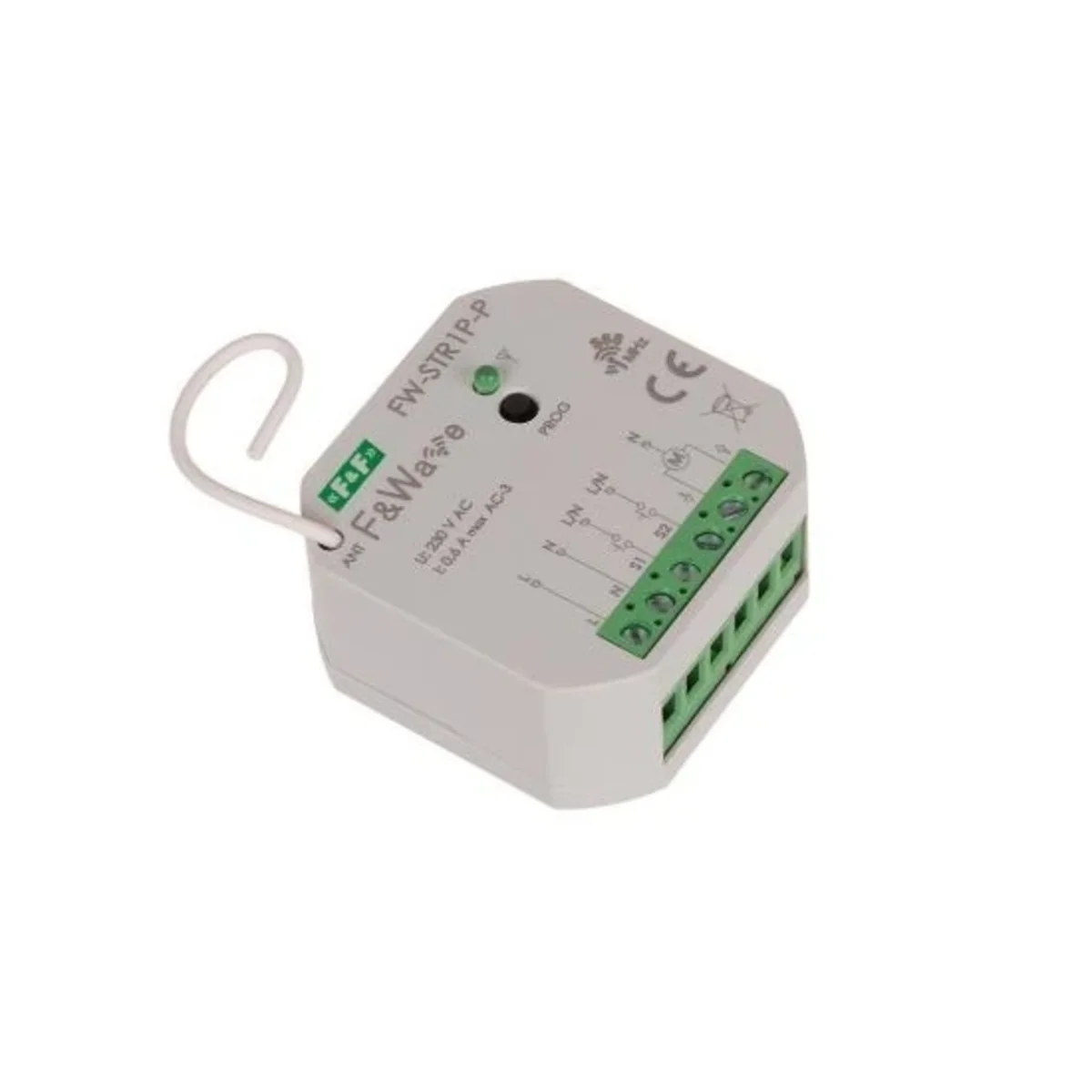

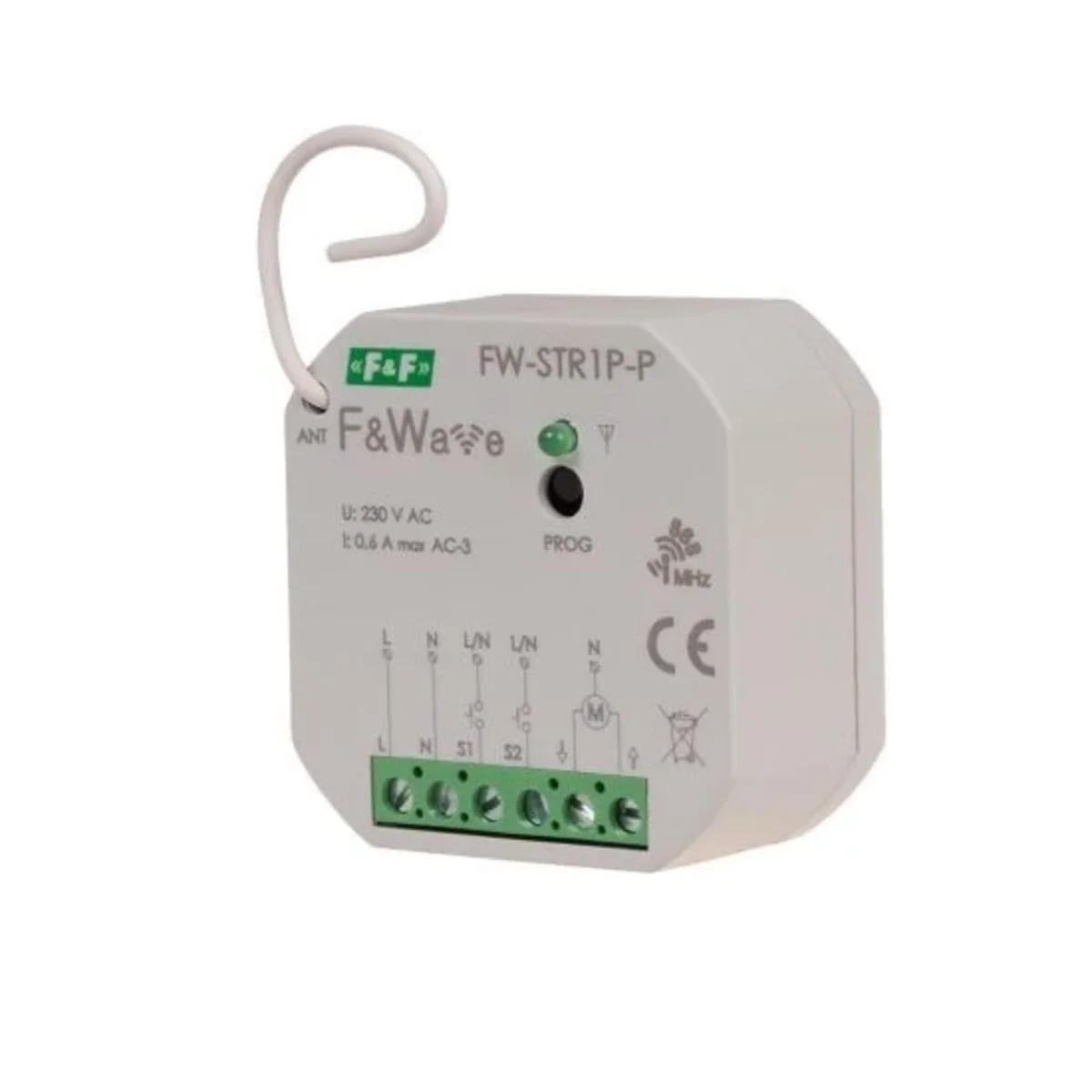

Recessed radio shutter controller FW-STR1P-P

Radio shutter controller from the manufacturer F&F. The product catalog number is FW-STR1P-P. Enables remote radio control of roller blinds, blinds, awnings, lighting, smooth regulation of lighting brightness, control of entrance and garage gates and other devices at home.  F&Wave is a simple system of remote radio control among others roller shutters, blinds and awnings using a remote control, special keyrings or monostable wall buttons to which we connect battery flush-mounted transmitters.  ;The radio roller shutter controller can work as an independent device controlling one selected roller shutter. In practice, however, the most important thing is the possibility of central and radio control of a group of roller shutters. In this case, with one button you can radio open the blinds throughout the house, and with the other – close. In a simple way, you can also implement a system in which separate buttons will radio control roller shutters on the first floor, separate roller shutters on the ground floor, and others will allow you to close or open roller shutters simultaneously throughout the house.

Functions:

• Lock function preventing switching on.
• Power supply to both motor windings.
• Each the button/transmitter (local and remote) can perform a different function.
• Possibility of linking the controller with 32 transmitters.
• Two local control inputs - possibility of direct control of the relay using any monostable button (e.g. bell).
• Two output contacts for both directions of movement of the roller shutter with a load capacity of 0.6 A (AC-3).
• Small housing size.
• Screw terminals for easy mounting in Ø60 flush-mounted box.
• Retransmission of commands from the transmitter - the possibility of increasing the remote control range.
• Low power consumption - low operating cost.
• Built-in electronic thermal protection.
• Electrical interlock prevents power supply to both motor windings.
• In 1-button mode, and 2-button Gór;ra and Dó ł, a short press of the button turns on the motor for the programmed time. Long press (>1 s) - the motor runs as long as the button is pressed. This function can be used, for example, to control the tilt of the slats.

Parameters

• Signal control: L or N.
• Output load capacity (AC-1): 3 A.
• Output load capacity (AC-3): 0.6 A.
• Radio frequency: 868 MHz.
• Standby/operation power consumption: 0.25 W / 1 W.
• Operating temperature: -25 ÷ 65°C.
• Dimensions: 43mm × 48mm × 25mm.
