El12 and HAGER

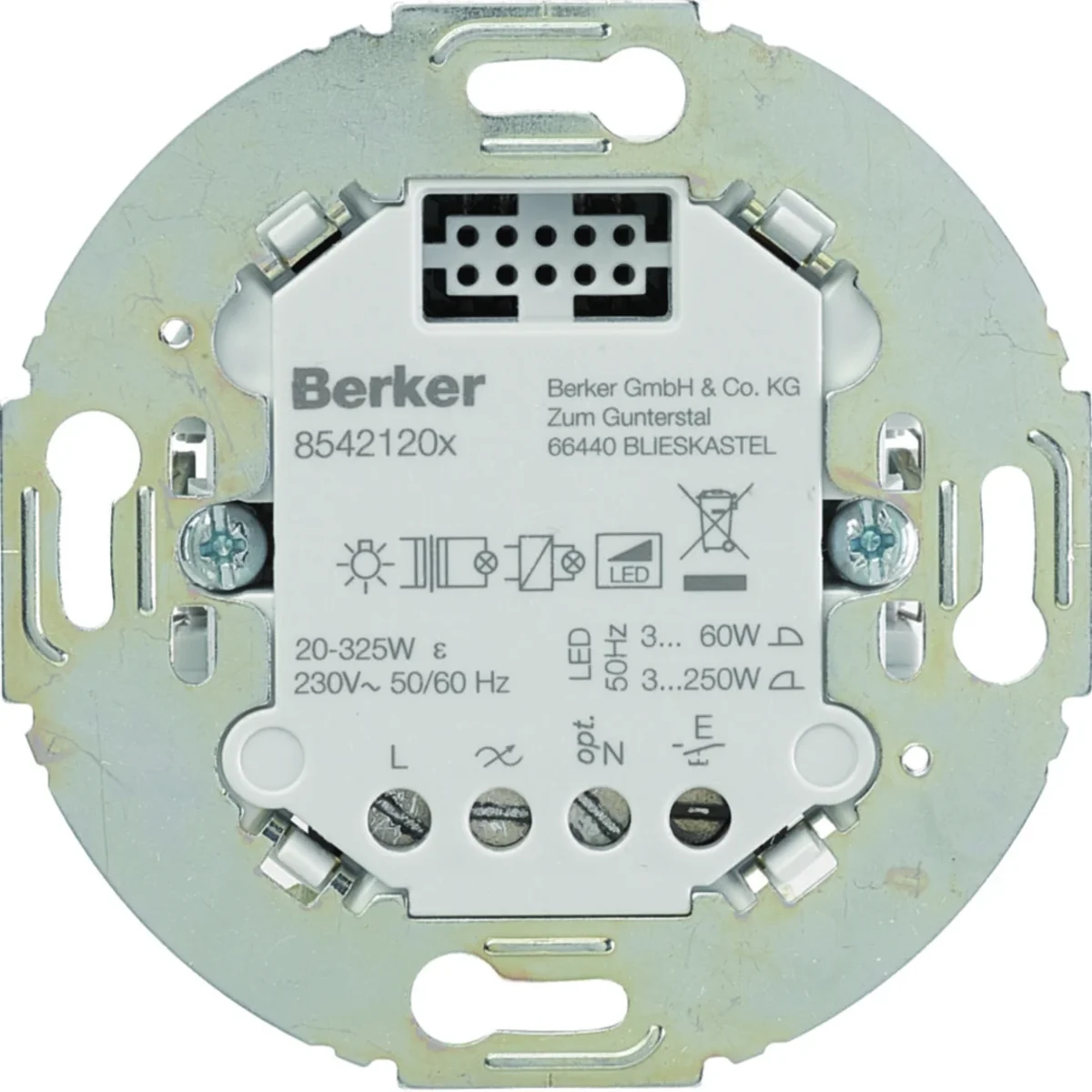

R.classic/Serie 1930/Glas KNX RF Universal push-button dimmer, 1-gang, Berker.Net mechanism, screw terminals 85421201
local index:
AIK011BERK
Catalog No:
85421201
EAN code:
4011334437055
Click on the photo to enlarge
Manufacturer:
BERKER
Material:
Plastic | Metal
Fixing:
Expanding claws
Operating temperature range [°C]:
from -5 to 45
See full description
Price:
160,40 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Bulk packaging
Product description
R.classic/Serie 1930/Glas KNX RF Universal push-button dimmer, 1-gang, Berker.Net mechanism, screw terminals
Technical data
Material
Plastic Metal
Operating temperature range [°C]
from -5 to 45
Mounting depth [mm]
32
Connection type
With screw terminals
PKWIU
27.33.11.0
Fixing
Expanding claws
Maximum bulb power [W]
400
AC operating voltage [V]
230
Relative humidity (no condensation) [%]
0 - 65 (non-condensing)
Other technical data
Assembly arrangement
Basic element
Serial dimmer
No
Substation input
Yes
Applicable with button
Yes
Applicable with presence indicator
No
Applicable with transmission button
Yes
Mounting method
Flush-mounted
Material
Other
Surface protection
Untreated
Suitable for degree of protection (IP)
IP20
Frequency
50 ... 60 Hz
Device width
71 mm
Device depth
33.2 mm
Method of operation
Push button
Type of load
Universal
Light value memory
No
Applicable with movement sensor
Yes
Applicable with time switch/timer
No
Applicable with infrared button
No
Type of fastening
Mounting with claw
Material quality
Other
Transparent
No
Nominal voltage
230 ... 230 V
Connection type
Screwed terminal
Device height
71 mm
Bulk packaging
A kind of package
Karton
Paleta
Quantity
1 pcs.
1 pcs.
333 pcs.
Weight (kg)
0,071
0,095
54,635
Width (m)
0,071
0,085
0,800
Length (m)
0,040
0,075
1,050
Depth (m)
0,071
0,090
1,200
