R.CLASSIC/Serie 1930 Floor temperature controller with make contact, central element, switch and 2 LEDs black 20342035

local index:
APT069BERK
Catalog No:
20342035
EAN code:
4011334393542
Manufacturer: BERKER
Rated voltage [V]: 230
DC rated voltage [V]: 230
Rated current [A]: 16
Price:
268,89 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

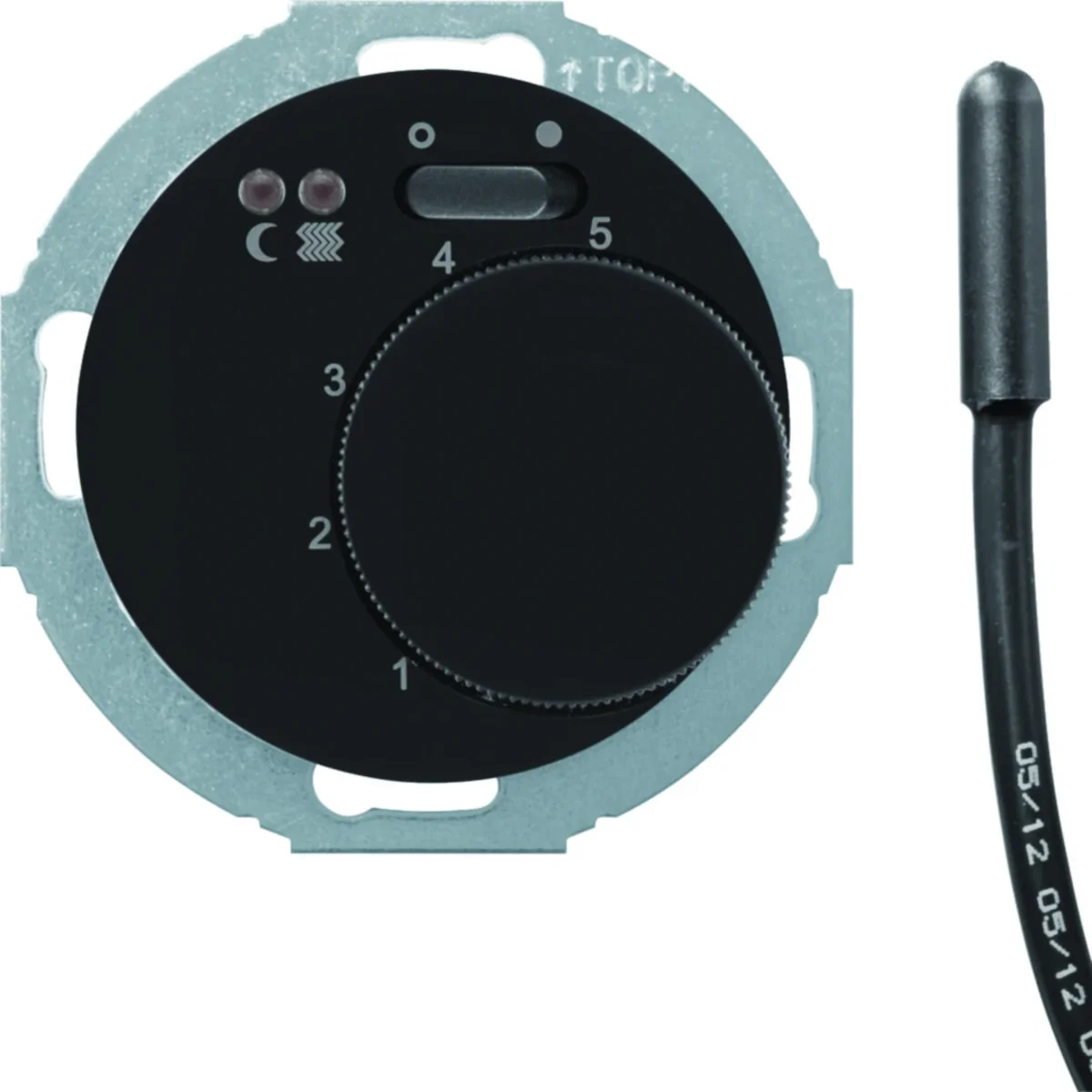

Floor temperature controller with NO contact and central element, Berker seriesR.classic/Serie 1930.

  • with on/off switch and 2 LEDs
  • LEDs indicating heating and night mode
  • with separate connection for night mode
  • for cardboard walls plaster cast
  • e.g. for valve actuators closed when de-energized
  • with central element Ø 58 mm

Technical data

  • Rated voltage [V]
    230
  • Rated current [A]
    16
  • Switching temperature difference [K]
    ≈ 1
  • Connection type
    With screw terminals
  • DC rated voltage [V]
    230
  • Family
    R.CLASSIC/1930
  • Sensor cable length [m]
    4
  • PKWIU
    26.51.70.0

Other technical data

  • Thermal feedback
    Series
  • Temperature readable
    No
  • Mounting method
    Flush-mounted
  • Colour
    Black
  • Height
    71 mm
  • Depth
    50.2 mm
  • Class of the temperature control
    I
  • Differential value
    1 ... 1 K
  • Sensor/feeler type
    Bimetal
  • Degree of protection (IP)
    IP20
  • RAL-number
    9005
  • Width
    71 mm
  • Diameter
    71 mm

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 22 pcs. 704 pcs.
Weight (kg) 0,264 0,265 6,270 223,640
Width (m) 0,100 0,098 0,300 0,800
Length (m) 0,080 0,089 0,225 1,050
Depth (m) 0,100 0,105 0,400 1,200
