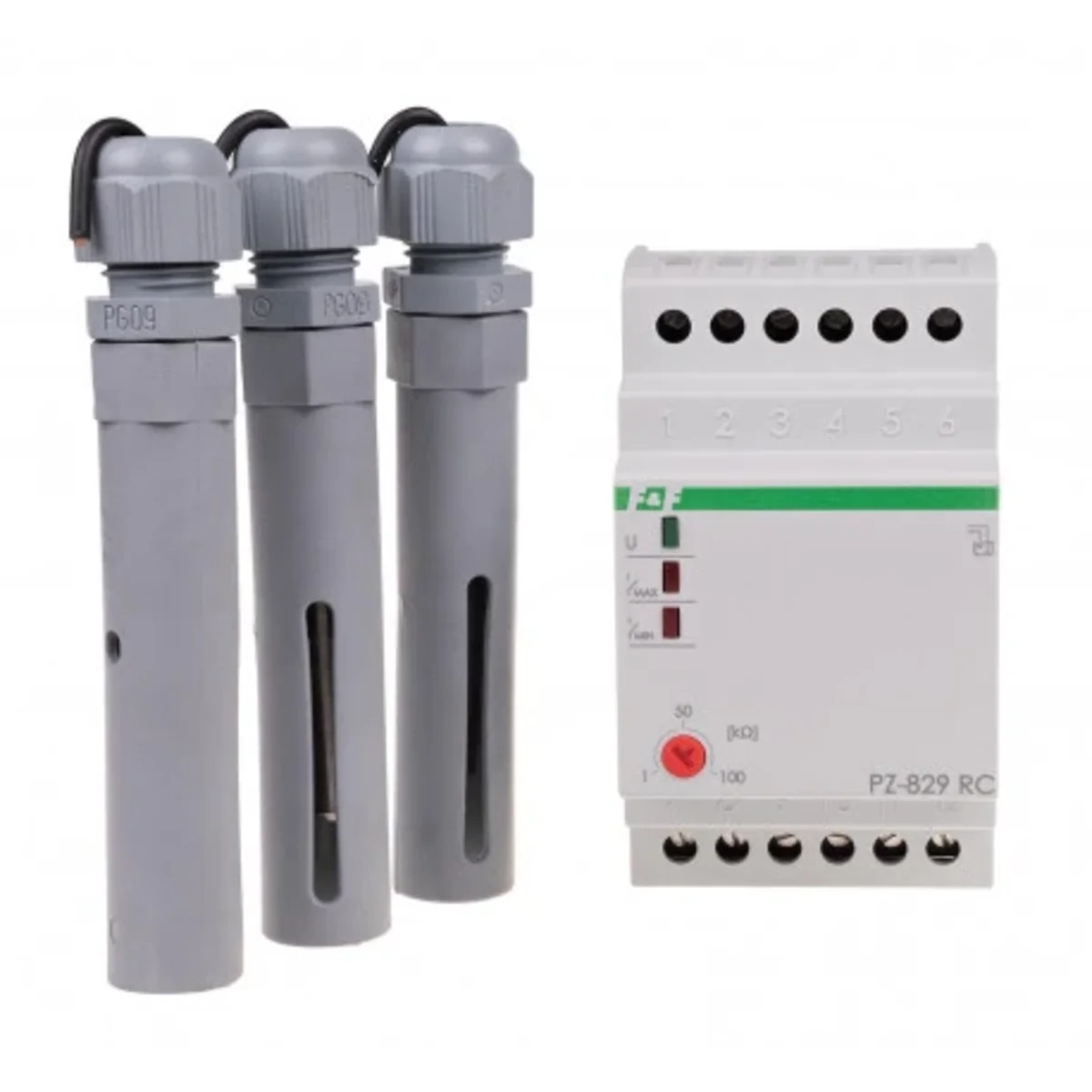

Rainwater level control relay 230V 16A 52.5mm PZ-829RC-WD

local index:
API145FIFQ
Catalog No:
PZ-829RC-WD
EAN code:
5902431675169
Manufacturer: F&F
Installation: On the TH-35 rail
Rated voltage [V]: 230
Power consumption [W]: 1.1
Price:
80,48 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 20 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Relays  detects the presence of electrically conductive liquids on installation levels  flood probes.
Maintains the minimum and maximum states of the controlled liquid within the range specified by the user.

Product description:

- to control the rainwater level,
- with sensitivity adjustment,
- two-state (min/max),
- 3 x PZ2 probe.

The switch will operate as follows: when the liquid level drops below the minimum set level, the MIN contact will toggle, and when the liquid level rises above the maximum set level, the MAX contact will toggle. Thanks to this, when the minimum and maximum values are set, the switch will control the liquid level in the tank, preventing overflow or too little liquid. This is useful in many applications where precise control of liquid level is crucial.

Technical data

  • Installation
    On the TH-35 rail
  • Power consumption [W]
    1.1
  • Width [number of modules]
    3
  • Working temperature [°C]
    from -25 to +50
  • Rated load current [A]
    2 x 16
  • Rated voltage [V]
    230
  • Level of security
    IP20
  • Width [mm]
    52.5
  • Rated output voltage [V]
    6
