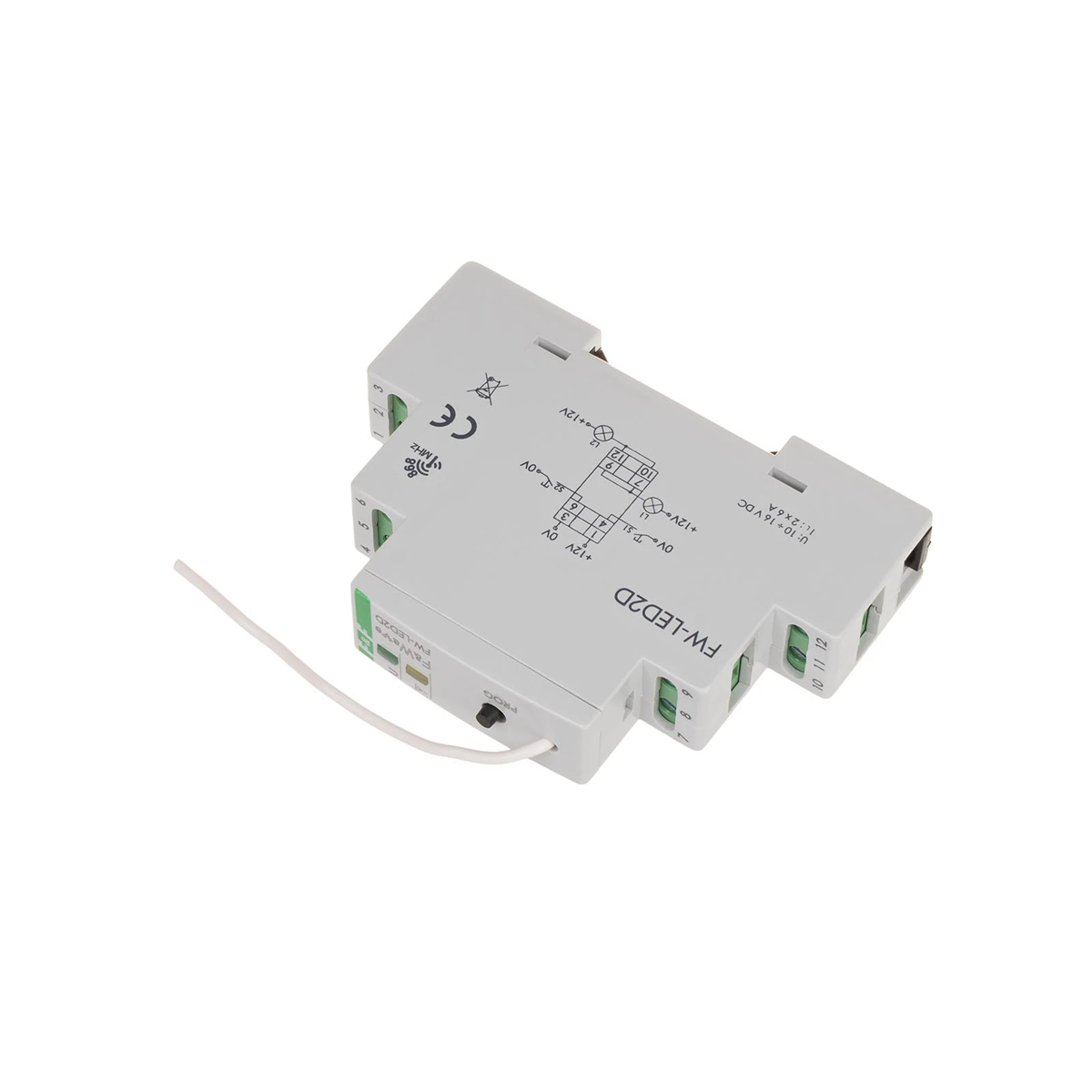

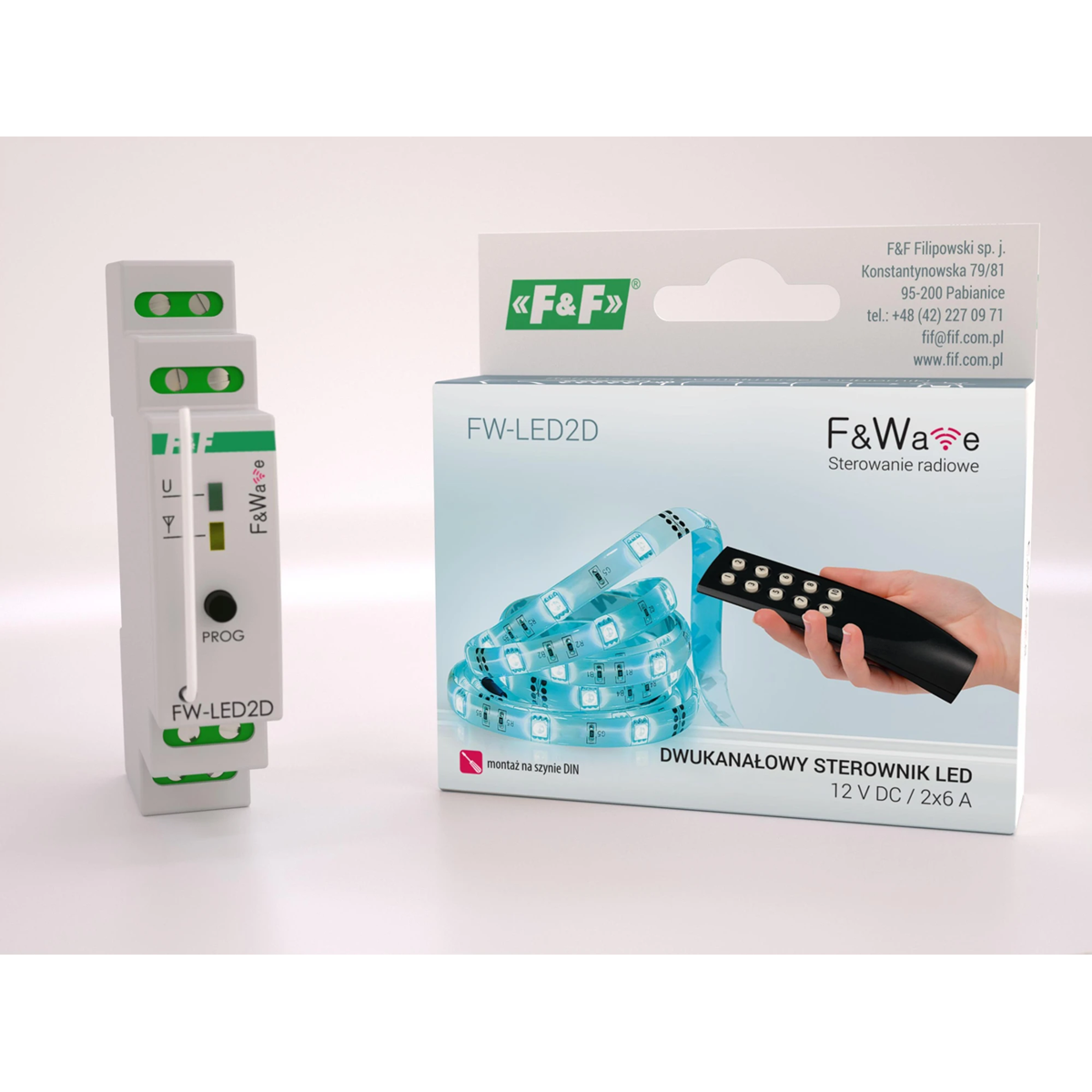

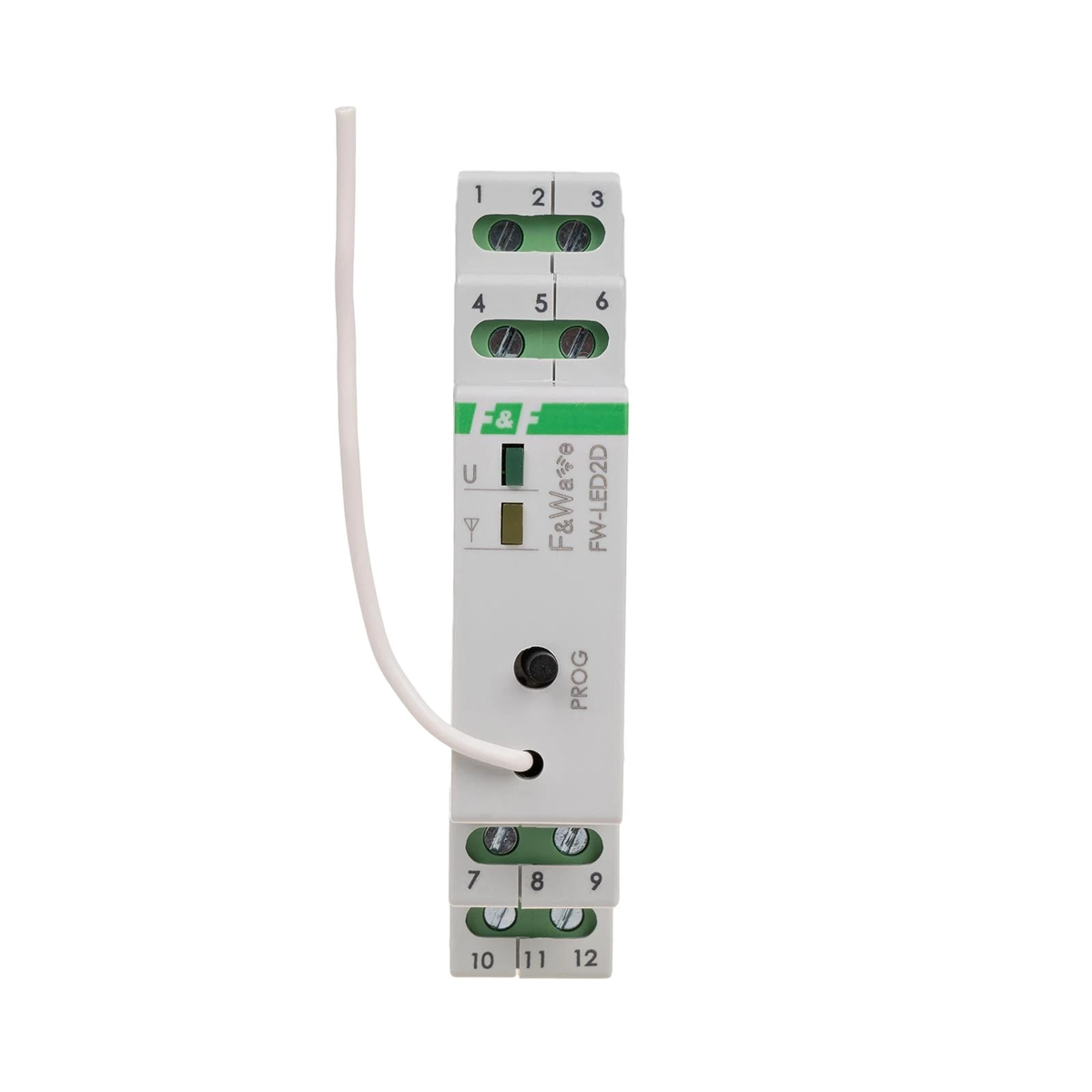

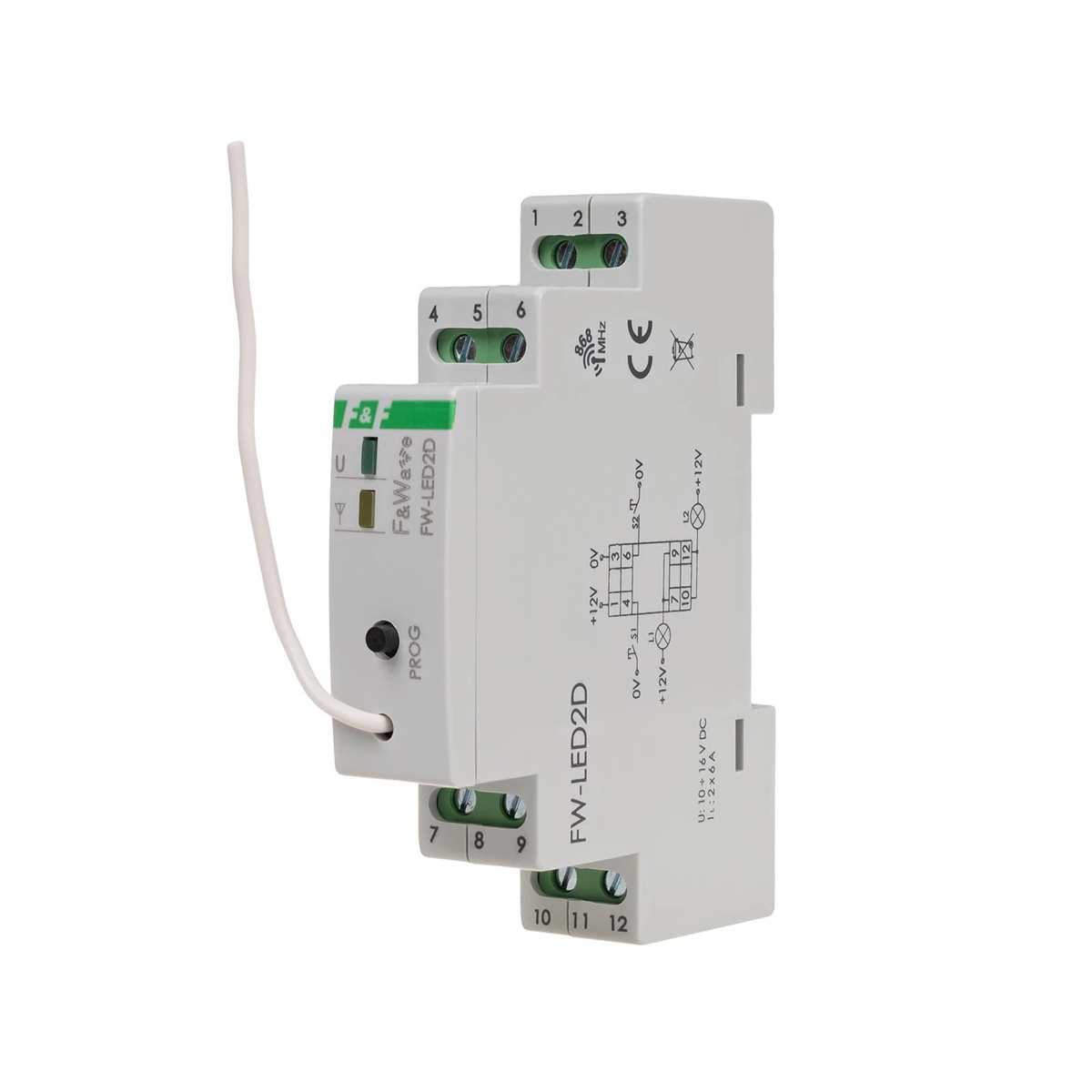

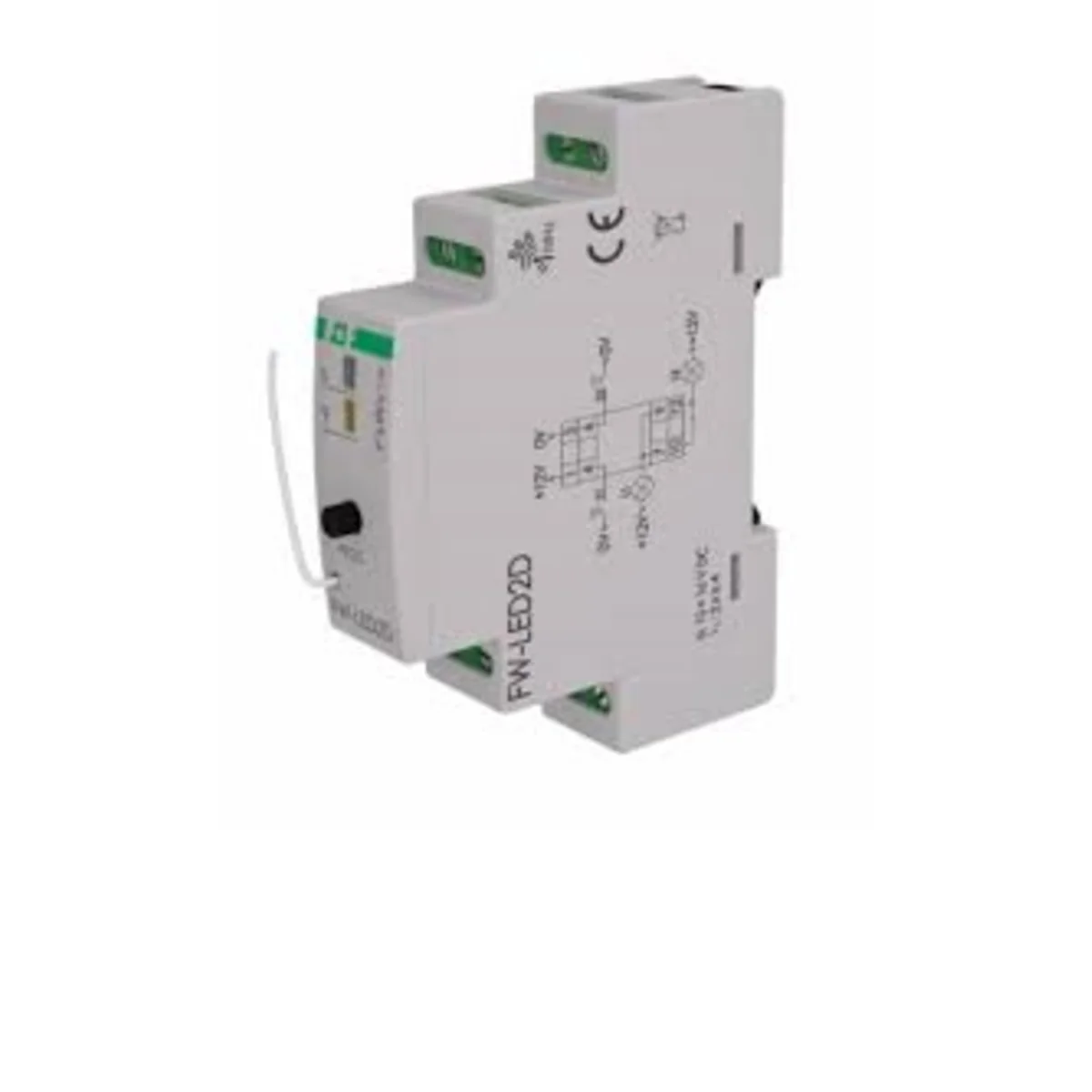

Radio two-channel LED driver 12V - DIN mounting 10÷16V DC FW-LED2D

local index:
APL016FIFQ
Catalog No:
FW-LED2D
EAN code:
5908312599326
Manufacturer: F&F
Rated voltage [V]: 12
Family: F&WAVE
Level of security: IP20
Price:
38,40 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description


Two-channel LED driver 12V DC. For DIN rail.


Module features



  • 2-channel 12 V DC LED driver;


  • Compatibility with F&Wave remote control transmitters;


  • Possibility to control up to 8 transmitters;


  • Two local control inputs - possibility of direct lighting control using any monostable buttons (e.g. bell);


  • Possibility to control 12 V LED strips, dimmable 12 V LED bulbs;

  • < br/> Soft start - smooth lighting on/off;


  • Compact housing - one field in the switchgear;


  • Retransmission of commands from the transmitter - the possibility of increasing the remote control range;


  • Low power consumption - low operating cost;


  • Built-in electronic thermal protection to prevent damage in case of excessive dimmer load.


Specifications
















operating mode










< br/>

< /tr>




















< td bgcolor="#eaeaea">
degree of protection



power supply

10÷16 V DC

control input

10÷16 V DC; <3mA

power consumption



0.40W

standby

0.25W
output load
2 × 6 A / 12 V DC

radio frequency

868 MHz

operating temperature

-25÷65°C

connector

2.5mm² screw terminals

tightening torque (max)

0.4Nm

assembly

TH-35 mm rail

dimensions

1 module (18 mm)

IP20





Operating range

In open space without interfering factors, the range of radio-controlled devices oscillates within 100 m.  In built-up conditions and in the presence of sources of interference (power lines, transmitters, etc.) the actual range may be less. The range can be improved by direct retransmission of modules within each other's range.

Technical data

  • Rated voltage [V]
    12
  • Level of security
    IP20
  • PKWIU
    27.12.24.0
  • Family
    F&WAVE
  • Working temperature [°C]
    25 - +65

Other technical data

  • Suitable for dimmer
    Yes
  • Suitable for roller shutter switch
    No
  • Suitable for venetian-/roller shutter switch
    No
  • In housing
    Yes
  • Printed circuit board/module
    No
  • Push button mode
    Yes
  • With manual radio transmitter
    No
  • With radio controlled push button
    No
  • Mounting method
    DRA (DIN-rail adapter)
  • Material quality
    Thermoplastic
  • Surface protection
    Other
  • Suitable for degree of protection (IP)
    IP20
  • Rolling code system
    Yes
  • Suitable for pulse button
    Yes
  • Suitable for venetian shutter switch
    No
  • Suitable for switch
    No
  • In tube base housing
    No
  • Current supply
    12 - 24 V AC/DC
  • Switching mode
    No
  • With radio coding device
    Yes
  • Number of relays
    2
  • Material
    Plastic
  • Halogen free
    Yes
  • Type of fastening
    Mounting with screw
  • Radio frequency
    868 MHz

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs.
Width (m) 0,019
Length (m) 0,095
Depth (m) 0,070
