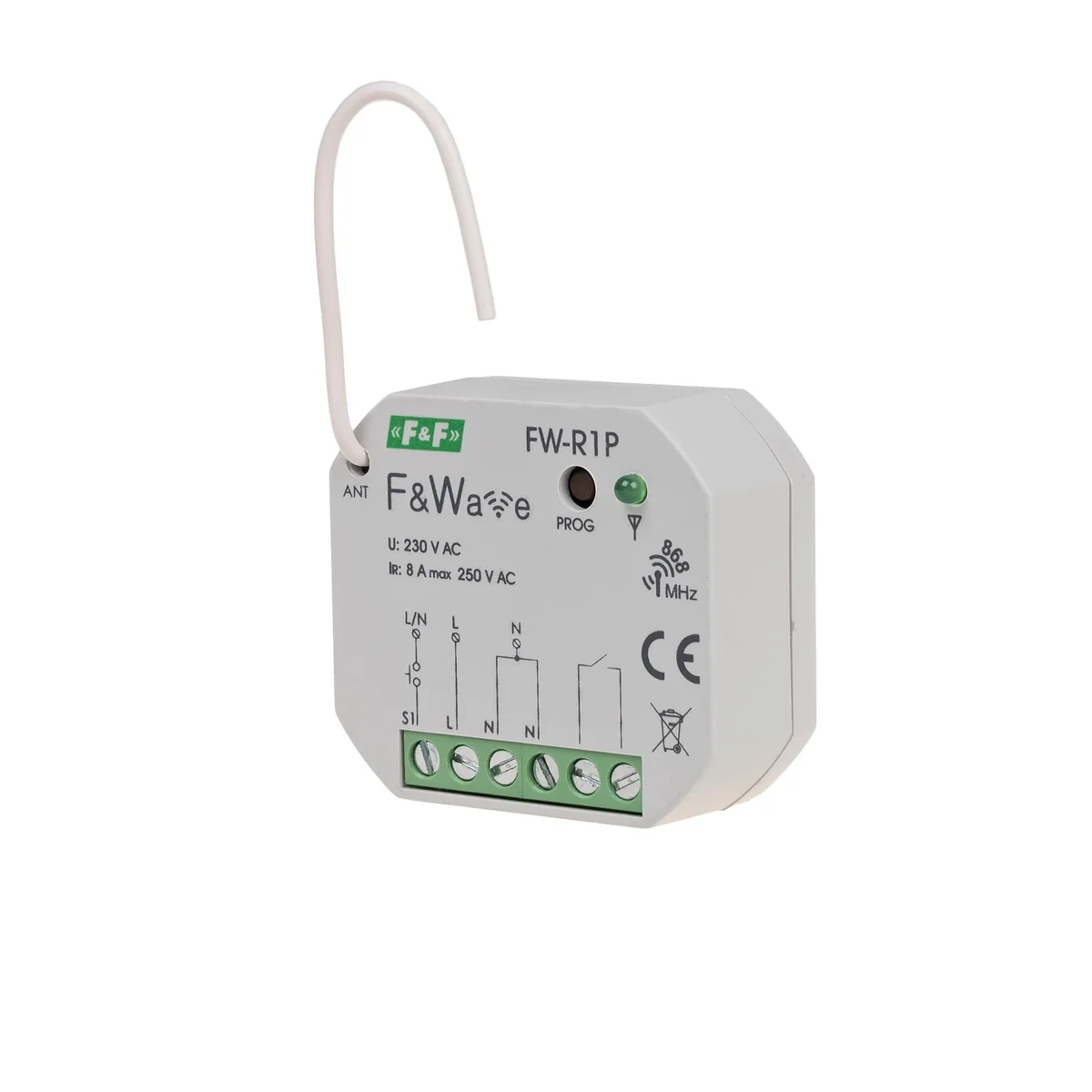

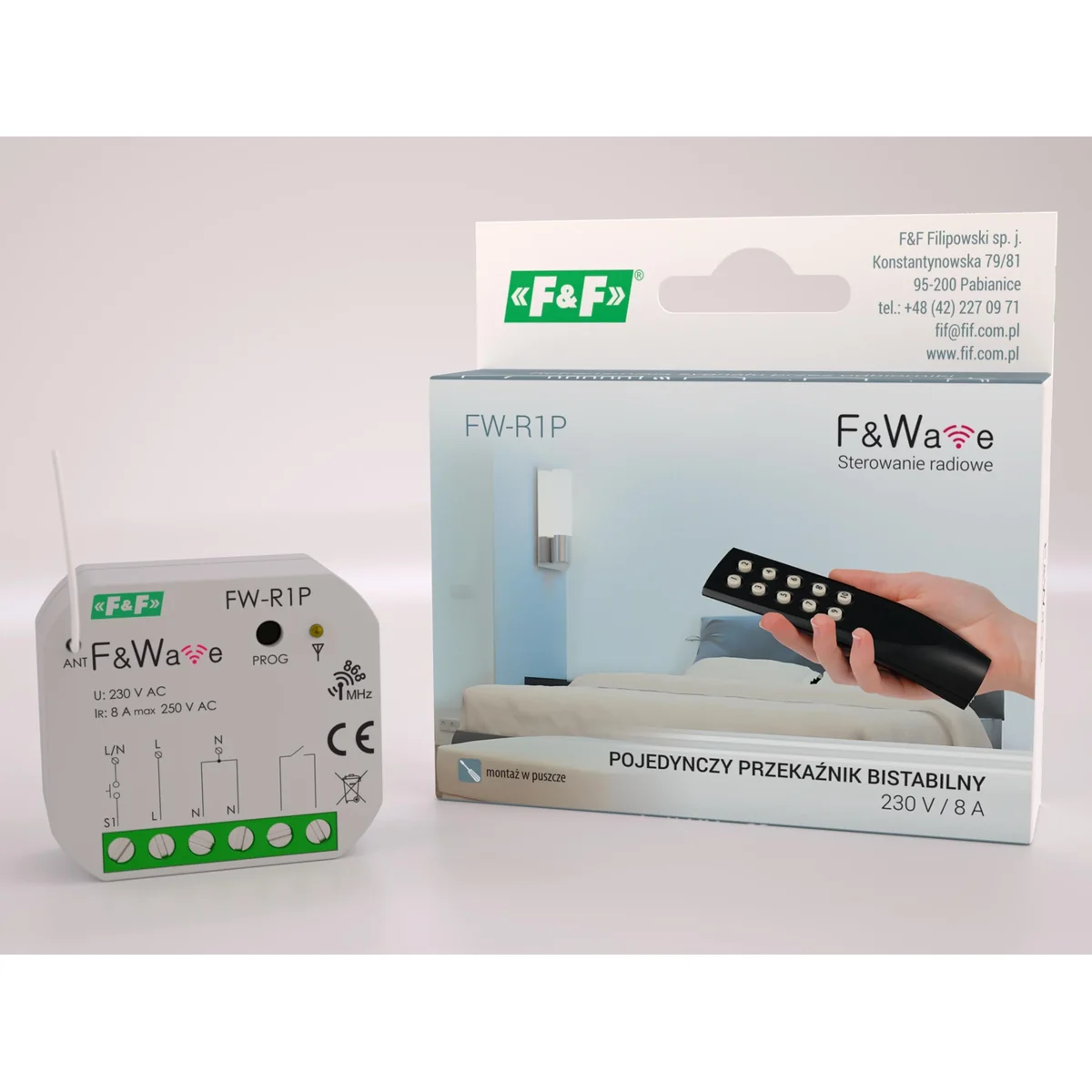

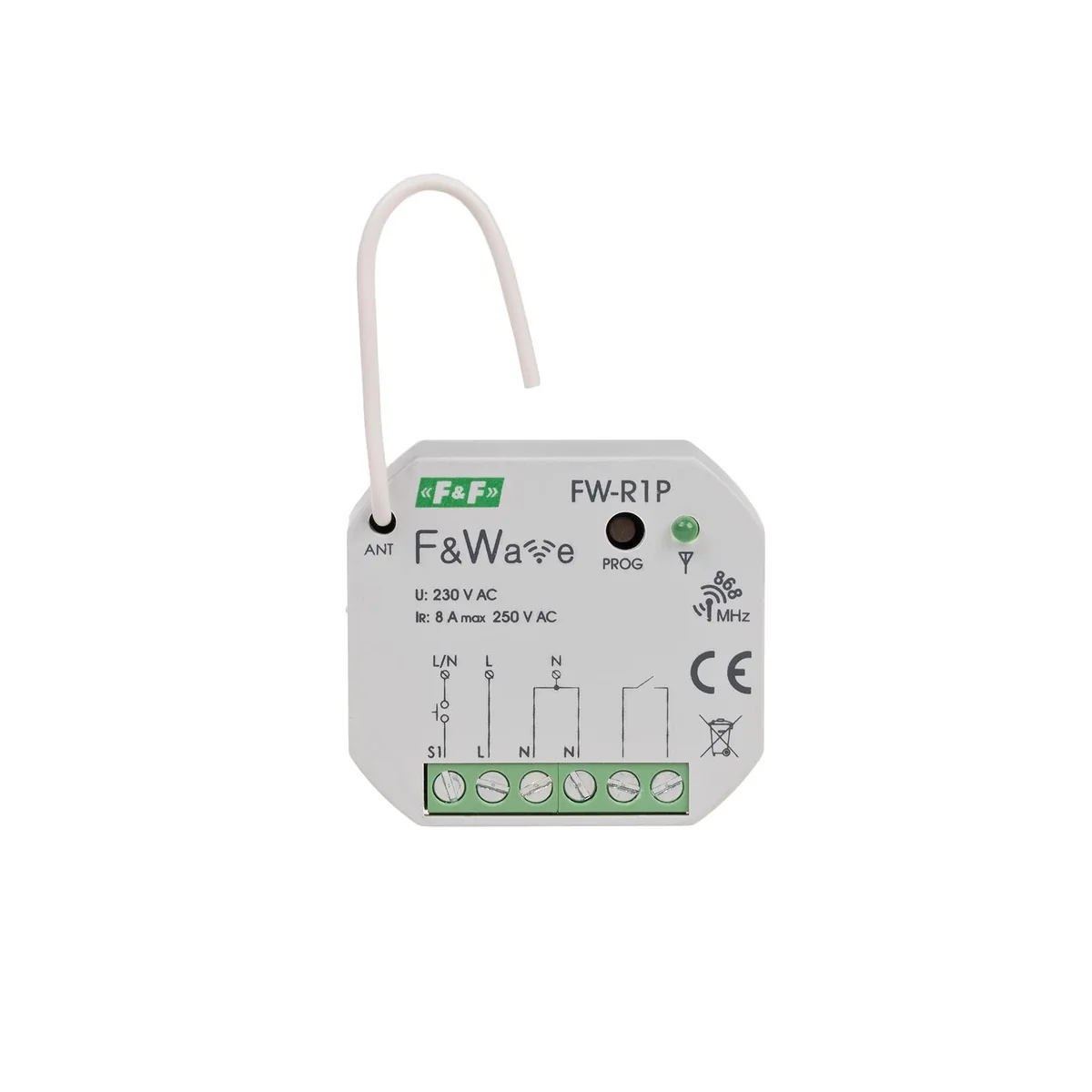

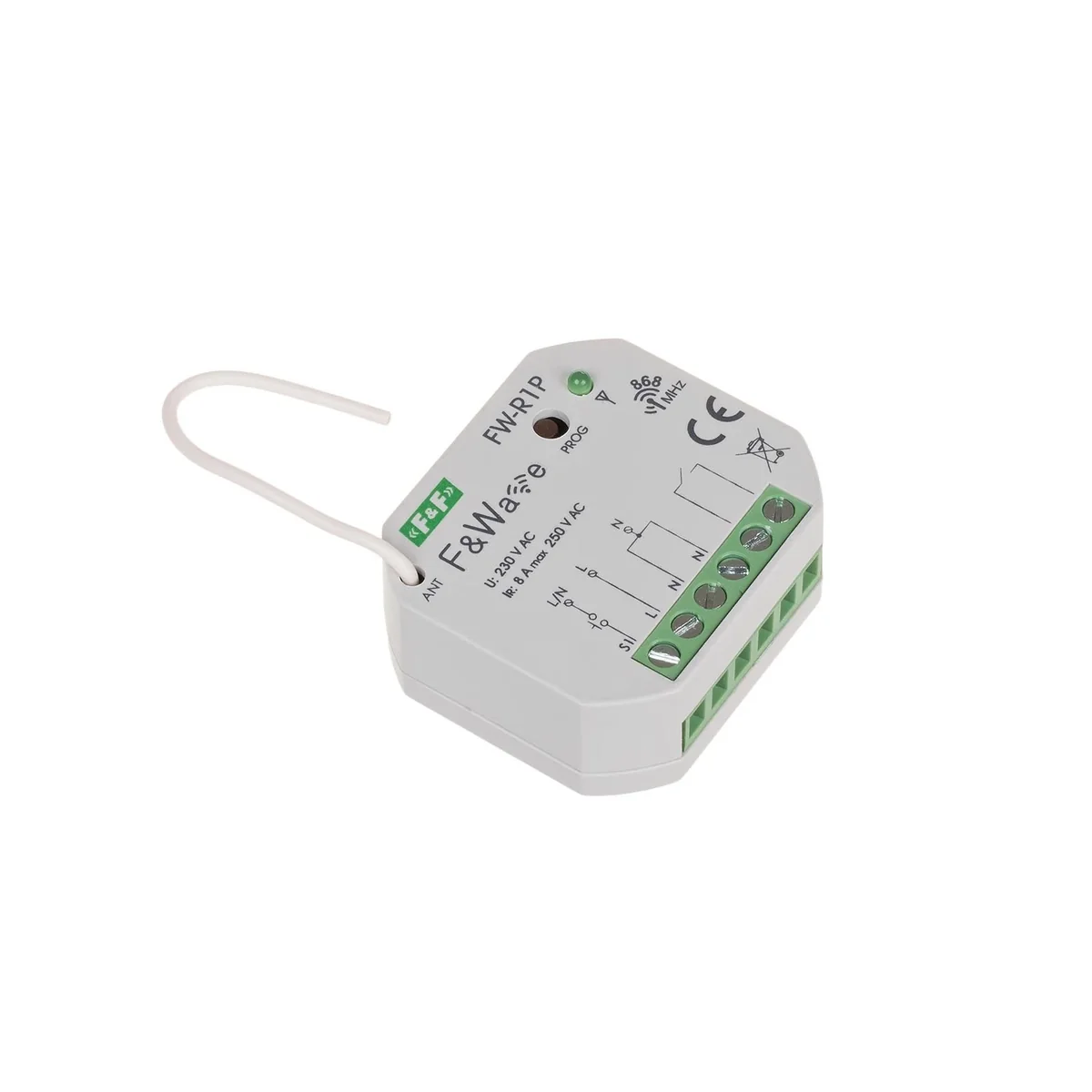

Radio single bistable relay FW-R1P FW-R1P

local index:
APS026FIFQ
Catalog No:
FW-R1P
EAN code:
5908312599234
Manufacturer: F&F
Voltage [V]: 230
Family: F&WAVE
Level of security: IP20
Price:
33,11 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 17 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description


Module features



  • Single bistable relay;


  • Cooperation with F&Wave remote control transmitters;


  • Possibility of linking up to 8 transmitters with a single receiver;


  • Local control - possibility of direct control of the relay using any monostable button ( bell);


  • Separated NO output contact with a load capacity of 8 A (AC-1);


  • Small housing size;


  • Screw terminals for easy mounting in a Ø60 flush-mounted box;


  • Retransmission of commands from the transmitter - the possibility of increasing the remote control range;


  • Low power consumption - low operating cost;


  • Built-in electronic thermal protection to prevent damage when overloading the relay.


Specifications

















operating mode

















< /tr>









< br/>










power supply

85÷265 V AC/DC

control input

85÷265 VAC/DC; <1mA

power consumption



0.60W

standby

0.25W
output load
8 A/250 V

radio frequency

868 MHz

operating temperature

-25÷65°C

connection

terminals screw 2.5mm²

tightening torque (max)

0.4Nm

assembly

flush-mounted box Ø60

dimensions

48×43×20mm

degree of protection

IP20





Range


In the open space without interference factors, the range of radio-controlled devices oscillates within 100 m.  In built-up conditions and in the presence of sources of interference (power lines, transmitters, etc.) .) actual range may be less. The range can be improved by direct retransmission of modules within each other's range.

Technical data

  • Voltage [V]
    230
  • Level of security
    IP20
  • Frequency [MHz]
    868
  • Family
    F&WAVE
  • Dimensions [mm]
    48x43x20
  • PKWIU
    27.12.24.0

Other technical data

  • Suitable for dimmer
    No
  • Suitable for venetian shutter switch
    No
  • In housing
    Yes
  • Push button mode
    Yes
  • Mounting method
    Flush-mounted
  • Material quality
    Thermoplastic
  • Surface protection
    Untreated
  • Suitable for degree of protection (IP)
    IP20
  • Rolling code system
    Yes
  • Suitable for pulse button
    Yes
  • Suitable for venetian-/roller shutter switch
    No
  • Current supply
    230 V AC
  • Number of relays
    1
  • Material
    Plastic
  • Halogen free
    Yes
  • Type of fastening
    Mounting with screw
  • Radio frequency
    868 MHz

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs.
Width (m) 0,026
Length (m) 0,095
Depth (m) 0,070
