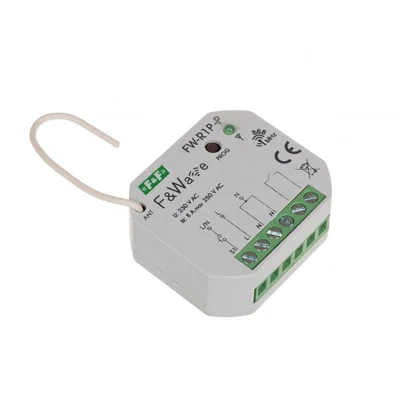

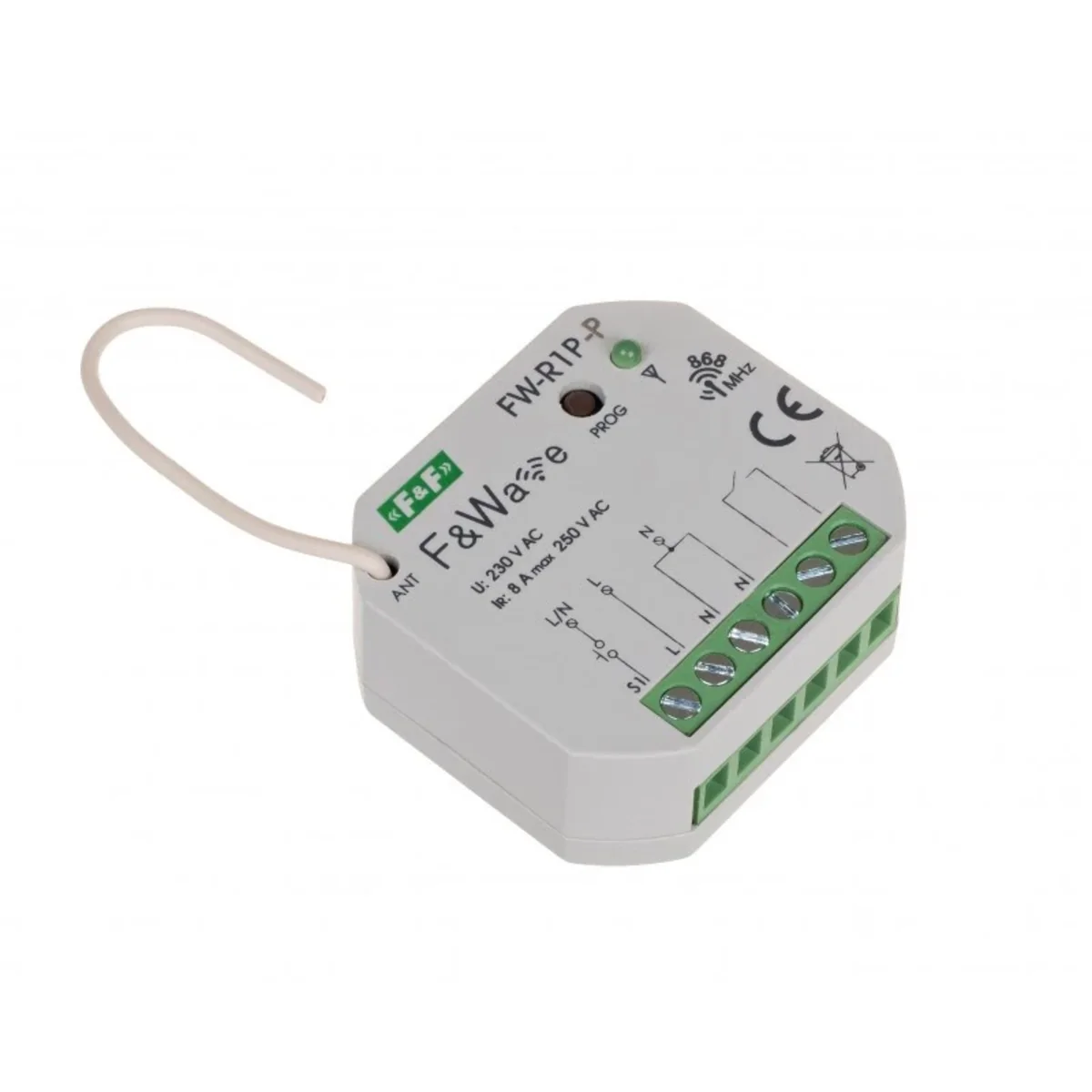

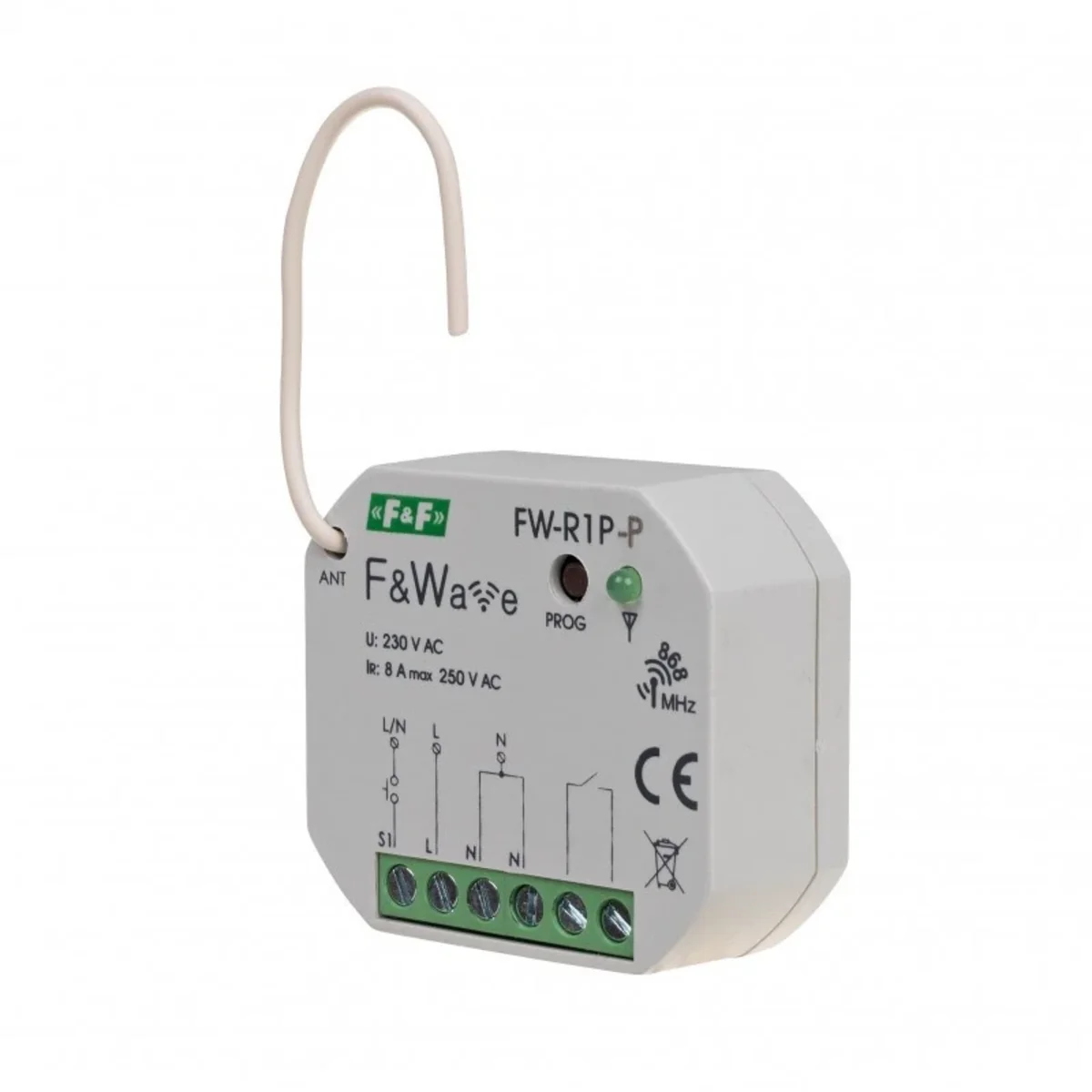

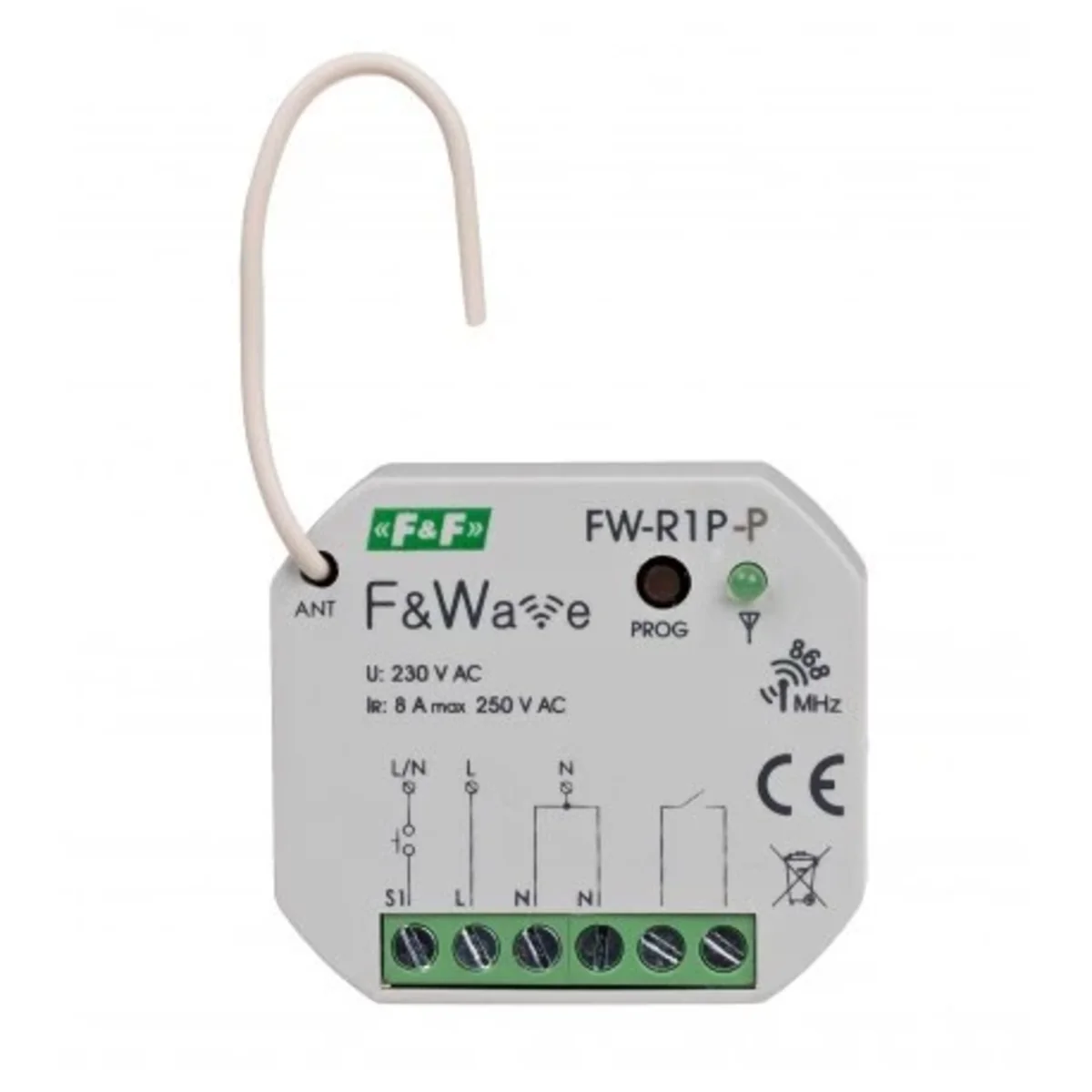

Radio multifunction transmitter FW-R1P-P

local index:
API134FIFQ
Catalog No:
FW-R1P-P
EAN code:
5902431670911
Manufacturer: F&F
Number of channels: 1
Number of inputs: 1
Tightening torque [Nm]: 0.4
Price:
33,98 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 26 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Radio multifunctional relay from the manufacturer F&F. The product catalog number is FW-R1P-P. Multifunctional, 1-channel bistable relay. Intended for installation in Ø60 flush-mounted box.

  • Cooperation with F&Wave radio remote control transmitters.
  • Single multifunctional relay. Implemented functions:
    • Bistable – the first pressing of the button turns on the relay, the second pressing turns off.
    • Timer – pressing the button turns on the relay for the programmed time. The time can be set from 1 second to 48 hours. Pressing the button with the relay switched on starts the time measurement from the beginning.
    • Monostable – the relay remains on as long as the button on the remote control is pressed.
    • Enable – pressing the button turns the relay on Off – pressing the button turns off the relay.
  • The function of the relay is related to the button of the transmitter. Each button can perform a different function.
  • Up to 32 transmitters can be controlled.
  • Local controls – possibility of direct control of the relay using any monostable button (e.g. bell button). The local input can be assigned any relay function.
  • Group programming of transmitters. If several push-buttons have the same function, they can be set in one programming cycle.
  • Separated NO output contact with a load capacity of 8 A (AC-1).
  • Small housing size.
  • Screw terminals for easy installation in a flush-mounted box.
  • Retransmission of signals from the transmitter – the ability to extend the remote control range.
  • Low power consumption – low cost of operation.
  • Built-in electronic thermal protection preventing damage in case of excessive load on the relay.



Parameters

  • Supply voltage: 85÷265 V AC/DC.
  • Control signal: L or N.
  • Output load capacity (AC-1): 8 A / 250 V.
  • Radio frequency: 868MHz.
  • Standby/operation power consumption: 0.25W / 0.6W.
  • Operating temperature: -25 ÷ 65°C.
  • Dimensions: 43mm × 48mm × 20 mm.

Technical data

  • Number of channels
    1
  • Tightening torque [Nm]
    0.4
  • Terminal type
    Threaded
  • Number of inputs
    1
  • Level of security
    IP20
  • PKWIU
    27.12.24.0

Other technical data

  • Suitable for dimmer
    No
  • Suitable for venetian shutter switch
    No
  • In housing
    Yes
  • Push button mode
    Yes
  • Mounting method
    Flush-mounted
  • Material quality
    Thermoplastic
  • Surface protection
    Untreated
  • Suitable for degree of protection (IP)
    IP20
  • Rolling code system
    Yes
  • Suitable for pulse button
    Yes
  • Suitable for venetian-/roller shutter switch
    No
  • Current supply
    230 V AC
  • Number of relays
    1
  • Material
    Plastic
  • Halogen free
    Yes
  • Type of fastening
    Mounting with screw
  • Radio frequency
    868 MHz

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs.
Width (m) 0,026
Length (m) 0,095
Depth (m) 0,070
