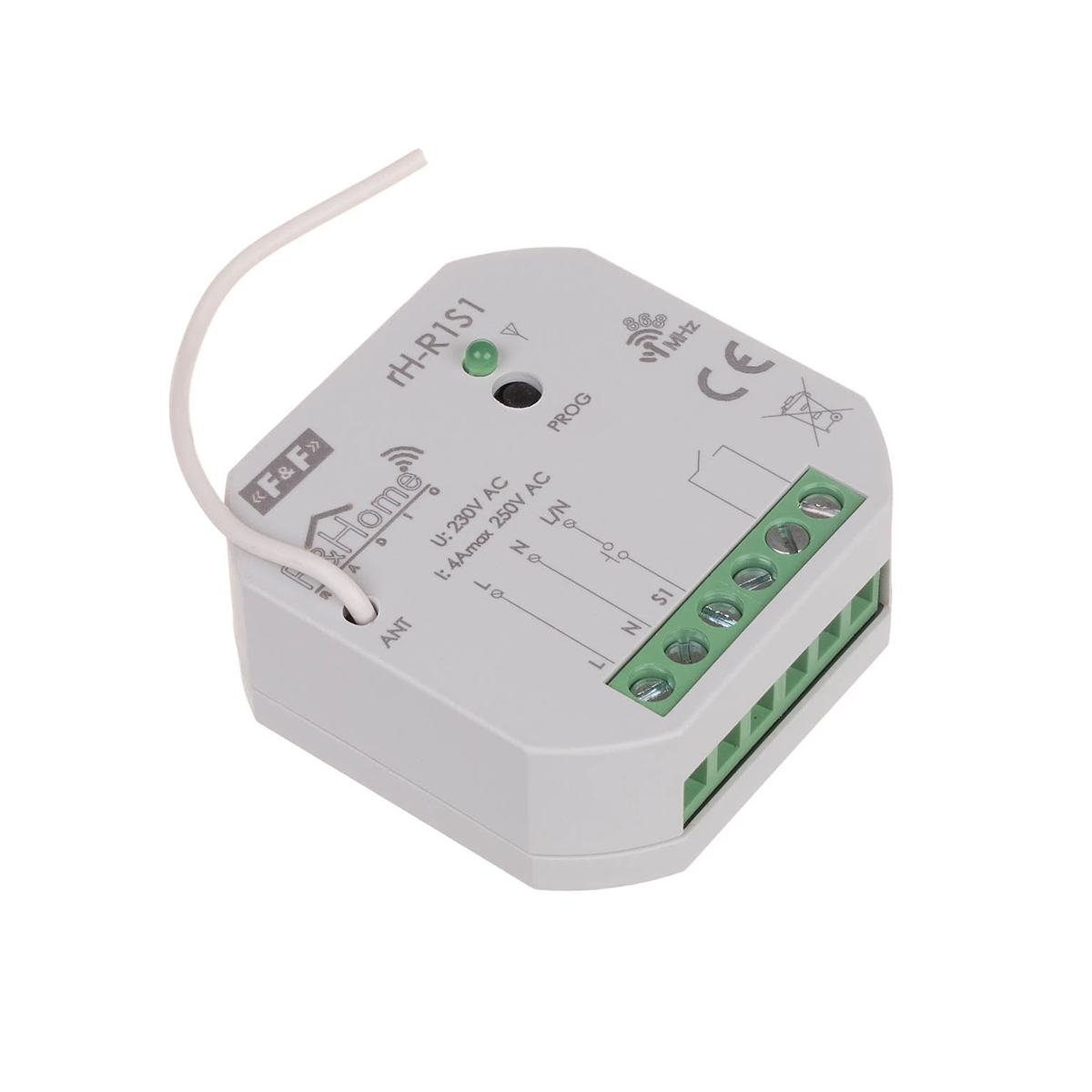

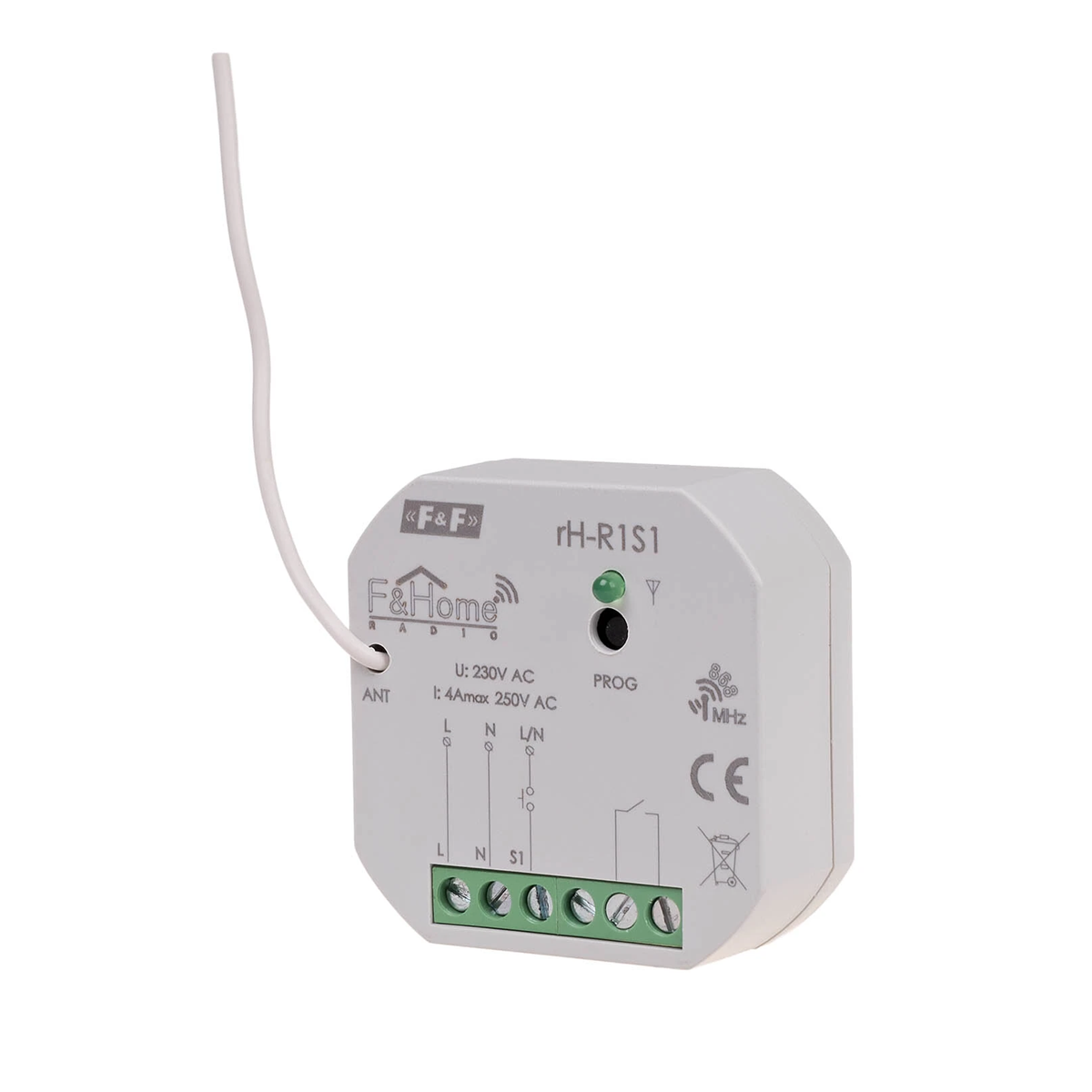

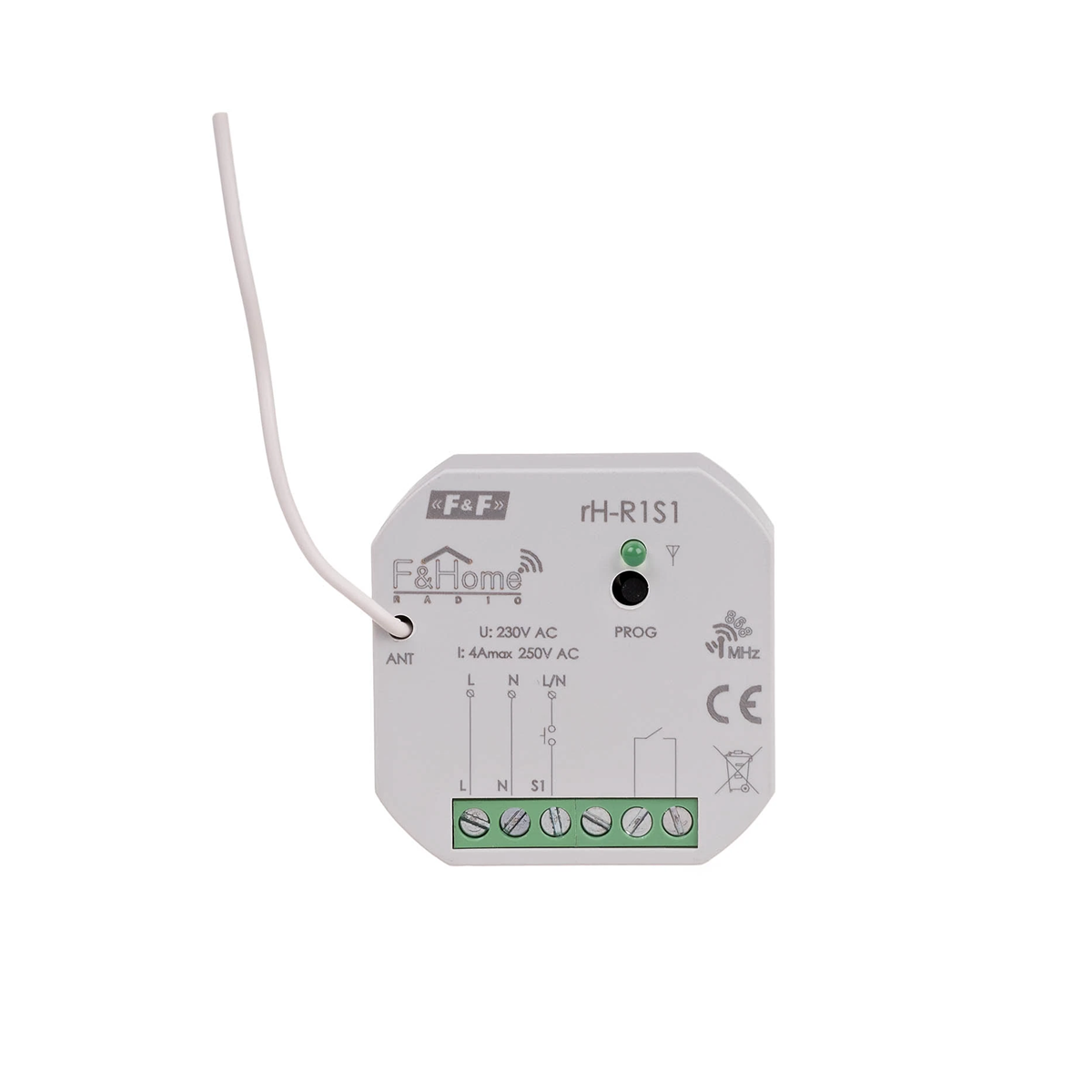

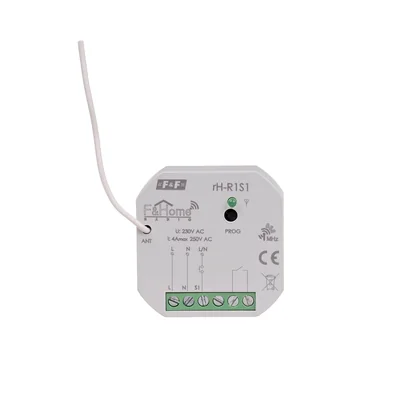

Radio module of the relay with switching power supply RH-R1S1I

local index:
APS016FIFQ
Catalog No:
RH-R1S1I
EAN code:
5908312597469
Manufacturer: F&F
Number of inputs: 1
Installation: Flush-mounted
Family: F&HOME RADIO
Price:
61,84 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

rH-R1S1 is a combination of relay and contact input. The module sends information about the opening and closing of contacts to the system and controls the relay, which can switch on any electrical circuits. Communication with the server takes place via radio. The module has a physical input for connecting one monostable potential-free contact, and one relay input. The load of the relay contacts can be resistive, inductive or capacitive, both in DC and AC circuits. rH-R1S1 is especially suitable for controlling the fan, lighting, for switching off the electrical socket.

Technical data

  • Number of inputs
    1
  • Family
    F&HOME RADIO
  • Package height [mm]
    100
  • Package weight [kg]
    0.2
  • PKWIU
    27.12.24.0
  • Installation
    Flush-mounted
  • Level of security
    IP20
  • Package width [mm]
    100
  • Operating voltage range [V]
    85-250

Other technical data

  • Bus system KNX-RF (Radio Frequent)
    No
  • Bus system LON
    No
  • Mounting method
    Flush-mounted
  • Number of inputs
    1
  • Bus system radio frequent
    No
  • Bus system Powernet
    No
  • With LED indication
    Yes
  • Degree of protection (IP)
    IP20

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs.
Weight (kg) 0,070
