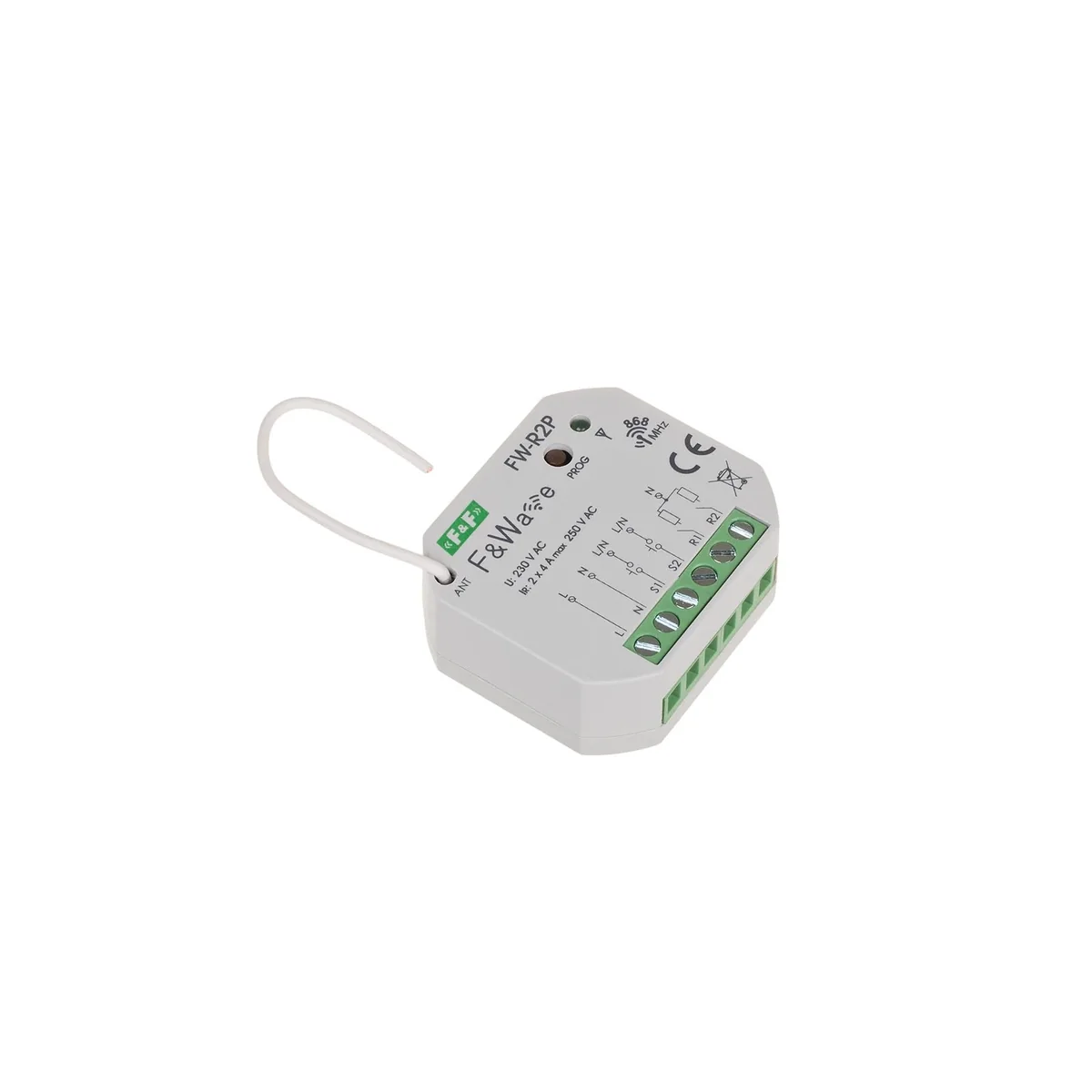

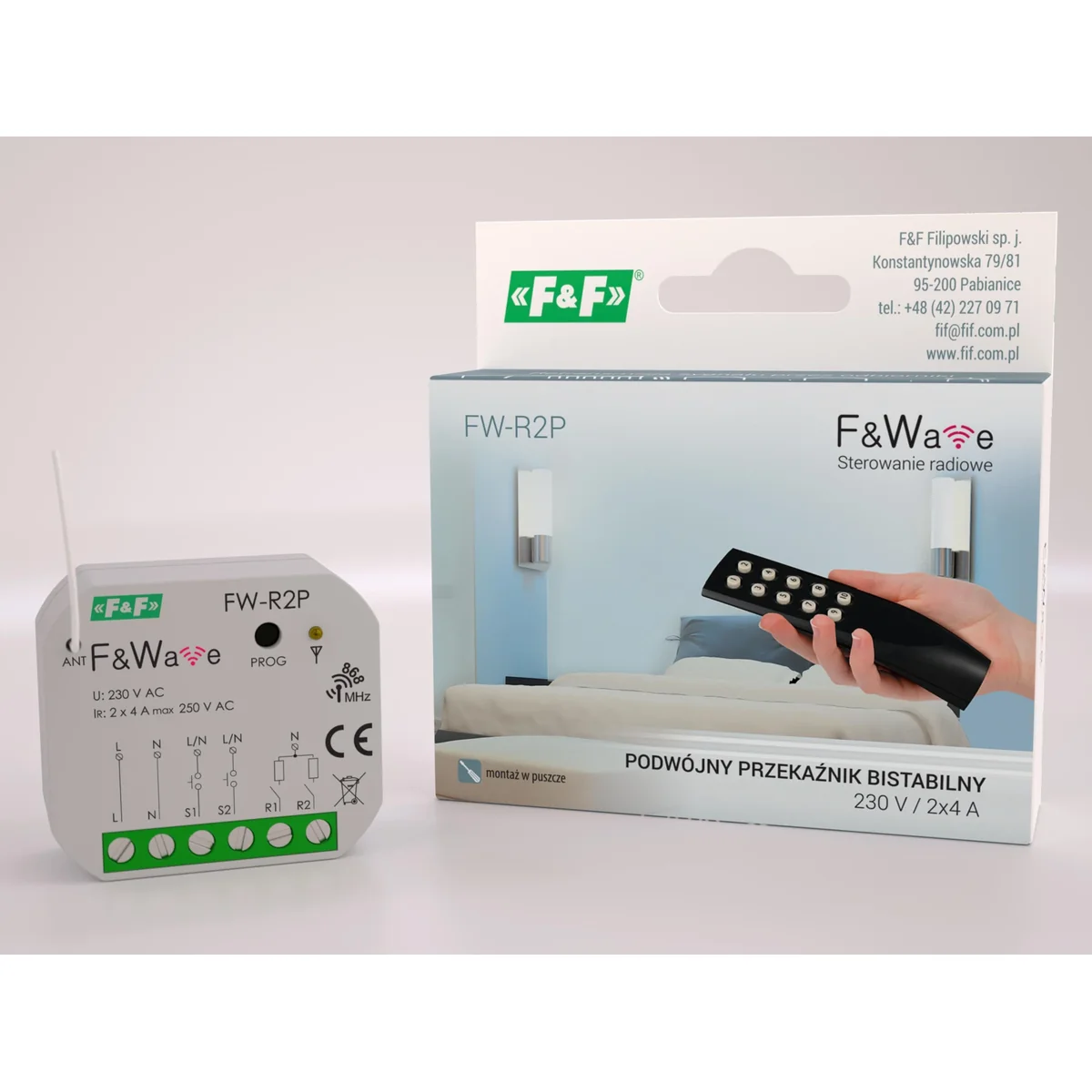

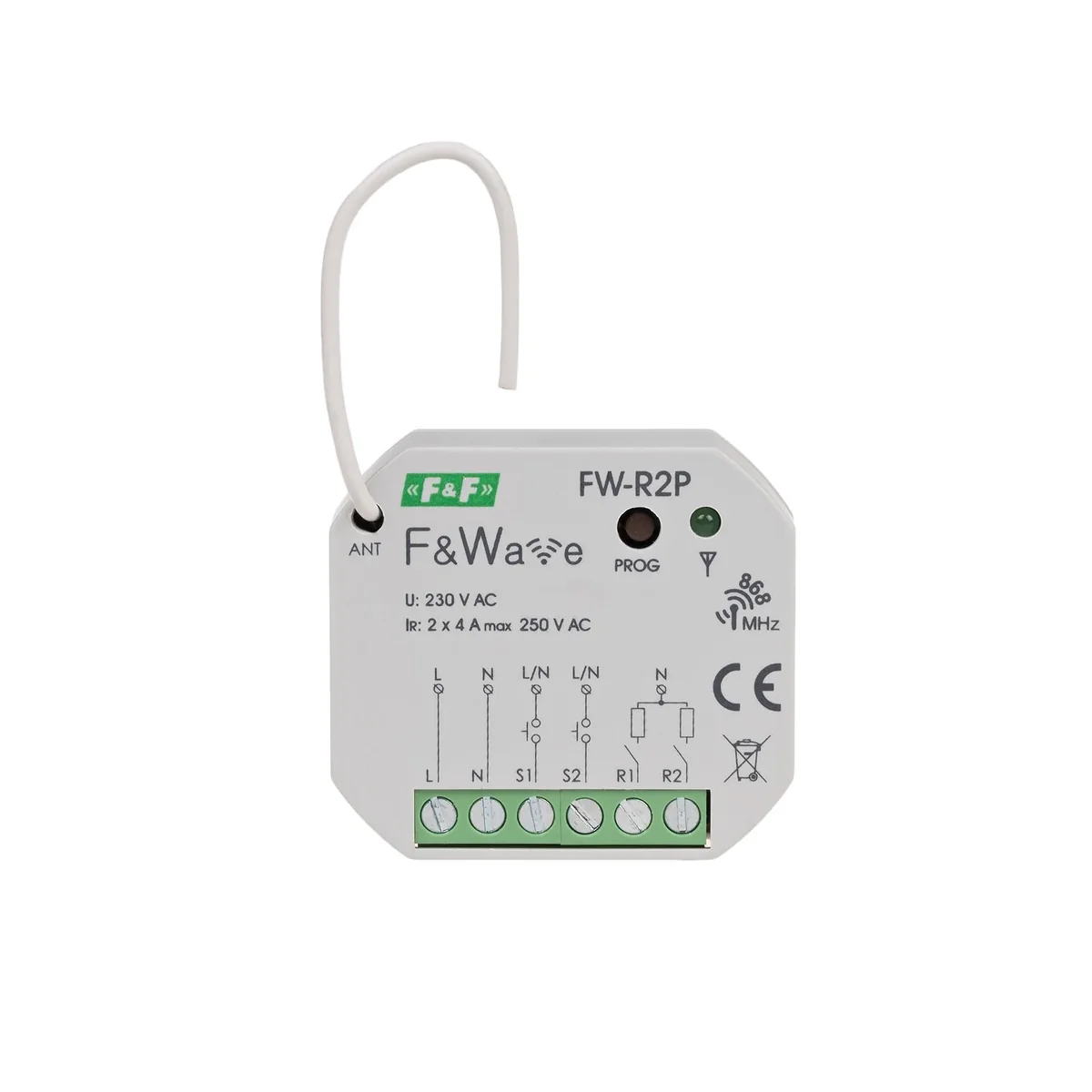

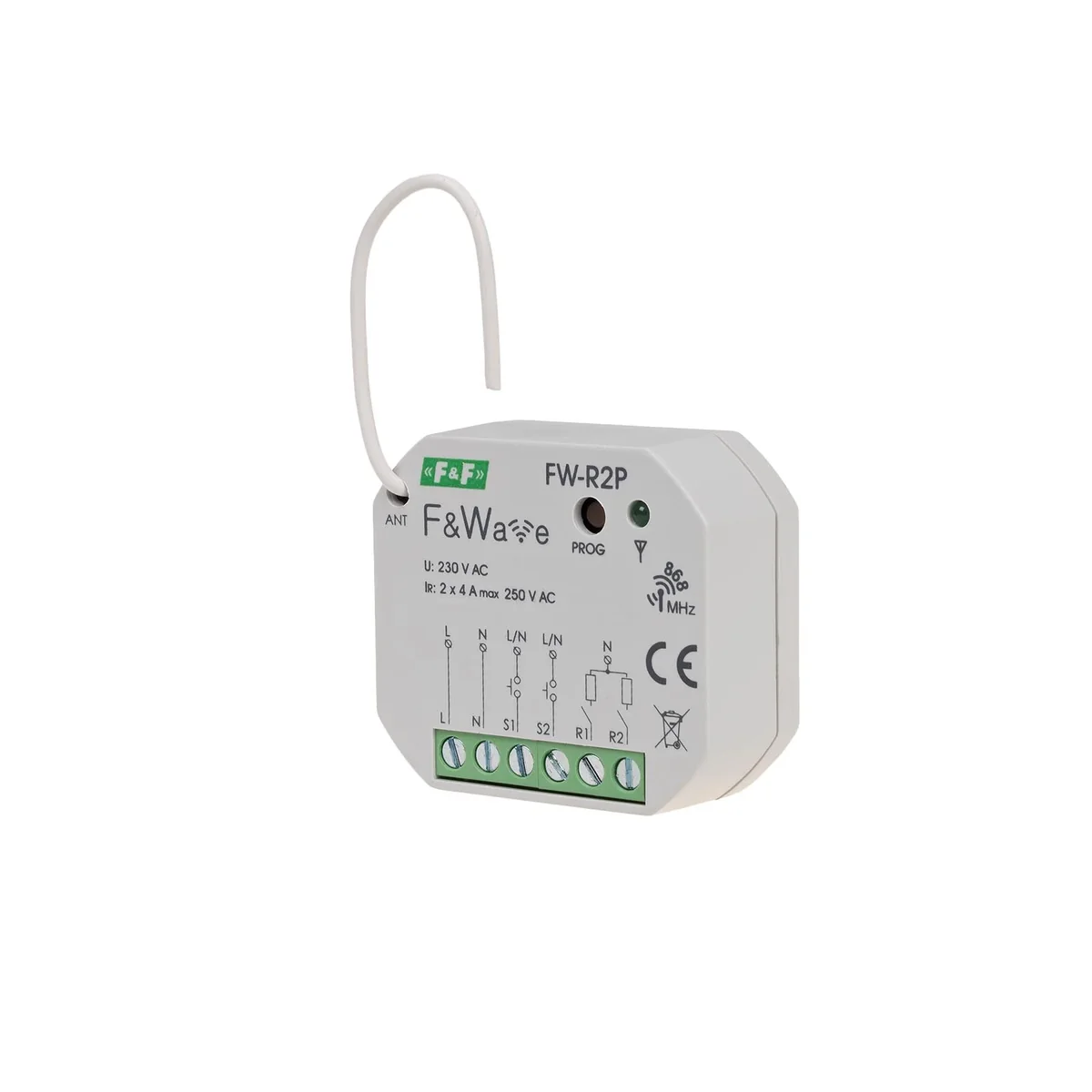

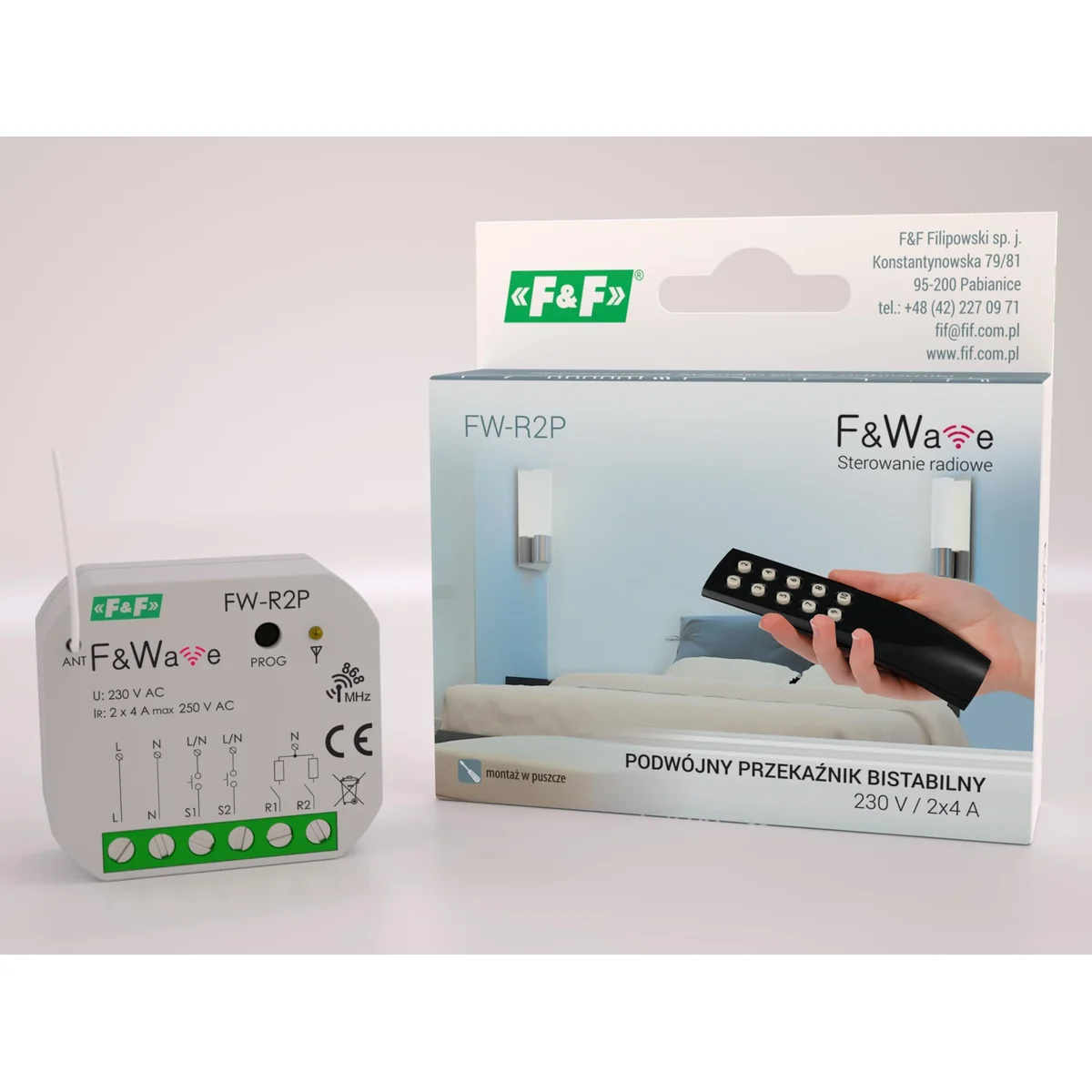

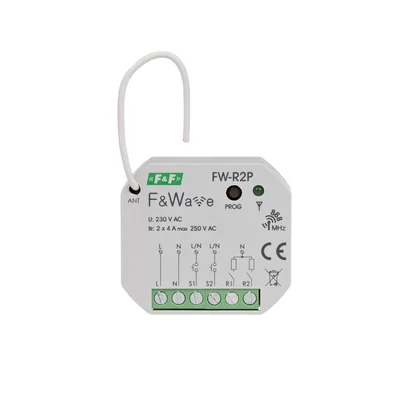

Radio double bistable relay FW-R2P FW-R2P

local index:
APS028FIFQ
Catalog No:
FW-R2P
EAN code:
5908312599258
Manufacturer: F&F
Family: F&WAVE
Level of security: IP20
Dimensions [mm]: 48x43x20
Price:
33,33 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 24 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description


Double bistable relay. For flush-mounted box Ø60.


Module features



  • Dual bistable relay;


  • Compatibility with F&Wave remote control transmitters;


  • Control with up to 8 transmitters;


  • Two local control inputs - the ability to directly control the relays using any monostable buttons (e.g. bell);


  • Two independent 4A (AC-1) NO output contacts (internally connected to L);


  • Small form factor;


  • Screw terminals for easy mounting in a Ø60 flush-mounted box;


  • Retransmission of commands from the transmitter - possibility of increasing the remote control range;

  • Low power consumption - low cost of ownership;


  • Built-in electronic thermal protection to prevent damage in case of overloading the relay.


Specifications
















operating mode
























< td>
0.4Nm













< /tbody>

power supply

85÷265 V AC/DC< /td>

control input

85÷265 V AC/DC; <1mA

power consumption



1.00W

standby

0.25W
output load
2× 4 A/250 V

radio frequency

868 MHz

working temperature

-25÷65°C

connector

2.5mm² screw terminals

tightening torque (max)

assembly

Ø60 flush-mounted box

dimensions

48×43×20 mm

degree of protection

IP20





Operating range

In open space, without interfering factors, the range of radio-controlled devices oscillates within 100 m.  In built-up conditions and in the presence of sources of interference (power lines, transmitters, etc.) the actual range may be less. The range can be improved by direct retransmission of modules within each other's range.

Technical data

  • Family
    F&WAVE
  • Dimensions [mm]
    48x43x20
  • PKWIU
    27.12.24.0
  • Level of security
    IP20
  • Frequency [MHz]
    868

Other technical data

  • Suitable for dimmer
    No
  • Suitable for venetian shutter switch
    No
  • In housing
    Yes
  • Push button mode
    Yes
  • Mounting method
    Flush-mounted
  • Material quality
    Thermoplastic
  • Surface protection
    Untreated
  • Suitable for degree of protection (IP)
    IP20
  • Rolling code system
    Yes
  • Suitable for pulse button
    Yes
  • Suitable for venetian-/roller shutter switch
    No
  • Current supply
    230 V AC
  • Number of relays
    1
  • Material
    Plastic
  • Halogen free
    Yes
  • Type of fastening
    Mounting with screw
  • Radio frequency
    868 MHz

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs.
Width (m) 0,026
Length (m) 0,095
Depth (m) 0,070
