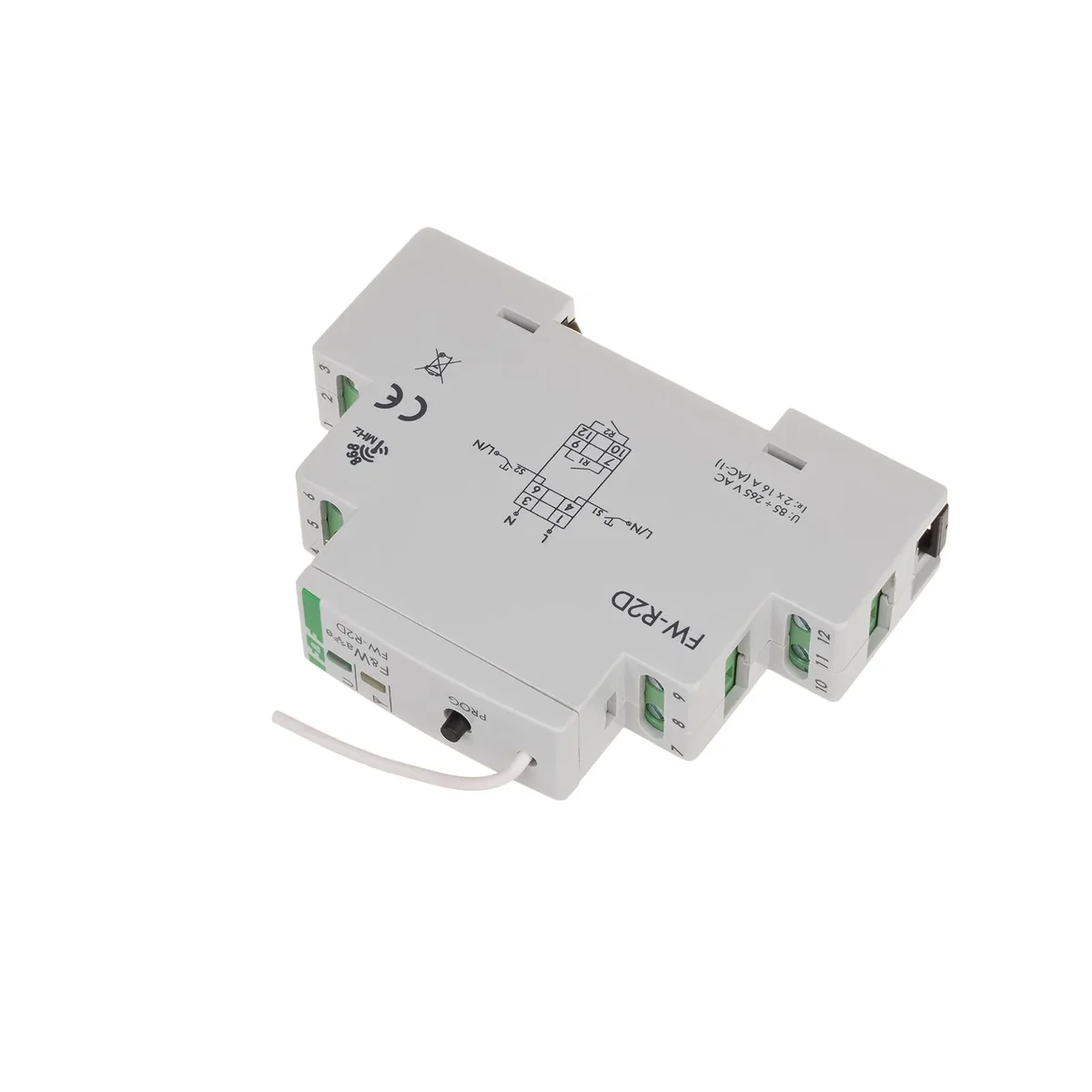

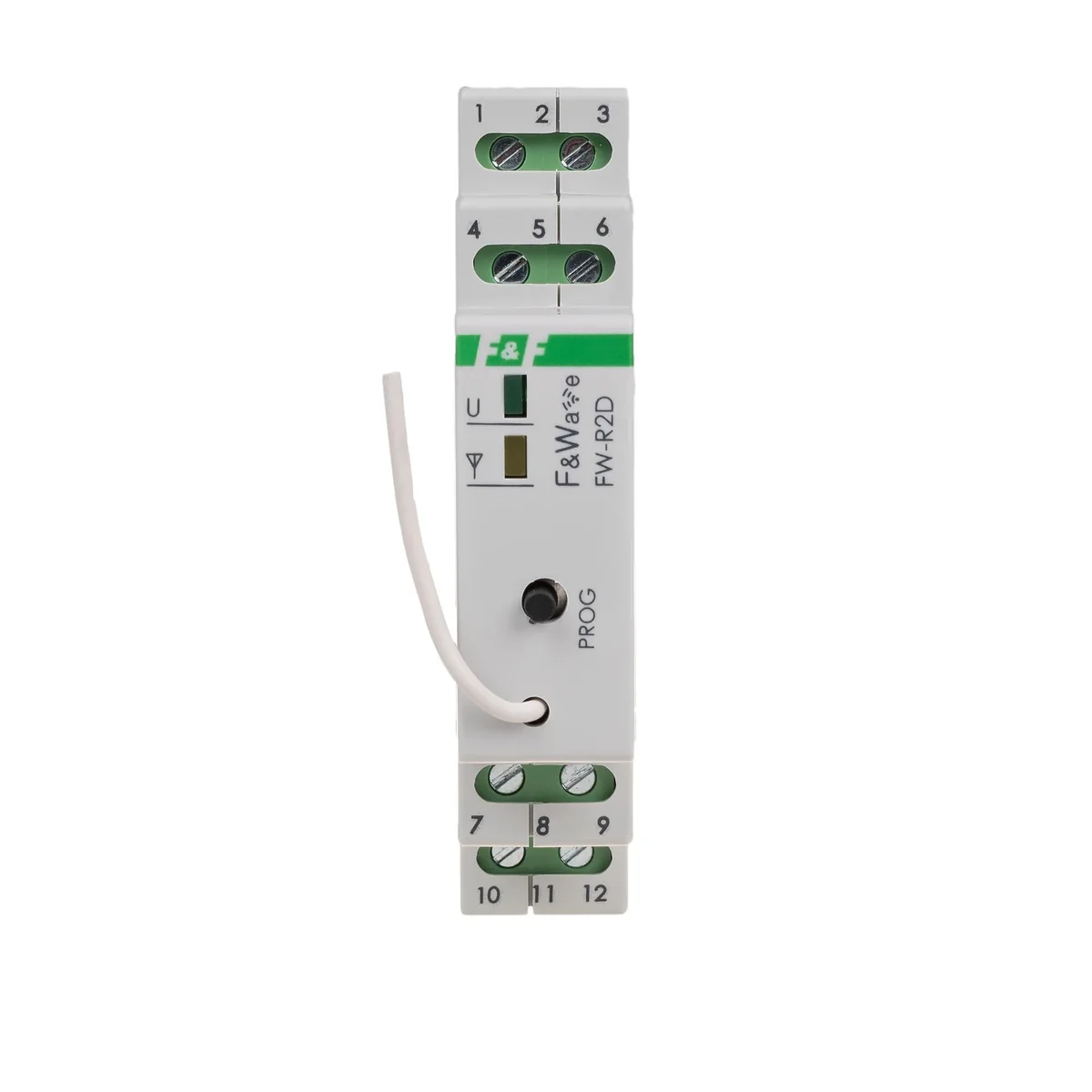

Radio double bistable relay FW-R2D FW-R2D

local index:
APS029FIFQ
Catalog No:
FW-R2D
EAN code:
5908312599265
Manufacturer: F&F
Family: F&WAVE
Level of security: IP20
Frequency [MHz]: 868
Price:
47,01 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 21 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description


Single bistable relay. For DIN rail.


Module features



  • Single bistable relay;

  • < br/> Compatibility with F&Wave remote control transmitters;


  • Can be controlled from up to 8 transmitters;


  • Local control - the ability to directly control the relay using any monostable button (e.g. bell button);

  • < li style="text-align: left;">
    Separated NO output contact rated at 16 A (AC-1);

  • Compact housing - one bay in the switchgear;


  • Retransmission of commands from the transmitter - possibility increase the remote control range;


  • Low power consumption - low cost of operation;


  • Built-in electronic thermal protection to prevent damage when overloading the relay.


Specifications
















operating mode

















< /tr>









< br/>









< /tbody>

power supply

85÷265 V DC

control input

85÷265 V AC /DC; <1mA

power consumption



0.60W

standby

0.25W
output load
16 A/250 V

radio frequency

868 MHz

operating temperature

-25÷65°C

connection

terminals screw 2.5mm²

tightening torque (max)

0.4Nm

assembly

TH-35 mm rail

dimensions

1 module (18 mm)

degree of protection

IP20





Operating range

In open space without interfering factors, the range of radio-controlled devices oscillates within 100 m.  In built-up conditions and in the presence of sources of interference (power lines, transmitters, etc.) the actual range may be less. The range can be improved by direct retransmission of modules within each other's range.

Technical data

  • Family
    F&WAVE
  • Frequency [MHz]
    868
  • Level of security
    IP20
  • PKWIU
    27.12.24.0

Other technical data

  • Suitable for dimmer
    No
  • Suitable for venetian shutter switch
    No
  • In housing
    Yes
  • Push button mode
    Yes
  • Mounting method
    DRA (DIN-rail adapter)
  • Material quality
    Thermoplastic
  • Surface protection
    Untreated
  • Suitable for degree of protection (IP)
    IP20
  • Rolling code system
    Yes
  • Suitable for pulse button
    Yes
  • Suitable for venetian-/roller shutter switch
    No
  • Current supply
    230 V AC
  • Number of relays
    1
  • Material
    Plastic
  • Halogen free
    Yes
  • Type of fastening
    Mounting with screw
  • Radio frequency
    868 MHz

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs.
Width (m) 0,019
Length (m) 0,095
Depth (m) 0,070
