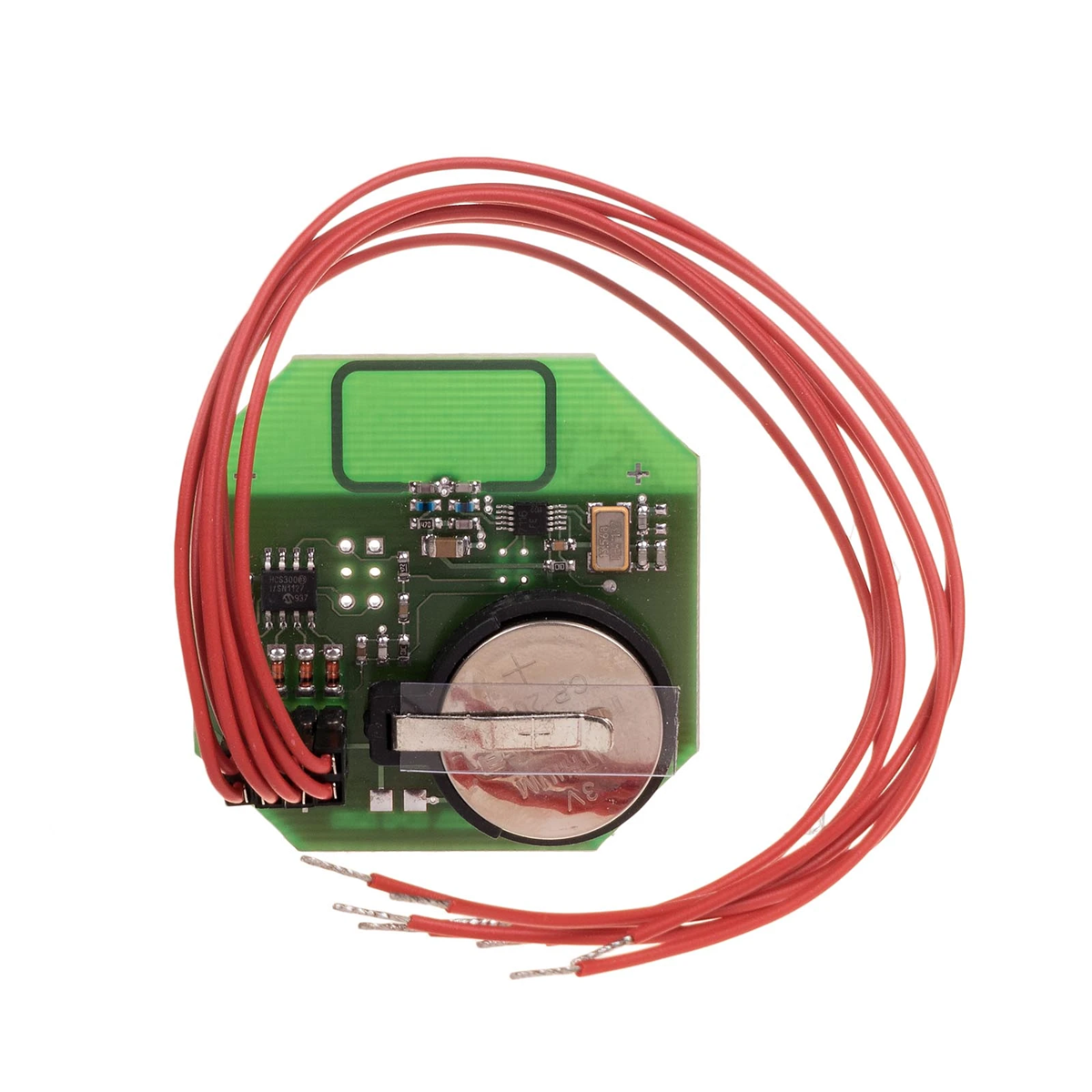

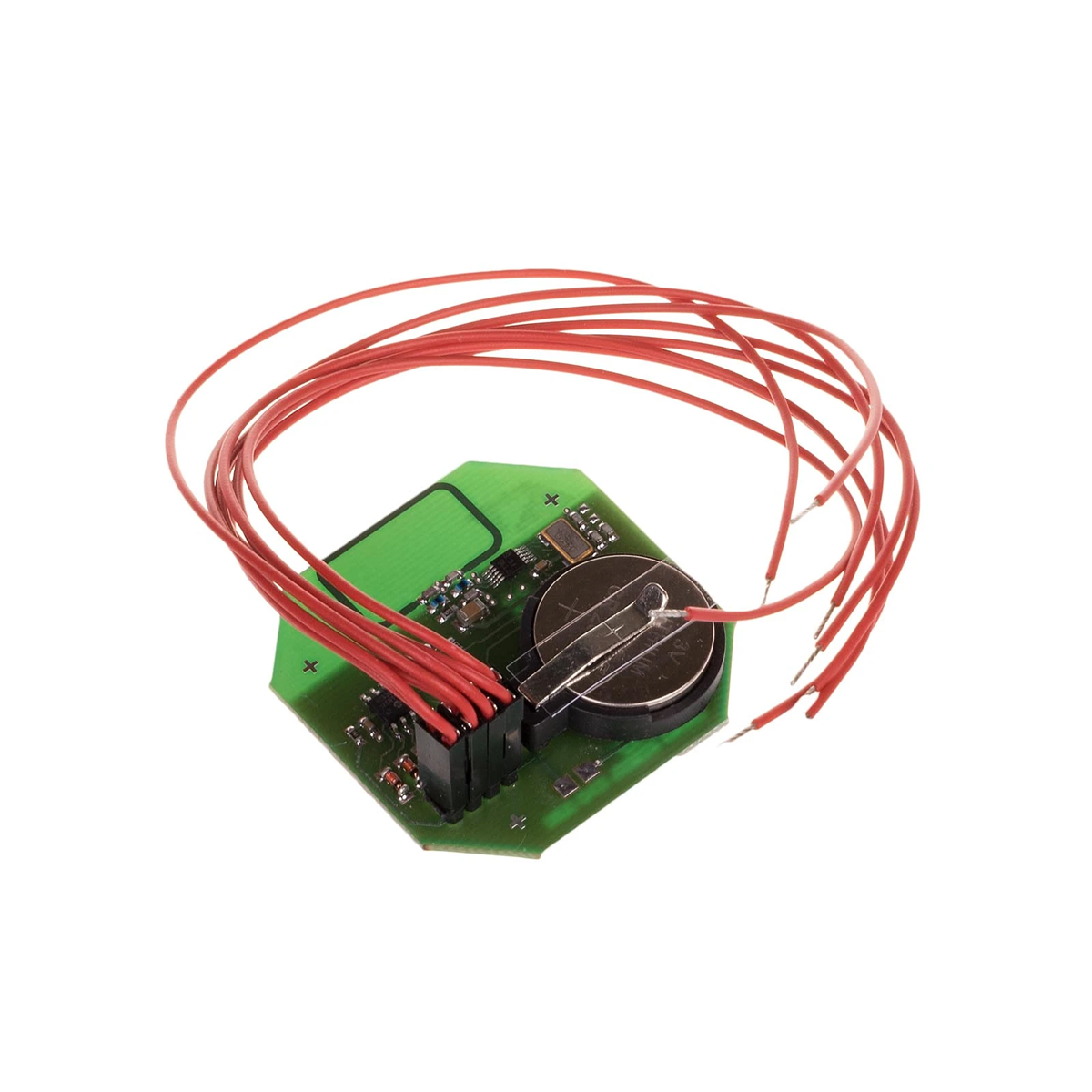

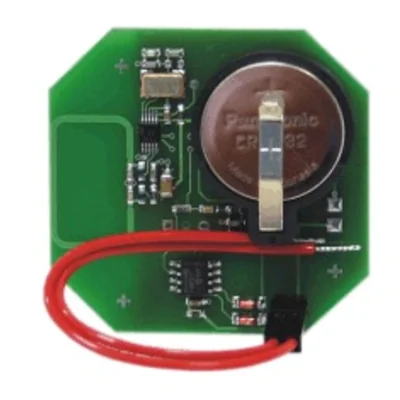

Radio control relay - flush-mounted transmitter RS-N3

local index:
APS015FIFQ
Catalog No:
RS-N3
EAN code:
5908312594888
Manufacturer: F&F
connection: LGY 0.5mm^2
Family: RS
Working temperature [°C]: -25-50
Price:
23,92 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Electronic radio transmitters are used to remotely control gates, roller shutters, lighting, arming alarm systems, etc. The remote control system consists of a transmitter and a receiver (relay). There is a possibility of cooperation of many transmitters with one receiver and a single transmitter with many receivers.

Technical data

  • connection
    LGY 0.5mm^2
  • Working temperature [°C]
    -25-50
  • Power [V]
    3
  • Package width [mm]
    52
  • Frequency [MHz]
    868
  • PKWIU
    26.30.12.0
  • Family
    RS
  • Transmission
    Dynamically variable code
  • Package height [mm]
    12
  • Package weight [kg]
    0.1
  • Frequency [MHz]
    868

Other technical data

  • Radio frequency
    868 MHz
  • Range
    100 m
  • Flush-mounted radio transmitter
    Yes
  • With radio coding device
    Yes
  • Rolling code system
    Yes
  • Number of commands
    3
  • Surface mounted radio transmitter
    No
  • Current supply
    Battery

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs.
Weight (kg) 0,030
Width (m) 0,080
Length (m) 0,070
Depth (m) 0,040
