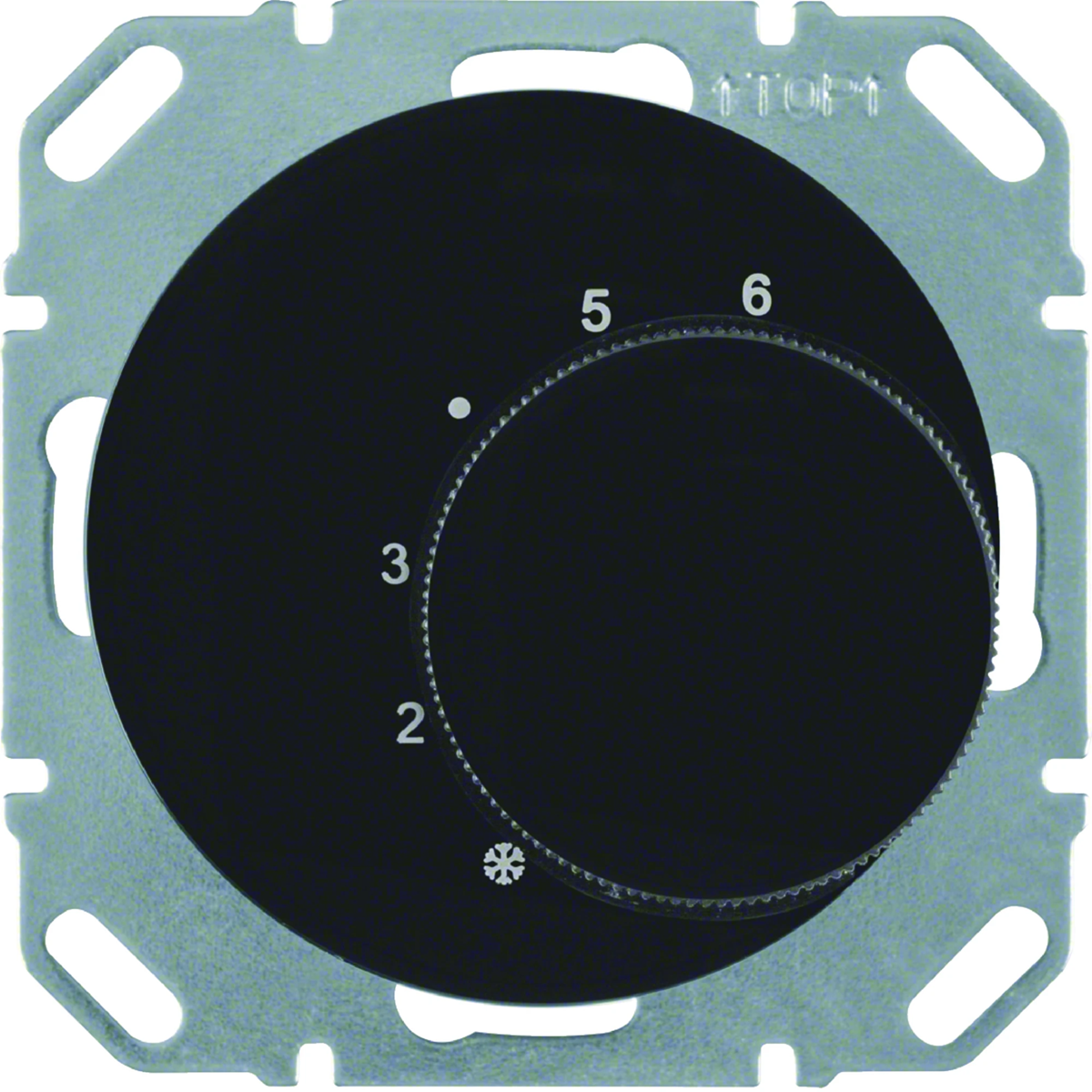

R.1/R.3 Room temperature controller with changeover contact, black gloss 20262045

Indice locale:
APT029BERK
Numero di catalogo:
20262045
Codice EAN:
4011334377290
Produttore: BERKER
Rated voltage [V]: 230
DC rated voltage [V]: 250
Family: R.1 | R.3
Prezzo:
631,13 zł
gross / pezzi
(inclusa IVA 23%)
fino a 10 settimane
Su ordinazione
Quantità pezzi
(multiplo:
1
)
Aggiungi alla richiesta di preventivo
Aggiungi agli appunti
Stampa

Descrizione del prodotto

Room temperature controller with change-over contact and central element, series BerkerR.1/R.3.

< ul>
  • for heating or air conditioning
  • for plasterboard walls
  • e.g.
  • Dati tecnici

    • Rated voltage [V]
      230
    • Family
      R.1 R.3
    • Temperature range [°C]
      5-30
    • PKWIU
      26.51.70.0
    • DC rated voltage [V]
      250
    • Switching temperature difference [K]
      ≈ 0.5
    • Connection type
      With screw terminals

    Altri dati tecnici

    • Model
      On/Off
    • Connection
      3-/4-wire
    • Measuring range
      0 ... 40 °C
    • Thermal feedback
      Series
    • Suitable for heating
      Yes
    • Suitable for cooling
      Yes
    • Differential value
      0.5 ... 0.5 K
    • Temperature readable
      No
    • Sensor/feeler type
      Bimetal
    • With display
      No
    • Concealed operation
      No
    • Contact type
      Change-over contact (NO/NC)
    • Max. contact load
      10 A
    • Degree of protection (NEMA)
      1
    • Colour
      Black
    • Height
      71 mm
    • Depth
      45.6 mm
    • Standby power consumption (solstandby)
      0 W
    • Compatible with Google Assistant
      No
    • IFTTT support available
      No
    • Type of power supply
      230 V AC
    • With receiver
      No
    • External sensor
      No
    • Control characteristic
      Other
    • Number of heater outputs
      1
    • Number of cooler outputs
      1
    • Adjustable differential
      No
    • With sound indicator
      No
    • Mounting method
      Flush-mounted
    • Operation
      Turn
    • With tap water circuit
      No
    • Max. contact voltage
      230 V
    • Degree of protection (IP)
      IP20
    • Explosion-proof
      No
    • RAL-number
      9005
    • Width
      71 mm
    • Class of the temperature control
      I
    • Compatible with Apple HomeKit
      No
    • Compatible with Amazon Alexa
      No

    Dettagli del produttore

    Imballaggio sfuso

    Una specie di pacchetto Karton Pakiet Paleta
    Quantità 1 pezzi 36 pezzi 1152 pezzi
    Peso (kg) 0,101 3,996 152,872
    Larghezza (m) 0,090 0,300 0,800
    Lunghezza (m) 0,070 0,220 1,050
    Profondità (m) 0,080 0,400 1,200
