BERKER

Q.1/Q.3 Temperature controller with time control and anthracite central element 20446086

local index:
APT085BERK
Catalog No:
20446086
EAN code:
4011334384175
Price:
261,76 €
gross / pcs.
including VAT 23%
Availability:
up to 4 weeks (business days)
Delivery:
From 3,49 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details

Product description

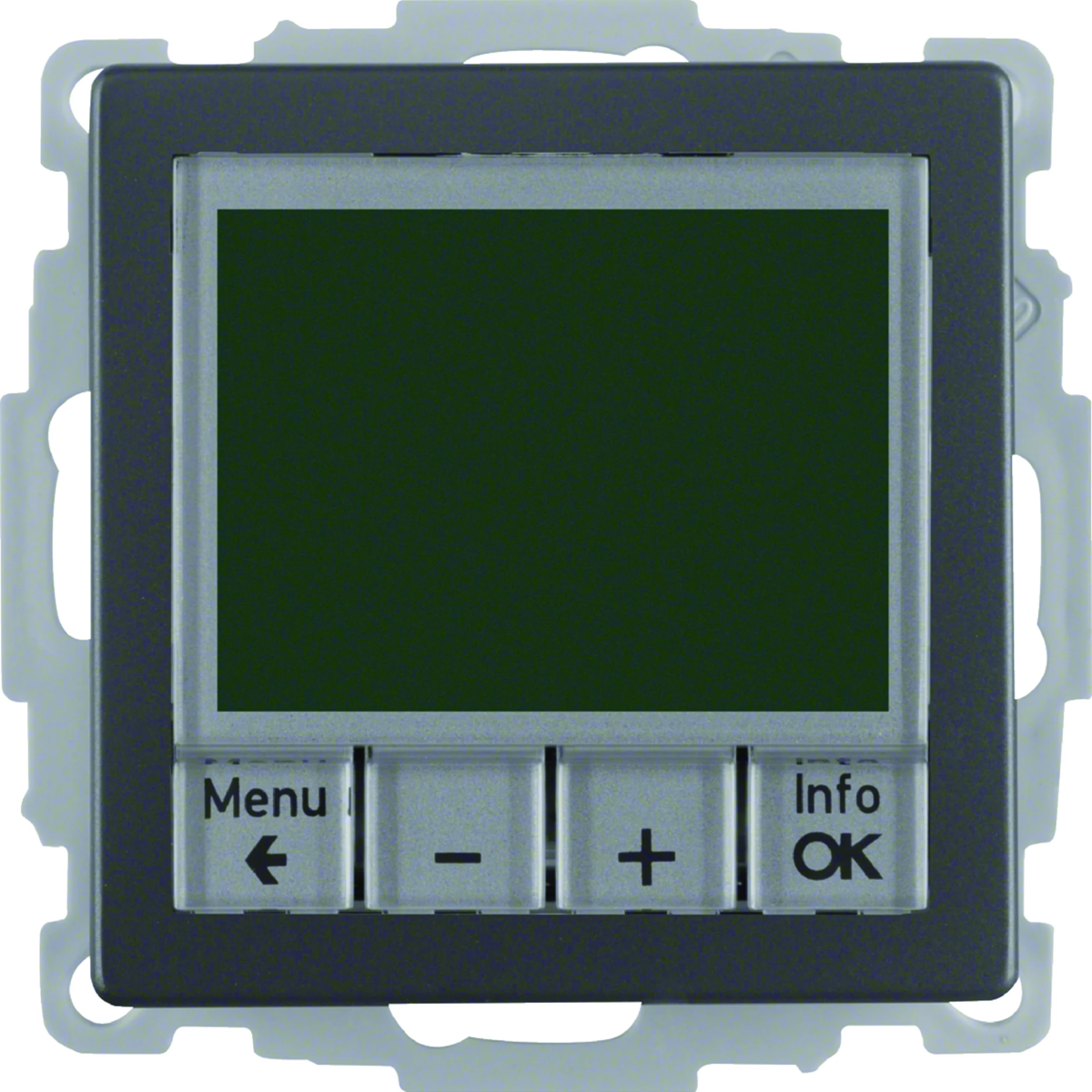

Temperature controller with time control and a central element, from the Berker Q.1/Q.3 series.

Features

  • with freeze protection
  • adjustable hour meter or energy consumption indicator
  • clock for timed control of temperature changes
  • with access protection
  • with valve protection
  • manual/automatic switchover

Controls and indicators

  • selectable interface language: German, English, Dutch or French
  • large backlit text display

Accessories

  • for heating or air conditioning
  • with self-learning heating curve
  • in the case of underfloor heating, regulation is possible via room and/or floor temperature
  • for room and floor heating
  • selectable PWM or 2-point control (on/off)
  • the ability to set the time of PWM cycles and hysteresis (with 2-point control)
  • the ability to set the type of valve drive (closed/open in the de-energized state)

Technical data

  • Rated voltage [V]
    230
  • Power consumption [W]
    1.2
  • Family
    Q.1 Q.3
  • Mounting depth [mm]
    25
  • DC rated voltage [V]
    230
  • Rated current [A]
    0.01
  • Switching temperature difference [K]
    ≈ 0.5
  • Connection type
    With screw terminals

Other technical data

  • Model
    On/Off
  • Temperature readable
    yes
  • Mounting method
    Flush-mounted
  • Colour
    Anthracite
  • Height
    71 mm
  • Depth
    42 mm
  • Differential value
    0.5 ... 0.5 K
  • Sensor/feeler type
    Resistance sensor
  • Degree of protection (IP)
    IP20
  • RAL-number
    7016
  • Width
    71 mm
  • Class of the temperature control
    IV

See other products in the category: Temperature sensors and controllers
