Q.1/Q.3 Room temperature controller with changeover contact anthracite 20266086
local index:
APT033BERK
Catalog No:
20266086
EAN code:
4011334379607
Price:
124,86 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

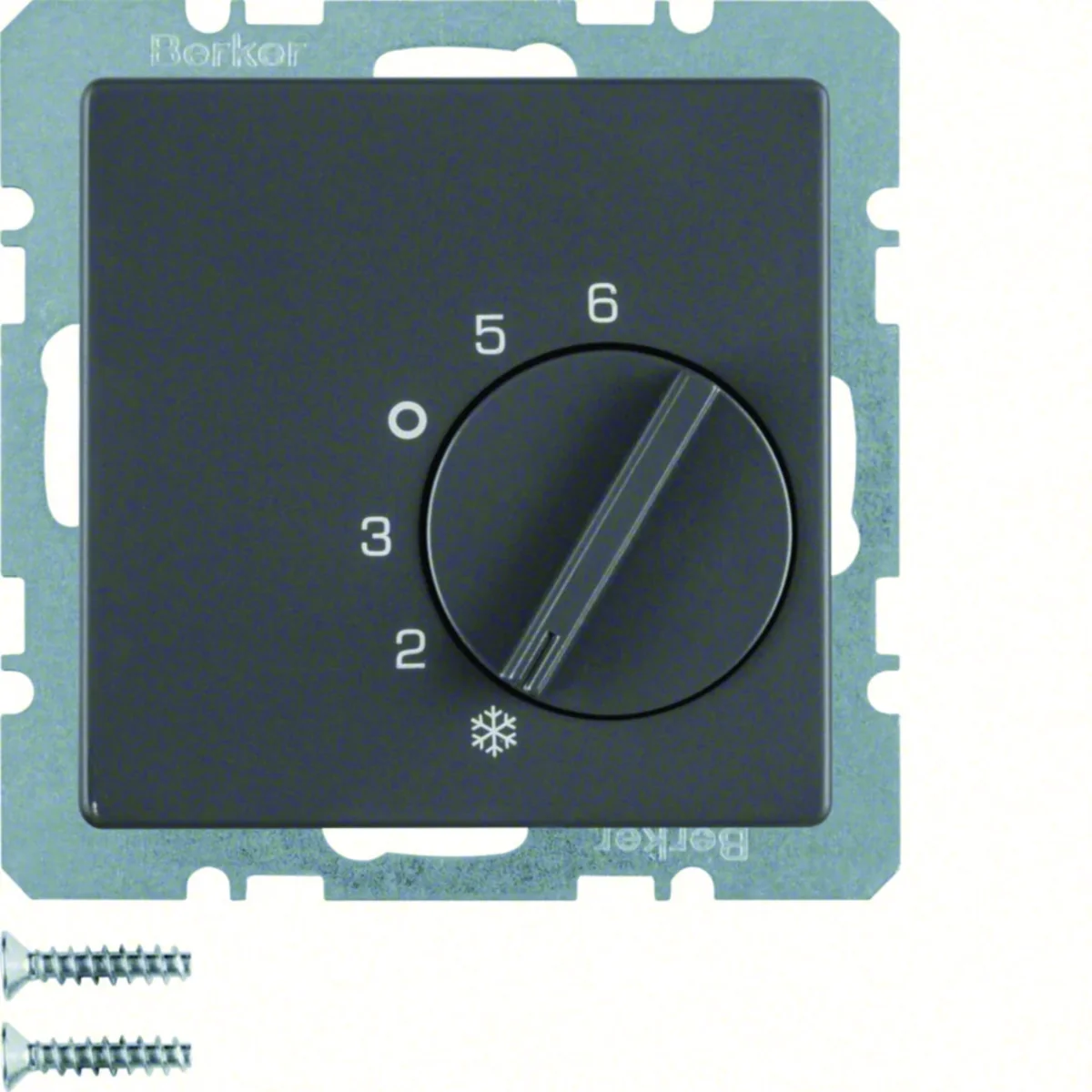

Room temperature controller with a change-over contact and central element, series BerkerQ.1/Q.3.
< ul>Technical data
-
Rated voltage [V]230
-
FamilyQ.1 Q.3
-
Temperature range [°C]5-30
-
PKWIU26.51.70.0
-
DC rated voltage [V]250
-
Switching temperature difference [K]≈ 0.5
-
Connection typeWith plug-in terminals
Other technical data
-
ModelOn/Off
-
Differential value0.5 ... 0.5 K
-
Sensor/feeler typeBimetal
-
Degree of protection (IP)IP20
-
RAL-number7016
-
Width71 mm
-
Class of the temperature controlI
-
Thermal feedbackSeries
-
Temperature readableNo
-
Mounting methodFlush-mounted
-
ColourAnthracite
-
Height71 mm
-
Depth45 mm
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 1 pcs. | 36 pcs. | 1152 pcs. |
| Weight (kg) | 0,073 | 0,110 | 4,400 | 163,800 |
| Width (m) | 0,071 | 0,090 | 0,300 | 0,800 |
| Length (m) | 0,045 | 0,075 | 0,225 | 1,050 |
| Depth (m) | 0,071 | 0,090 | 0,400 | 1,200 |
