Q.1/Q.3 Room temperature controller 24V anthracite NC contact 20316086

local index:
APT057BERK
Catalog No:
20316086
EAN code:
4011334379652
Manufacturer: BERKER
Rated voltage [V]: 24
DC rated voltage [V]: 24
Rated current [A]: 4
Price:
138,33 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

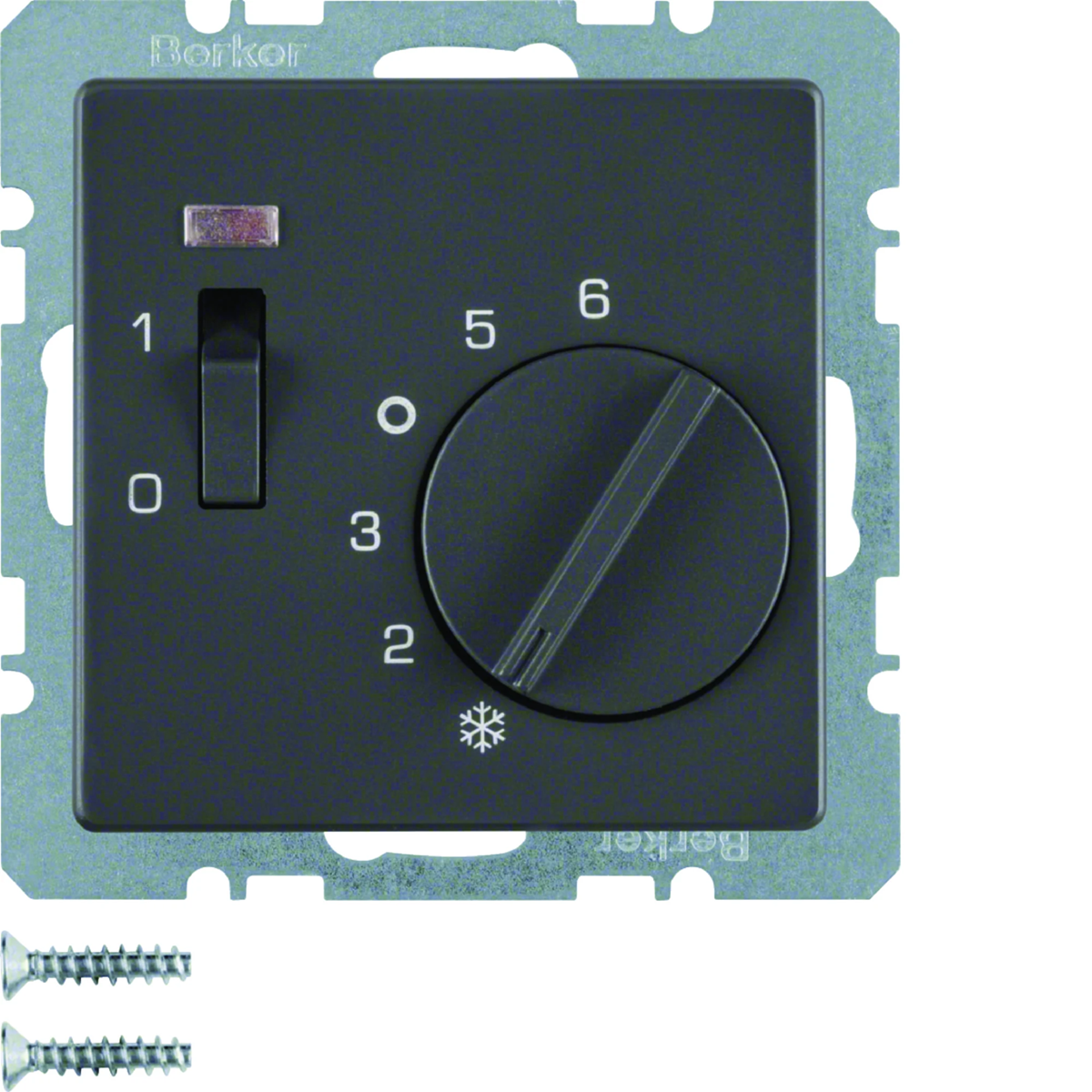

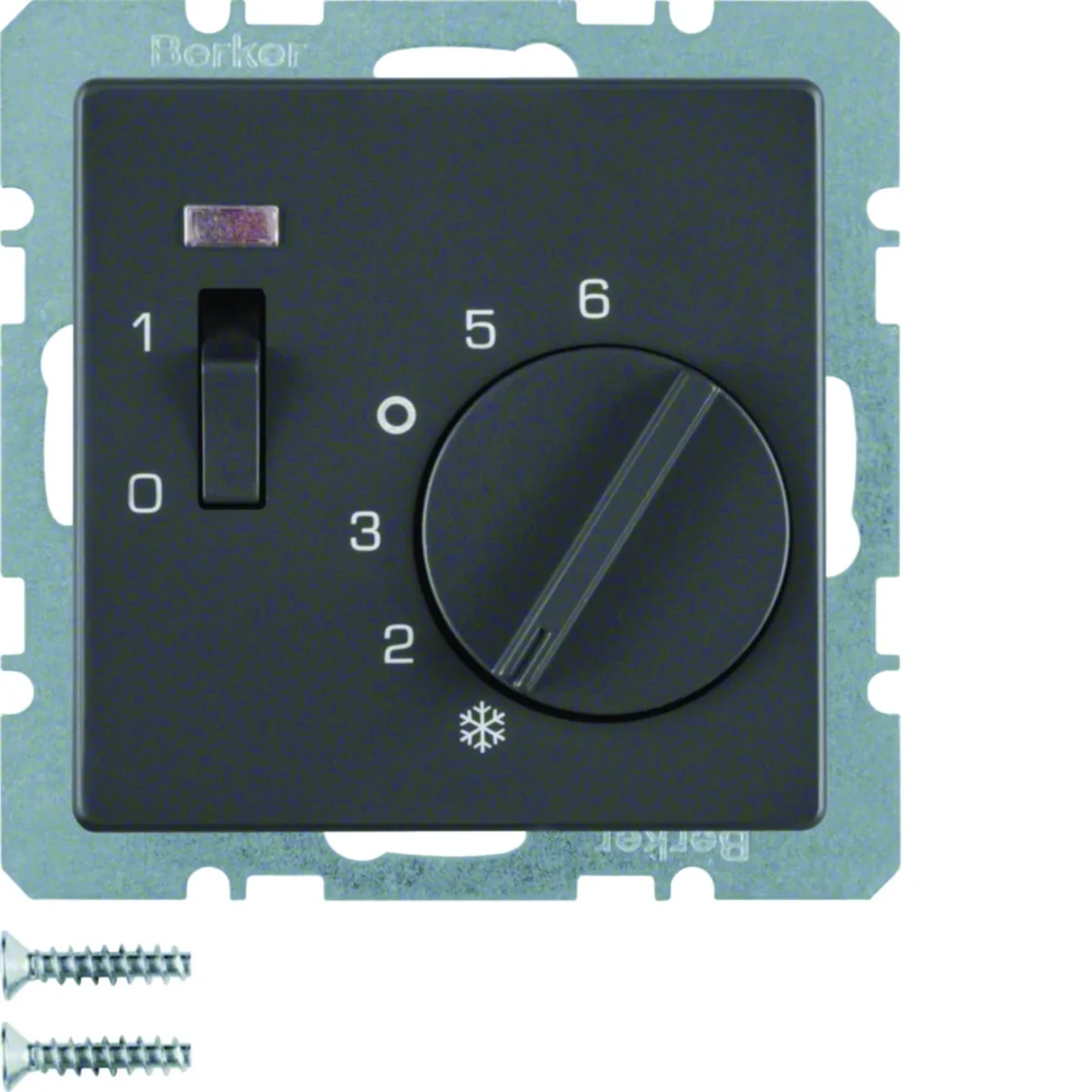

Room temperature controller with NC contact and central element, series BerkerQ.1/Q.3.

< ul>
  • with a switch and a LED indicating activation
  • with a separate connection for night mode
  • for plasterboard walls
  • e.g. for closed valve drives when de-energized
  • rated voltage: 24 V AC/DC
  • Technical data

    • Rated voltage [V]
      24
    • Rated current [A]
      4
    • Switching temperature difference [K]
      ≈ 0.5
    • AC rated voltage [V]
      24
    • PKWIU
      26.51.70.0
    • DC rated voltage [V]
      24
    • Family
      Q.1 Q.3
    • Temperature range [°C]
      5-30
    • Connection type
      With plug-in terminals

    Other technical data

    • Model
      On/Off
    • Differential value
      0.5 ... 0.5 K
    • Sensor/feeler type
      Bimetal
    • Degree of protection (IP)
      IP20
    • RAL-number
      7016
    • Width
      71 mm
    • Class of the temperature control
      I
    • Thermal feedback
      Series
    • Temperature readable
      No
    • Mounting method
      Flush-mounted
    • Colour
      Anthracite
    • Height
      71 mm
    • Depth
      49 mm

    Bulk packaging

    A kind of package Karton Pakiet Paleta
    Quantity 1 pcs. 1 pcs. 36 pcs. 1152 pcs.
    Weight (kg) 0,105 0,110 4,385 165,320
    Width (m) 0,071 0,085 0,300 0,800
    Length (m) 0,049 0,070 0,225 1,050
    Depth (m) 0,071 0,090 0,400 1,200
