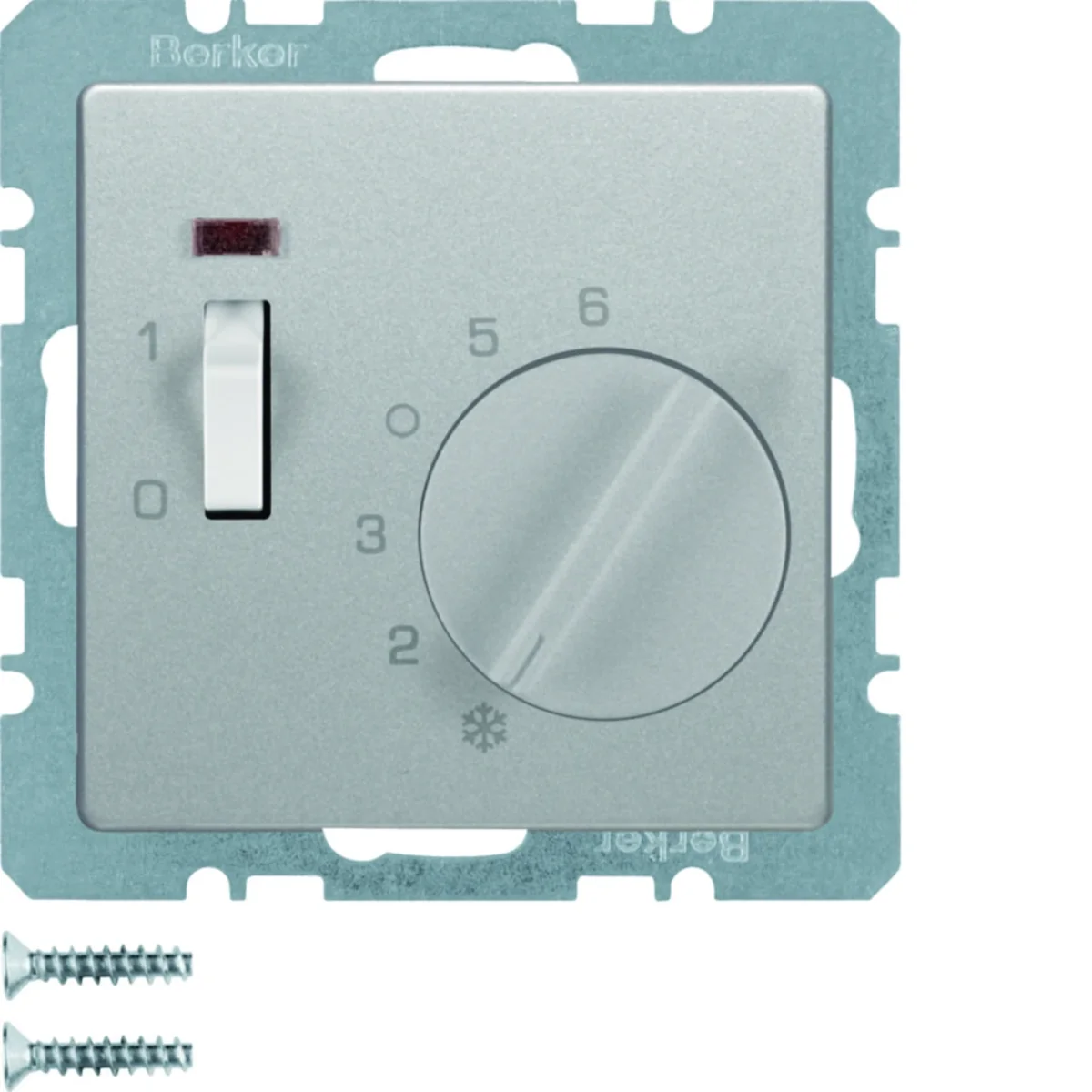

Q.1/Q.3 Room temperature controller 24 V with make contact central element and connector and LED aluminum 20316084

Name: Q.1/Q.3 Room temperature controller 24 V with make contact central element and connector and LED aluminum
Brand: BERKER
SKU: APT056BERK
Price: 137.72 PLN

local index:

APT056BERK

Catalog No:

20316084

EAN code:

4011334443285

Q.1/Q.3 Room temperature controller 24 V with make contact central element and connector and LED aluminum

Click on the photo to enlarge

Manufacturer: BERKER

Rated voltage [V]: 24

DC rated voltage [V]: 24

Rated current [A]: 4

See full description

Price:

137,72 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 10 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Bulk packaging

Product description

Room temperature controller with NO contact and central element, series BerkerQ.1/Q.3.

< ul>

with a switch and a LED indicating activation

with a separate connection for night mode

for plasterboard walls

e.g. for closed valve drives when de-energized

rated voltage: 24 V AC/DC

Technical data

Rated voltage [V]

24
Rated current [A]

4
Switching temperature difference [K]

≈ 0.5
AC rated voltage [V]

24
PKWIU

26.51.70.0

DC rated voltage [V]

24
Family

Q.1 Q.3
Temperature range [°C]

5-30
Connection type

With plug-in terminals

Other technical data

Model

On/Off
Differential value

0.5 ... 0.5 K
Sensor/feeler type

Bimetal
Degree of protection (IP)

IP20
RAL-number

9006
Width

71 mm
Class of the temperature control

I

Thermal feedback

Series
Temperature readable

No
Mounting method

Flush-mounted
Colour

Other
Height

71 mm
Depth

49 mm

Bulk packaging

A kind of package		Karton	Pakiet	Paleta
Quantity	1 pcs.	1 pcs.	36 pcs.	1152 pcs.
Weight (kg)	0,104	0,105	4,220	158,040
Width (m)	0,071	0,090	0,300	0,800
Length (m)	0,049	0,070	0,225	1,050
Depth (m)	0,071	0,085	0,400	1,200
