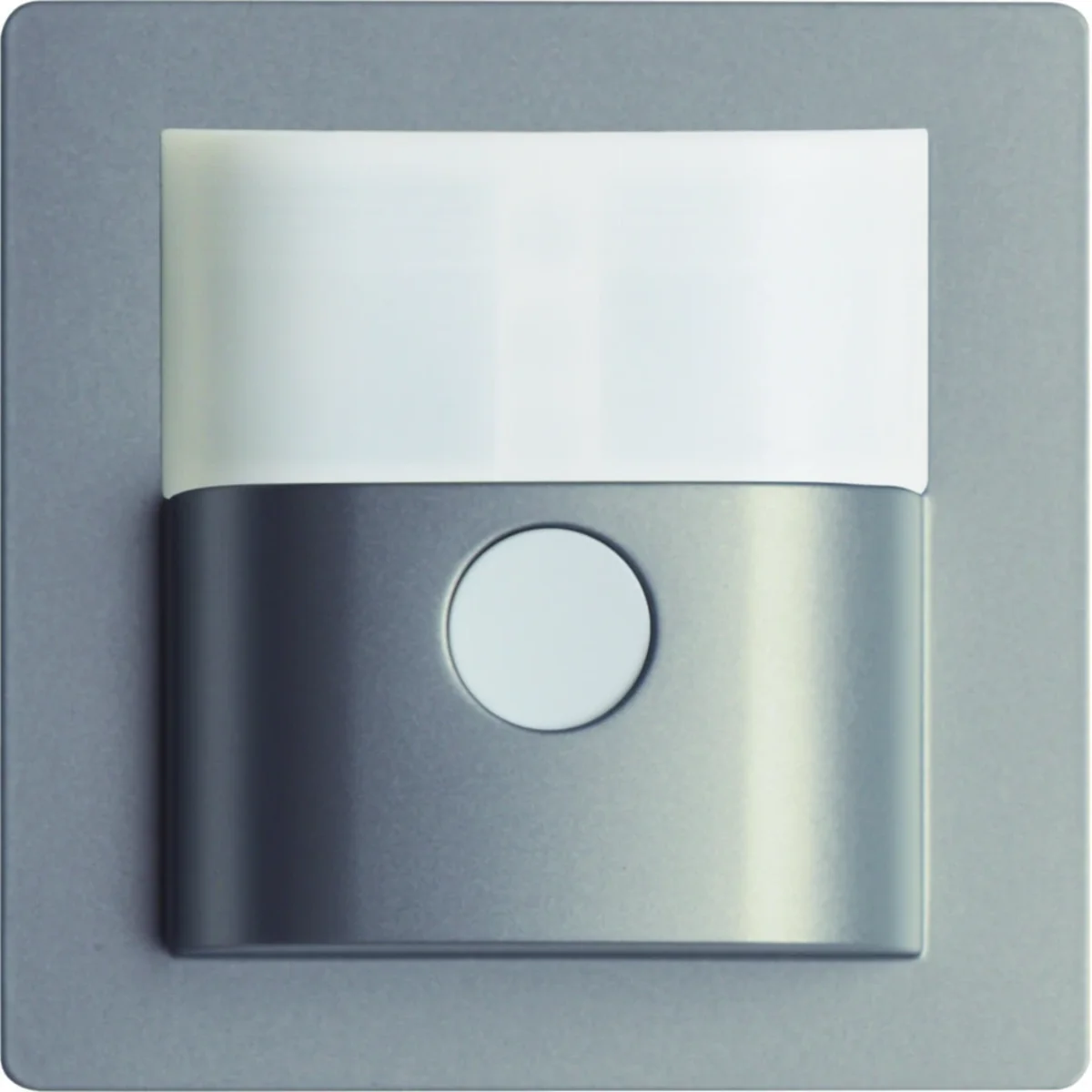

Q.1/Q.3 KNX RF quicklink comfort motion sensor attachment 1.1 m Berker.Net, alu velvet, varnished 85345124

local index:
AIK001BERK
Catalog No:
85345124
EAN code:
4011334443636
Manufacturer: BERKER
Halogen free: NO
Detection angle [°]: 45-90
Material: Thermoplastic
Price:
209,49 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Q.1/Q.3 KNX RF quicklink comfort motion sensor attachment 1.1 m Berker.Net, alu velvet, varnished

Technical data

  • Halogen free
    NO
  • Material
    Thermoplastic
  • Surface
    Velvet
  • Radio transmitter/receiver frequency [MHz]
    868.3
  • Number of radio channels
    1
  • Number of quicklinks
    up to 20 transmitters/receivers
  • Operation brightness level [%]
    10 - 100
  • Way of work
    microprocessor operation control
  • Lateral range [m]
    ≈ 8
  • Range of the radio transmitter (in the building) [m]
    thirty
  • Delay time, adjustable
    ≈ 1 s - 3 h
  • Detection angle [°]
    45-90
  • Detection field
    12x16
  • Operating temperature range [°C]
    from -5 to 45
  • Receiver category
    2
  • Number of detection planes
    2
  • Radio transmitter power [mA]
    <10
  • Radio protocol
    KNX
  • Relative humidity (no condensation) [%]
    0 - 65 (non-condensing)
  • Straight range [m]
    ≈ 12
  • Radio transmitter range (in open area) [m]
    100
  • PKWIU
    27.33.11.0

Other technical data

  • Bus system KNX
    No
  • Bus system radio frequent
    No
  • Bus system Powernet
    No
  • Radio frequent bidirectional
    Yes
  • Mounting method
    Flush-mounted
  • Material quality
    Thermoplastic
  • Surface finishing
    Matt
  • RAL-number (similar)
    9006
  • With bus connection
    Yes
  • Creep-under protection
    No
  • Animal zone
    No
  • Response value luminosity adjustable
    Yes
  • Switch-off delay self-learning
    No
  • Max. reach sideways
    8 m
  • Diameter reach on floor
    0 m
  • Detection angle horizontal
    90 ... 180 °
  • Switching power
    0 W
  • Max. duty cycle
    180 min
  • Bus system KNX-RF (Radio Frequent)
    Yes
  • Bus system LON
    No
  • Other bus systems
    None
  • Model
    Movement sensor
  • Material
    Plastic
  • Surface protection
    Lacquered
  • Colour
    Aluminium
  • Transparent
    No
  • Substation input
    No
  • Operation mode switch
    Yes
  • Staircase light controller
    No
  • Teach-function for response value luminosity
    Yes
  • Optimum mounting height
    1.1 m
  • Max. reach frontally
    12 m
  • Detection angle vertical
    0 ... 7 °
  • Number of channels
    1
  • Min. switch-on time
    1 s

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 36 pcs. 1152 pcs.
Weight (kg) 0,067 0,090 3,680 142,760
Width (m) 0,058 0,083 0,300 0,800
Length (m) 0,043 0,070 0,225 1,050
Depth (m) 0,058 0,083 0,400 1,200
