Q.1/Q.3 Floor temperature controller with NO contact, anthracite 20346086

local index:
APT074BERK
Catalog No:
20346086
EAN code:
4011334379683
Manufacturer: BERKER
Rated voltage [V]: 230
DC rated voltage [V]: 230
Rated current [A]: 10
Price:
245,42 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

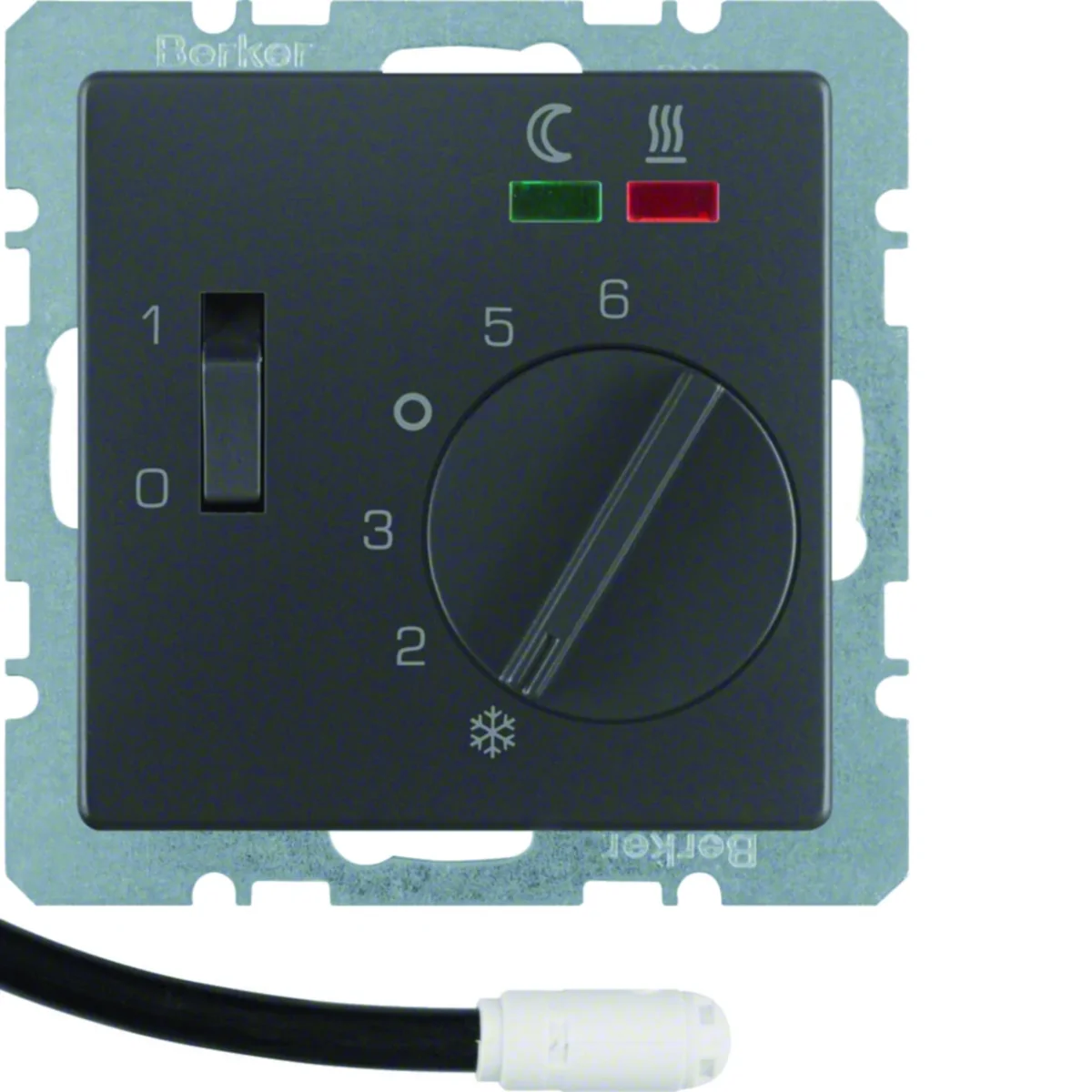

Floor temperature controller with NO contact and central element, series BerkerQ.1/Q.3.

< ul>
  • with on/off switch and 2 LEDs
  • LEDs indicating heating activation and night mode
  • with separate connection for night mode
  • for walls made of cardboard -gypsum
  • e.g. for drives of valves closed in the currentless state
  • Technical data

    • Rated voltage [V]
      230
    • Rated current [A]
      10
    • Switching temperature difference [K]
      ≈ 1
    • Connection type
      With plug-in terminals
    • DC rated voltage [V]
      230
    • Family
      Q.1 Q.3
    • Sensor cable length [m]
      4
    • PKWIU
      26.51.70.0

    Other technical data

    • Thermal feedback
      Series
    • Temperature readable
      No
    • Mounting method
      Flush-mounted
    • Colour
      Anthracite
    • Height
      71 mm
    • Depth
      49 mm
    • Differential value
      1 ... 1 K
    • Sensor/feeler type
      Bimetal
    • Degree of protection (IP)
      IP20
    • RAL-number
      7016
    • Width
      71 mm
    • Class of the temperature control
      I

    Bulk packaging

    A kind of package Karton Pakiet Paleta
    Quantity 1 pcs. 1 pcs. 22 pcs. 704 pcs.
    Weight (kg) 0,260 0,265 6,270 223,640
    Width (m) 0,071 0,100 0,300 0,800
    Length (m) 0,049 0,090 0,225 1,050
    Depth (m) 0,071 0,105 0,400 1,200
