Q.1/Q.3 Floor temperature controller with make contact, central element and connector 20346089

Name: Q.1/Q.3 Floor temperature controller with make contact, central element and connector
Brand: BERKER
SKU: APT075BERK
Price: 1043.36 PLN
Availability: BackOrder

local index:

APT075BERK

Catalog number:

20346089

EAN code:

4011334316084

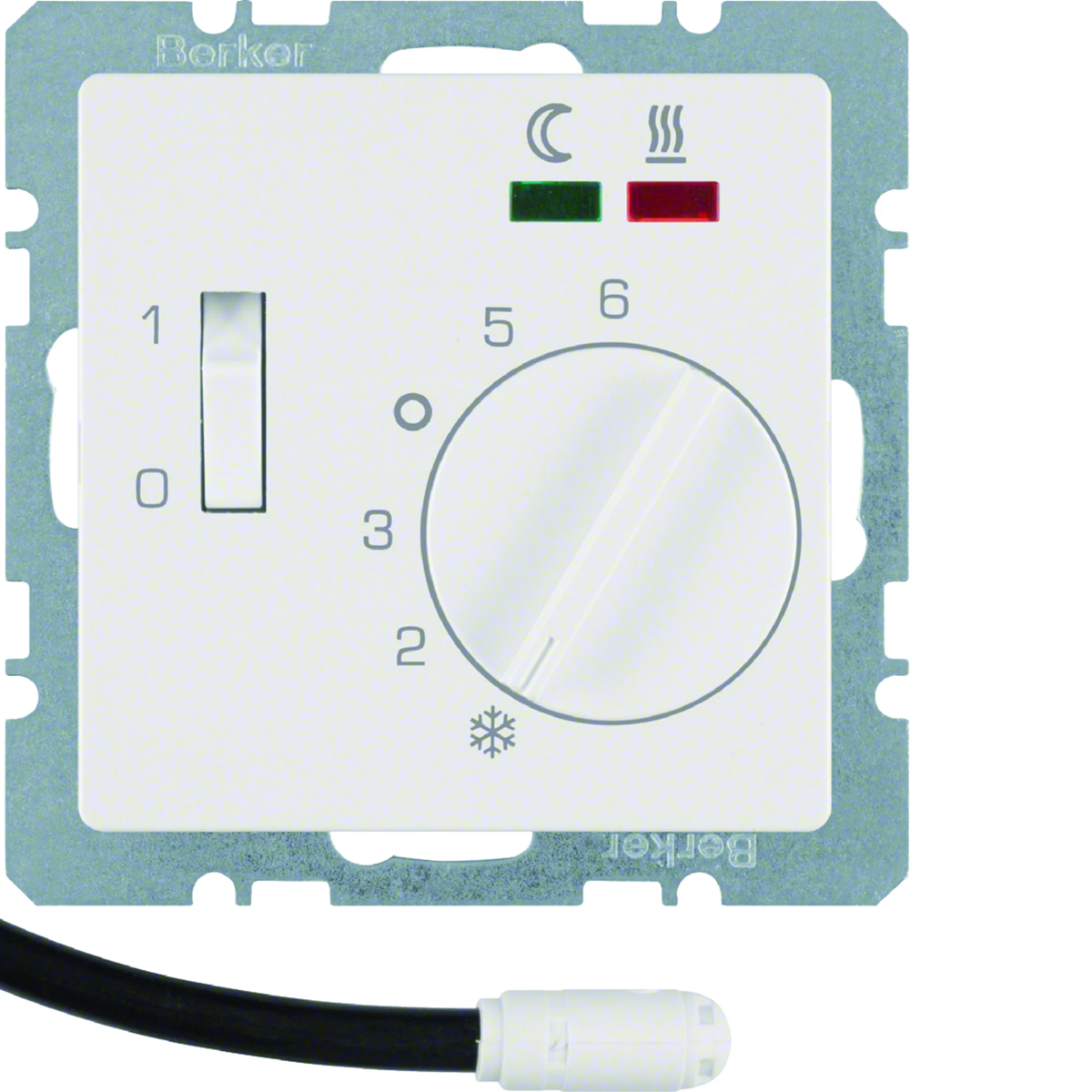

Q.1/Q.3 Floor temperature controller with make contact, central element and connector

Click on the photo to enlarge

Manufacturer: BERKER

Rated voltage [V]: 230

DC rated voltage [V]: 230

Rated current [A]: 10

See full description

Price:

1 043,36 zł

gross / pcs.

(including VAT 23%)

up to 4 weeks

On request

Quantity pcs.

(multiplicity:

)

Add to inquiry

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging Files to download

Product description

Floor temperature controller with NO contact and central element, series BerkerQ.1/Q.3.

< ul>

with on/off switch and 2 LEDs

LEDs indicating heating activation and night mode

with separate connection for night mode

for walls made of cardboard -gypsum

e.g. for drives of valves closed in the currentless state

Technical data

Rated voltage [V]

230
Rated current [A]

10
Switching temperature difference [K]

≈ 1
Connection type

With plug-in terminals

DC rated voltage [V]

230
Family

Q.1 Q.3
Sensor cable length [m]

4
PKWIU

26.51.70.0

Other technical data

Model

On/Off
Connection

3-wire
Measuring range

0 ... 40 °C
Thermal feedback

Series
Suitable for heating

Yes
Suitable for cooling

No
Differential value

1 ... 1 K
Temperature readable

No
Sensor/feeler type

Resistance sensor
With display

No
Concealed operation

No
Contact type

Normally open contact (NO)
Max. contact load

10 A
Degree of protection (NEMA)

1
Colour

White
Height

71 mm
Depth

54.5 mm
Compatible with Apple HomeKit

No
Compatible with Amazon Alexa

No

Type of power supply

230 V AC
With receiver

No
External sensor

Yes
Control characteristic

Other
Number of heater outputs

1
Number of cooler outputs

0
Adjustable differential

No
With sound indicator

No
Mounting method

Flush-mounted
Operation

Turn
With tap water circuit

No
Max. contact voltage

230 V
Degree of protection (IP)

IP30
Explosion-proof

No
RAL-number

9010
Width

71 mm
Class of the temperature control

I
Compatible with Google Assistant

No
IFTTT support available

No

Manufacturer details

Manufacturer

Berker GmbH & Co. KG.
Address

DE 66440 Blieskastel Zum Gunterstal Niemcy
E-mail

wsparcie.klienta@hager.com

Bulk packaging

A kind of package	Karton	Pakiet	Paleta
Quantity	1 pcs.	22 pcs.	704 pcs.
Weight (kg)	0,265	6,270	223,640
Width (m)	0,100	0,300	0,800
Length (m)	0,090	0,220	1,050
Depth (m)	0,100	0,400	1,200
