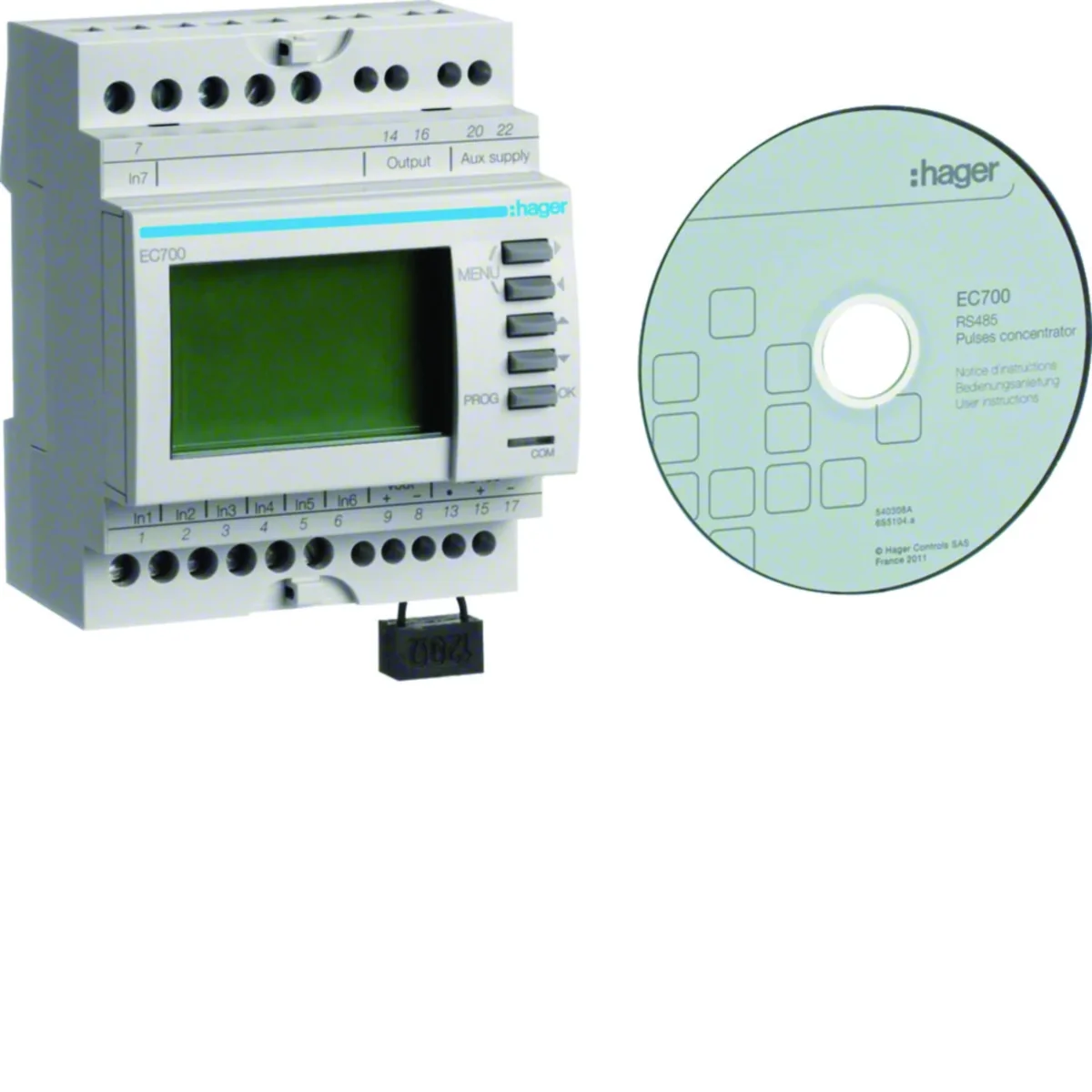

Pulse concentrator, 7 inputs, RS485/MODBUS output EC700

local index:
API049HAGE
Catalog No:
EC700
EAN code:
3250616127005
Manufacturer: HAGER
Length [mm]: 73
Depth [mm]: 50
Installation: On the TH-35 rail
Price:
678,14 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Pulse concentrator, 7 inputs, RS485/MODBUS output

Technical data

  • Length [mm]
    73
  • Installation
    On the TH-35 rail
  • Width [mm]
    90
  • Operating temperature range [°C]
    from -10 to 55
  • Number of modules
    4
  • PKWIU
    26.51.20.0
  • Depth [mm]
    50
  • Level of security
    IP20
  • Height [mm]
    90
  • Rated switching voltage [V]
    100/230/400
  • storage temperature [°C]
    from -20 to 70

Other technical data

  • Mounting method
    DRA (DIN-rail adapter)
  • Type of primary energy
    Current
  • Interfaces data receiving
    Other
  • Suitable for degree of protection (IP)
    IP20
  • Max. number of counters
    7
  • Interfaces data transmission
    Other
  • Nominal frequency
    45 ... 65 Hz

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 24 pcs. 576 pcs.
Weight (kg) 0,265 0,275 6,964 190,136
Width (m) 0,100 0,100 0,318 0,800
Length (m) 0,080 0,082 0,211 0,994
Depth (m) 0,095 0,099 0,367 1,200
