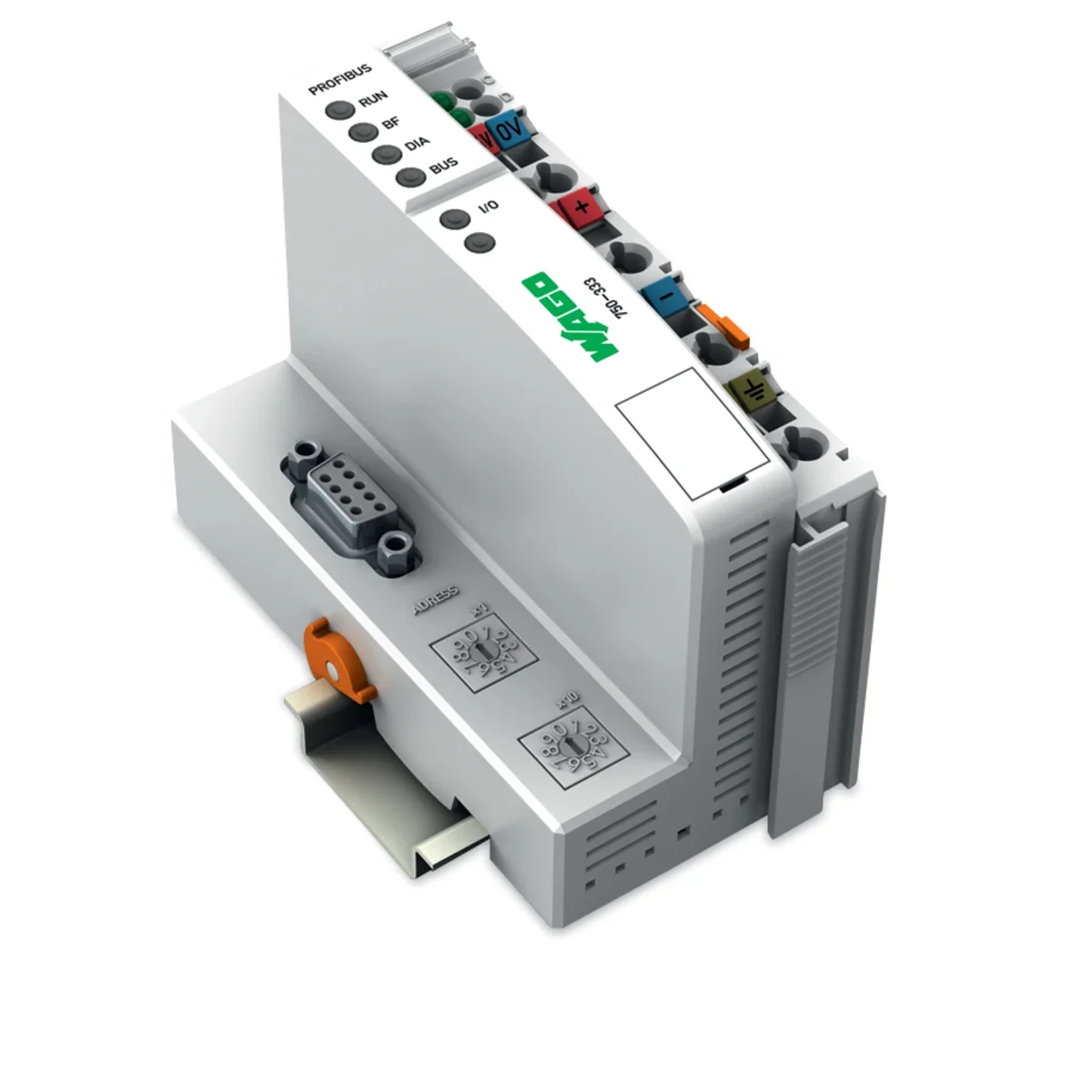

PROFIBUS DP/V1 12Mbit interface 750-333

local index:
API024WAGO
Catalog No:
750-333
EAN code:
4045454526856
Manufacturer: WAGO ELWAG
Color: Gray
Number of I/O modules: 96 with repeater
Maximum network length [m]: 100 - 1200 (depending on baud rate / cable type)
Price:
421,13 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

PROFIBUS DP/V1 network interface 12 MBaud binary and analog signals

Technical data

  • Color
    Gray
  • Maximum network length [m]
    100 - 1200 (depending on baud rate / cable type)
  • Series
    750
  • Accurate color
    light gray
  • Number of I/O modules
    96 with repeater
  • Clamp type
    CAGE CLAMP
  • Conformity mark
    CE

Other technical data

  • With integrated power supply
    Yes
  • Type of voltage (input voltage)
    DC
  • Number of HW-interfaces industrial Ethernet
    0
  • Number of HW-interfaces RS-232
    0
  • Number of HW-interfaces RS-485
    1
  • Number of HW-interfaces USB
    0
  • Number of HW-interfaces wireless
    0
  • With optical interface
    No
  • Supporting protocol for PROFIBUS
    Yes
  • Supporting protocol for INTERBUS
    No
  • Supporting protocol for KNX
    No
  • Supporting protocol for Data-Highway
    No
  • Supporting protocol for SUCONET
    No
  • Supporting protocol for SERCOS
    No
  • Supporting protocol for PROFINET CBA
    No
  • Supporting protocol for EtherNet/IP
    No
  • Supporting protocol for DeviceNet Safety
    No
  • Supporting protocol for PROFIsafe
    No
  • Supporting protocol for other bus systems
    No
  • Radio standard WLAN 802.11
    No
  • Radio standard GSM
    No
  • IO link master
    No
  • Degree of protection (IP)
    IP20
  • With pluggable modules, digital I/O
    Yes
  • With pluggable modules, communication modules
    Yes
  • With pluggable modules, central modules
    Yes
  • Type of electric connection
    Spring clamp connection
  • Fieldbus connection over separate bus coupler possible
    No
  • Rail mounting possible
    Yes
  • Front built-in possible
    No
  • Suitable for safety functions
    No
  • Appendant operation agent (Ex ib)
    No
  • Explosion safety category for dust
    ATEX dust-ex-protection, Cat. 3D
  • Height
    65 mm
  • Input voltage DC
    24 ... 24 V
  • Max. input current DC
    0.5 A
  • Number of interfaces PROFINET
    0
  • Number of HW-interfaces RS-422
    0
  • Number of HW-interfaces serial TTY
    0
  • Number of HW-interfaces parallel
    0
  • Number of HW-interfaces other
    0
  • Supporting protocol for TCP/IP
    No
  • Supporting protocol for CAN
    No
  • Supporting protocol for ASI
    No
  • Supporting protocol for Modbus
    No
  • Supporting protocol for DeviceNet
    No
  • Supporting protocol for LON
    No
  • Supporting protocol for PROFINET IO
    No
  • Supporting protocol for Foundation Fieldbus
    No
  • Supporting protocol for AS-Interface Safety at Work
    No
  • Supporting protocol for INTERBUS-Safety
    No
  • Supporting protocol for SafetyBUS p
    No
  • Radio standard Bluetooth
    No
  • Radio standard GPRS
    No
  • Radio standard UMTS
    No
  • System accessory
    Yes
  • Number of slots
    1
  • With pluggable modules, analogue I/O
    Yes
  • With pluggable modules, function and technology modules
    Yes
  • With pluggable modules, others
    Yes
  • With potential separation
    Yes
  • With bus coupler for modular station connection
    Yes
  • Wall mounting/direct mounting
    No
  • Rack-assembly possible
    No
  • Appendant operation agent (Ex ia)
    No
  • Explosion safety category for gas
    ATEX gas-ex-protection, Cat. 3G
  • Width
    51 mm
  • Depth
    100 mm

Bulk packaging

A kind of package Karton
Quantity 1 pcs.
Weight (kg) 0,210
Volume (m3) 0,000
Width (m) 0,056
Length (m) 0,104
Depth (m) 0,074
