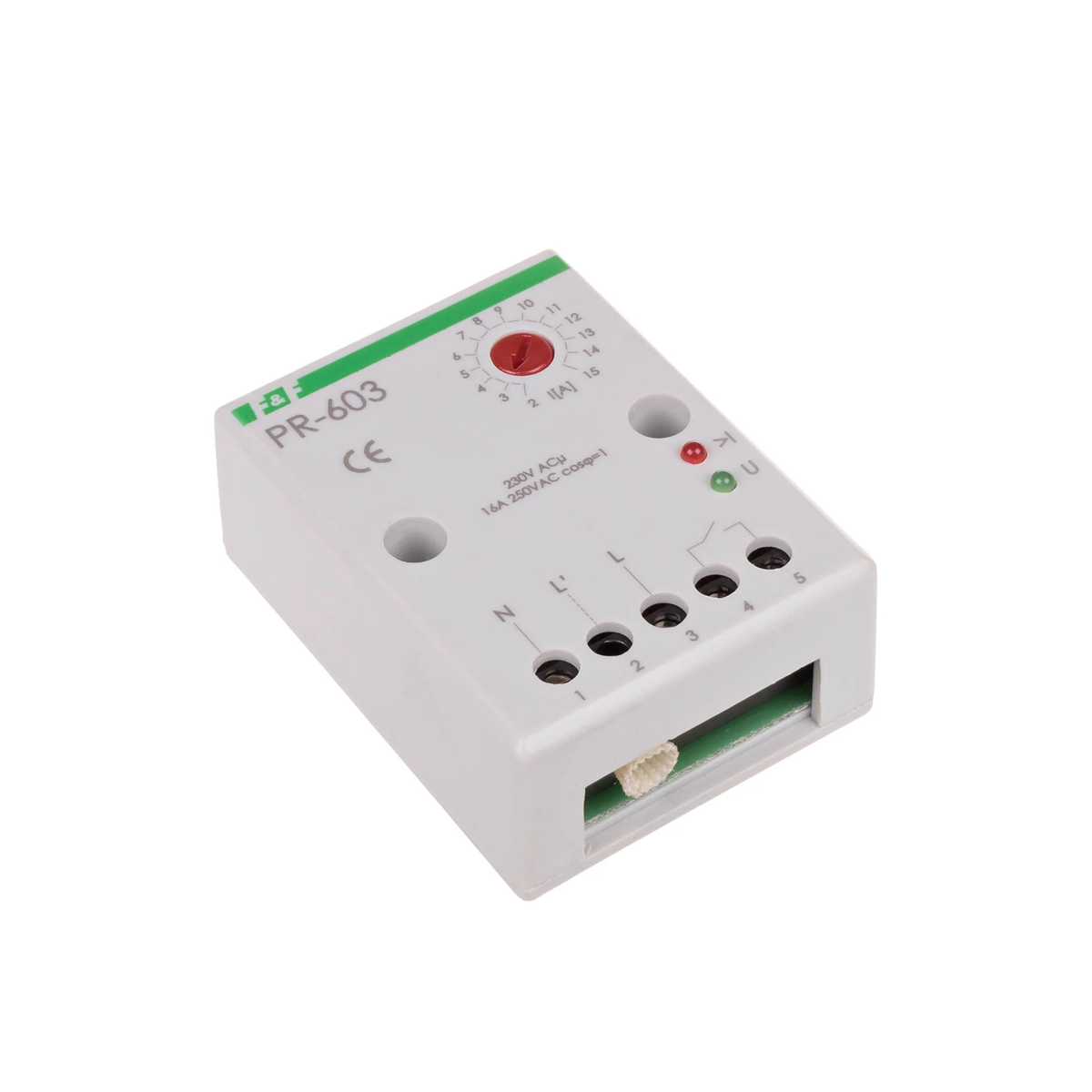

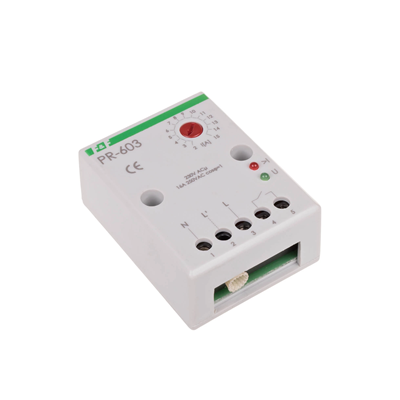

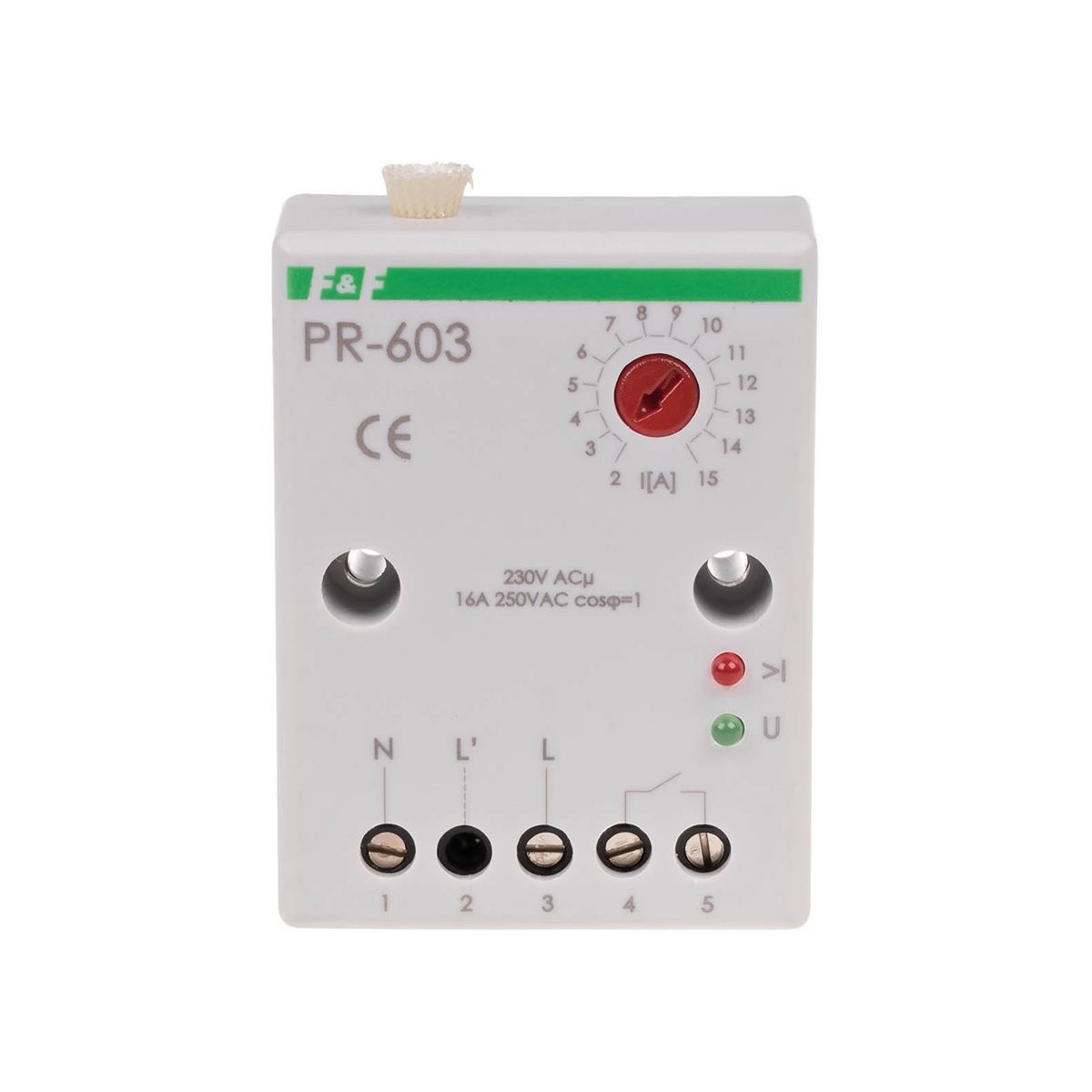

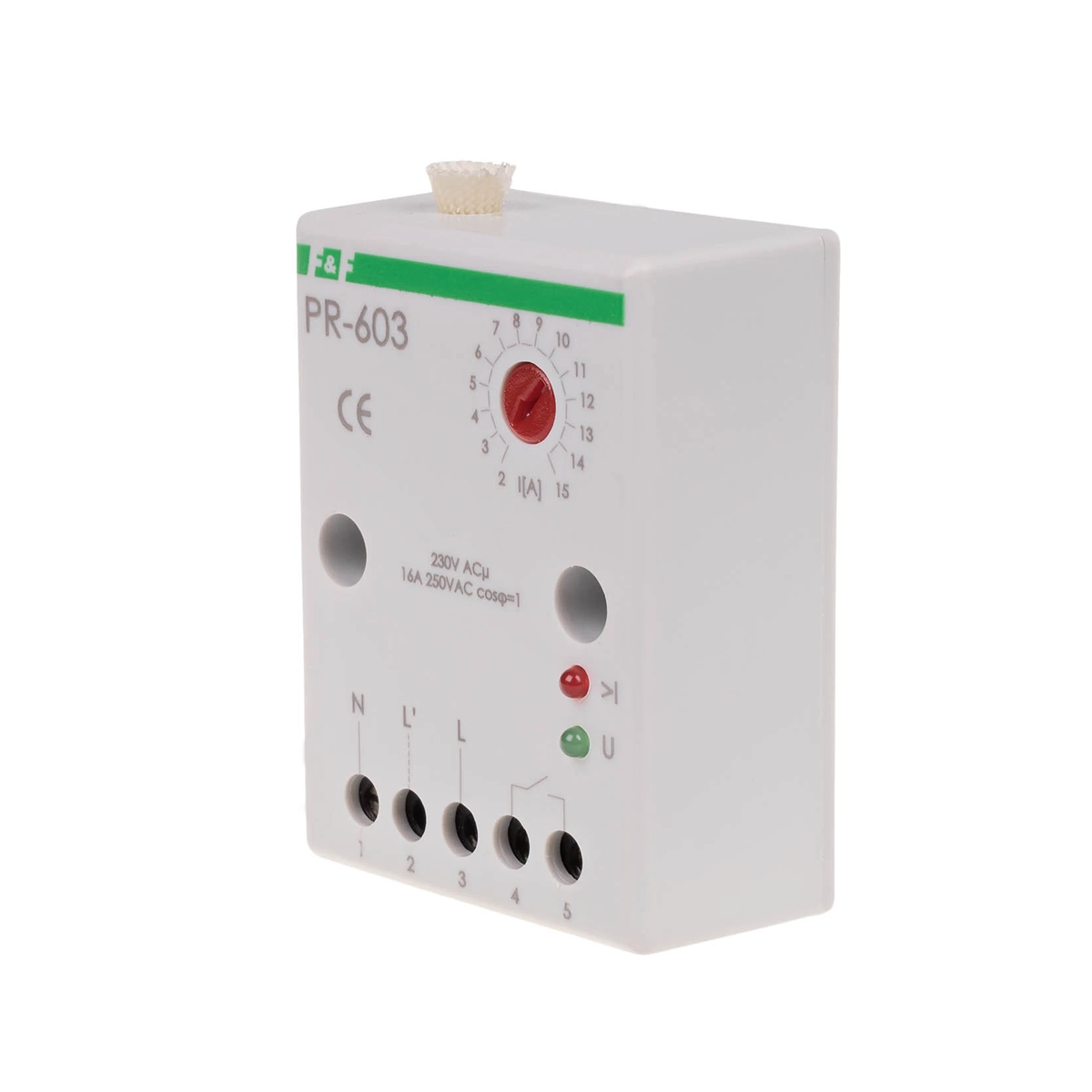

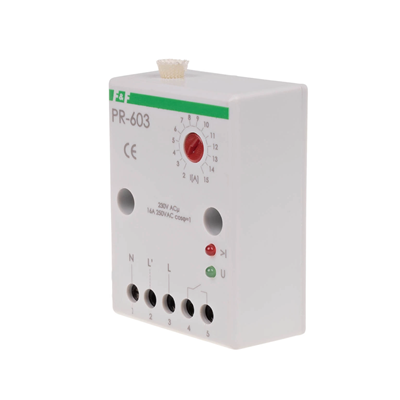

Priority relay with a pass-through channel for the receiver's current cable PR-603
local index:
API092FIFQ
Catalog No:
PR-603
EAN code:
5908312595946
Price:
29,42 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Priority relays are used, among others, when at least two high-power receivers are connected to the current circuit, which can work independently, and their simultaneous operation would trigger the current protection.
| Through duct insulation | Glass silk impregnated with rubber |
| Current of priority receivers | Limited by cable cross-section< /td> |
Technical data
-
Return hysteresis [%]10
-
Power [W]0.4
-
Current of non-priority receivers [A]<16
-
Power [V]230
-
Package width [mm]50
-
Insulation resistance [Ω]108
-
PKWIU27.12.24.0
-
Number of contacts1NO 0NC
-
Return delay [s]0.1
-
Working temperature [°C]-25-50
-
Package height [mm]67
-
Package weight [kg]0.2
-
Switching delay [s]0.1
Other technical data
-
Rated voltage230 V
-
Max. continuous current16 A
-
Voltage typeAC
-
Degree of protection (IP)IP20
-
Max. time-delayed switch-off100 ms
-
Rated current (control contacts)15 A
-
Mounting methodDIN rail
Manufacturer details
-
ManufacturerF&F Filipowski S.K.
-
Address95-200 Pabianice Konstantynowska 79/81 Polska
-
E-mail
Bulk packaging
| A kind of package | Sztuka |
| Quantity | 1 pcs. |
| Weight (kg) | 0,078 |
| Width (m) | 0,031 |
| Length (m) | 0,095 |
| Depth (m) | 0,070 |
