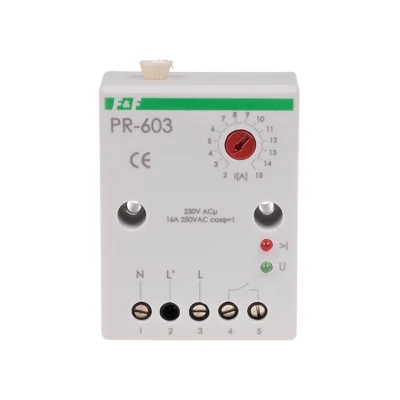

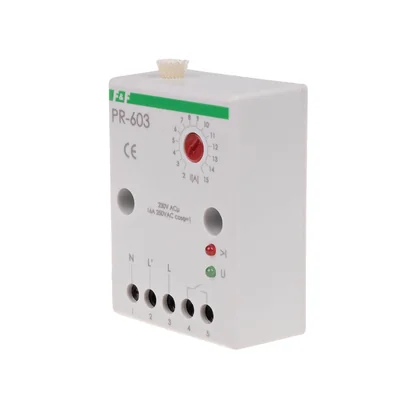

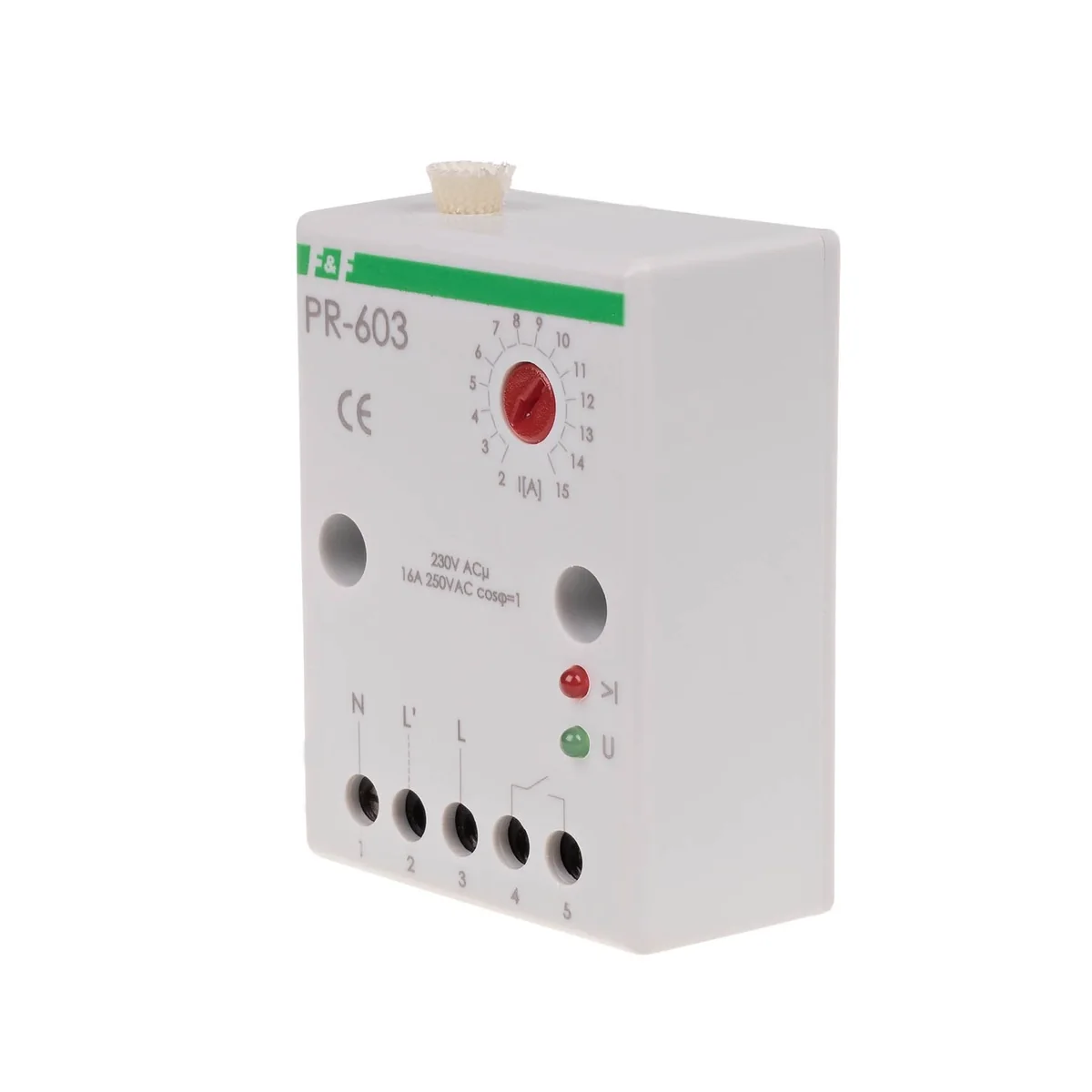

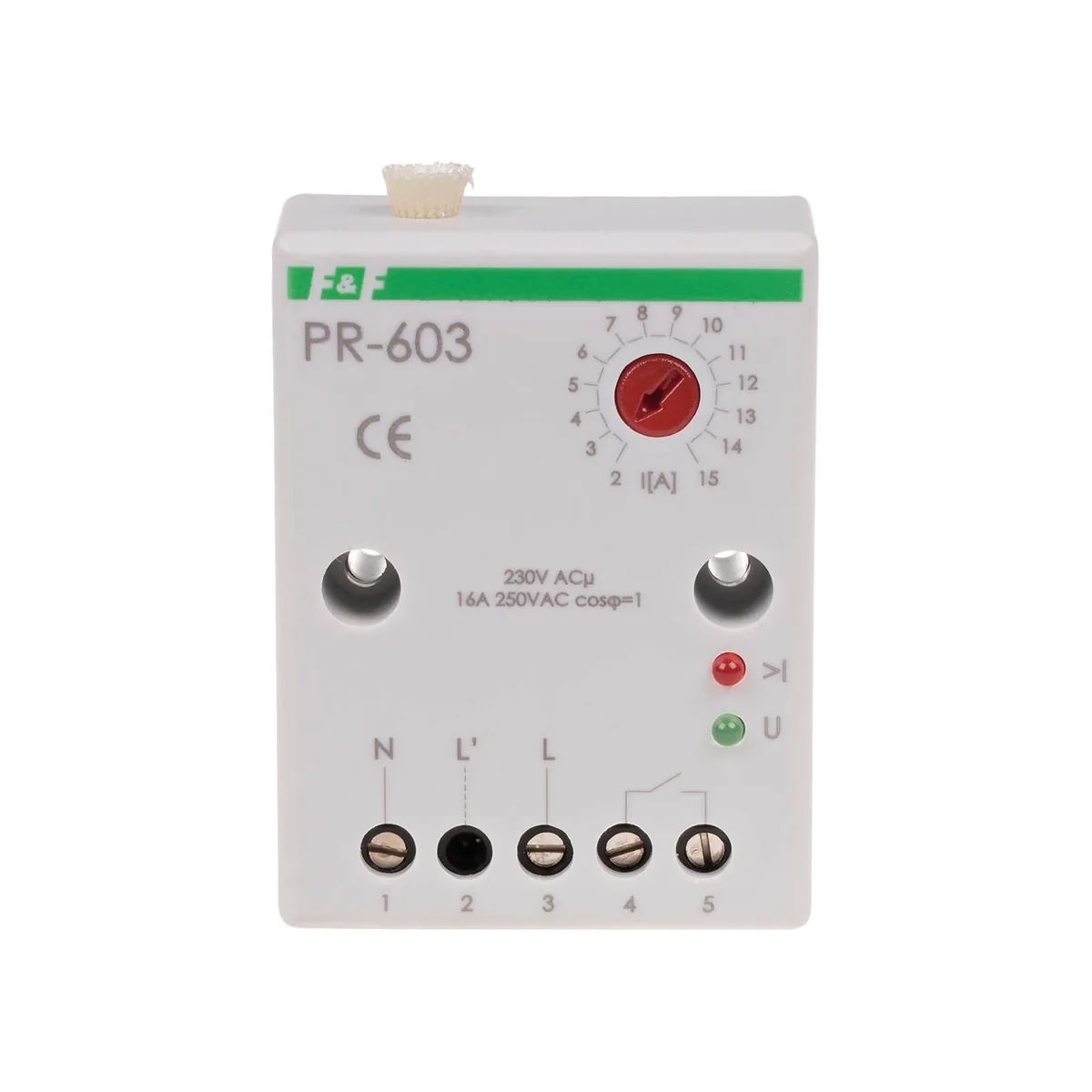

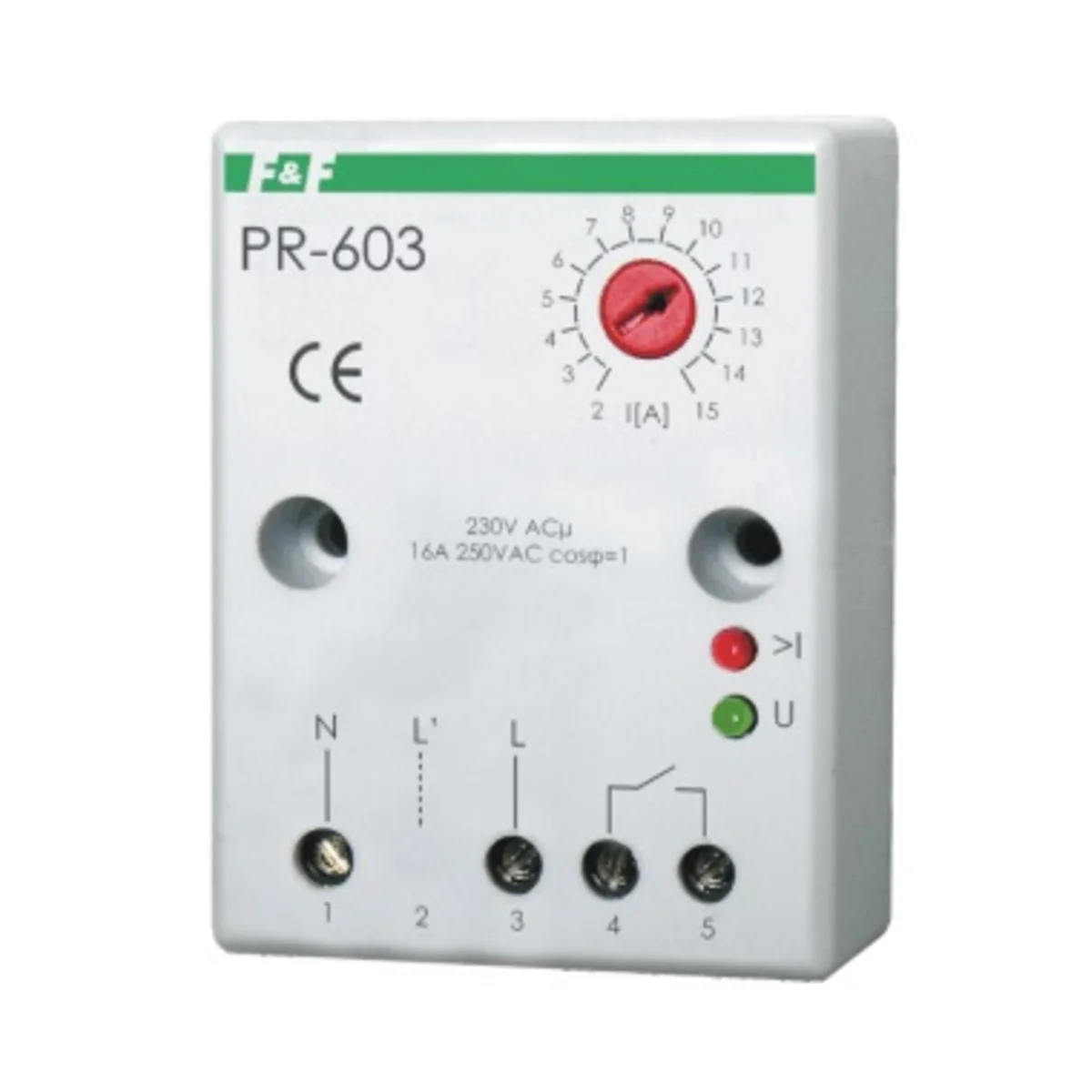

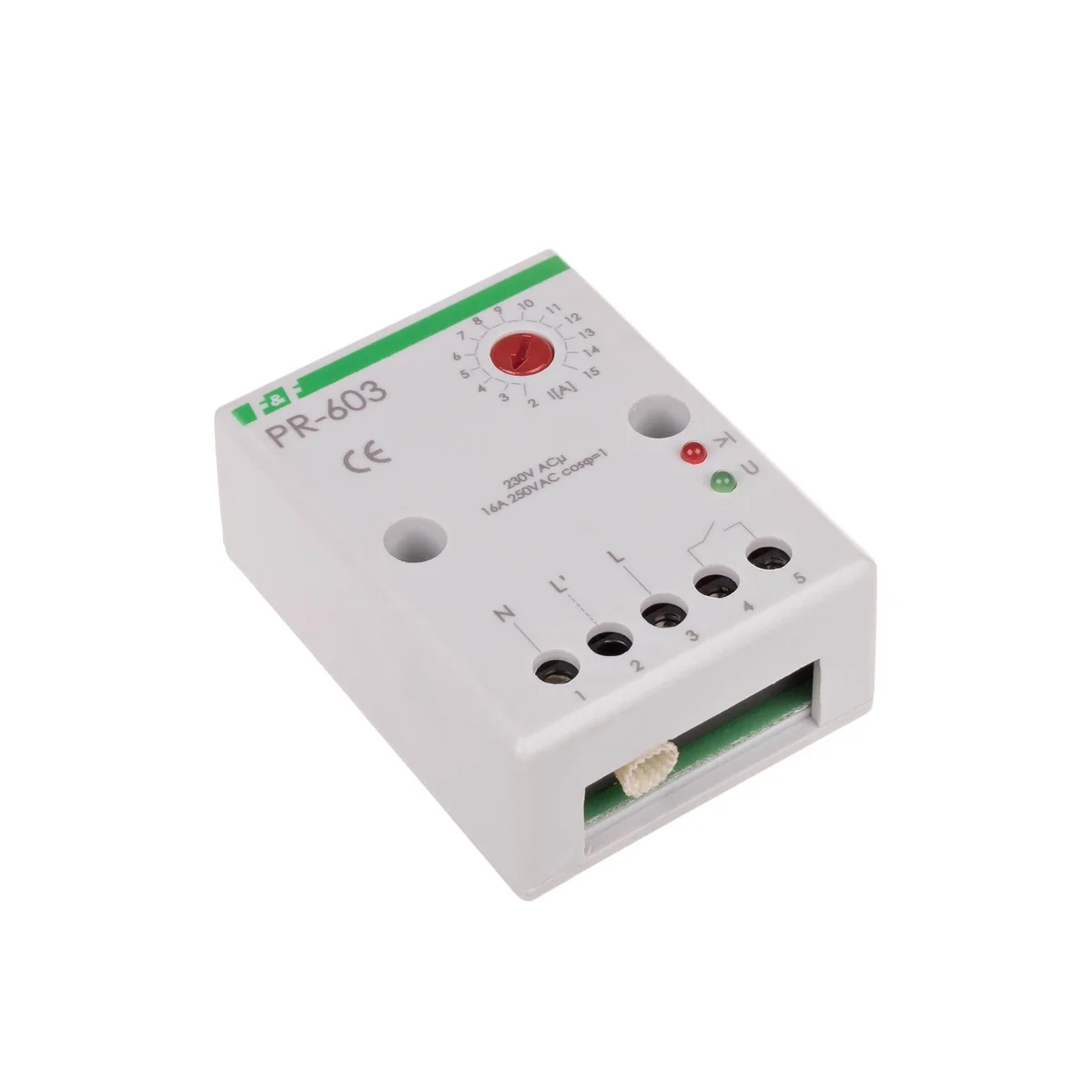

Priority relay with a pass-through channel for the receiver's current cable PR-603
Lokaler Index:
API092FIFQ
Katalognummer:
PR-603
EAN-Code:
5908312595946
Preis:
128,56 zł
gross / stk.
(inklusive MwSt 23%)
Auf Bestellung
Menge stk.
(mehrere:
1
)
Zur Angebotsanfrage hinzufügen
Zur Zwischenablage hinzufügen
Drucken
Fragen Sie nach dem Produkt
Produktbeschreibung
Priority relays are used, among others, when at least two high-power receivers are connected to the current circuit, which can work independently, and their simultaneous operation would trigger the current protection.
| Through duct insulation | Glass silk impregnated with rubber |
| Current of priority receivers | Limited by cable cross-section< /td> |
Technische Daten
-
Return hysteresis [%]10
-
Power [W]0.4
-
Current of non-priority receivers [A]<16
-
Power [V]230
-
Package width [mm]50
-
Insulation resistance [Ω]108
-
PKWIU27.12.24.0
-
Number of contacts1NO 0NC
-
Return delay [s]0.1
-
Working temperature [°C]-25-50
-
Package height [mm]67
-
Package weight [kg]0.2
-
Switching delay [s]0.1
Weitere technische Daten
-
Rated voltage230 V
-
Max. time-delayed switch-off100 ms
-
Number of contacts as normally open contact1
-
Number of contacts as change-over contact0
-
Max. switching voltage (control contacts)250 V
-
Electrical lifespan (control contacts)100000 c
-
Max. electrical switching cycles0 c/h
-
Mounting methodOther
-
Built-in depth0 mm
-
Just-operate current2 ... 15 A
-
Max. continuous current16 A
-
Number of contacts as normally closed contact0
-
Rated current (control contacts)16 A
-
Max. switching power (control contacts)4000 VA
-
Mechanical lifetime (control contacts)1000000 c
-
Voltage typeAC
-
Width in number of modular spacings0
-
Degree of protection (IP)IP20
Hersteller-Details
-
HerstellerF&F Filipowski S.K.
-
Adresse95-200 Pabianice Konstantynowska 79/81 Polska
-
E-Mail
Großpackungen
| Eine Art Paket | Sztuka |
| Menge | 1 stk. |
| Gewicht (kg) | 0,078 |
| Breite (m) | 0,031 |
| Länge (m) | 0,095 |
| Tiefe (m) | 0,070 |
