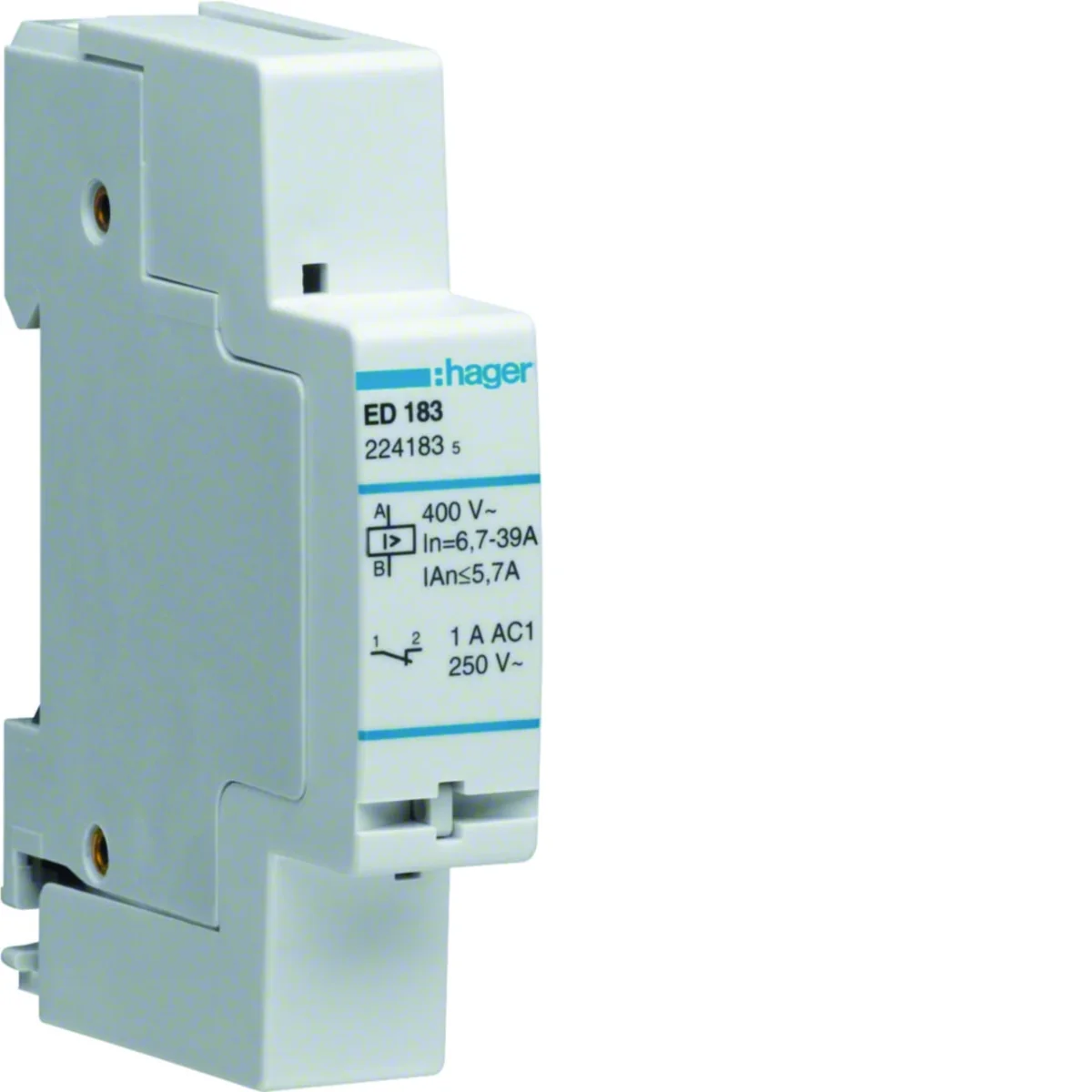

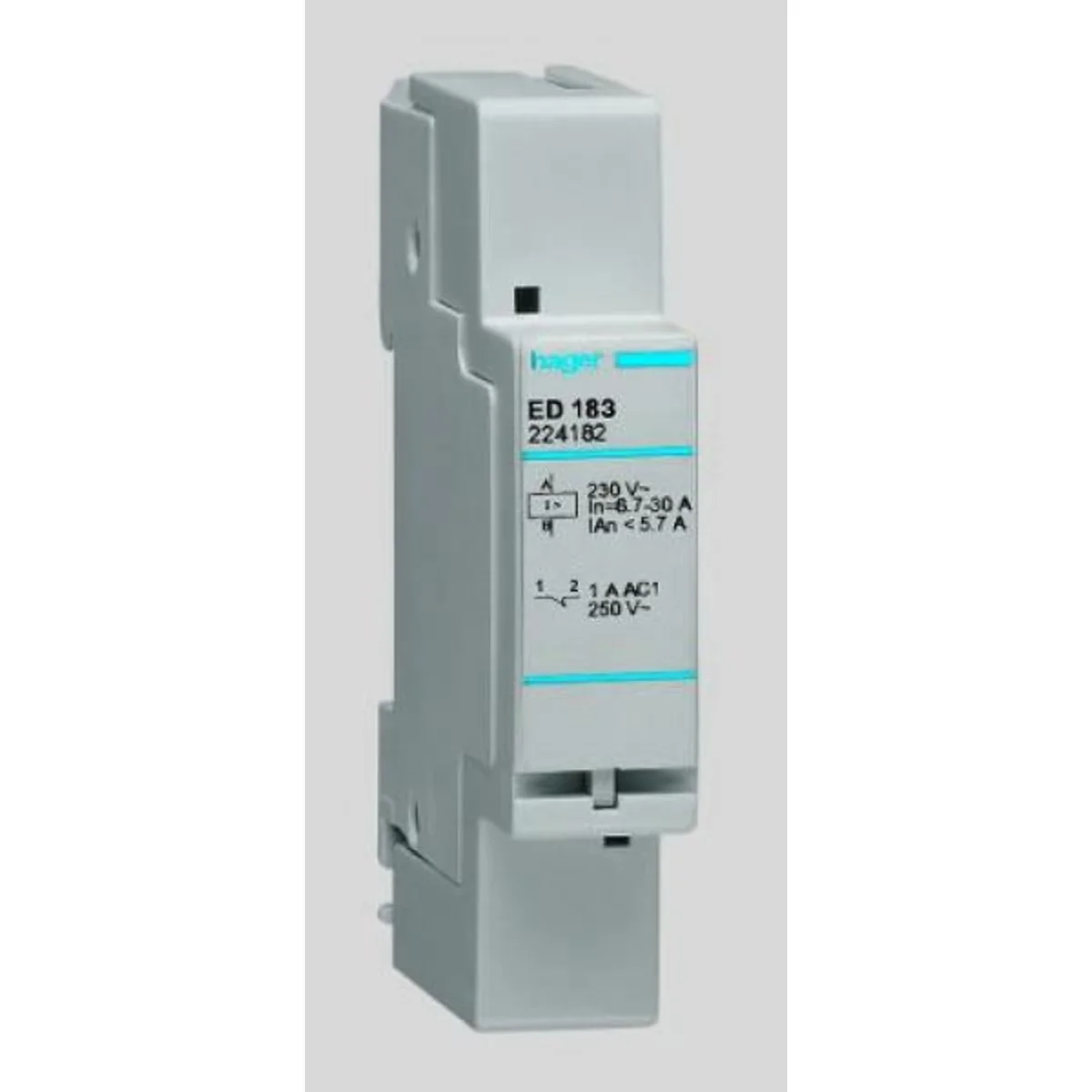

Priority relay 6 7-39A 27kW ED183

local index:
APP025HAGE
Catalog No:
ED183
EAN code:
3250612241835
Manufacturer: HAGER
Number of modules: 1
Width [mm]: 17.5
Height [mm]: 83
Price:
75,24 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

The priority relay is designed to prevent overloading of the building installation due to the simultaneous switching on of many large current consumers (e.g. flow heater).
The coil of the ED183 priority relay is connected in series with the priority receiver. When this load is switched on, the output contact opens and switches off the load contactor without priority.

Technical data

  • Number of modules
    1
  • Height [mm]
    83
  • Switching delay [s]
    20
  • PKWIU
    27.12.24.0
  • Width [mm]
    17.5
  • Breaking capacity
    1A 250V AC1
  • Number of modules
    1

Other technical data

  • Rated voltage
    230 V
  • Just-operate current
    3.1 ... 5.7 A
  • Max. continuous current
    39 A
  • Number of contacts as normally closed contact
    0
  • Rated current (control contacts)
    1 A
  • Max. switching power (control contacts)
    230 VA
  • Mechanical lifetime (control contacts)
    10000000 c
  • Mounting method
    DIN rail
  • Built-in depth
    60 mm
  • Rated current Iu
    6.7 ... 39 A
  • Max. time-delayed switch-off
    10 ms
  • Number of contacts as normally open contact
    1
  • Number of contacts as change-over contact
    0
  • Max. switching voltage (control contacts)
    230 V
  • Electrical lifespan (control contacts)
    1000000 c
  • Voltage type
    AC
  • Width in number of modular spacings
    1
  • Degree of protection (IP)
    IP40

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 108 pcs. 2592 pcs.
Weight (kg) 0,089 0,105 10,750 281,000
Width (m) 0,017 0,080 0,315 0,800
Length (m) 0,083 0,025 0,210 1,050
Depth (m) 0,070 0,095 0,360 1,200
