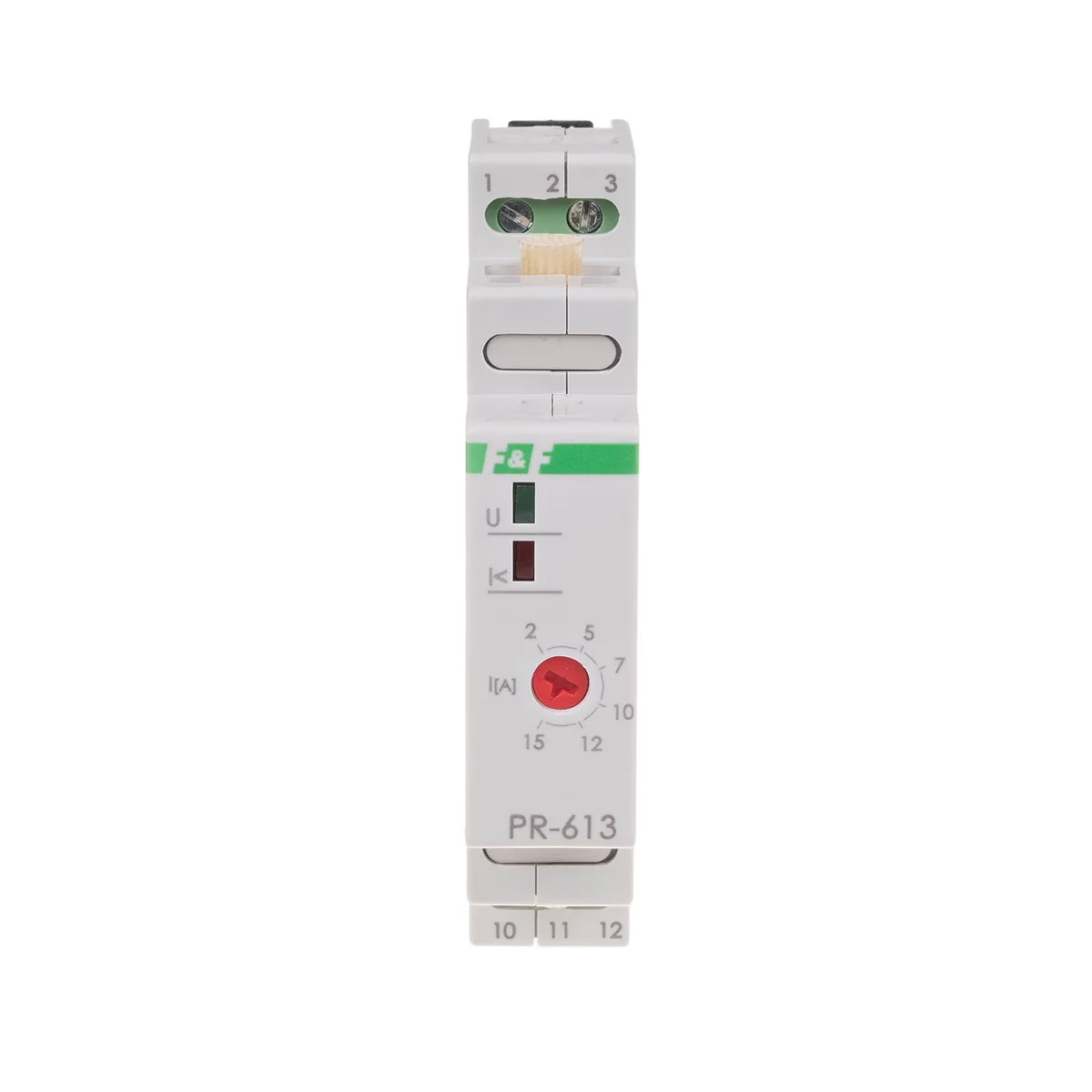

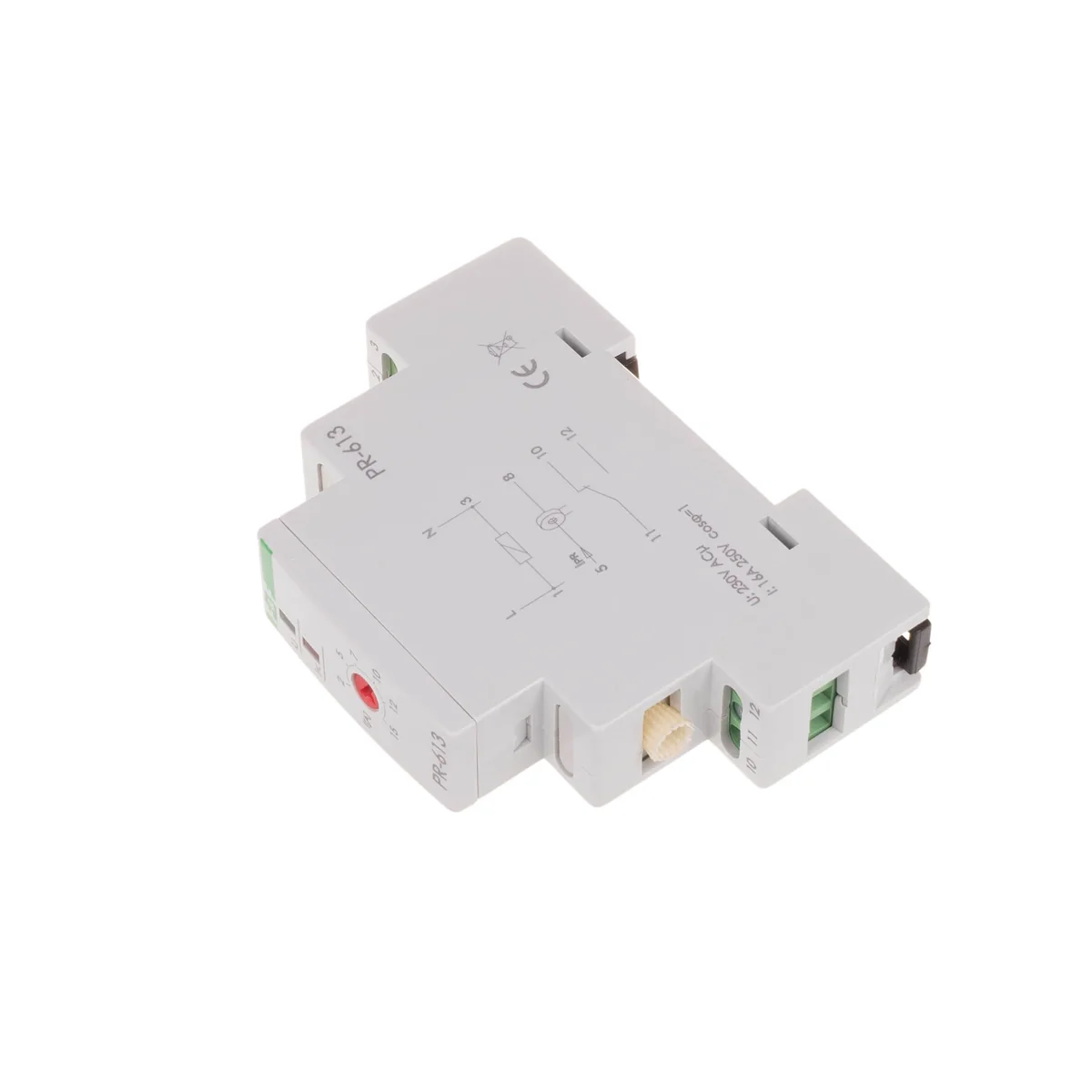

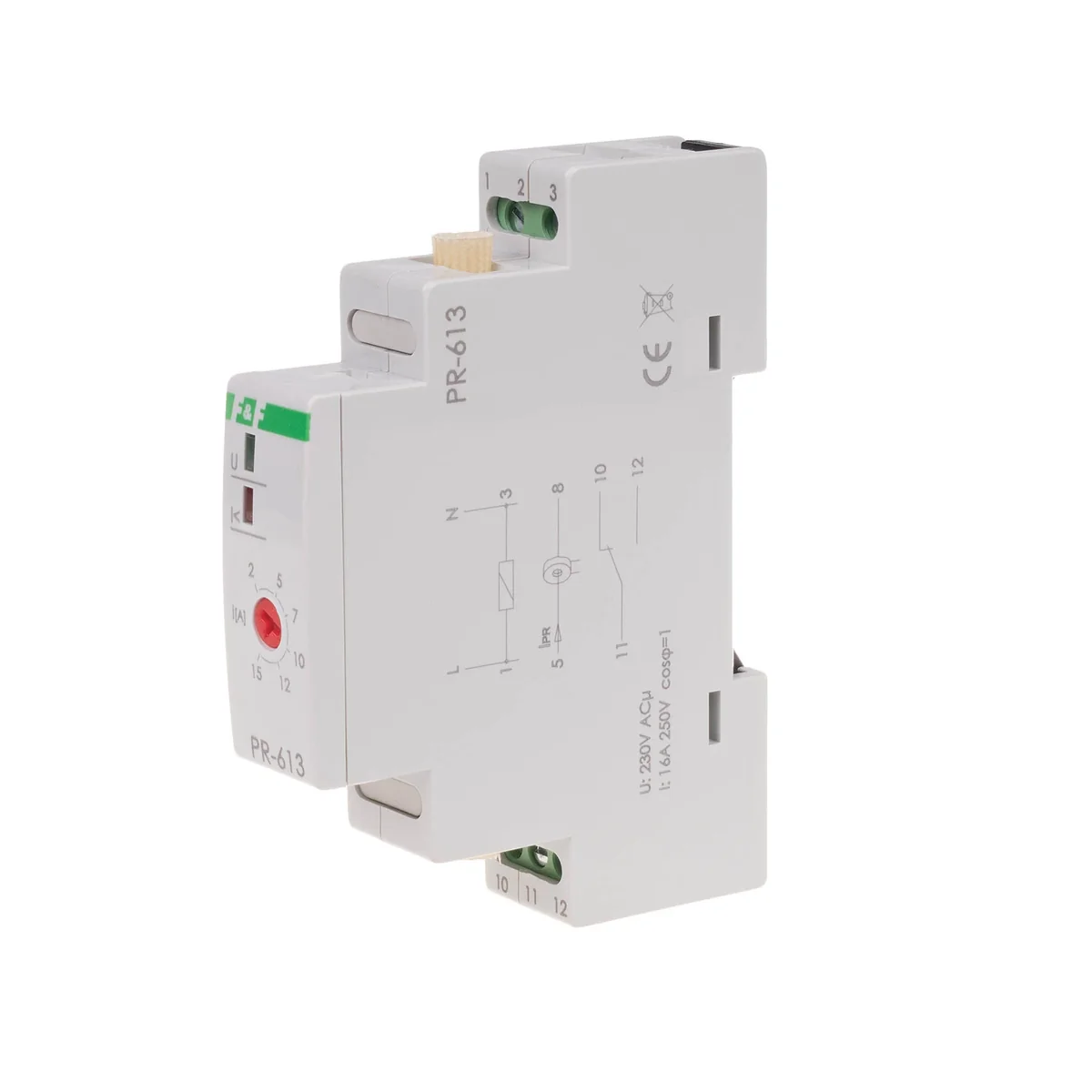

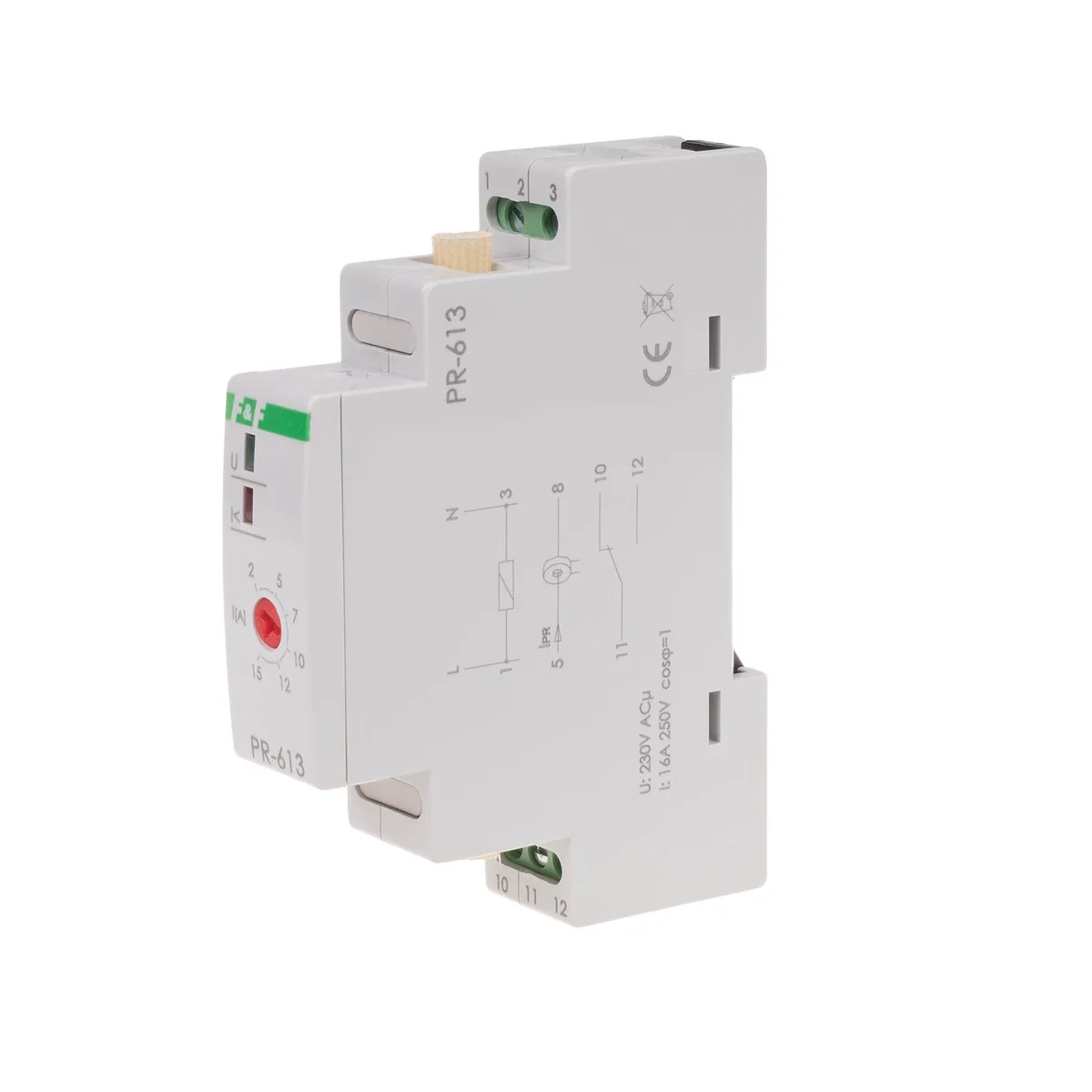

Click on the photo to enlarge

F&F

PR-613 priority relay PR-613

local index:
APP135FIFQ
Catalog No:
PR-613
EAN code:
5908312595915
Price:
36,00 €
gross / pcs.
including VAT 23%
Availability:
up to 2 weeks (business days)
Delivery:
From 3,71 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details

Product description

Intended use
Priority relays are used, among others, when the current circuit is connected to at least two high-power receivers that can work independently, and their simultaneous operation would trigger the current protection.
Operation
The potentiometer is used to set the value of current consumption in the priority circuit, above which the relay disconnects the non-priority circuit. A decrease in the current consumption in the priority circuit below the set threshold value will automatically switch on the non-priority circuit. In case the receiver is already enabled. the priority relay will prevent the load from being switched on. Note!
 The current of the priority receiver may be greater than 15A. It is limited only by the cross-section of the current cable  receiver (separated from the measuring system) threaded  by  channel  relay.

Technical data

  • Return hysteresis [%]
    10
  • Power [W]
    0.4
  • Rated voltage [V]
    230
  • Current of non-priority receivers [A]
    16
  • Switching current - adjustable [A]
    2-15
  • Working temperature [°C]
    -25-50
  • Package height [mm]
    150
  • Package weight [kg]
    0, 1
  • Switching delay [s]
    0.1
  • Number of contacts
    1NO 0NC
  • Installation
    On the TH-35 rail
  • Return delay [s]
    0, 1
  • Current of priority receivers [A]
    Limited by the cross-section of the wire, through-hole (max. = 4mm)
  • connection
    2.5mm screw terminals
  • Dimensions
    1 module (18mm)
  • Package width [mm]
    20
  • Switching delay
    0.1 sec

Other technical data

  • Rated voltage
    230 V
  • Max. time-delayed switch-off
    100 ms
  • Rated current (control contacts)
    15 A
  • Mounting method
    DIN rail
  • Just-operate current
    2 ... 15 A
  • Max. continuous current
    16 A
  • Voltage type
    AC
  • Degree of protection (IP)
    IP20
