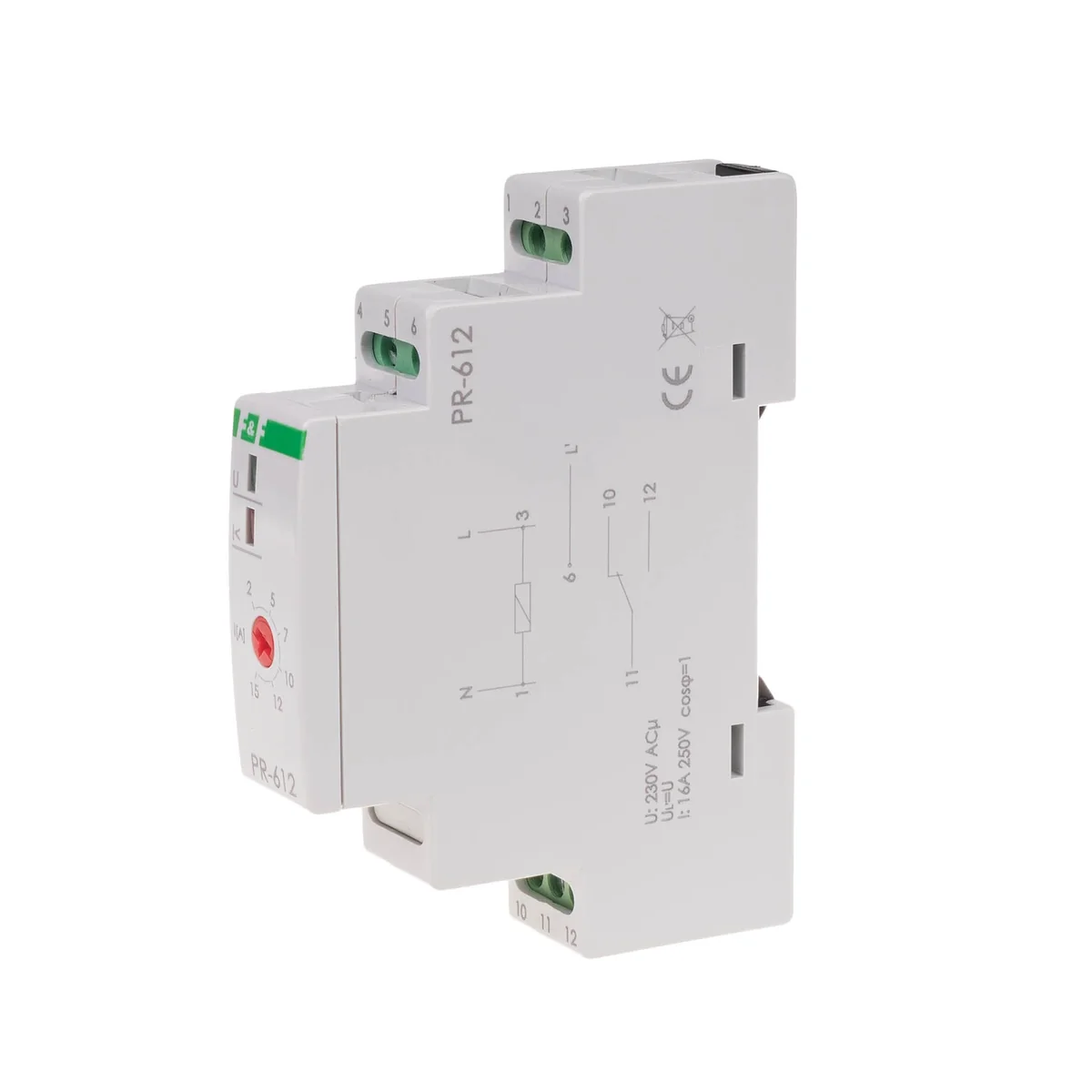

PR-612 priority relay PR-612

local index:
APP128FIFQ
Catalog No:
PR-612
EAN code:
5908312595908
Manufacturer: F&F
Return hysteresis [%]: 10
Number of contacts: 1NO 0NC
Power [W]: 0.4
Price:
34,65 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 17 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Intended use
Priority relays are used, among others, when the current circuit is connected to at least two high-power receivers that can work independently, and their simultaneous operation would cause the current protection to trip.
Operation

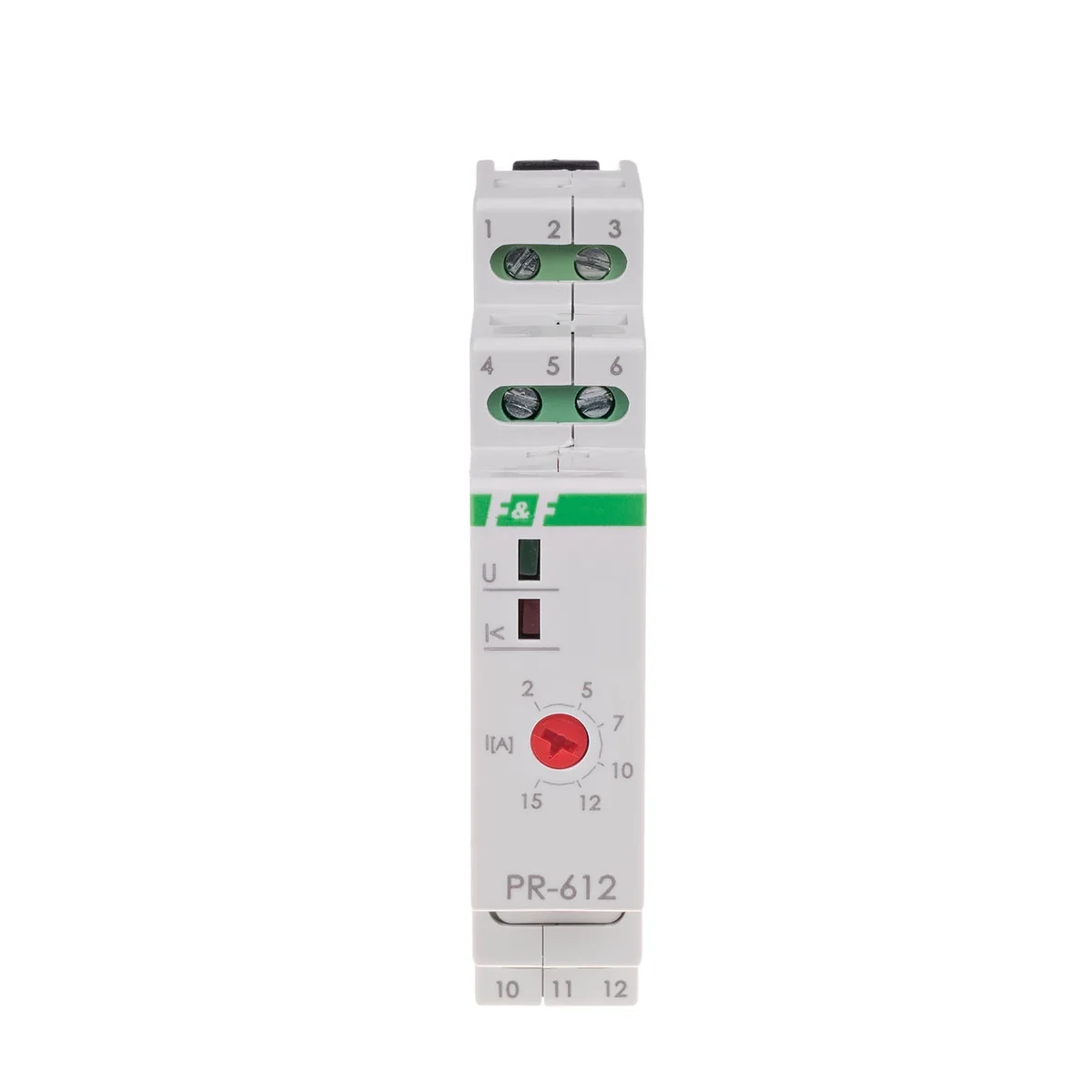

The potentiometer is used to set the value of current consumption in the priority circuit, above which the relay disconnects the non-priority circuit. A decrease in the current consumption in the priority circuit below the set threshold value will automatically switch on the non-priority circuit. In case the receiver is already enabled. the priority relay will prevent the load from being switched on.
Attention!
The current of the priority and non-priority receiver cannot exceed 16A.

Technical data

  • Return hysteresis [%]
    10
  • Power [W]
    0.4
  • Rated voltage [V]
    230
  • Current of non-priority receivers [A]
    16
  • Switching current - adjustable [A]
    2-15
  • Working temperature [°C]
    -25-50
  • Luminaire dimensions [mm]
    1 module (18mm)
  • Package width [mm]
    20
  • Switching delay
    0.1 sec
  • PKWIU
    27.12.24.0
  • Number of contacts
    1NO 0NC
  • Installation
    On the TH-35 rail
  • Return delay [s]
    0.1
  • Current of priority receivers [A]
    <16
  • connection
    2.5mm screw terminals
  • Dimensions
    1 module (18mm)
  • Package height [mm]
    150
  • Package weight [kg]
    0.1
  • Switching delay [s]
    0.1

Other technical data

  • Rated voltage
    230 V
  • Max. continuous current
    16 A
  • Voltage type
    AC
  • Degree of protection (IP)
    IP20
  • Max. time-delayed switch-off
    100 ms
  • Rated current (control contacts)
    15 A
  • Mounting method
    DIN rail

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs.
Weight (kg) 0,077
Width (m) 0,019
Length (m) 0,095
Depth (m) 0,070
