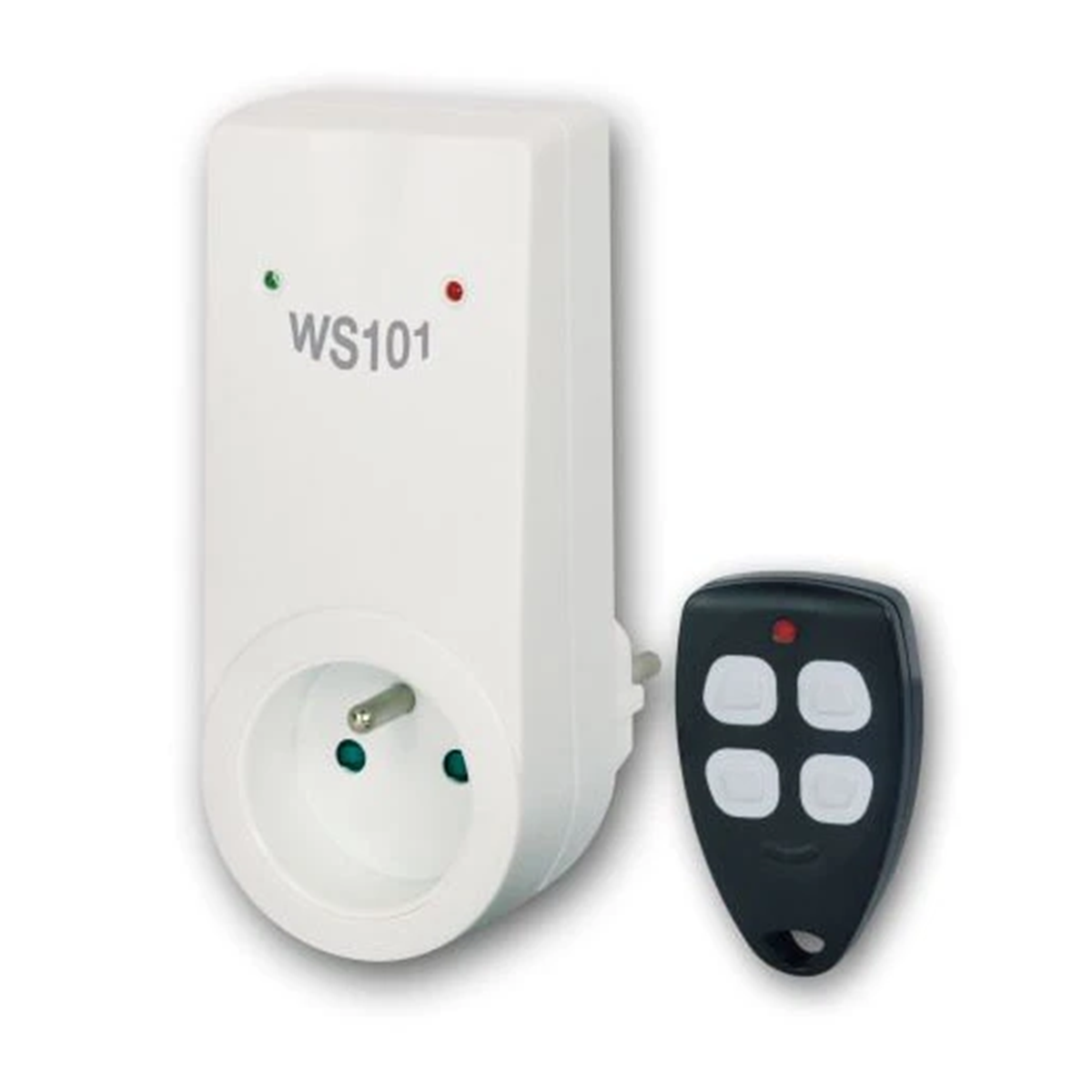

Power switch for WS101 remote control WS101

Power switch for Elektrobock remote control

• 433.92 MHz radio transmission
• controlling four-channel remote four sockets (one socket can be controlled from eight remotes)
• system  self-learning code (similar devices do not interfere)
• monostable circuit (turning the device on and off with one button)
• bistable circuit (one button on, second button off)
• work as a time switch (on with one button, off automatically according to the programmed time)

Transmitter:

• power supply: 1 x 6V alc. 11A
• number of channels: 4
• frequency[MHz]: 433.92
• signal power[µW]: < 200
• battery life: 2 years
• protection rating: IP44
• operating temperature[°C]: 0 to 50

Receiver:

• power supply: 230V / 50Hz
• max power[W]: 3500
• element control: relay
• range[m]: 20
• < span style="color: rgb(128, 128, 128);">signal strength[dBm]: < -86
• ingress protection: IP20
• operating temperature[°C]: 0 to 50
