Power supply control lamp - three-phase LK-713R LK-713R

local index:
API009FIFQ
Catalog No:
LK-713R
EAN code:
5908312596028
Manufacturer: F&F
Power [W]: 1.1
Installation: On the TH-35 rail
Rated voltage [V]: 230
Price:
7,82 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 29 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

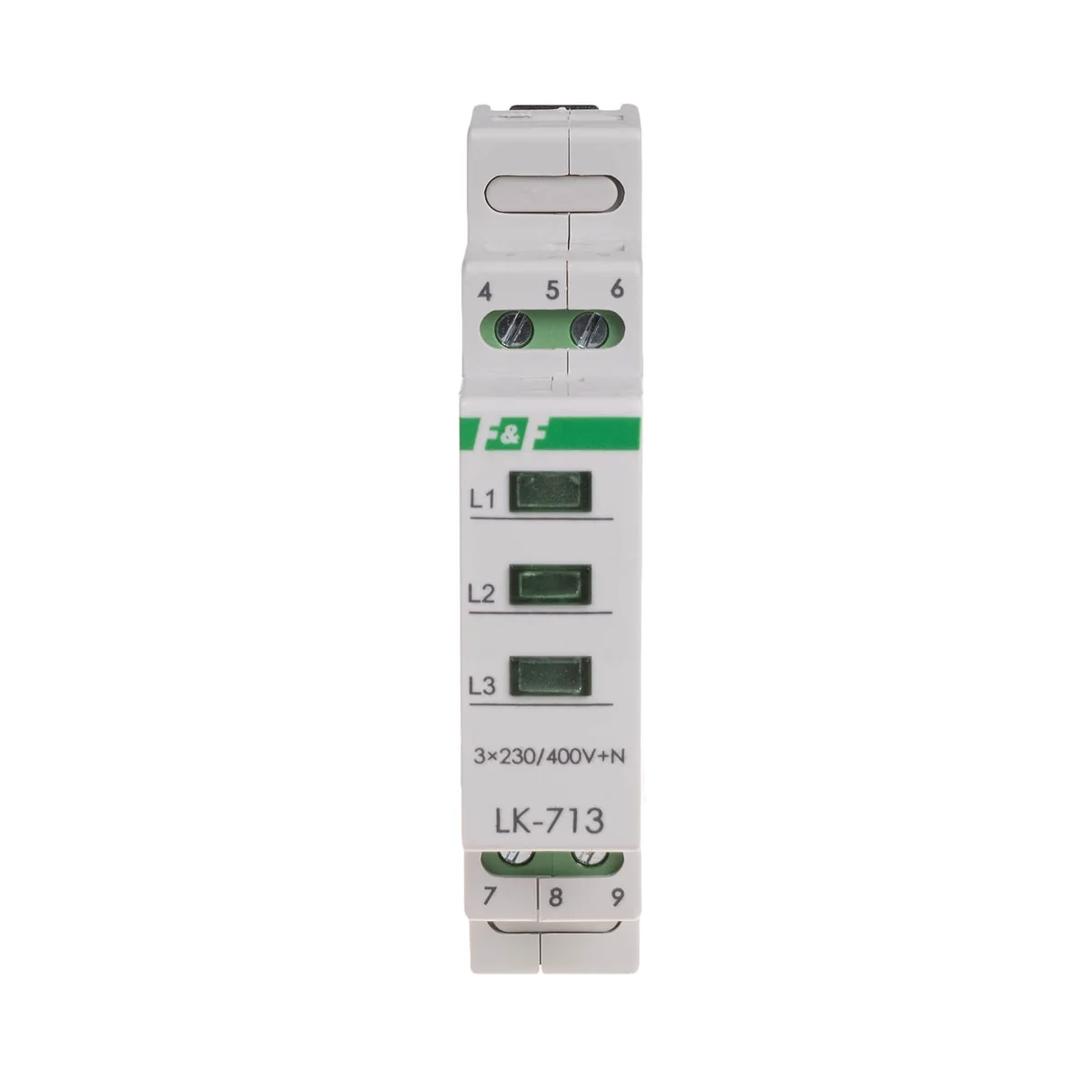

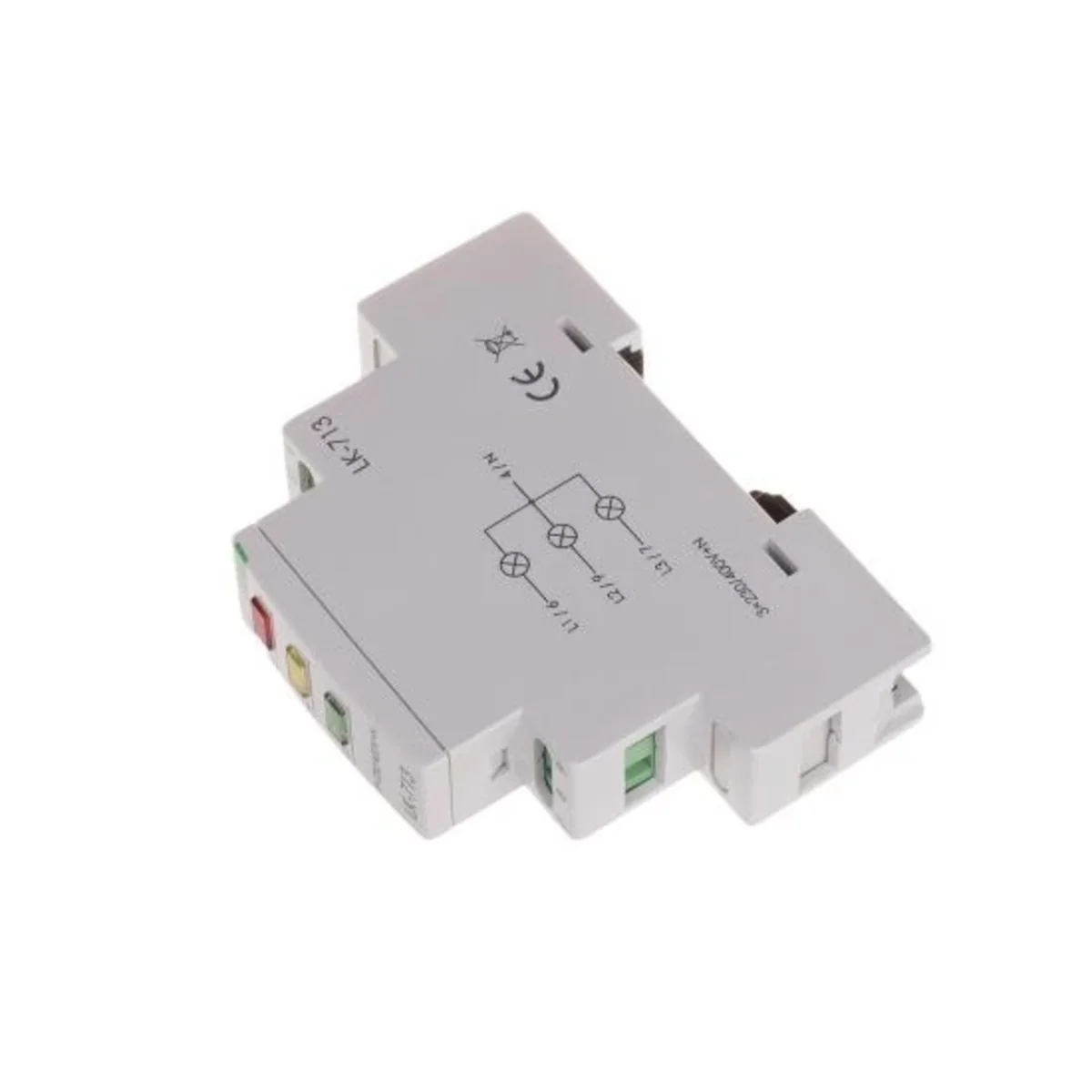

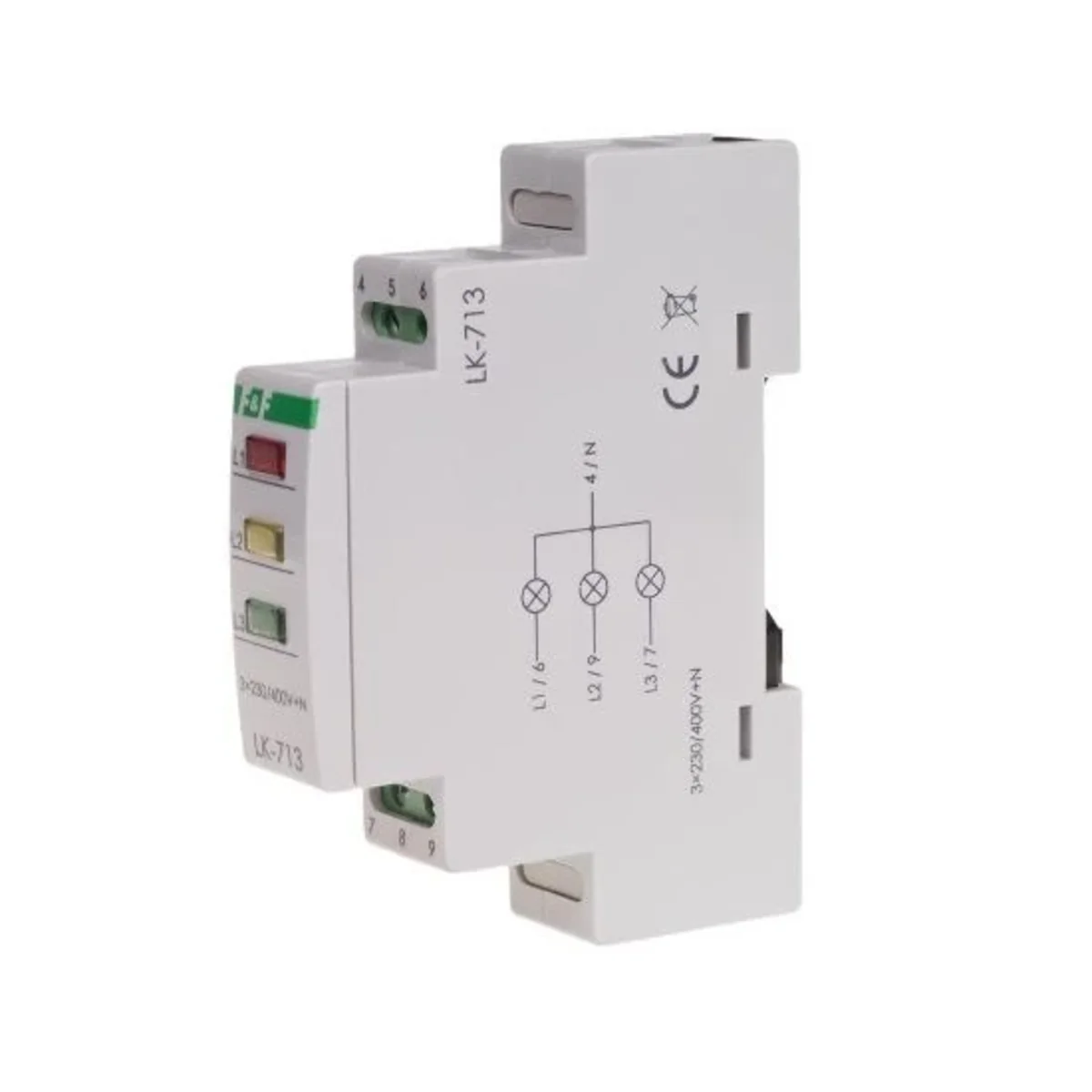

The LK-713 signaling lamp is used for optical signaling of the presence of voltage in individual phases of a three-phase network. The presence of voltage in a phase is indicated by the lighting of the appropriate LED connected to the circuit of this phase.

Technical data

  • Power [W]
    1.1
  • Rated voltage [V]
    230
  • Power indication
    3×LED
  • Dimensions
    1 module (18mm)
  • Package width [mm]
    20
  • PKWIU
    27.40.24.0
  • Installation
    On the TH-35 rail
  • connection
    Screw 2.5mm
  • Working temperature [°C]
    -25-50
  • Package height [mm]
    150
  • Package weight [kg]
    0.1

Other technical data

  • Colour calotte
    Red
  • Lamp socket
    Other
  • Rated voltage
    230 V
  • Width in number of modular spacings
    1
  • Degree of protection (IP)
    IP20
  • Lamp type
    LED
  • Max. lamp power
    1.1 W
  • Voltage type
    AC
  • Built-in depth
    65 mm

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs.
Weight (kg) 0,043
Width (m) 0,019
Length (m) 0,095
Depth (m) 0,070
